Description
Description

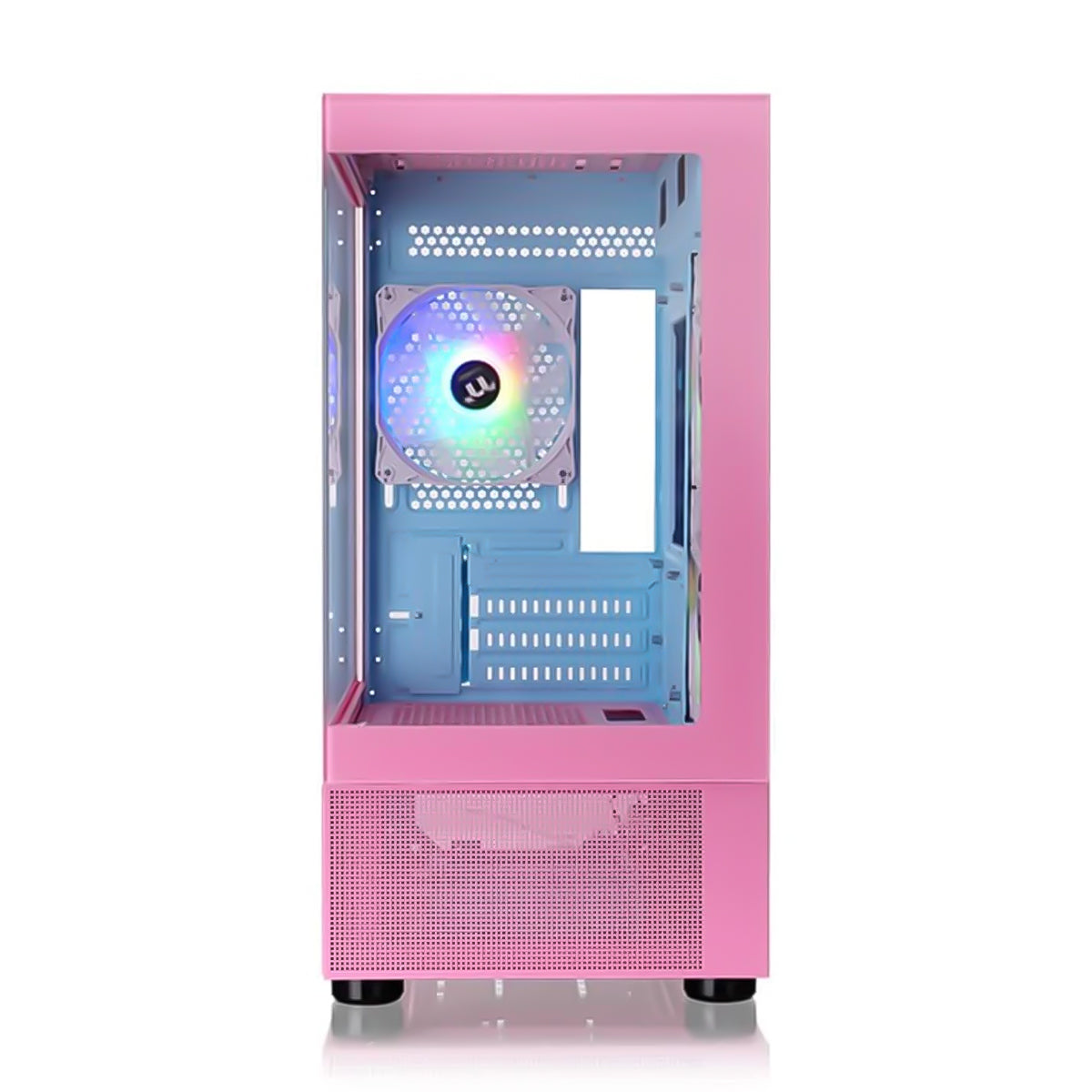

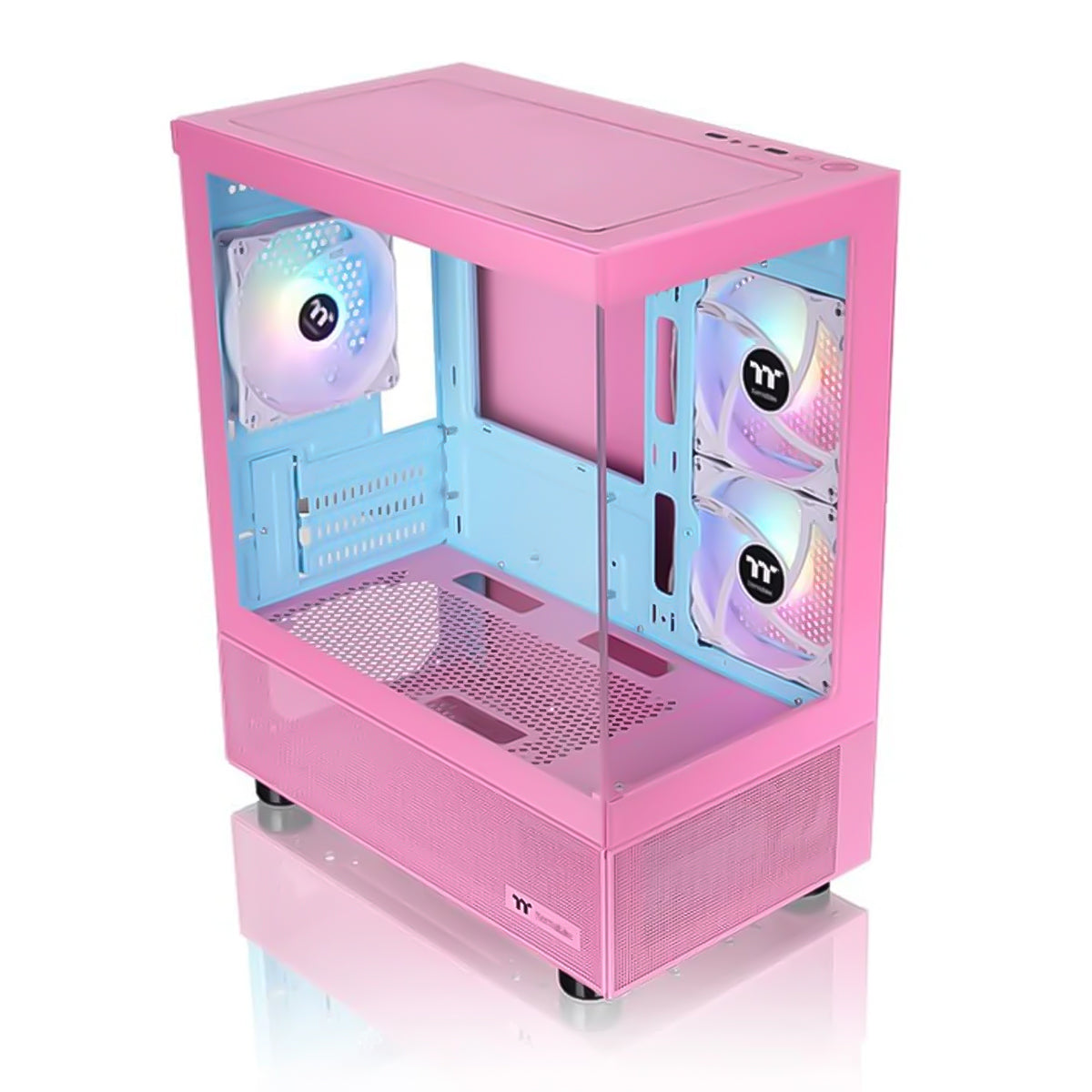

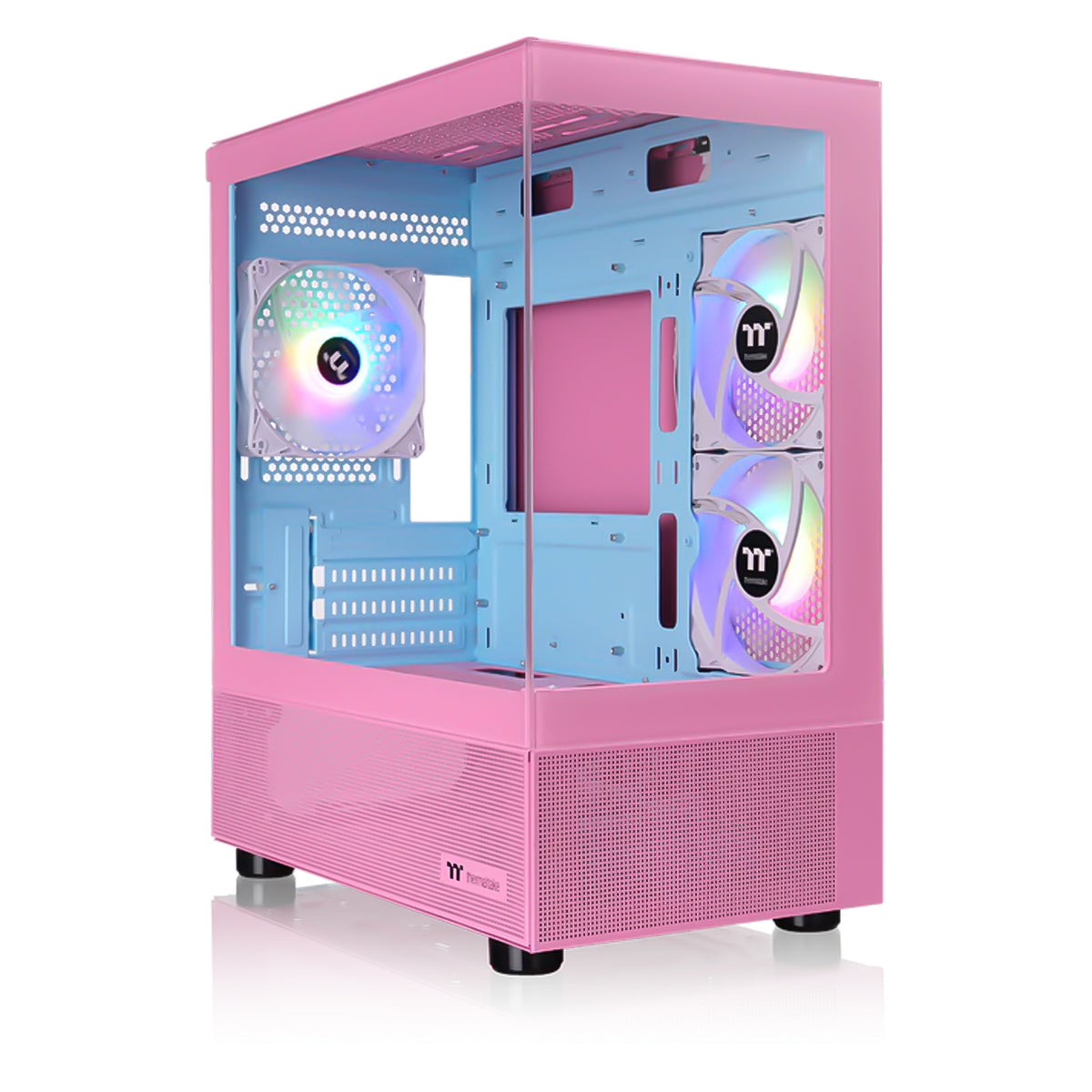

View 170 TG ARGB Bubble Pink Micro Chassis
Built for amazing views, the View 170 TG ARGB Bubble Pink is an M-ATX case featuring tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed.

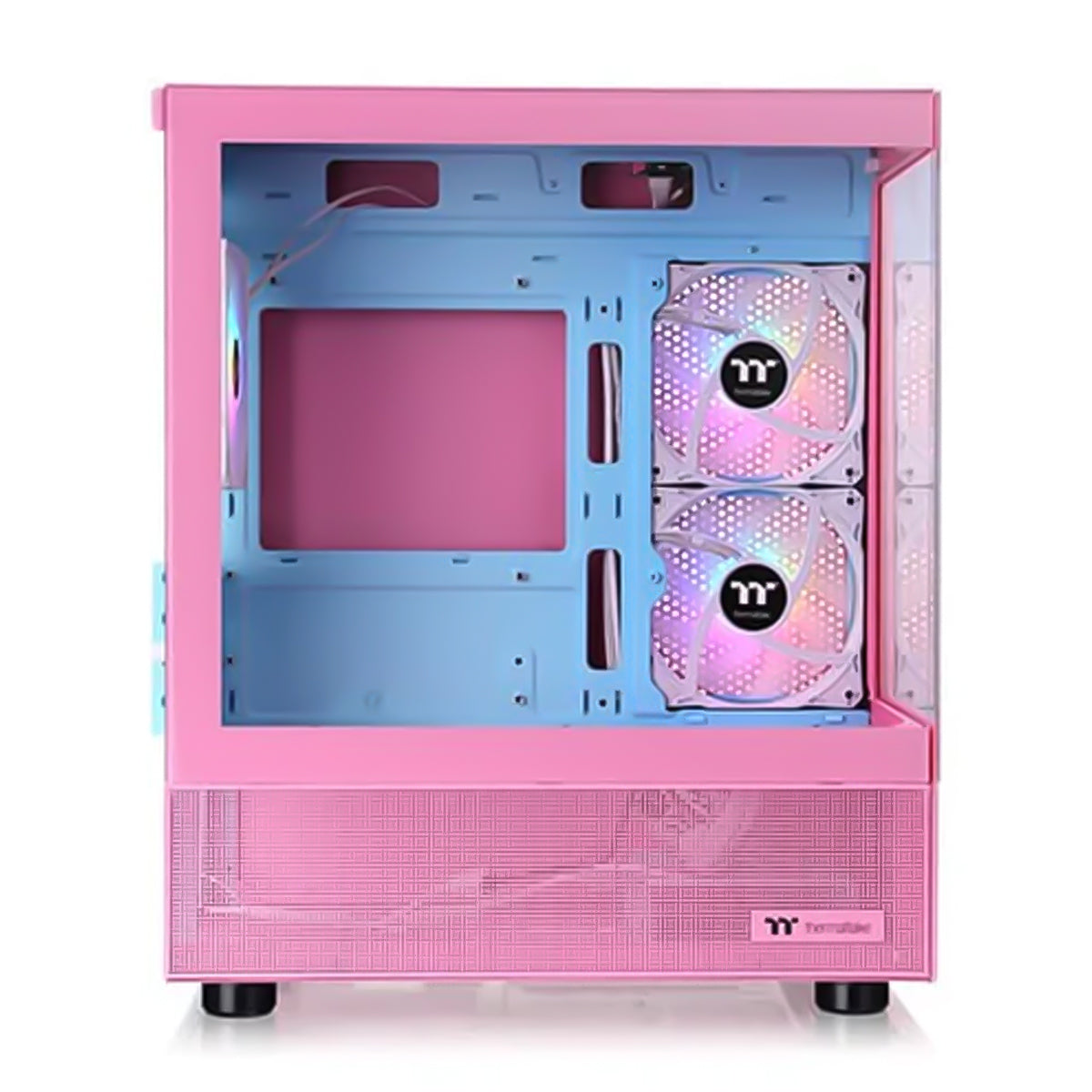

Tempered Glass Front and Left
The case comes equipped with two tempered glass panels located on the front and side, providing the best viewing angles for your system inside.
Up to 280mm Radiator Support
Supports up to 280mm radiators on the top of the chassis, meeting the cooling needs for demanding systems while maintaining a show appearance to highlight your components.
Three 120mm ARGB Lite Fans Pre-Installed
The case includes three 120mm ARGB Lite Fans pre-installed in the rear and side panels. Lighting can be controlled through supported ARGB software from Asus, Gigabyte, MSI, and ASRock.
Space for Your Storage
Supports up to two 2.5” SSDs and one 3.5” HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. Supports motherboards with a 5V addressable RGB header, allowing direct control from the software without additional lighting software or controllers.
Specifications
Specifications
| P/N | CA-1Z4-00MAWN-01 |
| Series | View |
| Case Type | Micro Case |
| Dimensions | 438 x 212 x 377.5 mm (17.24 x 8.35 x 14.86 inch) |
| Weight | 4.65 kg / 10.25 lbs. |
| Side Panel | 3mm Tempered Glass x 2 |
| Color | Bubble Pink |
| Material | SPCC |
| Cooling System |
Right (intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear (exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Drive Bays | 1 x 3.5”, 2 x 2.5” |
| Expansion Slots | 4 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support |
Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Power Cover: 2 x 120mm, 1 x 120mm |
| Radiator Support |
Top: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Clearance |
CPU cooler max height: 160mm VGA max length: 340mm PSU max length: 180mm |
