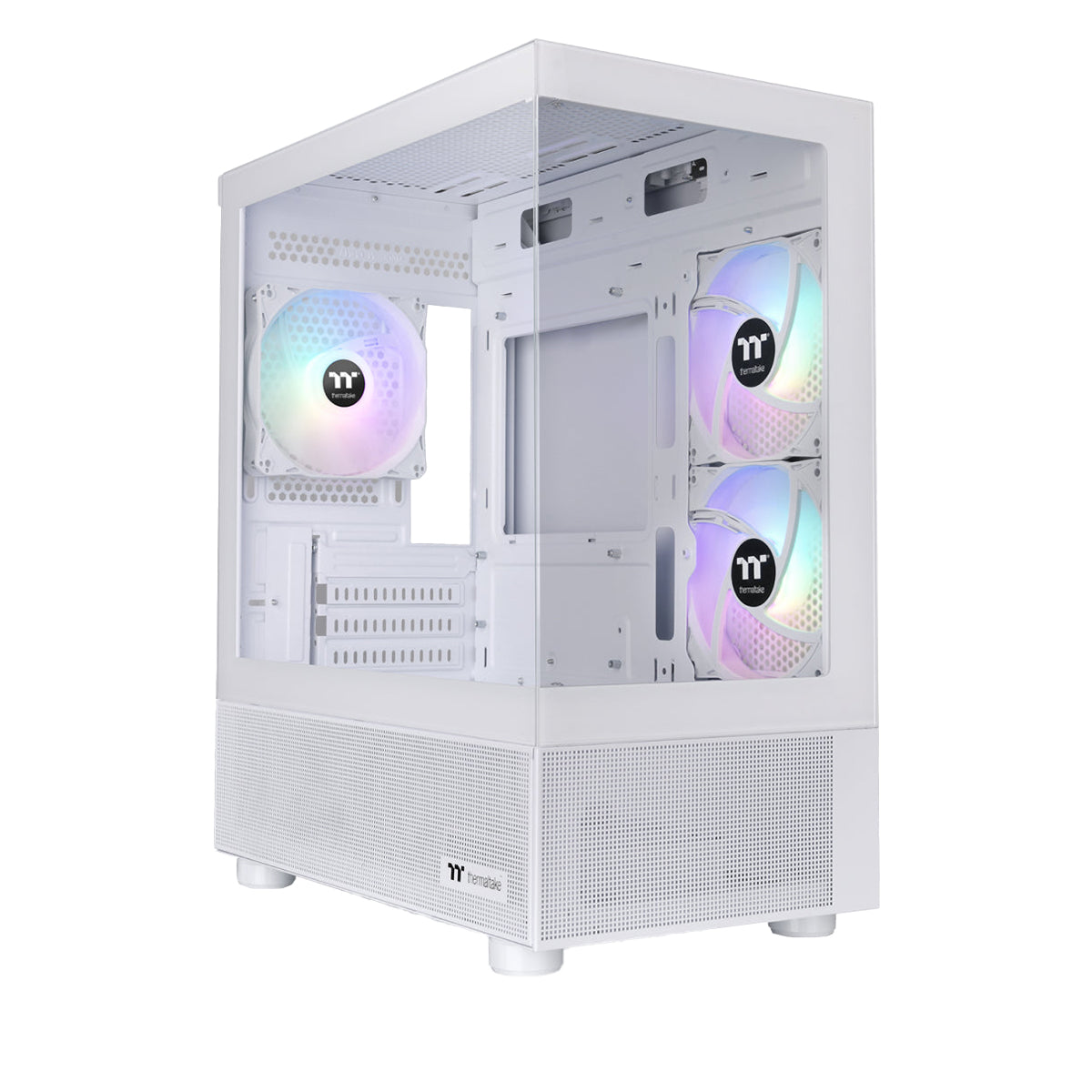

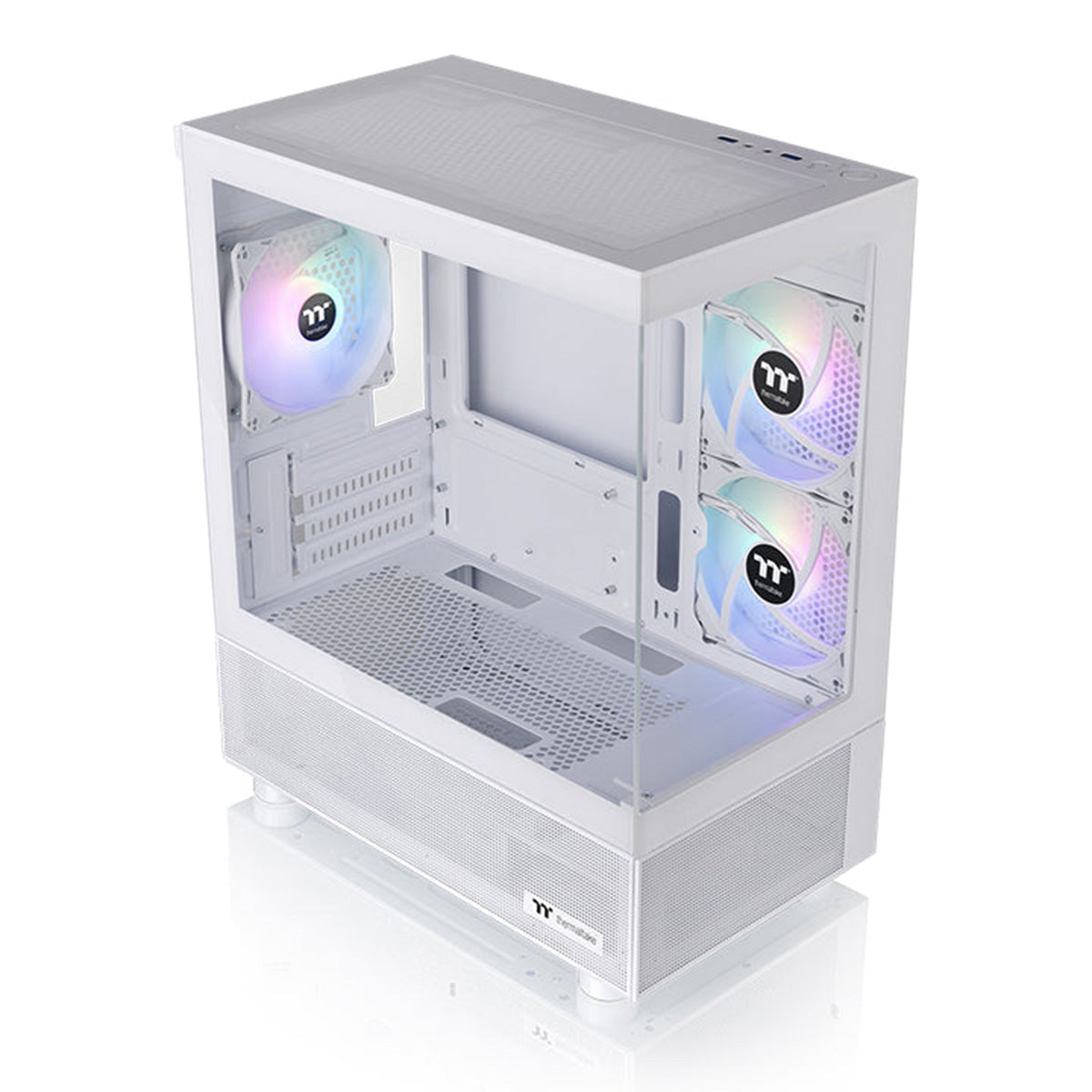

Thermaltake View 170 ARGB Tempered Glass Micro Case Snow Edition

Thermaltake  |  SKU 68978  |  MPN CA-1Z4-00M6WN-00
$99.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

View 170 TG ARGB Micro Chassis

Built for impressive views, the View 170 TG ARGB features front and side tempered glass panels. Supporting M-ATX builds, it includes mounting points for up to 7 fans and a ventilated bottom shroud, offering flexibility in a compact design.

Tempered Glass Front and Side

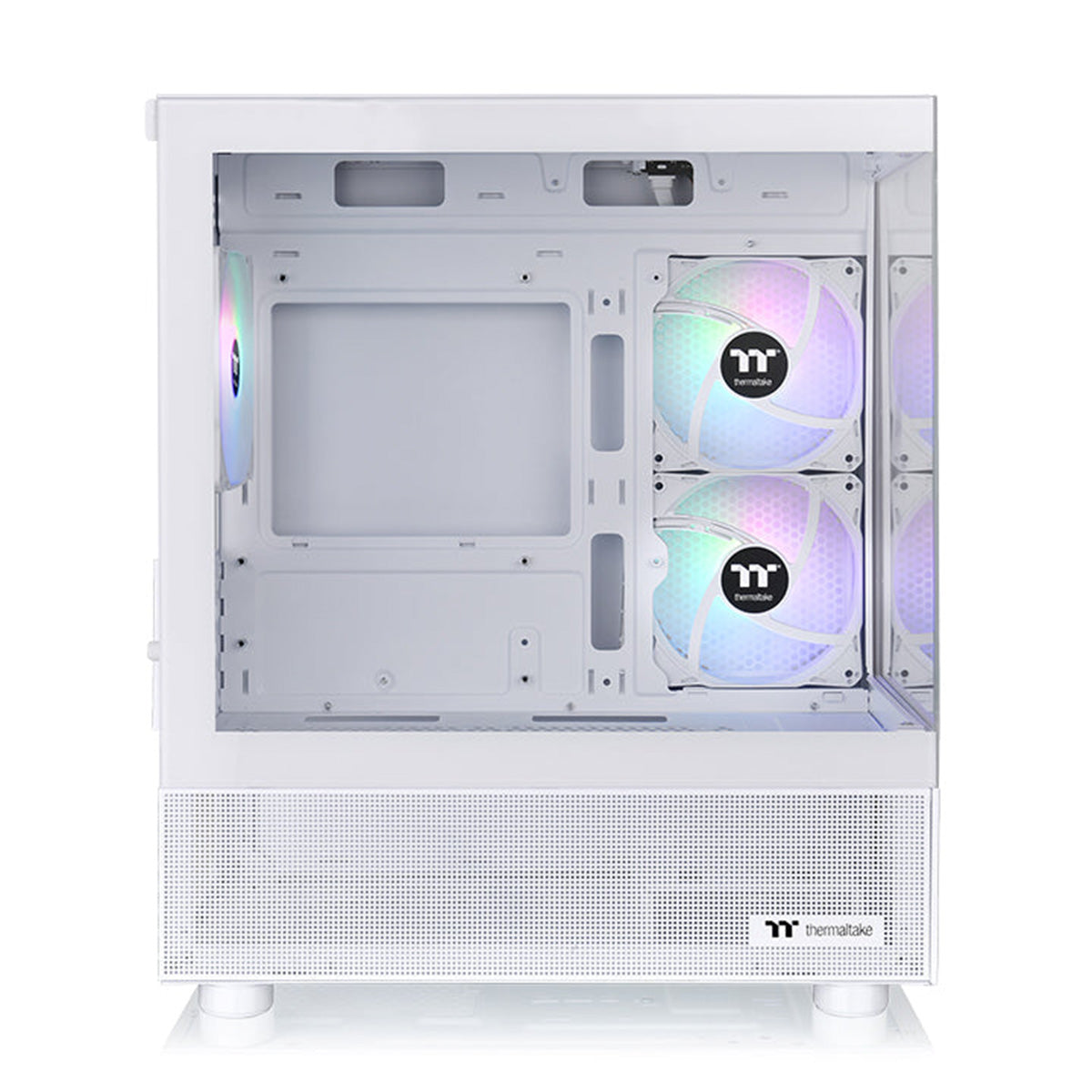

The View 170 TG ARGB is equipped with tempered glass panels on the front and side, providing optimal viewing angles for your system inside.

Up to 280mm Radiator Support

Supporting up to 280mm radiators on the top of the chassis, the View 170 TG ARGB can meet the cooling demands of high-performance systems while showcasing your components.

Three 120mm ARGB Lite Fans Pre-Installed

The View 170 TG ARGB includes three 120mm ARGB Lite Fans pre-installed in the rear and side of the chassis. Lighting control is compatible with ARGB software from Asus, Gigabyte, MSI, and ASRock.

Space for Your Storage

The View 170 TG ARGB supports up to two 2.5” SSDs and one 3.5” HDD.

Handy I/O Ports

Two USB 3.0 ports and an HD audio port are conveniently located on the top panel for instant access.

Specifications

Model View 170 TG ARGB
Series View
Case Type Micro Case
Dimensions 438 x 212 x 377.5 mm (17.24 x 8.35 x 14.86 inch)
Weight 6.35 kg / 14 lbs.
Side Panel 3mm Tempered Glass x 2
Material SPCC
Cooling System Right (intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2
Rear (exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays 1 x 3.5”, 2 x 2.5”
Expansion Slots 4
Motherboard 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Top: 2 x 120mm, 1 x 120mm; 2 x 140mm, 1 x 140mm
Right: 2 x 120mm, 1 x 120mm
Rear: 1 x 120mm
Power Cover: 2 x 120mm, 1 x 120mm
Radiator Support Top: 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear: 1 x 120mm
Clearance CPU cooler max height: 160mm
VGA max length: 340mm
PSU max length: 180mm
