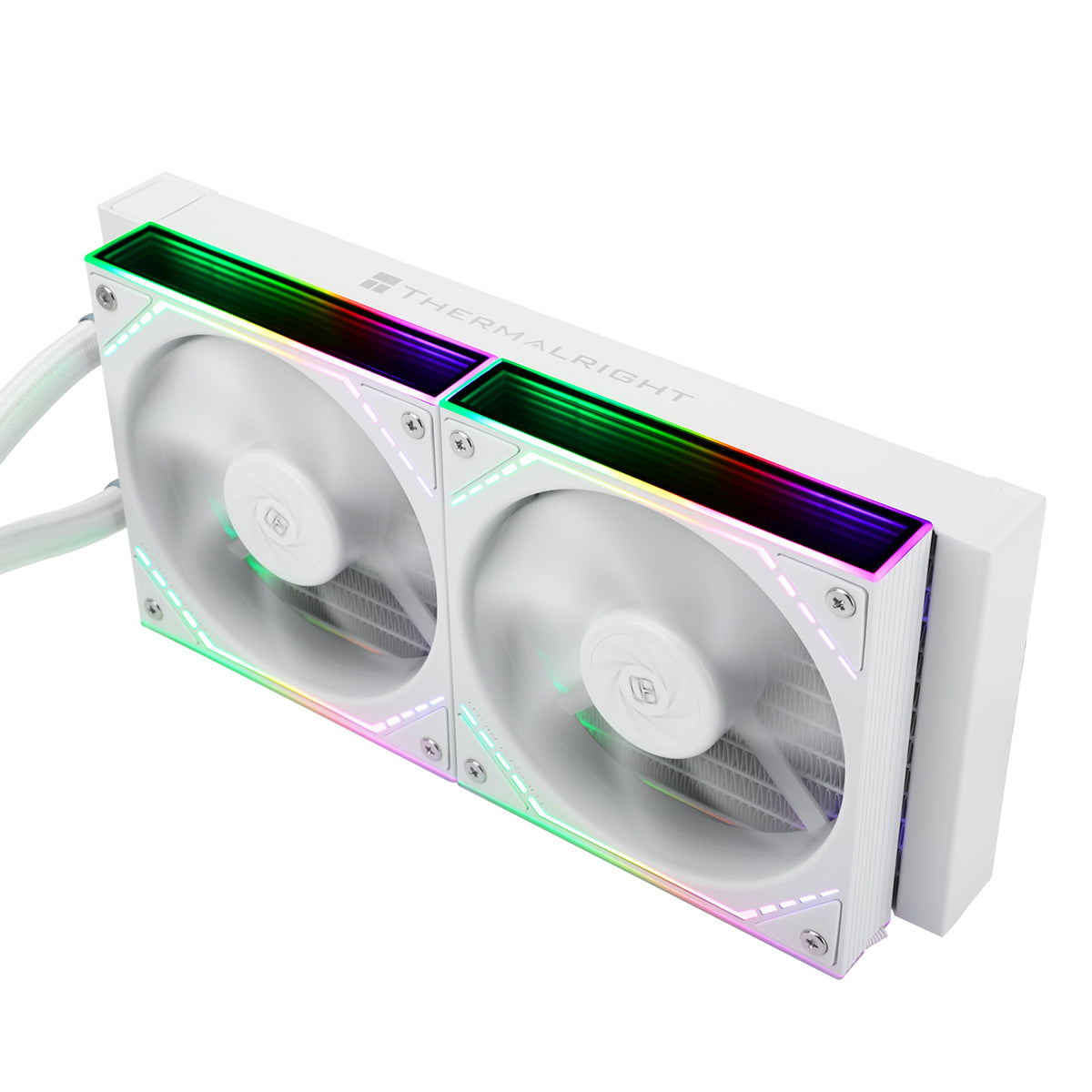

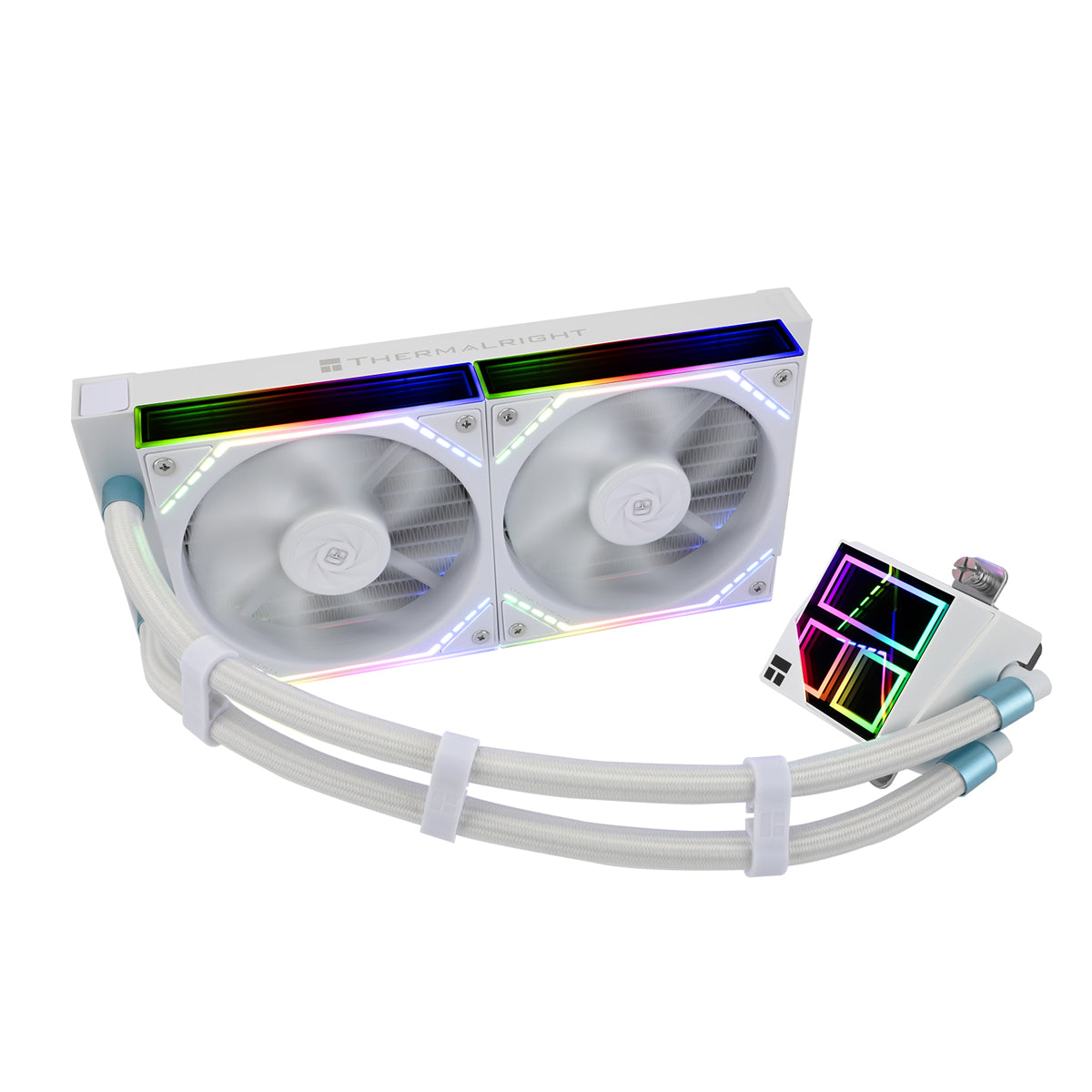

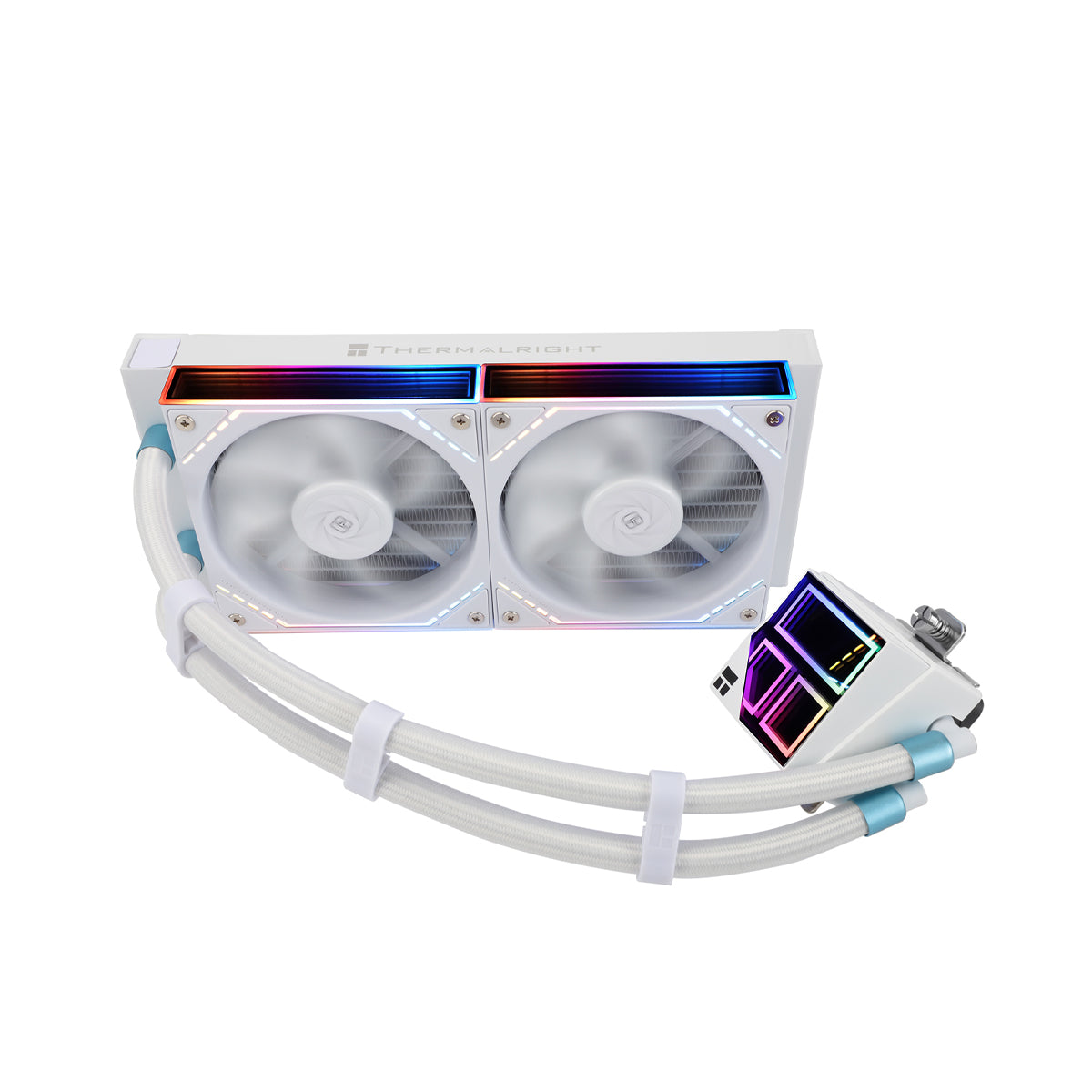

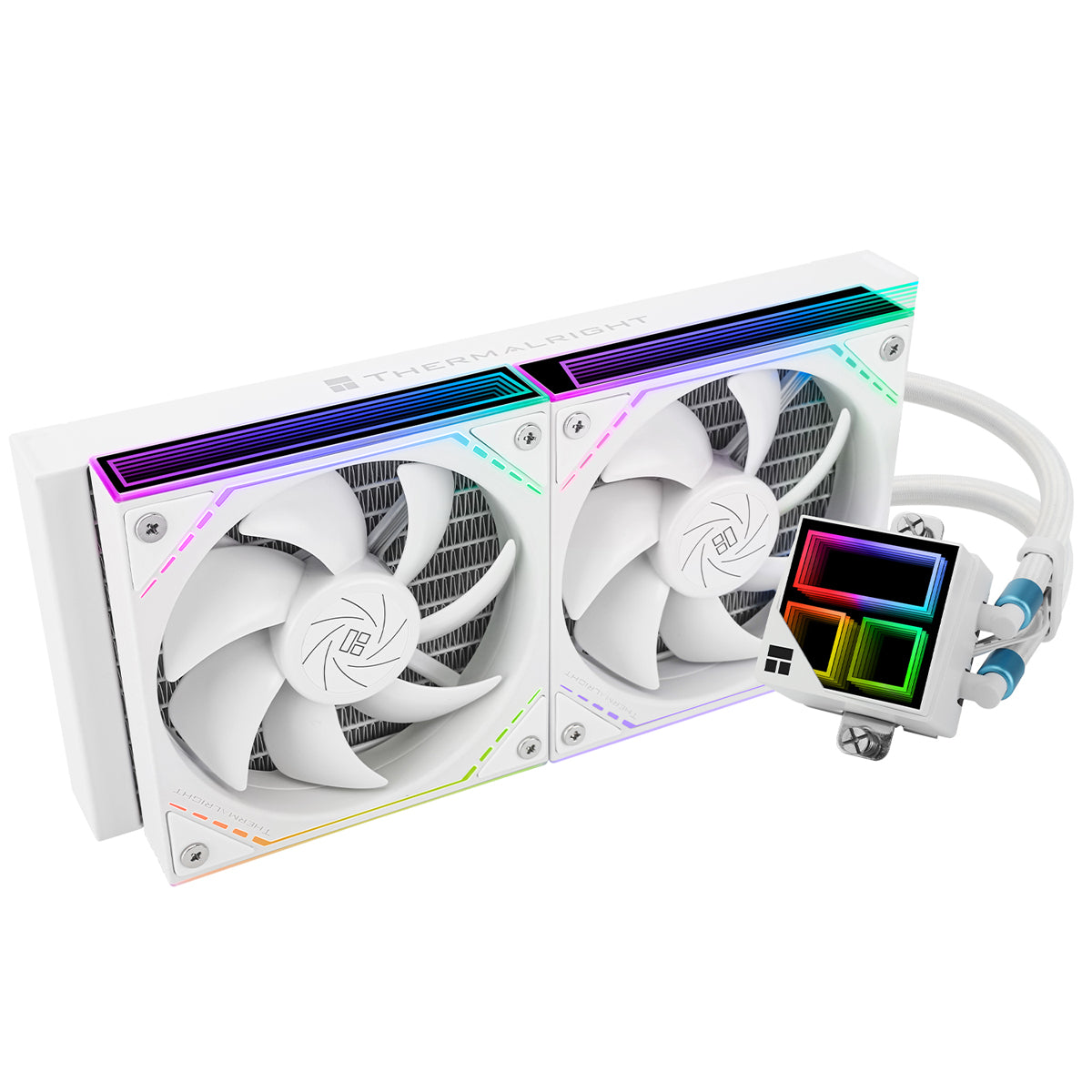

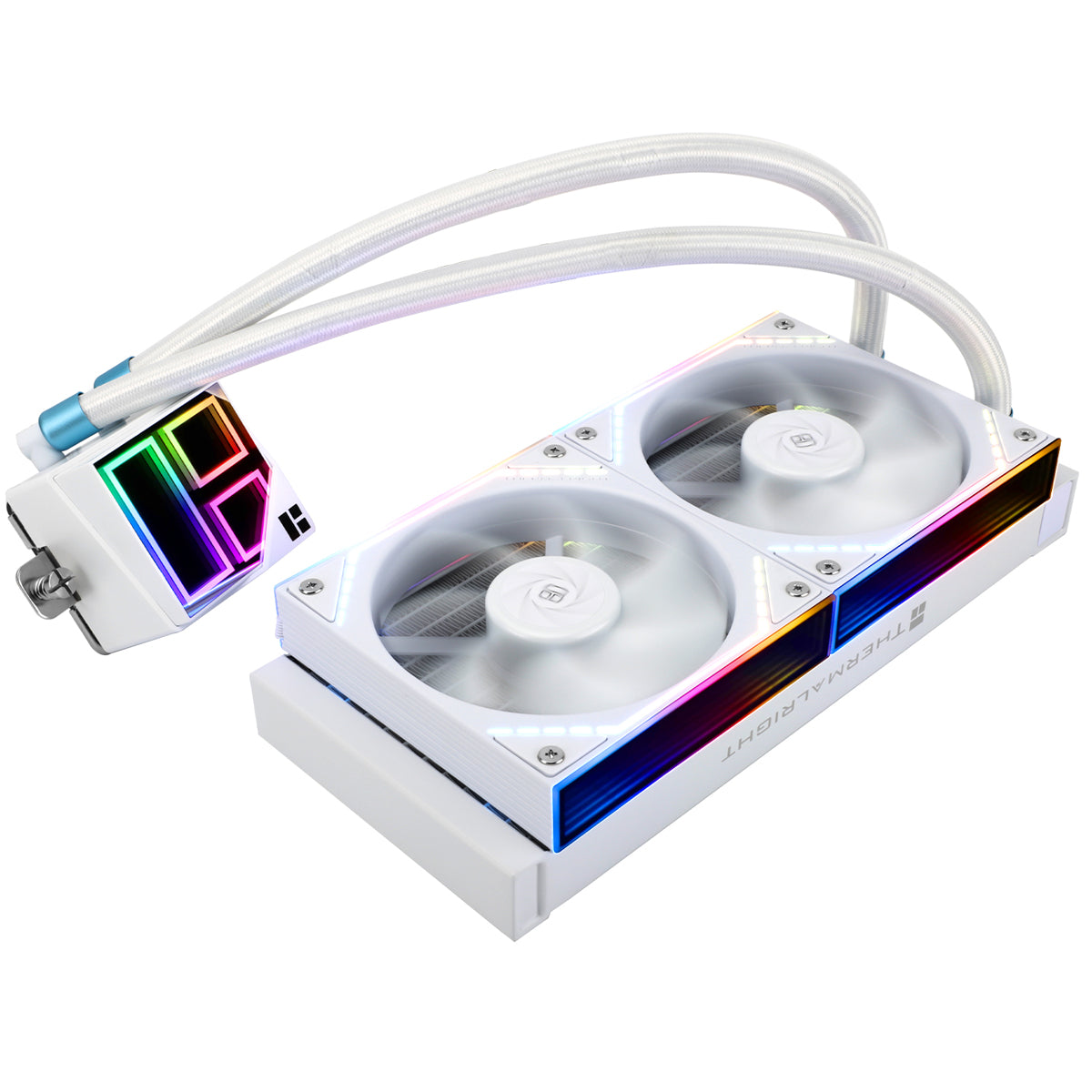

Thermalright Frozen Infinity 240 White 240mm AIO Liquid CPU Cooler

Parameters of Water-Cooled Radiator

The water-cooled radiator measures 277 × 120 × 52 mm (including fan). The pump head size is 63 × 63 × 60 mm. Fan size is 124 × 120 × 25 mm with a speed of 2000 RPM ±10%. Operating noise is ≤28.2 dB(A), voltage is DC 12V, and airflow reaches 68.9 CFM. The high-speed water pump and fan work together to ensure efficient and reliable CPU cooling.

Infinity Mirror Pump Design

The new-generation pump system features the Core V1.0 framework with a square pump design and exclusive infinity mirror logo lighting. Frosted triangular cut corners enhance the visual appeal. Designed for low-vibration operation, the pump uses a 4-pin PWM power interface and a 5V ARGB lighting interface, allowing independent connection to the motherboard. This design combines effective heat dissipation with vibrant visual effects.

ARGB Divine Light Synchronisation

The ARGB lighting of both the fan and pump synchronizes through the motherboard’s 5V 3-pin interface, delivering unified and dynamic lighting effects. It supports daisy-chain lighting to avoid insufficient lighting headers while maintaining strong cooling performance.

Optimization of Details

The pre-installed radiator fan and included tube clips allow for simple installation and improved tube organization. A Y-type adapter cable helps prevent motherboard header limitations, while the SS2 mounting system ensures compatibility with a wide range of CPU platforms.

Wide Range of Compatibility

Supports AMD AM4 and AM5 platforms, as well as Intel LGA1150 / 1151 / 1155 / 1156 / 1200 / 2011 / 2066 / 1700 / 1851. Each platform includes the appropriate mounting hardware for straightforward installation.
