Thermalright Frozen Infinity 240 Black 240mm AIO Liquid CPU Cooler
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Parameters of Water-Cooled Radiator
Water-cooled radiator size is 277*120*52mm (including fan), cold header: 63*63*60mm, fan size: 124*120*25mm, speed: 2000RPM+10%, running noise ≤28.2DB(A), voltage: DC 12V, airflow: 68.9CFM. With the high speed of the water pump and fan, it ensures effective CPU cooling.
Excellent Cooling Effect
Using an Infinity Mirror style water-cooling header, a 240-spec fully blackened nano-painted aluminum fins cooling row, polymer compiled protective water pipe, and a standard 120mm Infinity Mirror fan, this all-in-one cooler delivers low resistance, high cooling efficiency, and an appealing design.

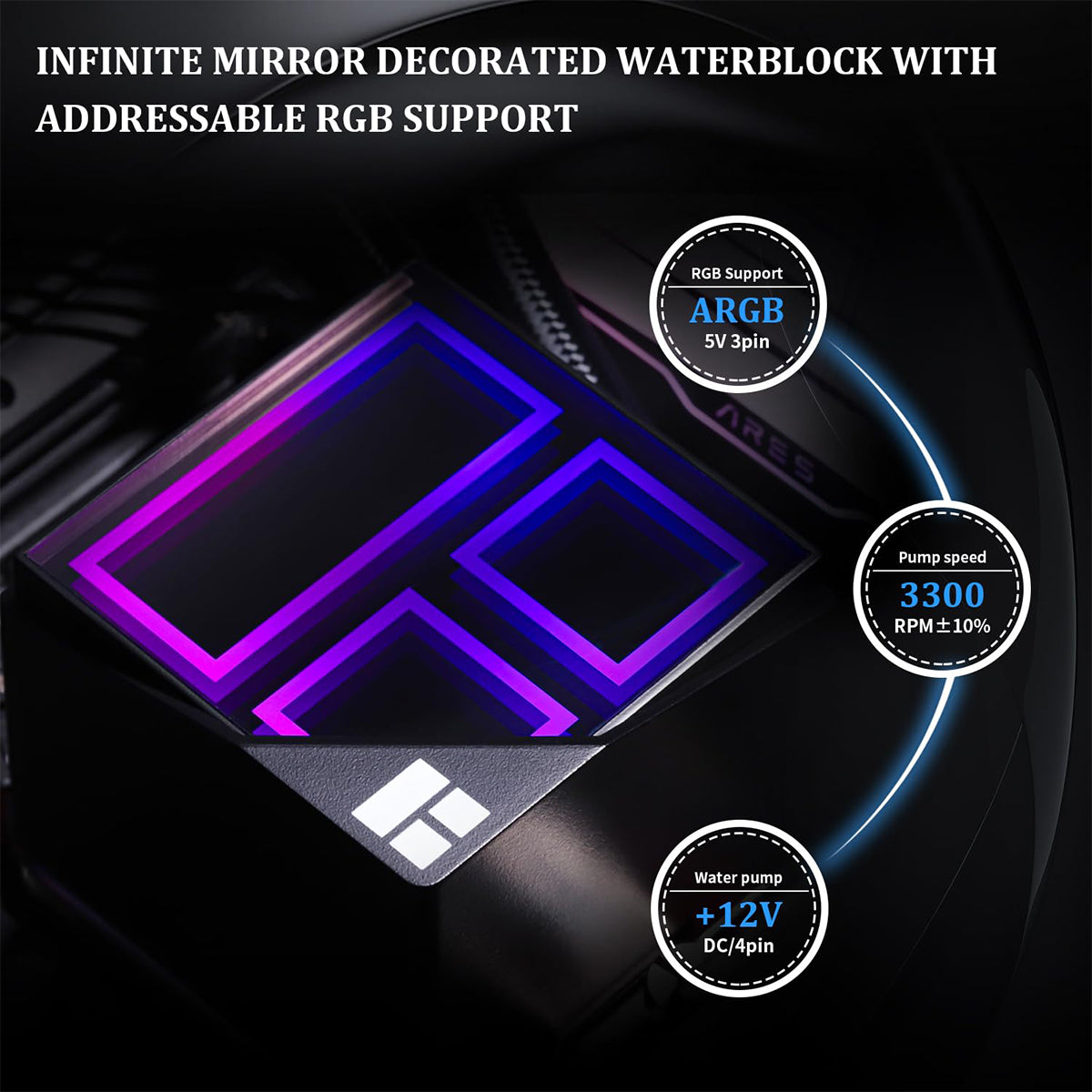

Infinity Mirror Pump Design
The pump features a new generation system framework (Core V1.0) with a square shape, exclusive Infinity Mirror LOGO lighting effects, and unique frosted cut corner accents. Designed for low-vibration operation, the pump power supply interface is a 4PIN PWM, while the lighting interface is a 5V ARGB, allowing direct connection to the corresponding motherboard interface. This cooler not only efficiently dissipates heat but also enhances aesthetics with colorful lighting effects.
Optimization of Details
The pre-installed fan and included conduit pipe snap allow for a clean and organized installation. The included Y-type adapter cable prevents motherboard interface shortages, while the SS2 snap system ensures compatibility with a wide range of CPU models.
Wide Range of Compatibility
Supports AMD: AM4/AM5 and Intel: LGA1150/1151/1155/1156/1200/2011/2066/1700/1851. Each platform includes the necessary installation fasteners, and the simple installation steps make it easy to install on the corresponding CPU platform. It is recommended to follow the installation video. For any questions, please contact customer service.
Specifications
Specifications
Pump Dimensions | L63 mm x W63 mm x H60 mm |
Radiator Dimensions | L277 mm x W120 mm x H27 mm |
Pump Rated Voltage | 12V DC |
Connector | 4 PIN PWM |
ARGB Connector | 3 PIN 5V |
Radiator | Aluminum |
Warranty | 5 Years |

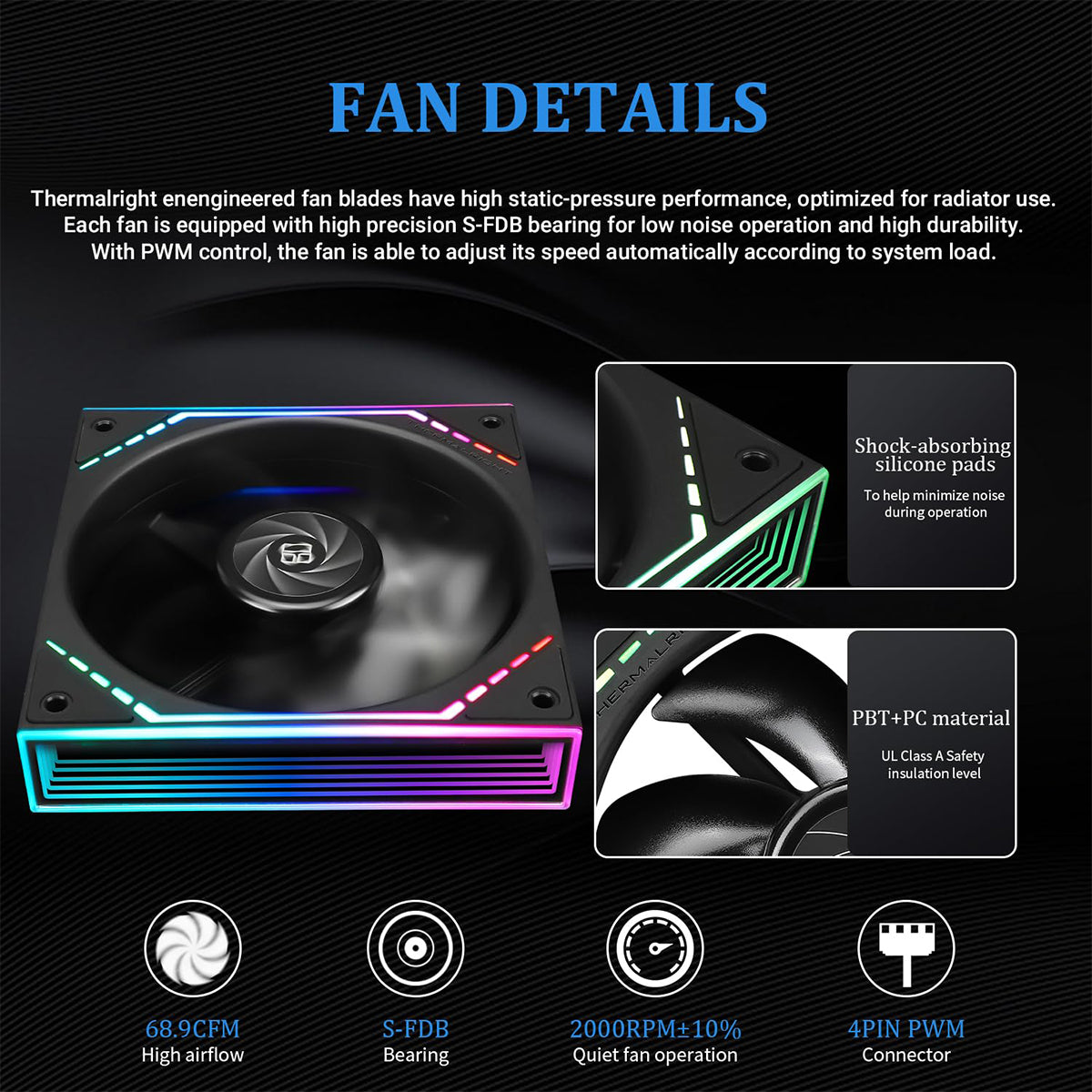

TL-M12 Specification | |
Dimension | L124 mm x W120 mm x H25 mm |
Weight | 175 g |
Rated Speed | 2000 RPM±10% (MAX) |
Noise Level | 28.2 dBA (MAX) |
Air Flow | 68.9 CFM (MAX) |
Air Pressure | 2.21 mm H2O (MAX) |
Connector | 4 PIN PWM |
ARGB Connector | 3 PIN 5V |
Bearing Type | S-FDB Bearing |
