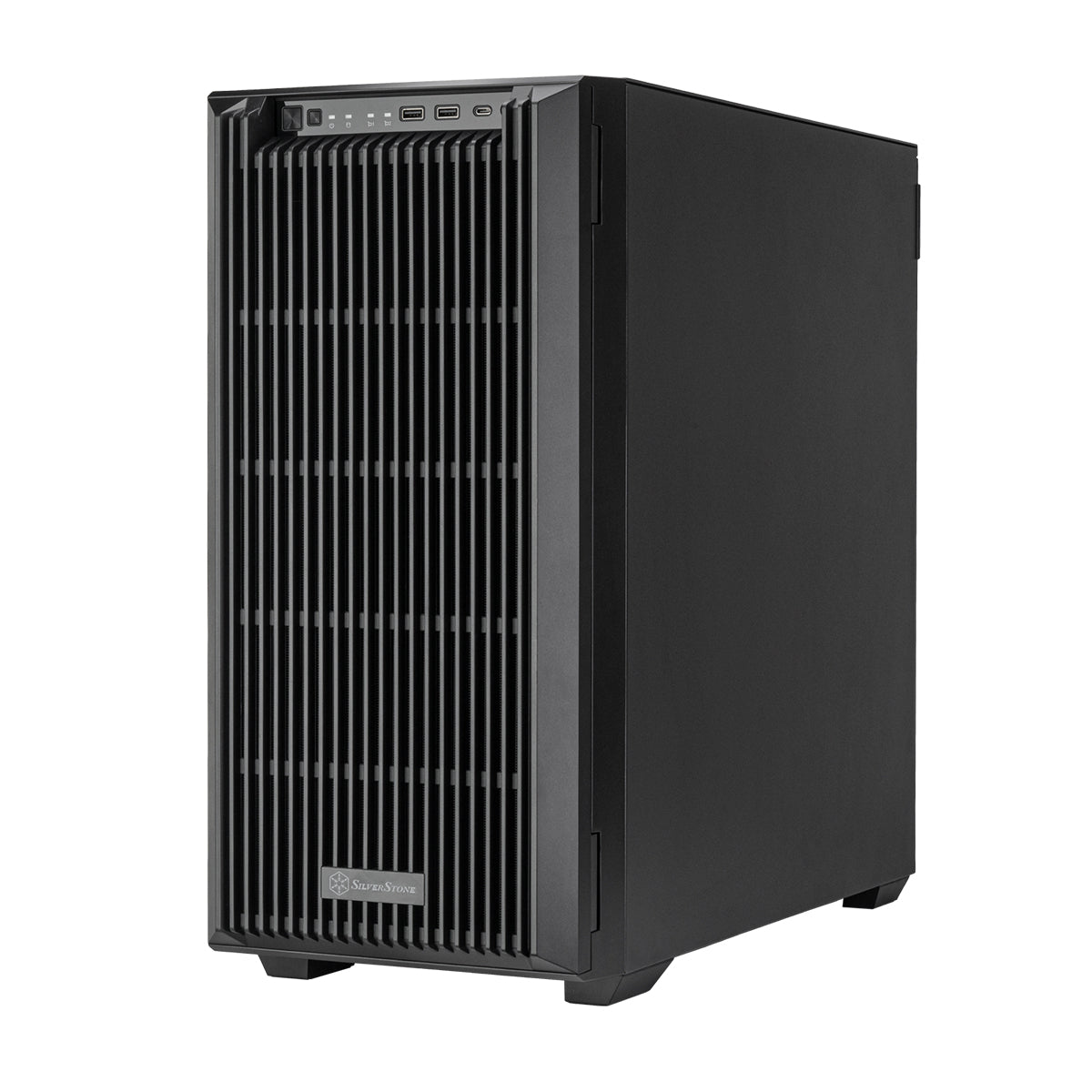

Silverstone SST-CS383 8-Bay Hot-Swappable Full Tower NAS Chassis
8-port SAS 12Gbit/s / SATA 6Gbit/s Backplane Included
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
- 8 hot-swappable drive trays to accommodate up to 8 x 3.5” or 2.5” SAS-12G / SATA-6G drives with two LED indicators for displaying drive operation status
- Supports E-ATX / SSI-EEB motherboards
- Compatible with 420mm liquid cooling radiator
- Flexible front expansion slot for 3 x 5.25” devices or secondary PSU slot [3]
- Support a maximum length of 340mm expansion/interface cards
- Support multiple graphics cards configuration with 8 PCI expansion slots
- Additional 3.5” x 1 + 2.5” x 2 or 2.5” x 4 device compatibility internally.
- Front I/O includes: 1 x USB Type-C, 2 x USB 3.0 & 1 x combo audio
- Dust filters included in key areas

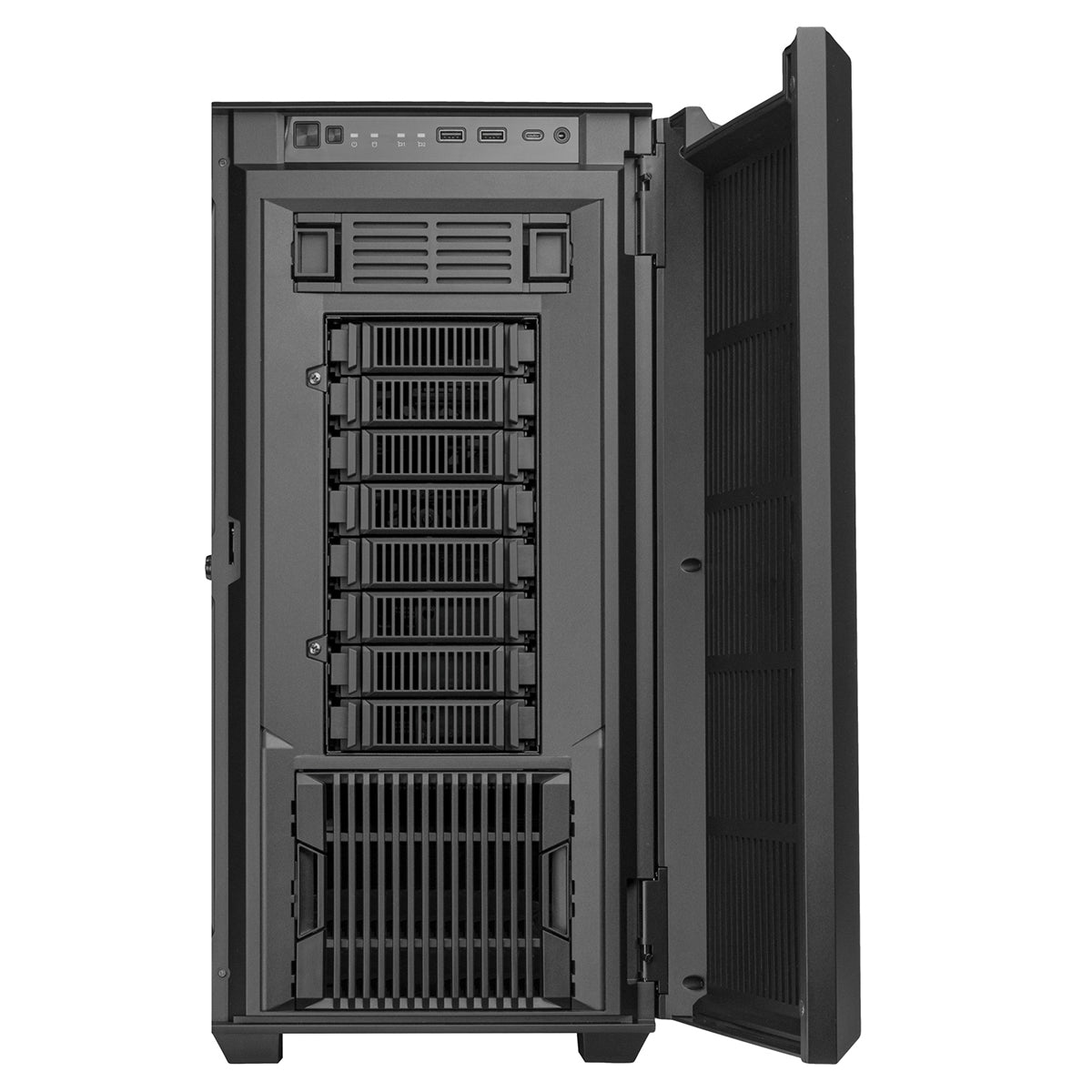

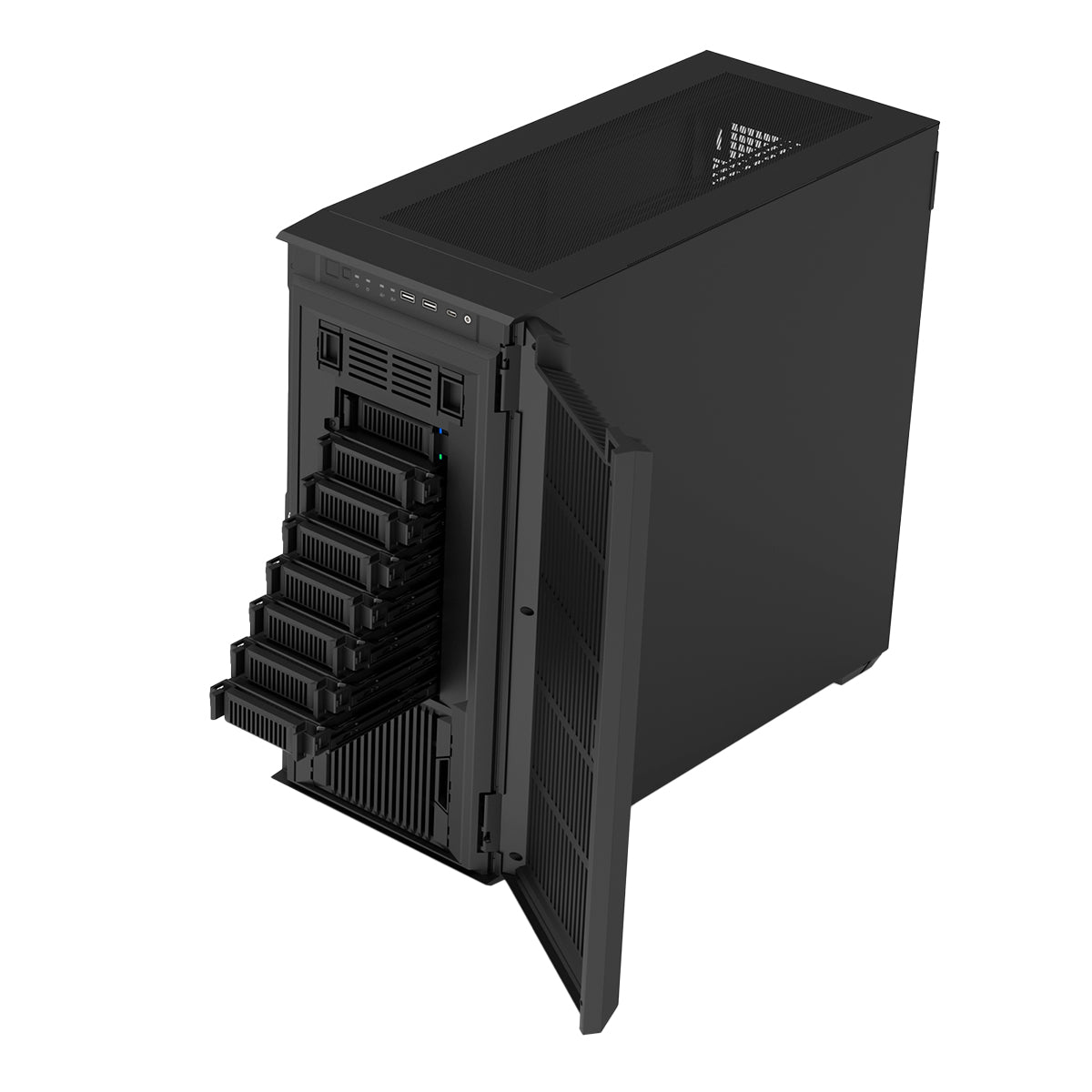

Eight-Bay Hot-Swap Storage
Supports up to eight 2.5" or 3.5" SAS-12G / SATA-6G drives, each with two LED indicators to display drive status clearly.

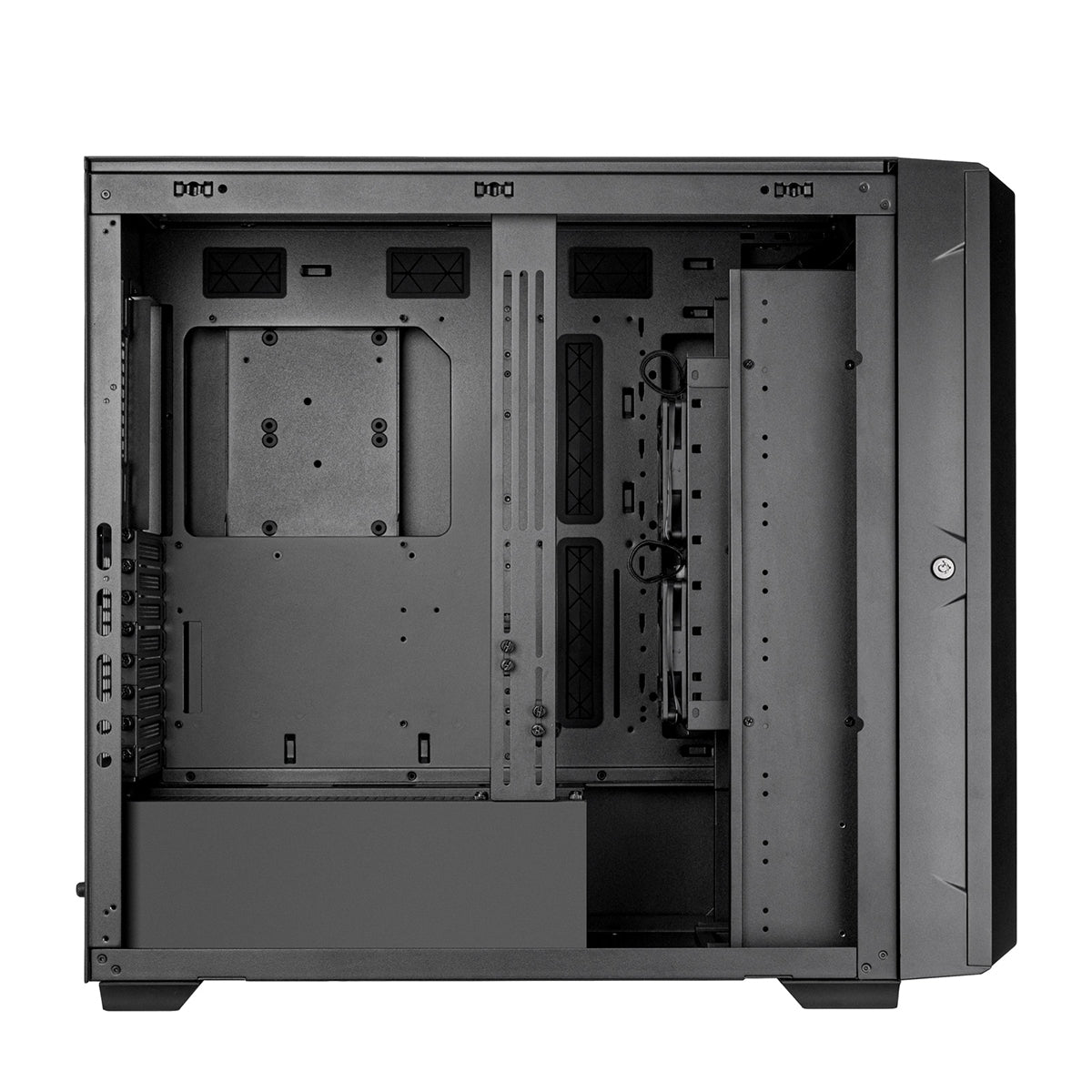

Workstation-Grade Component Support
The CS383 goes beyond a traditional NAS chassis by accommodating up to SSI-EEB motherboards, eight PCI expansion slots, and dual power supplies. This bridges the gap between NAS and workstation/server applications, enabling the use of high-performance workstation components while retaining full NAS functionality.
Exceptional Cooling Performance
The top of the chassis supports liquid cooling radiators up to 420mm, ensuring outstanding CPU thermal management—ideal for NAS or storage-centric systems under heavy workloads.
Massive Storage Potential
Beyond its eight hot-swappable bays, the CS383 offers an additional 4 internal drive mounts, significantly expanding its overall storage capacity for demanding applications.
Specifications
Specifications
| Model No. | SST-CS383 |
| Material | Aluminum Parts, Steel Plate |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| HDD Backplane | Backplane, 8-port SAS 12Gbit/s / SATA 6Gbit/s |
| Power Connector | 4 pin peripheral x 2, 15 pin SATA x 2 |
| Interface | SATA drive up to 6 Gbit/s (depends on drive speed), SAS drive up to 12 Gbit/s (depends on drive speed) |
| Drive Bay |
External: 3.5” / 2.5” SAS / SATA hot-swap x 8, 5.25” x 1, 5.25” x 3 Internal: 3.5” x 1 + 2.5” x 2 or 2.5” x 3 |
| Cooling System |
Rear: 120mm x 1 / 140mm x 1 (Pre-installed 140mm x1 black fan) Top: 120mm x 3 / 140mm x 3 Internal: 92mm x 2 (Pre-installed 92mm x2 black fans) |
| Radiator Support |
Rear: 120mm / 140mm Top: 120mm / 140mm / 240mm / 280mm / 360mm / 420mm |
| Limitation of CPU Cooler | w/ GPU support bracket installed: 158mm w/o GPU support bracket installed: 186mm |
| Expansion Slot | 8 |
| Limitation of Expansion Card | Length: 340mm Width: 164mm |
| Power Supply | Standard ATX (PS2) |
| Limitation of PSU | Primary PSU slot: 240mm Secondary PSU slot: 200mm (occupies front 5.25” x 3 drive bays) |

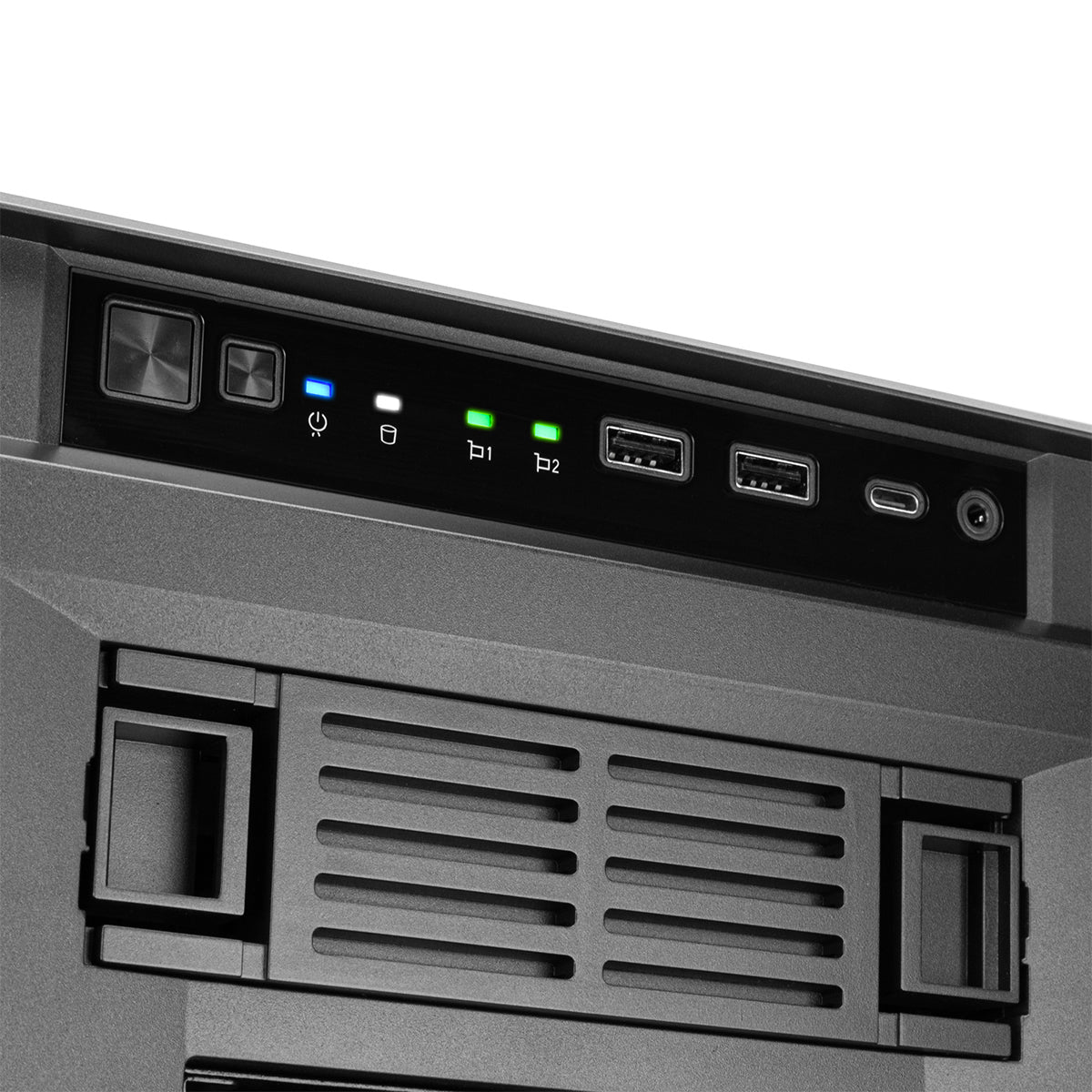

| Front I/O Port | USB Type-C x 1, USB 3.0 x 2, Combo Audio x 1 |
| LED Indicators |
Chassis: Power LED x 1: Blue, HDD Access x 1: White blinking, LAN LED x 2: Green HDD Tray: HDD Power LED: Green, HDD Access: Blue blinking |
| Dimension | 248 mm (W) x 528 mm (H) x 588 mm (D), 76.95 liters |
| Net Weight | 16.6 kg |
| Remark |
[1] Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05) [2] For compatibility with the 5.25” x1 device and the supported thickness of various liquid cooling radiator sizes, please refer to the user manual. [3] Requires the separate purchase of a power extension cord. |
