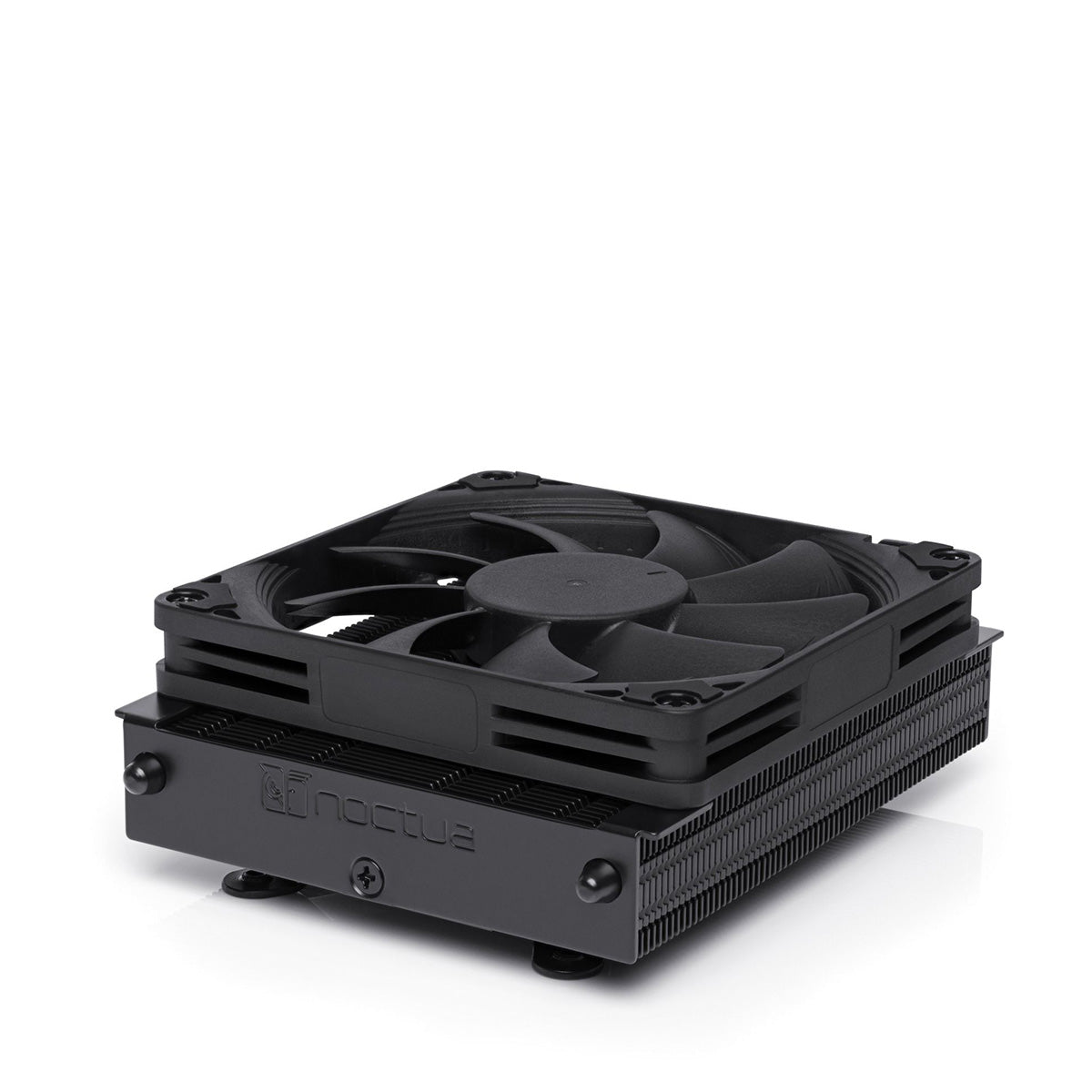

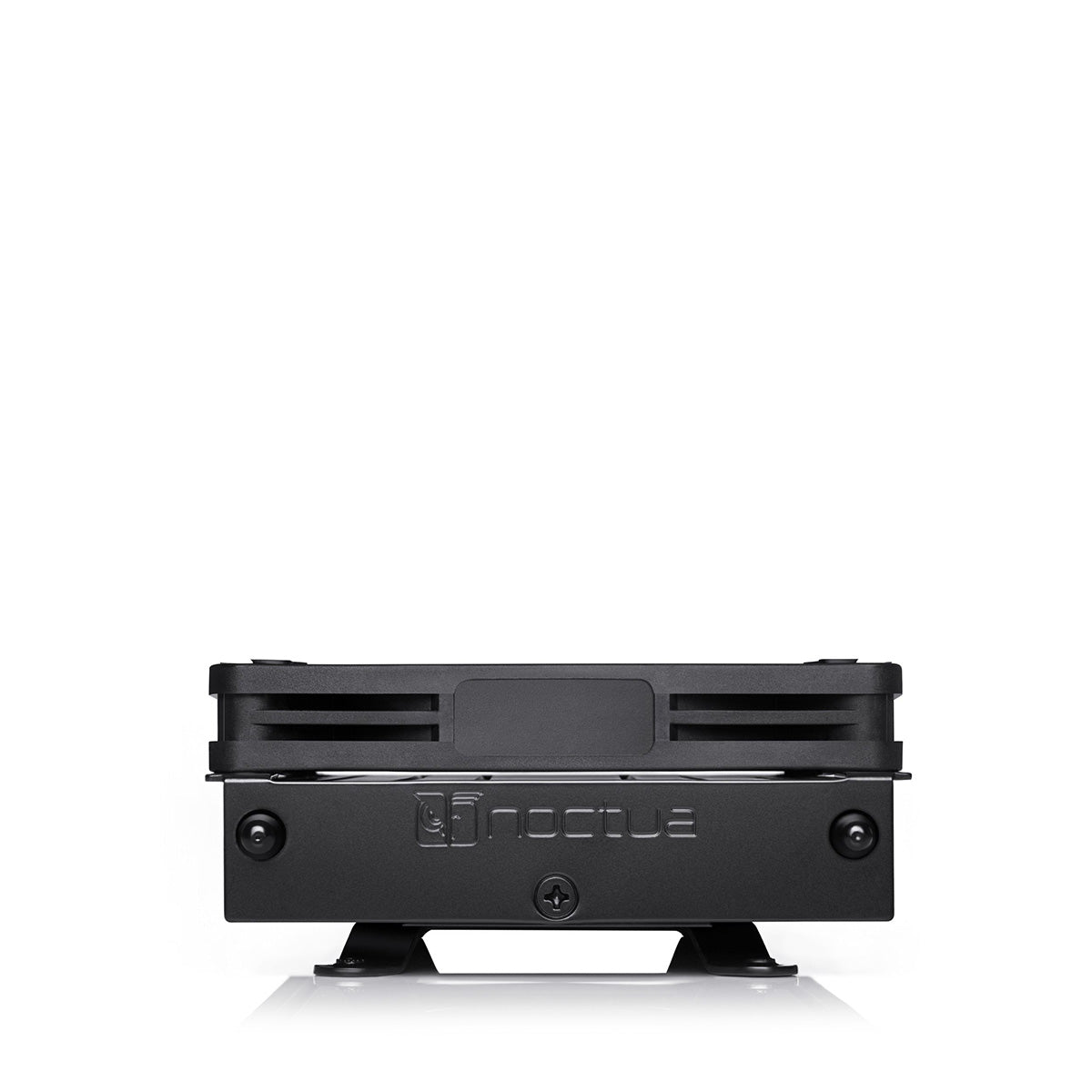

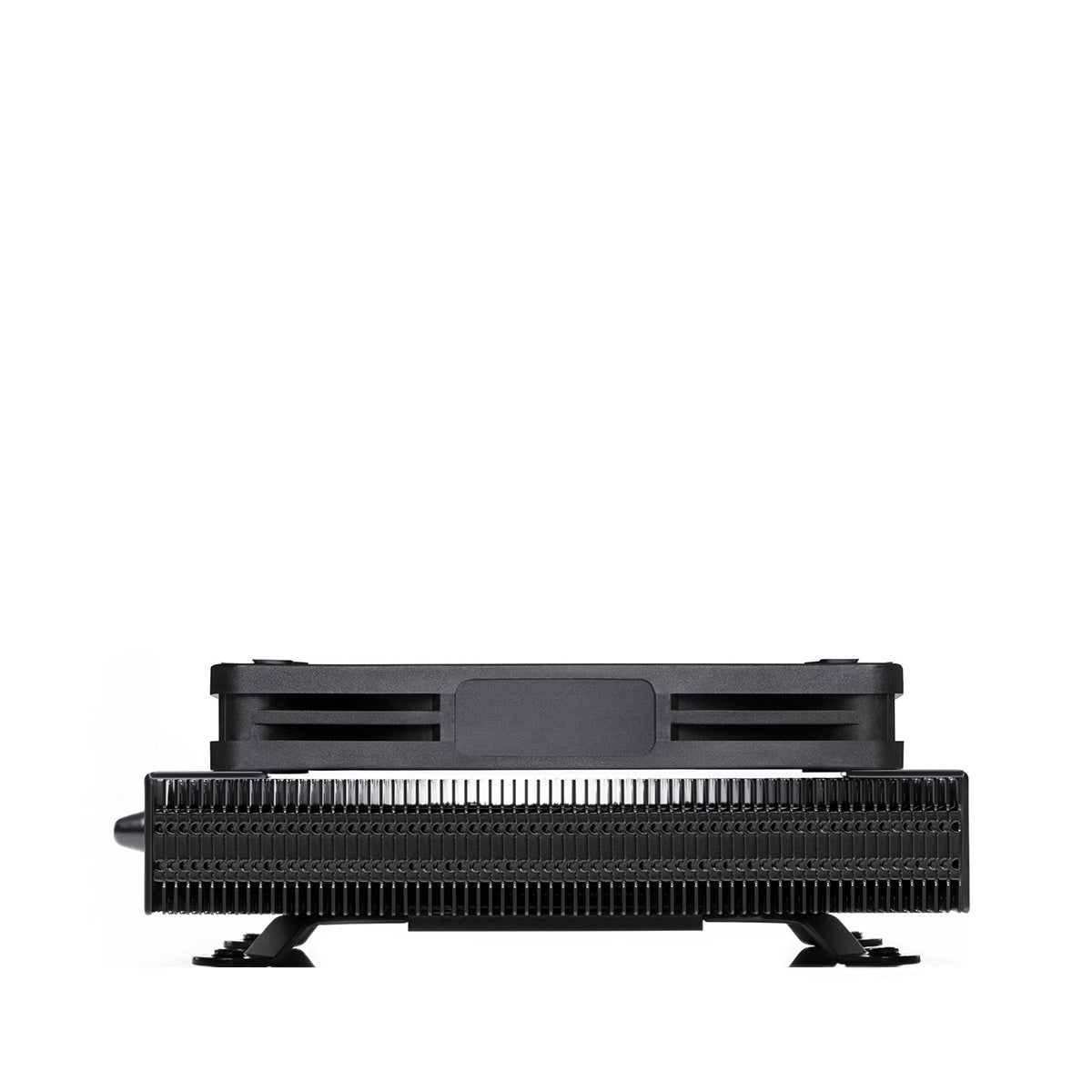

Noctua NH-L9a-AM5 Chromax Black Low Profile CPU Cooler

Noctua  |  SKU 44985  |  MPN NH-L9a-AM5 CH.BK
$109.00

In stock at Computer Lounge

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

SHOP STORE:

Description

The NH-L9a-AM5 chromax.black is an all-black version of Noctua’s award-winning NH-L9a-AM5 low-profile quiet CPU cooler for AMD AM5 based HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9a-AM5’s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ low-profile mounting system for AMD AM5, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9a-AM5 chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.


The NH-L9a-AM5 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult the CPU compatibility list to find out whether the NH-L9a-AM5 is recommended for your CPU.

Specifications

Socket compatibility AMD AM5
Height (without fan) 23 mm
Width (without fan) 114 mm
Depth (without fan) 92 mm
Weight (without fan) 390 g
Height (with fan) 37 mm
Width (with fan) 114 mm
Depth (with fan) 92 mm
Weight (with fan) 465 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 61
Max. TDP see NSPR
Fan compatibility 92x92x14mm, 92x92x25mm

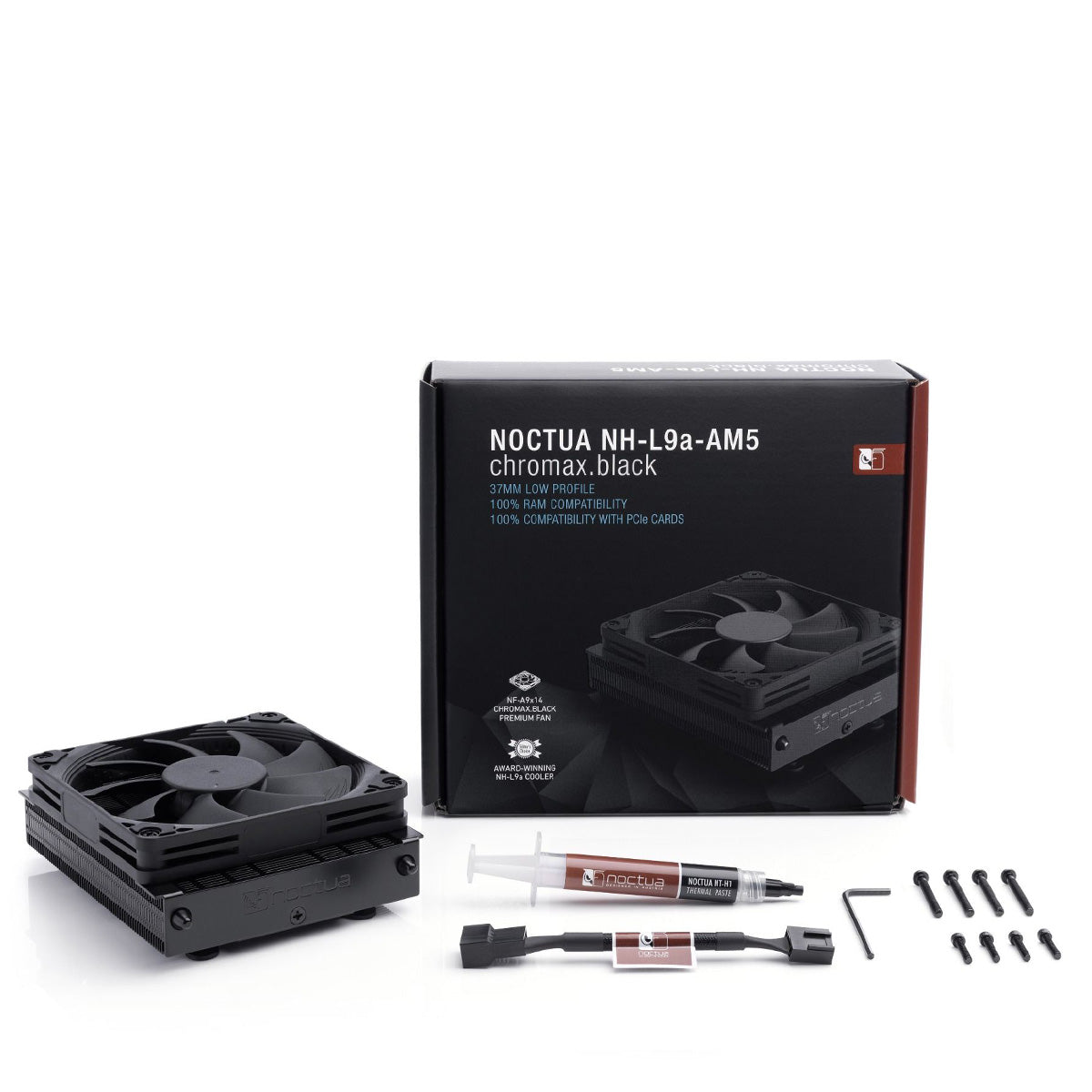

Scope of delivery Black NH-L9a-AM5 heatsink
NF-A9x14 HS-PWM chromax.black premium fan
NA-RC7 Low-Noise Adaptor (L.N.A)
NT-H1 high-grade thermal compound
Black SecuFirm2™ AM5 mounting kit
Black screws for 92x92x25mm fans
Noctua Metal Case-Badge
Warranty 6 Years
FAN Specification
Model Noctua NF-A9x14 HS-PWM chromax.black
Bearing SSO2
Max. rotational speed (+/- 10%) 2500 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1800 RPM
Min. rotational speed @ 20% PWM (+/-20%) 600 RPM
Max. airflow 57,5 m³/h
Max. airflow with L.N.A. 40,8 m³/h
Max. acoustical noise 23,6 dB(A)
Max. acoustical noise with L.N.A. 14,8 dB(A)
Input power (max.) 2,52 W
Voltage range 12 V
MTTF > 150.000 h
