Description
Description

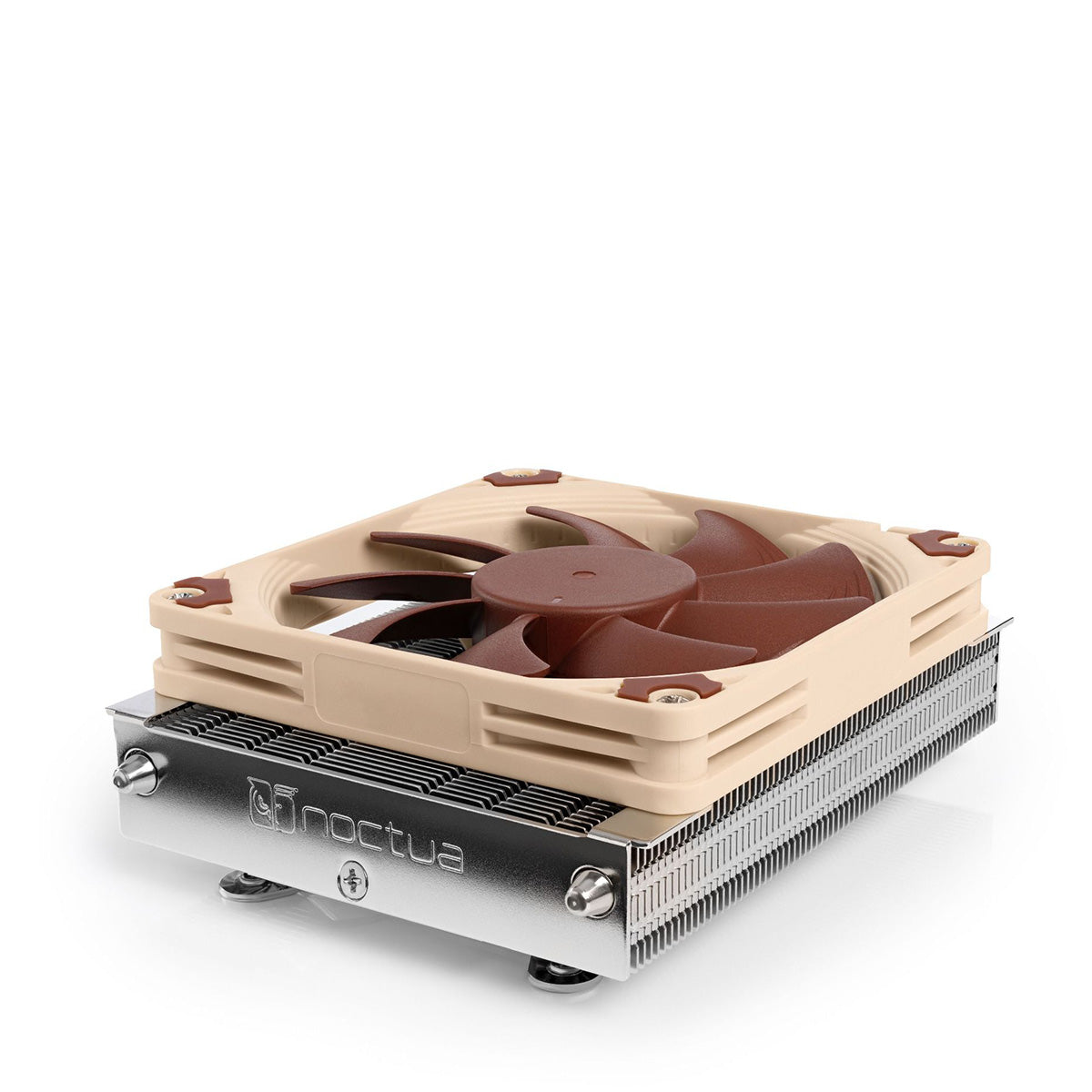

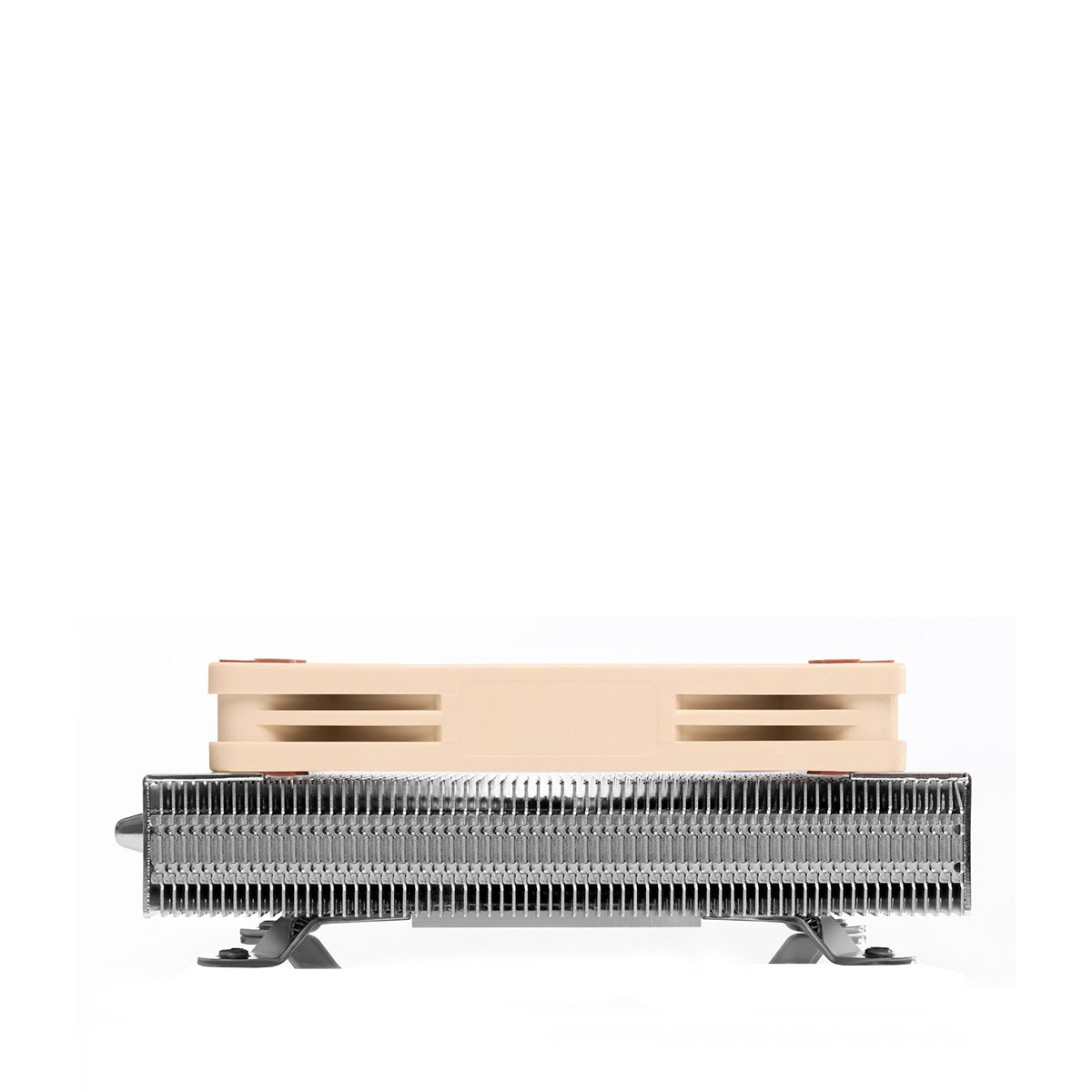

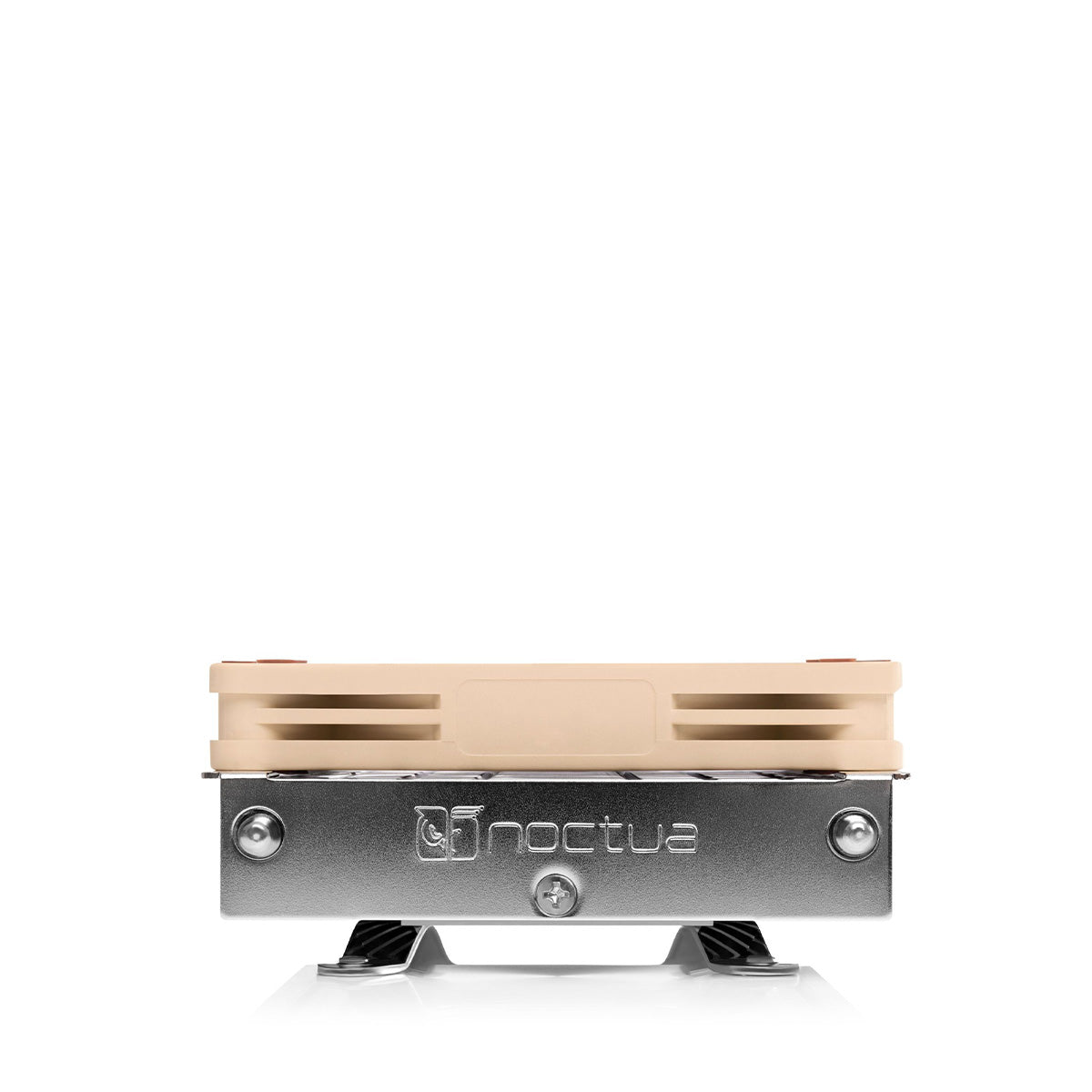

The NH-L9a-AM5 is the latest, AM5-specific revision of Noctua’s award-winning NH-L9a low-profile CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2™ mounting system for the AM5 socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM5 runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9a-AM5 combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with AMD AM5 processors.
The NH-L9a-AM5 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult the CPU compatibility list to find out whether the NH-L9a-AM5 is recommended for your CPU.
Specifications
Specifications
Socket Compatibility | AMD AM5 |
Height (without fan) | 23 mm |
Width (without fan) | 114 mm |
Depth (without fan) | 92 mm |
Weight (without fan) | 390 g |
Height (with fan) | 37 mm |
Width (with fan) | 114 mm |
Depth (with fan) | 92 mm |
Weight (with fan) | 465 g |
Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR | 61 |
Max. TDP | see NSPR |
Fan Compatibility | 92x92x14 mm, 92x92x25 mm |

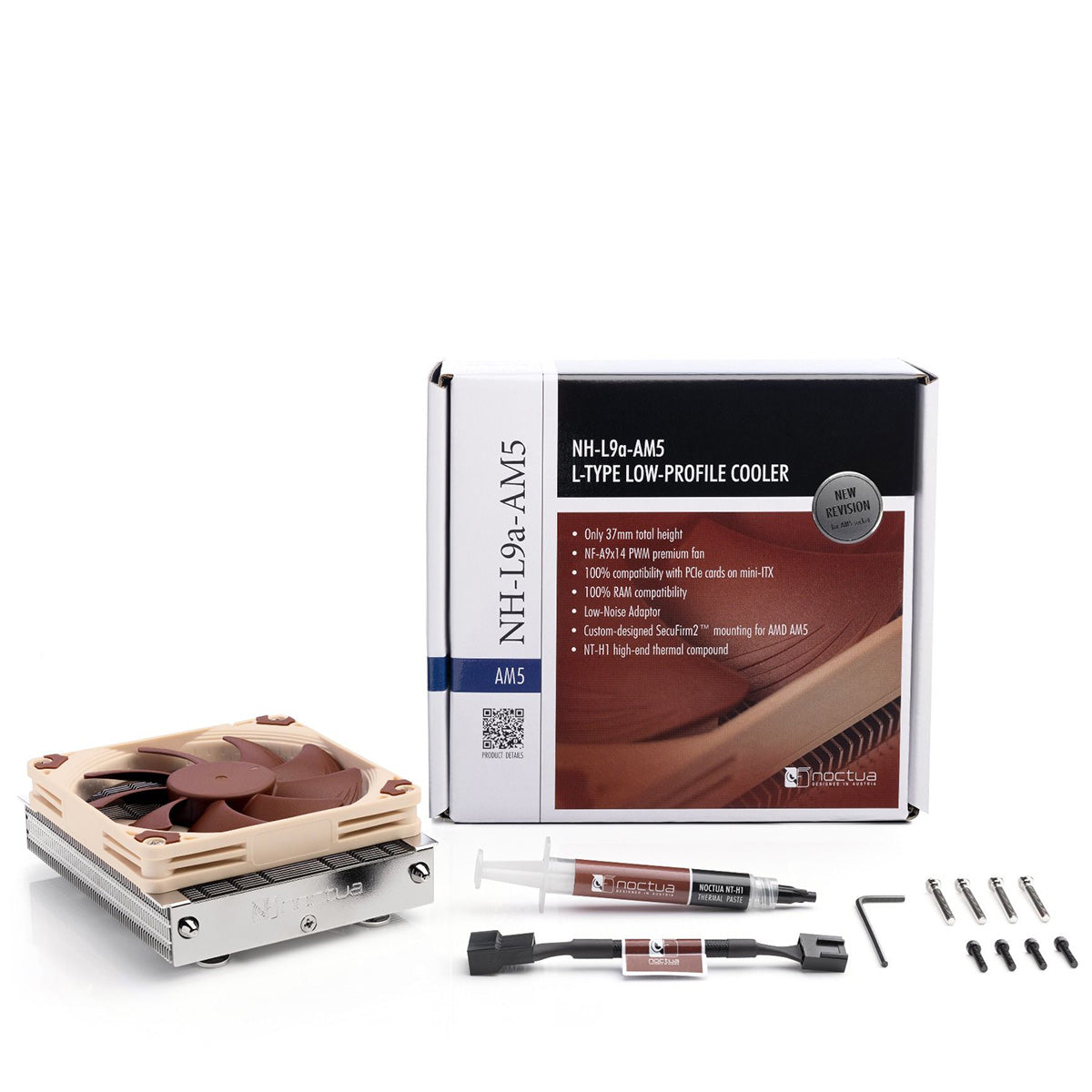

Scope of Delivery |
NF-A9x14 PWM premium fan NA-RC7 Low-Noise Adaptor (L.N.A) NT-H1 high-grade thermal compound SecuFirm2™ AM5 mounting kit Screws for 92x92x25 mm fans Noctua Metal Case-Badge Warranty 6 Years |
Fan Specification | |
Model | Noctua NF-A9x14 HS-PWM |
Bearing | SSO2 |
Max. Rotational Speed (+/- 10%) | 2500 RPM |
Max. Rotational Speed with L.N.A. (+/- 10%) | 1800 RPM |
Min. Rotational Speed @ 20% PWM (+/-20%) | 600 RPM |
Max. Airflow | 57,5 m³/h |
Max. Airflow with L.N.A. | 40,8 m³/h |
Max. Acoustical Noise | 23,6 dB(A) |
Max. Acoustical Noise with L.N.A. | 14,8 dB(A) |
Input Power (max.) | 2,52 W |
Voltage Range | 12 V |
MTTF | > 150.000 h |
