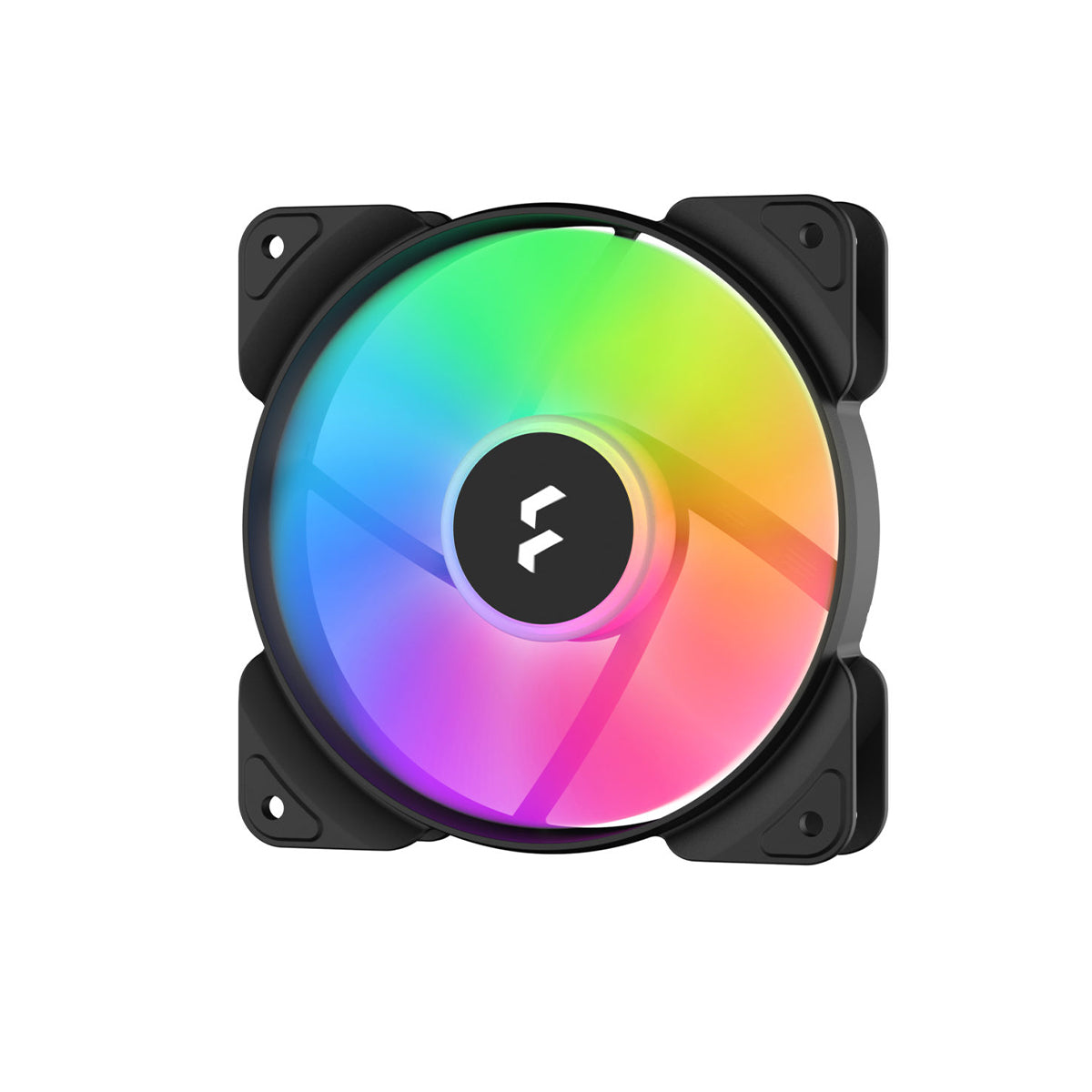

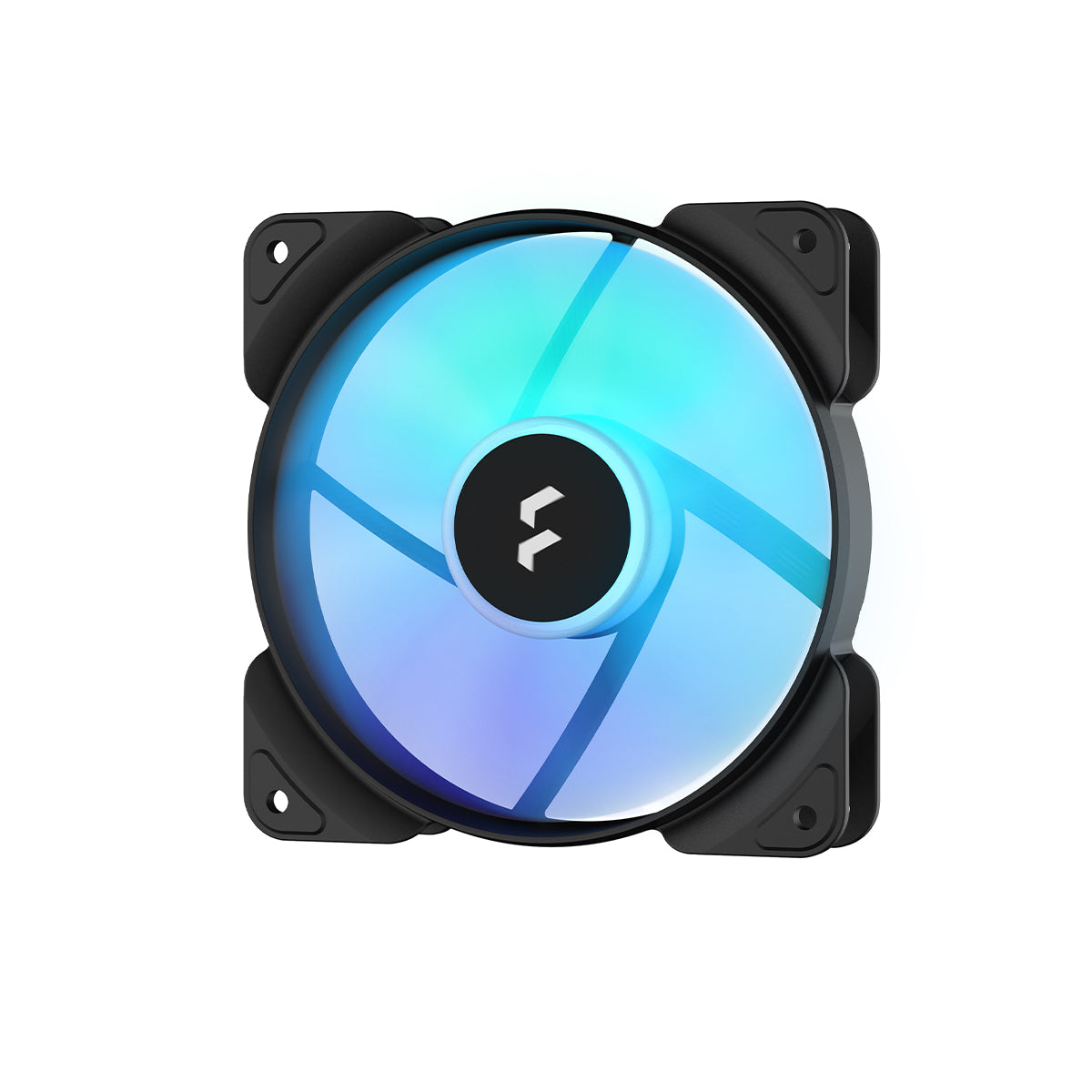

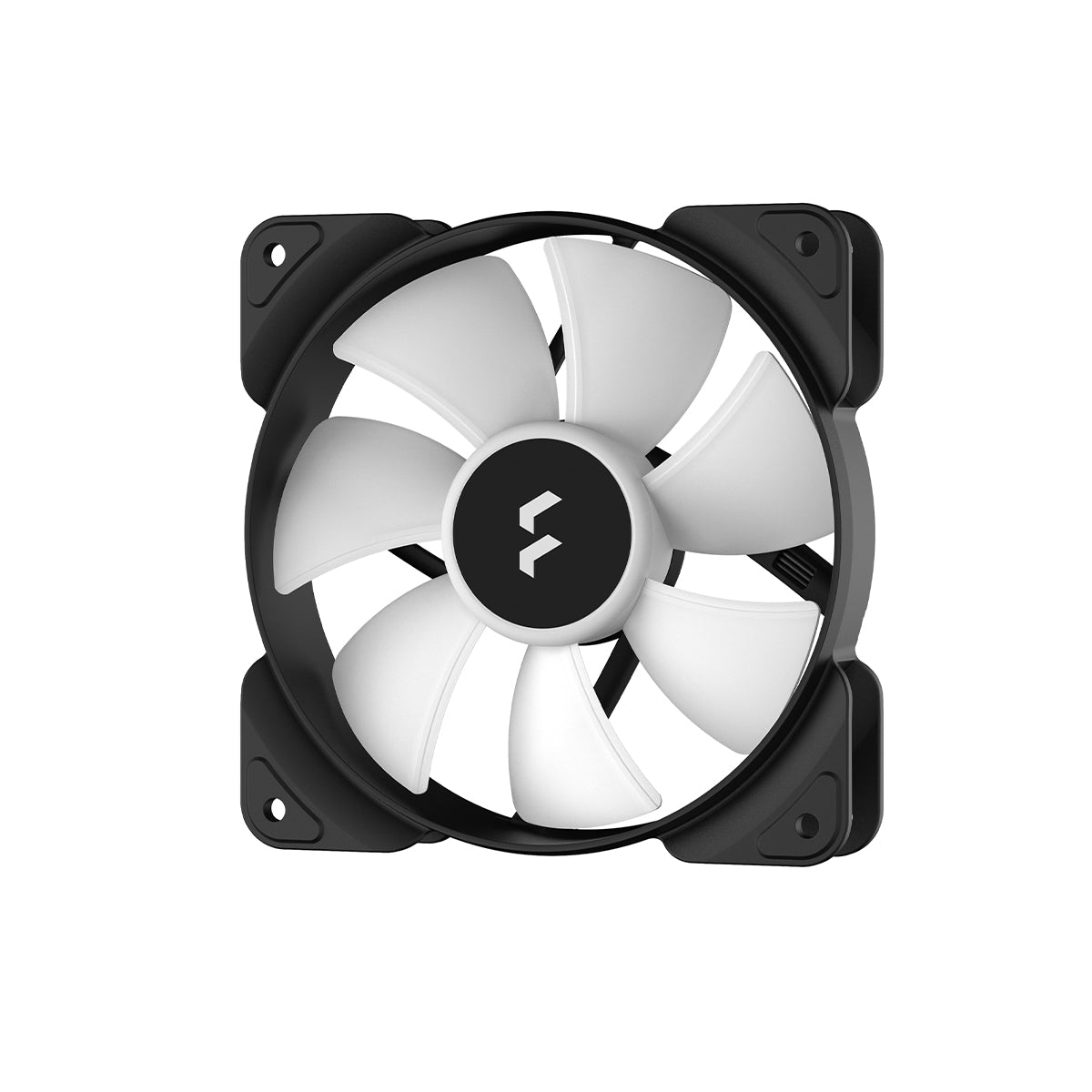

Aspect 12 RGB
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings, and built-in chaining support to simplify cable management.
In Living Color
Let your system shine with six individually addressable hub-mounted RGB LEDs, offering customizable lighting effects to enhance your build’s visual appeal.
Reduced Turbulence and Noise
The aerodynamic stator struts reduce turbulence and noise caused by the airflow, resulting in quieter and more efficient cooling performance.
Refined Aesthetic Design
The Aspect frame delivers an elegant look without compromising on performance, giving your system the best of both worlds.
Extensive RGB Compatibility
Compatible with leading RGB ecosystems including ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome, and Razer Chroma, offering flexibility in customizing your lighting setup.
Rifle Bearings
Rifle bearings are more efficient than standard sleeve bearings, providing longer-lasting performance and reduced friction.
Trip Wire Technology
Trip Wire technology introduces a micro-turbulent layer that enhances blade efficiency for improved performance.
Chain Feature for Cable Management
The built-in chaining support simplifies cable management when connecting multiple Aspect fans, keeping your system clean and organized.
Specifications
Specifications
Size | 120 x 120 x 25 mm |
Screw hole pattern | 105 x 105 mm |
LED type | Addressable RGB |
Power connector | 3-pin |
Bearing | Rifle |
Number of blades | 7 |
Rotational speed | 1200 RPM |
Noise level | 18.3 dB(A) |
Max airflow (CFM) | 32 CFM |
Max airflow (m³/h) | 54.4 m³/h |
Max pressure | 1.20 mm H2O |
Fan typical input power | 0.96 W |
Fan max input current | 0.16 A |
Fan input voltage | 12 V |
Minimum startup voltage | 7 V |
LED rated voltage | 5 V |
LED rated current | 0.3 A |
LED Rated input power | 1.5 W |
MTTF | 90,000 h |
Unit weight | 135 g |
Cable length | 500 mm |
Cable type | Black ribbon (allows chaining) |
