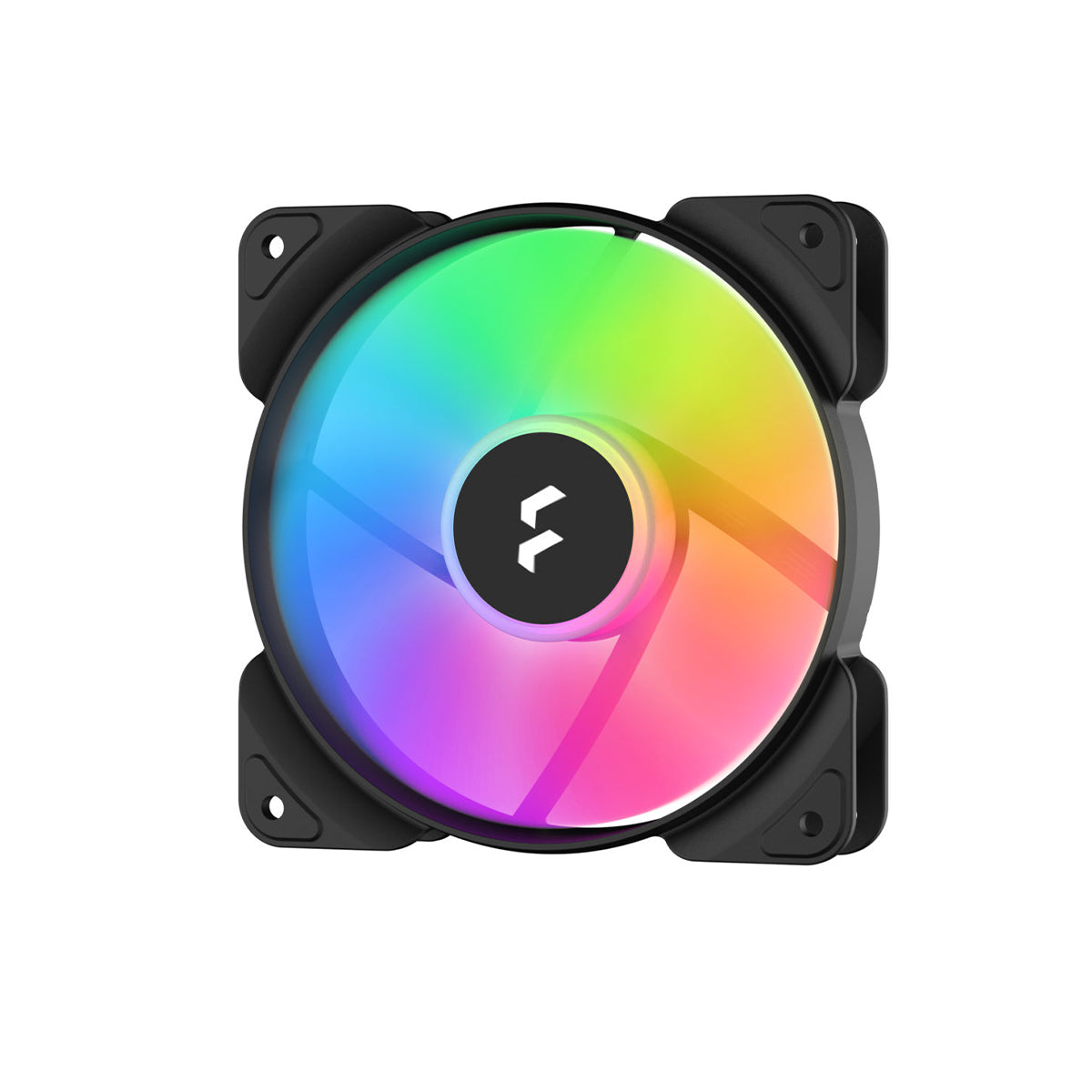

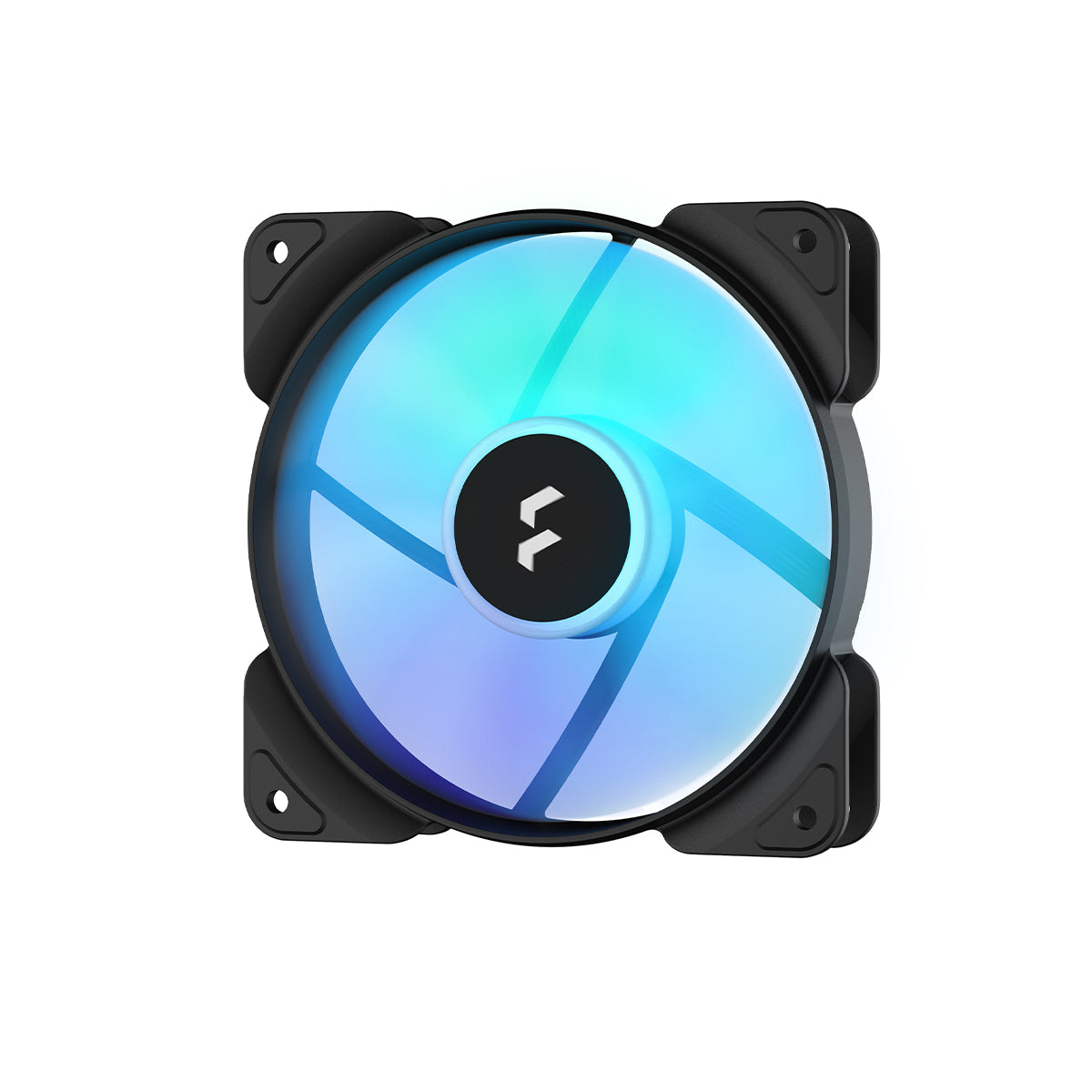

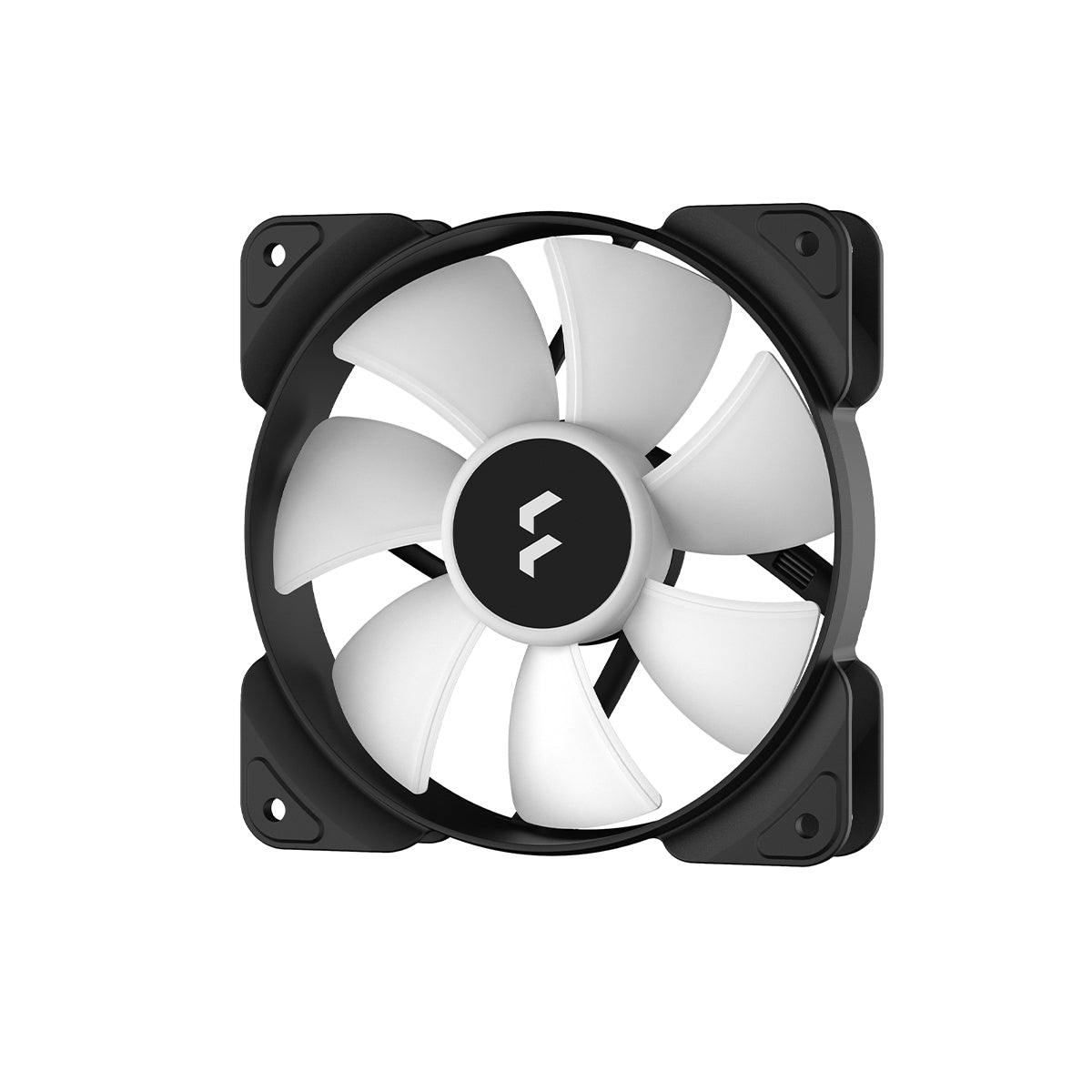

Fractal Design Aspect 12 RGB 120MM PWM Fan - OEM Packaging
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
SHOP STORE:
Description
Description
Aspect 12 RGB PWM
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings, and built-in chaining support to simplify cable management.
- Less turbulence thanks to aerodynamic stator struts
- 6 individually addressable hub-mounted RGB LEDs
- PWM control with a wide RPM speed range
In Living Color
Let your system shine with six individually addressable hub-mounted RGB LEDs.
The aerodynamic stator struts decrease turbulence and noise caused by flowing air.
The Aspect frame offers aesthetics without compromising on performance.
Extensive Support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome, and Razer Chroma.
Rifle Bearings
More efficient than standard sleeve bearings.
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency.
Chain Feature
Simplify cable management by using the Aspect chain feature for multiple units.
Specifications
Specifications
| Size | 120 x 120 x 25 mm |
| Screw Hole Pattern | 105 x 105 mm |
| LED Type | Addressable RGB |
| Power Connector | 4-pin |
| Bearing | Rifle |
| Number of Blades | 7 |
| Rotational Speed | 500-2000 RPM |
| Noise Level | <10 – 33.2 dB(A) |
| Max Airflow (CFM) | 13 – 56 CFM |
| Max Airflow (m³/h) | 22.1 – 95.1 m³/h |
| Max Pressure | 0.23 – 2.34 mm H2O |
| Fan Typical Input Power | 1.68 W |
| Fan Max Input Current | 0.37 A |
| Fan Input Voltage | 12 V |
| Minimum Startup Voltage | 7 V |
| LED Rated Voltage | 5 V |
| LED Rated Current | 0.3 A |
| LED Rated Input Power | 1.5 W |
| MTTF | 90,000 h |
| Unit Weight | 135 g |
| Cable Length | 500 mm |
| Cable Type | Black/White ribbon (allows chaining) |
