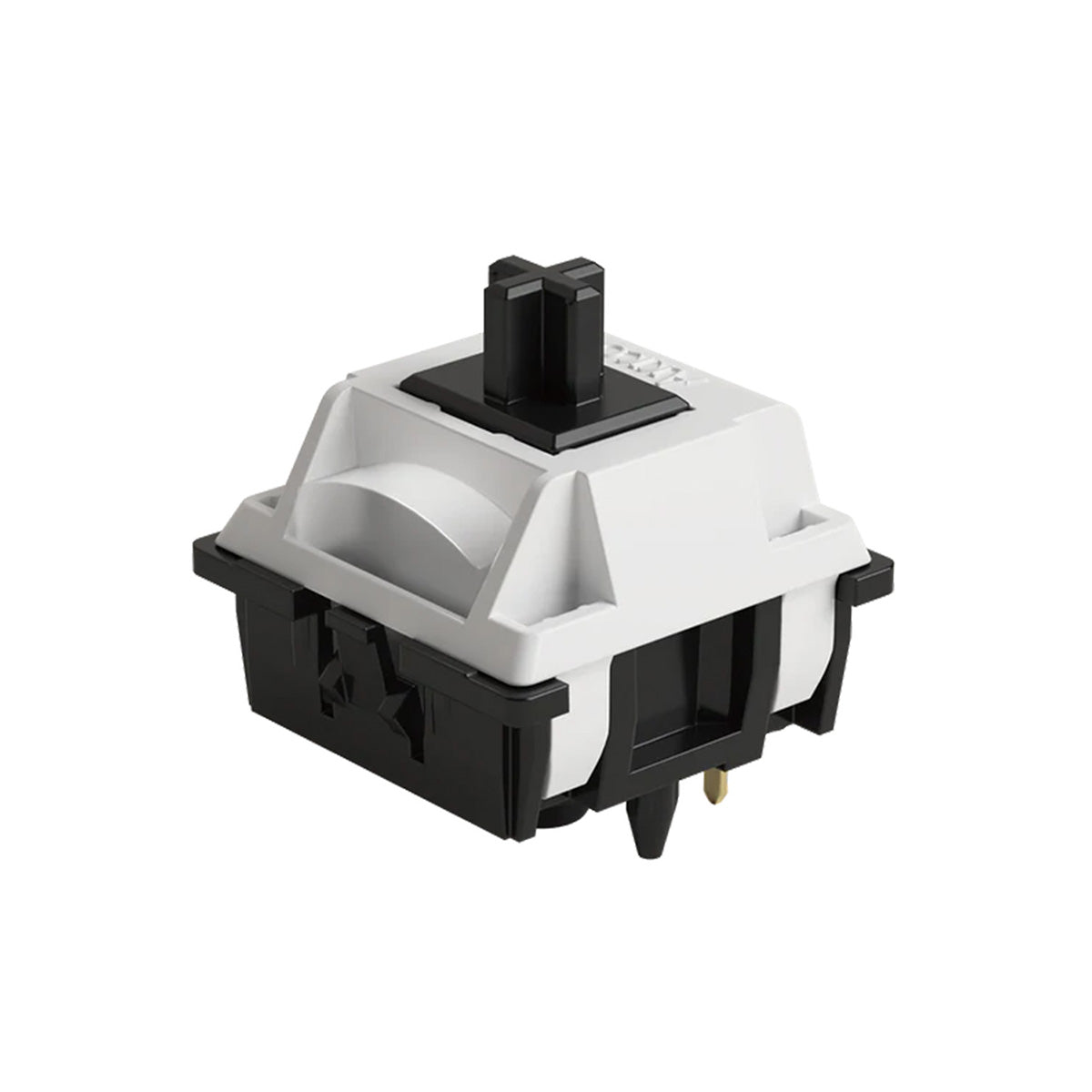

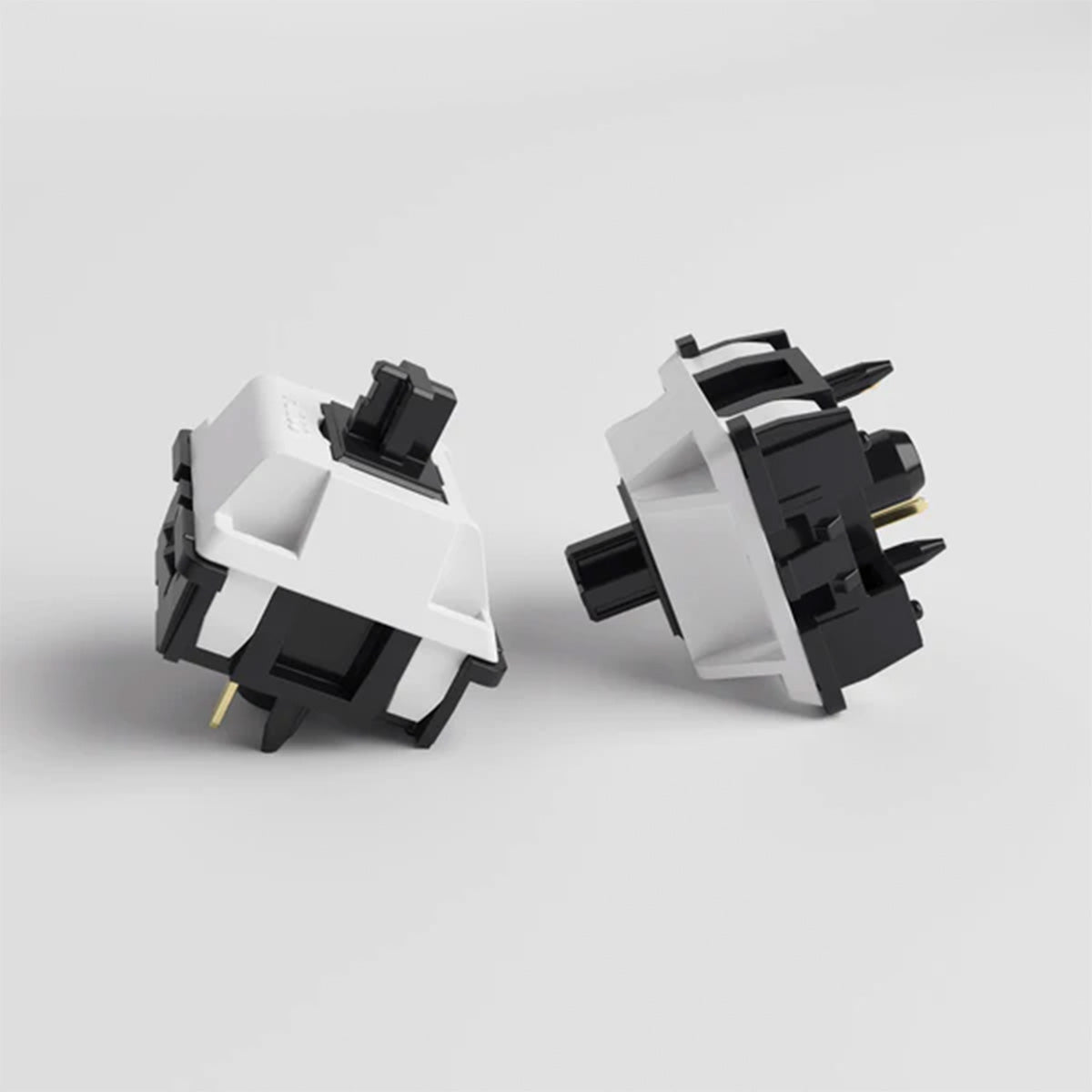

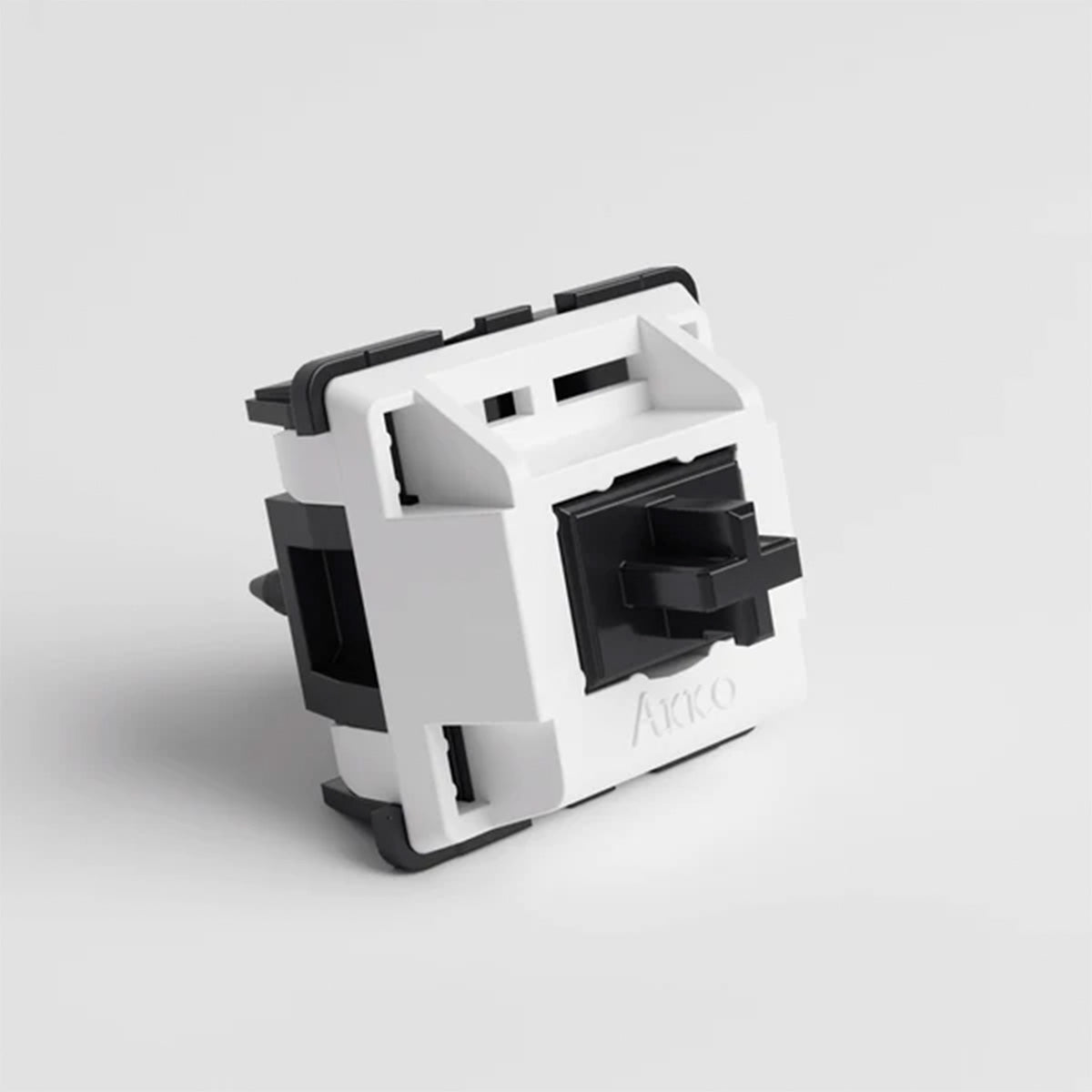

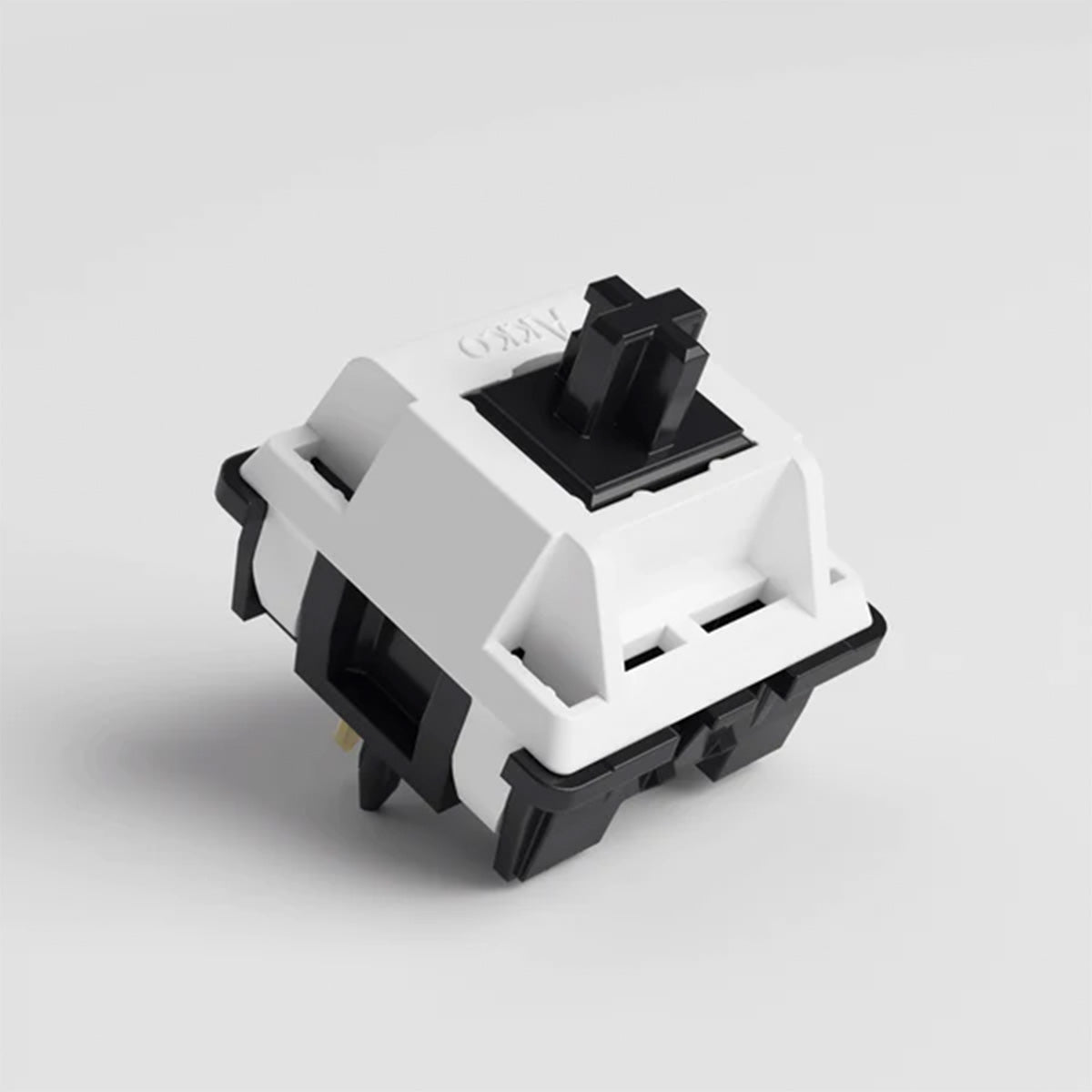

Akko V3 Piano Pro Linear Switch - 45pcs
Linear Actuation 45gf - Pre-Lubed - Dustproof - 5 Pin
Akko
| SKU
67736
$29.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
V3 Piano Pro Switch (45pcs)
Akko V3 Piano Pro has upgraded the regular Piano switches with additional lubes on the rails, providing better out-of-box experiences.
- Type: Linear
- Operating Force: 45±5gf
- Total Travel: 3.1mm
- Pre Travel: 1.9±0.5mm
Specifications
Specifications
| Type | Linear |
| Operating Force | 45±5gf |
| Pre-travel | 1.9±0.5mm |
| Total travel | 3.1mm |
| Mounting Pins | 5-pin switch (can be modified to 3-pin) |
| Materials (Stem/Top/Bottom) | POM/PA/PA |
| Spring | 20±0.5mm |
| Factory Lube | Yes |
| Switch Tech | MX Style |
| Compatibility | Compatible with any Cherry style switches PCB. 5 pins can be adjusted to 3 pins by clipping off 2 extra pins if needed. |
