Akko Rosewood Linear Switch - 45pcs
Linear Actuation 40gf - Pre-Lubed - 5 Pin
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

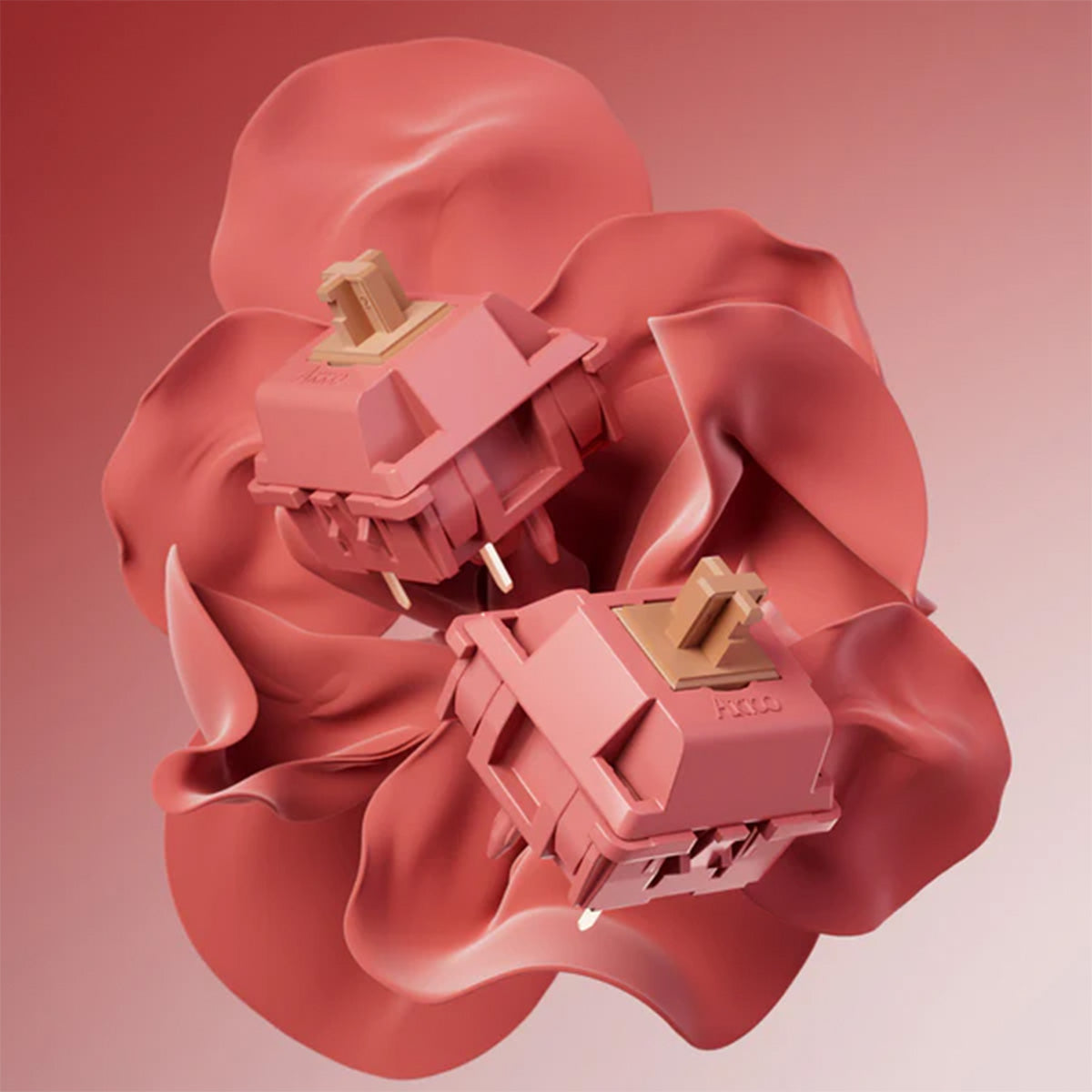

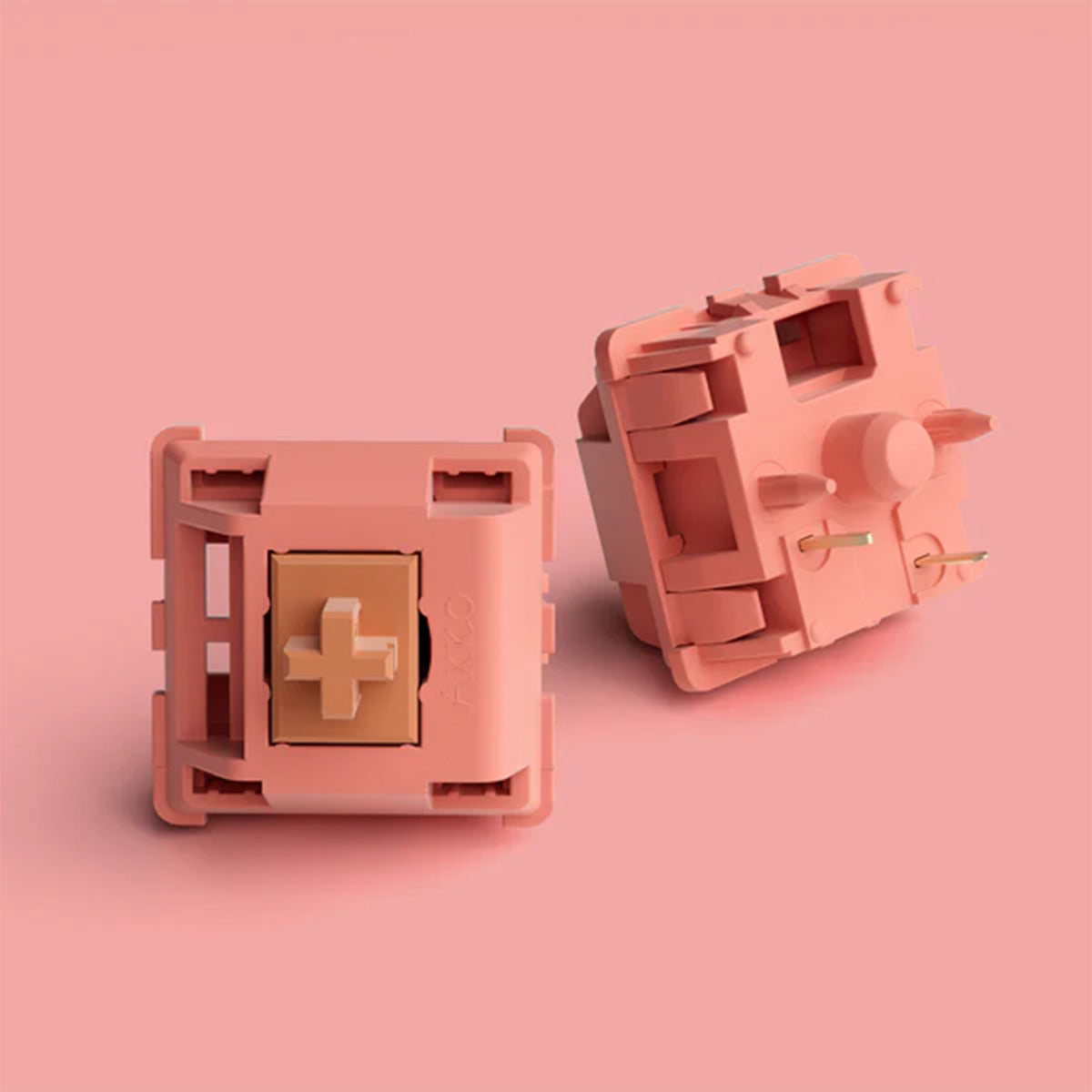

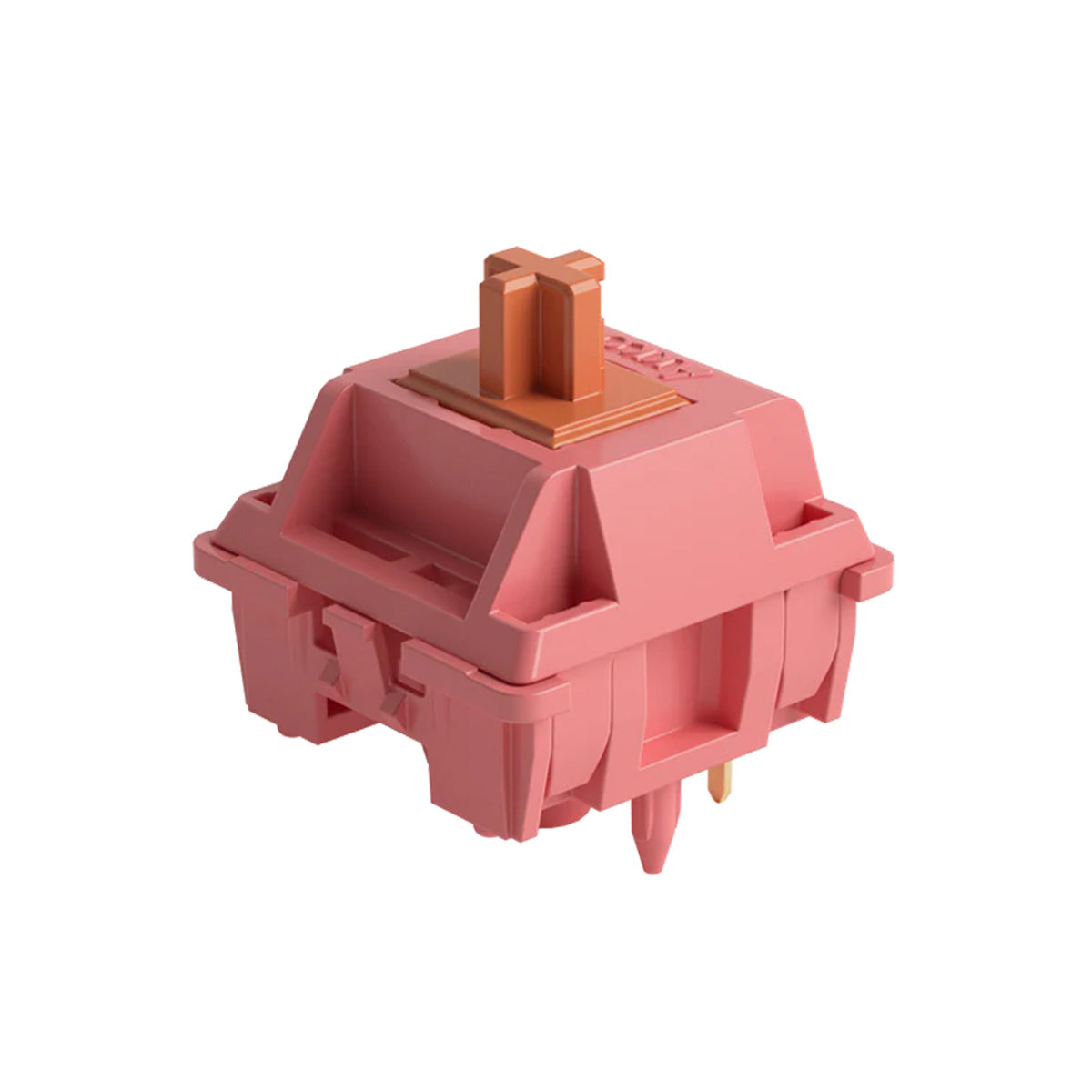

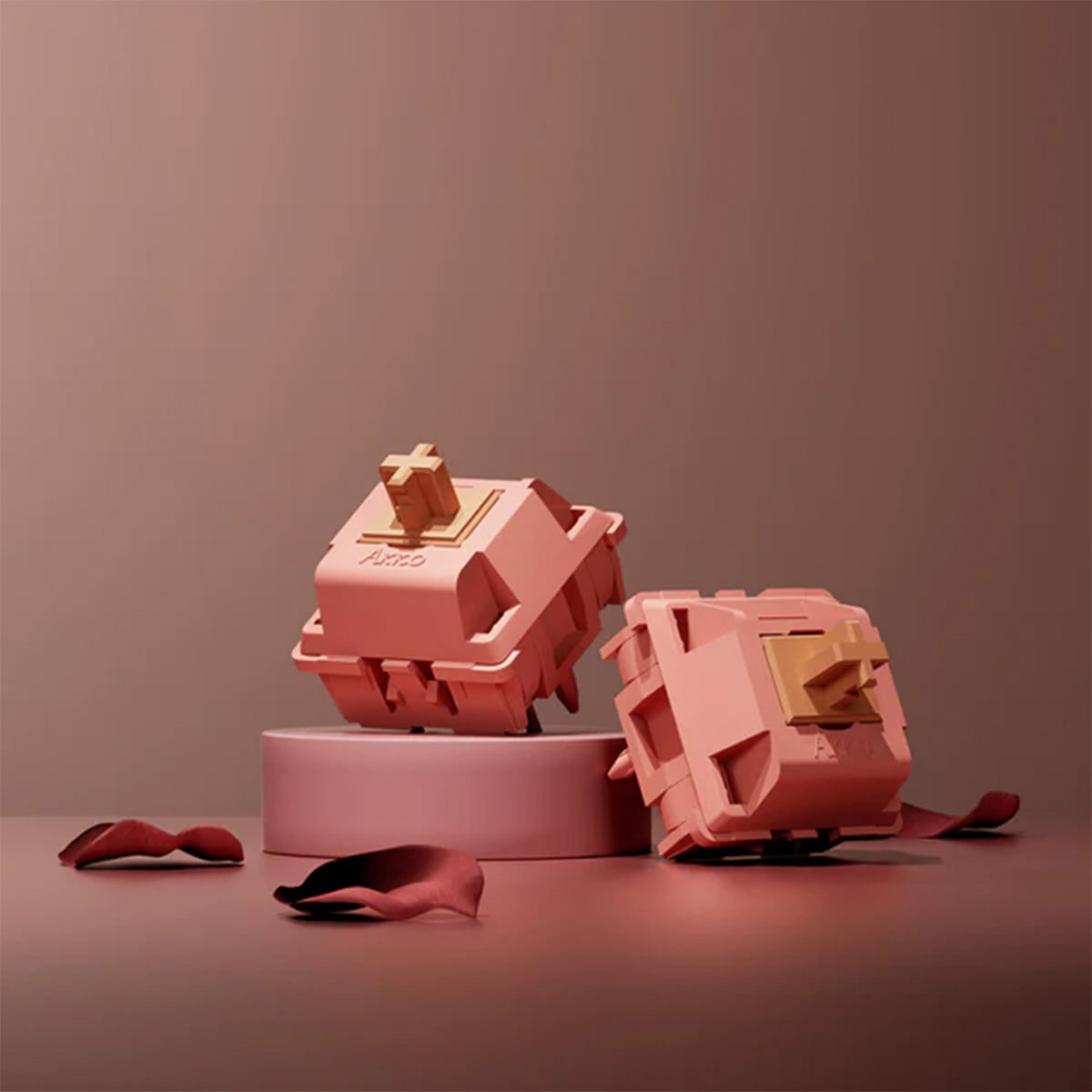

Akko Rosewood Switch (45pcs)
Designed specifically to deliver a rich, low-pitched typing experience for our MU01 Wooden Keyboard.
With its signature deep, "thocky" sound right out of the box, the Rosewood Switch comes lightly pre-lubed for smooth operation.
It boasts a custom Nylon (Pro) stem, a PA12 blend top cover, and a PA6 bottom housing, resulting in a distinctive and high-quality material combination.
- Linear switch with smooth travel
- Factory lubricated rail to reduce friction
- Cherry MX compatible stem fits most keycaps
- 5-pin Switch - Better stability
- Type: Linear
- Operating Force: 40±5gf
- Total Travel: 4.0 mm
- Pre Travel: 2.0±0.5 mm
Specifications
Specifications
Linear Switch Specifications
| Type | Linear |
| Operating Force | 40±5gf |
| Pre-travel | 2.0±0.5mm |
| Total travel | 4.0mm |
| Mounting Pins | 5-pin switch (can be modified to 3-pin) |
| Materials (Stem/Top/Bottom) | NYLON PRO/PA12/PA6 |
| Spring | 21.5±0.5mm |
| Factory Lube | Yes |
| Switch Tech | MX Style |
| Compatibility | Compatible with any Cherry style switches PCB. 5 pins can be adjusted to 3 pins by clipping off 2 extra pins if needed. |
