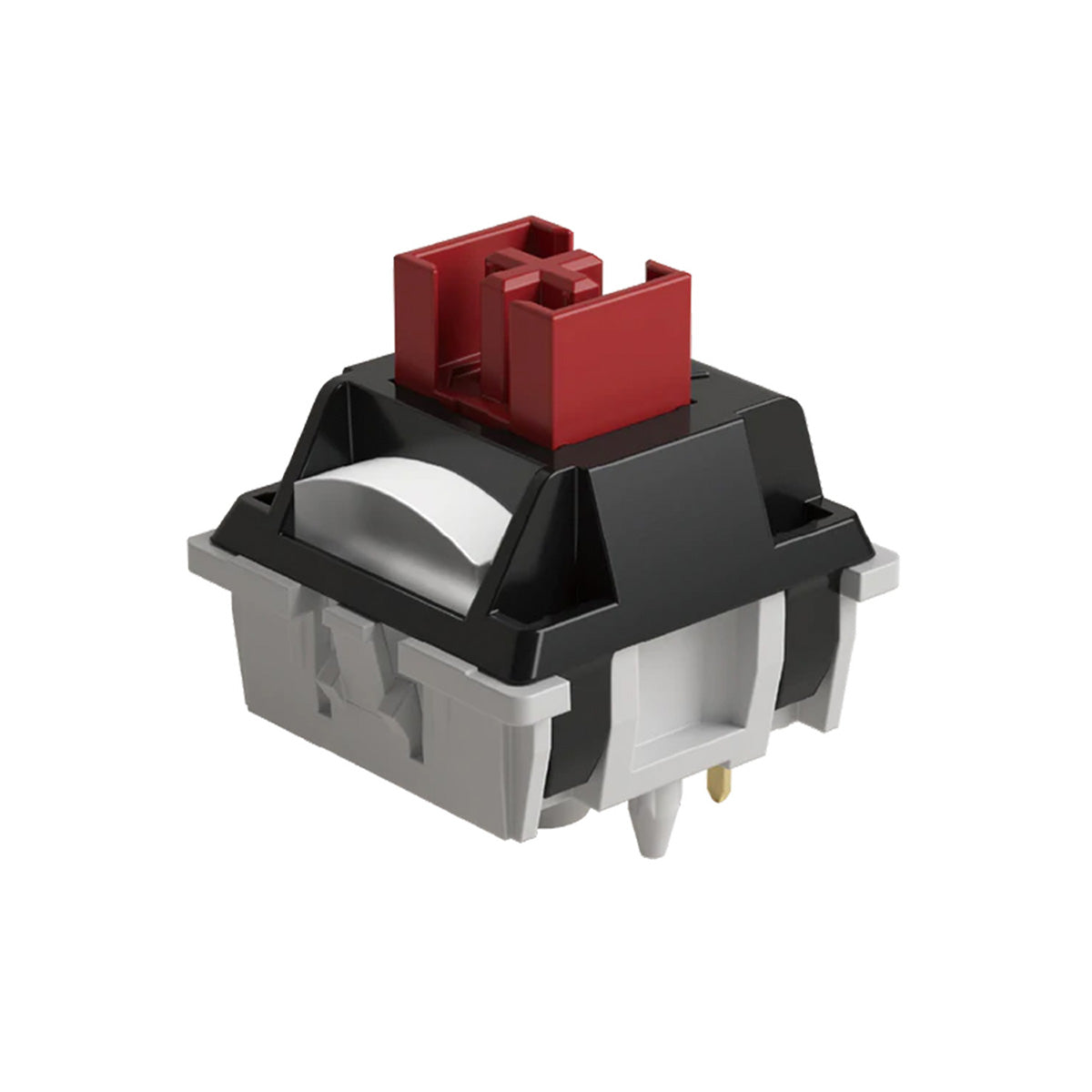

Akko Dracula Switch (45pcs)
The POK top case and stem in the Akko Dracula switch ensure an ultra-smooth and comfortable typing experience.
Akko's initial use of POK material showcases its exceptional water and impact resistance over POM. While POK may undergo slight color changes with time, we've selected black and dark red hues for improved durability and aesthetics.
Moreover, POK is regarded as a potentially more sustainable material than POM.
The stem also includes an extra hole at the base for better airflow and smoother performance.
- Ultra low Operating force Linear switch
- POK housings with POK stem
- Dust-proof to protect against dust
- Light Diffuser - LED Friendly
POK – High Impact Strength
According to researches from famous EU polymer suppliers, DREYPLAS has offered reports from HYOSUNG (the company to first commercialized the use of POK) about POK.
POK shows over 230% higher impact strength than Nylon, PBT. There is no degradation thanks to its effective hydrolysis resistance.
Enhanced smoothness

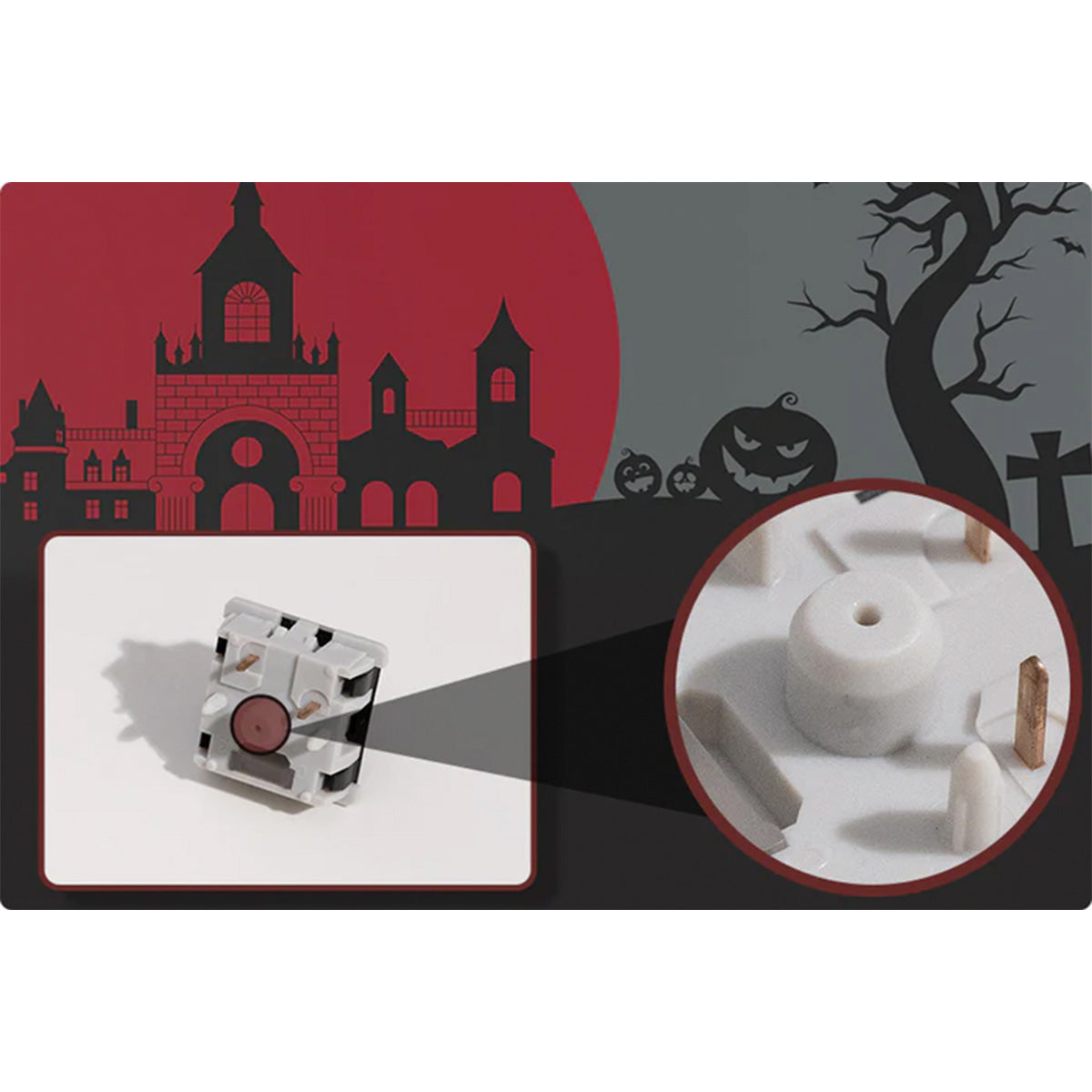

An additional opening at the stem's bottom boosts airflow and smoothness.
Specifications
Specifications
| Type | Linear |
| Force | 35±5gf |
| Total Travel | 3.8 mm |
| Pre-travel | 2.0±0.6 mm |
| Mounting Pins | 5-pin switch (can be modified to 3-pin) |
| Materials (Stem/Top/Bottom) | POK/POK/PA |
| Spring | 21.8±0.5mm |
| Factory Lube | Yes |
| Switch Tech | MX Style |
| Compatibility | Compatible with any Cherry style switches PCB. 5 pins can be adjusted to 3 pins by clipping off 2 extra pins if needed. |
