Wooting 60HE v2 Module ANSI - Regular Spacebar

Wooting 60HE v2

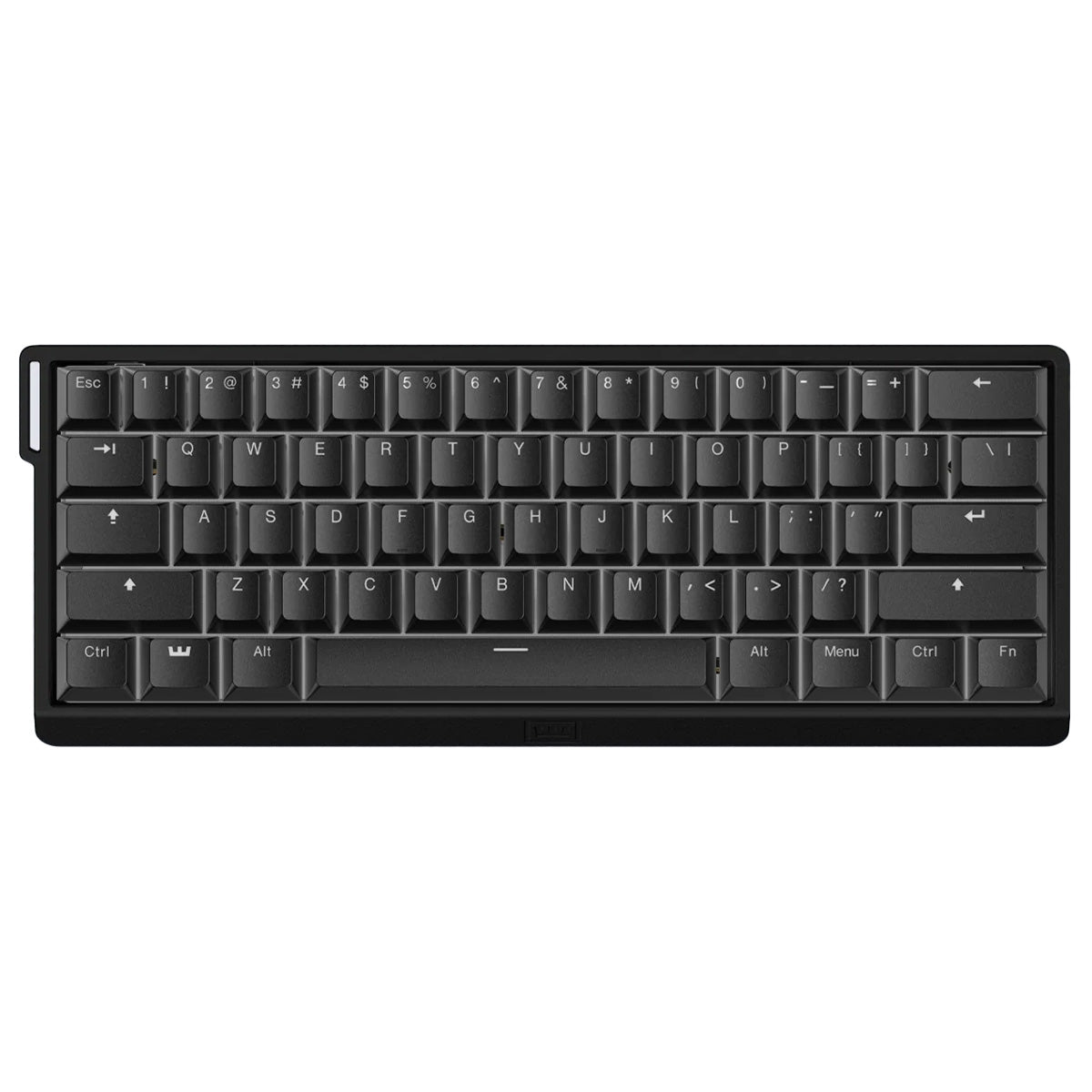

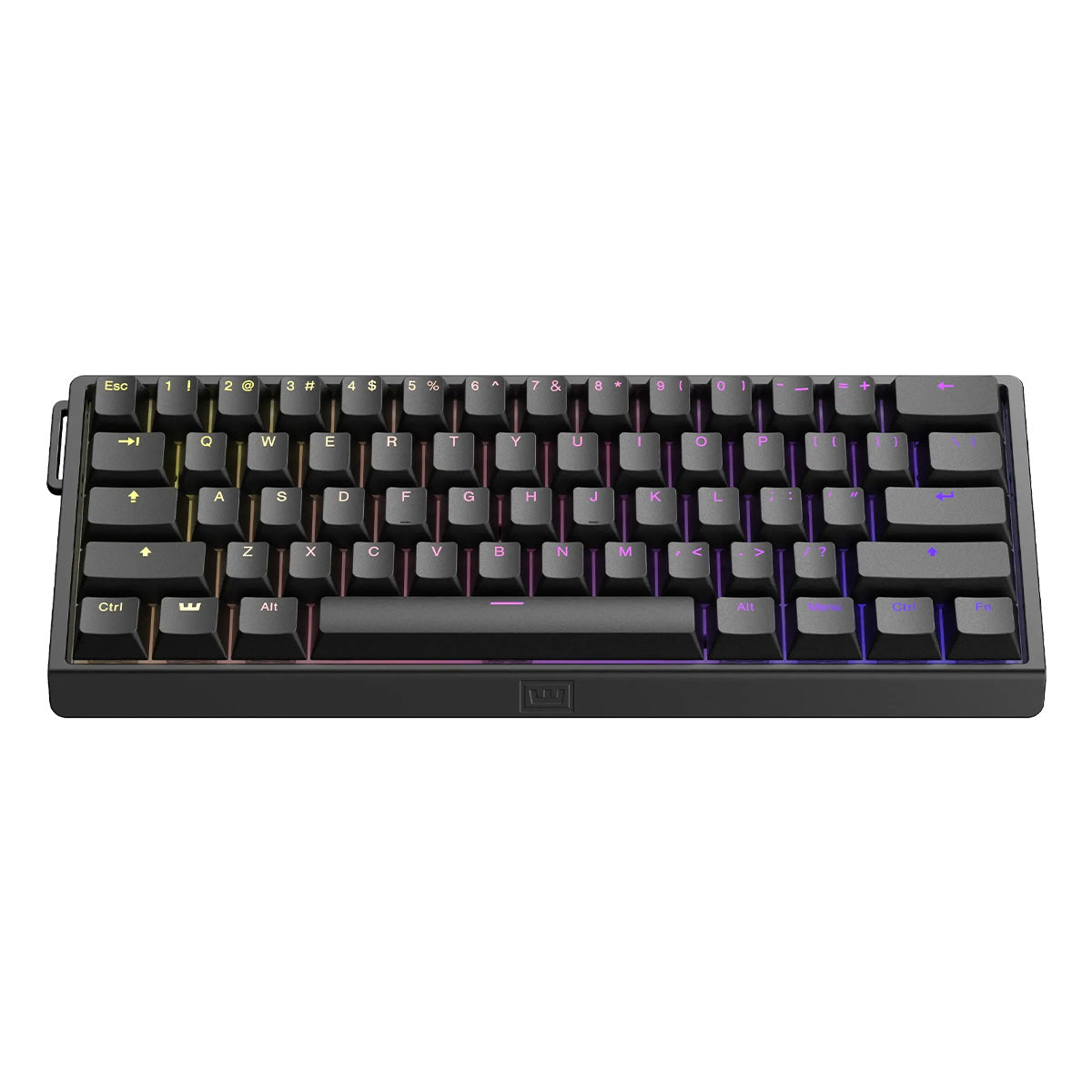

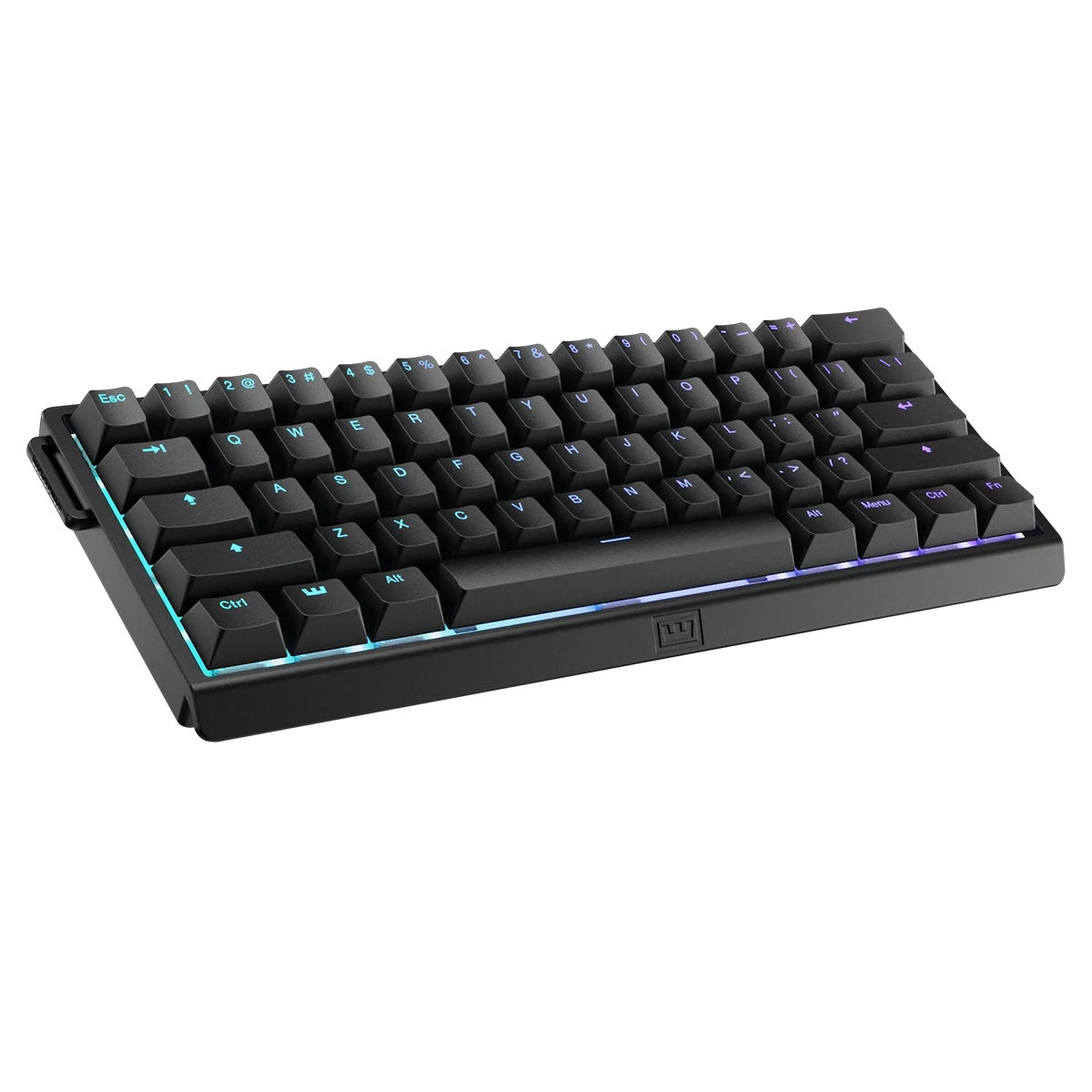

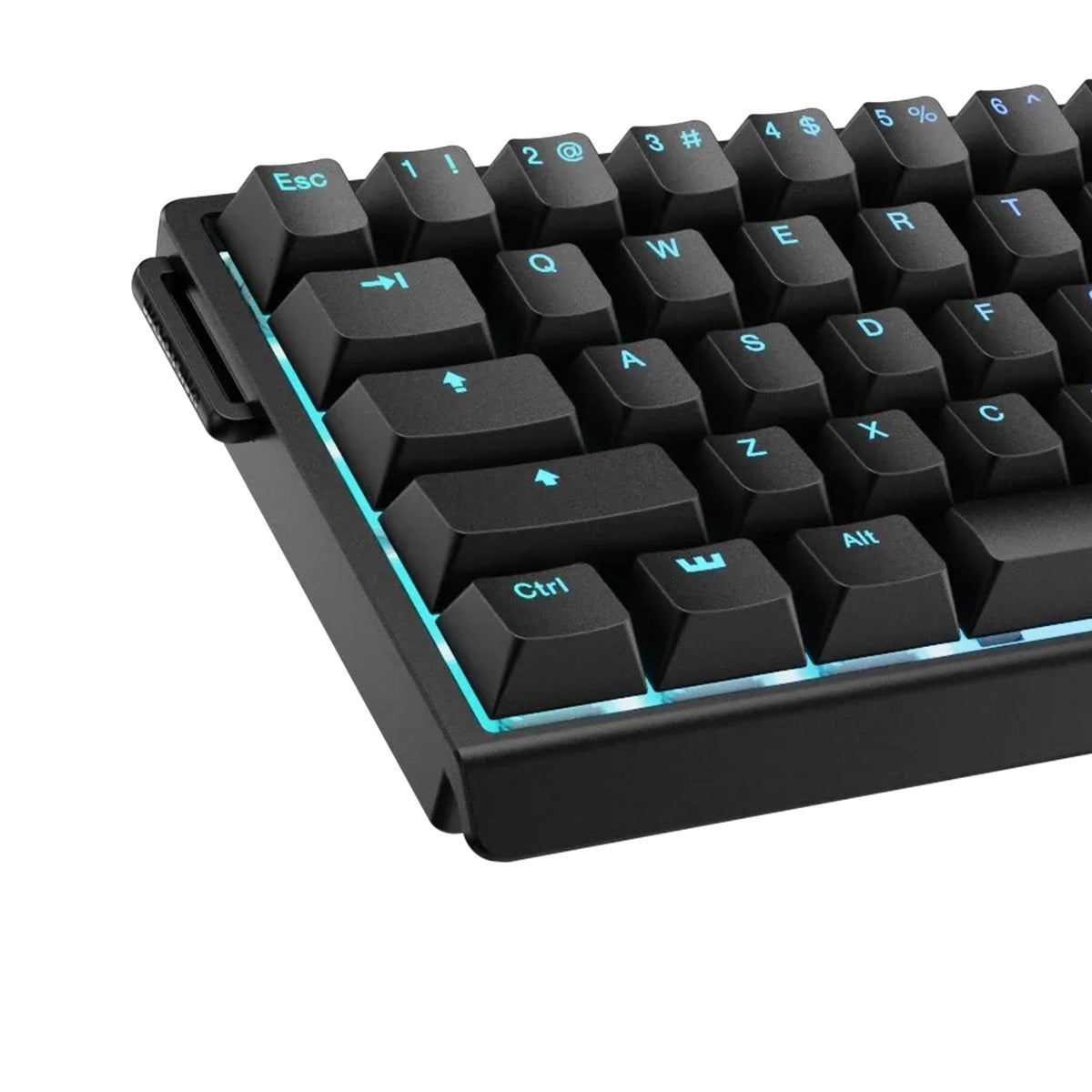

60% analog Hall-effect gaming keyboard with a regular spacebar layout.

Regular Spacebar Layout

The keyboard uses a traditional full-size spacebar layout.

Aluminum Case Version

The aluminum version uses a solid aluminum chassis and is available in Just Black and Bright Silver.

ABS Case Version

The ABS version uses a plastic chassis with a fixed strap mount, silicone side wing, and EPDM dampening foam.

PBT Keycaps

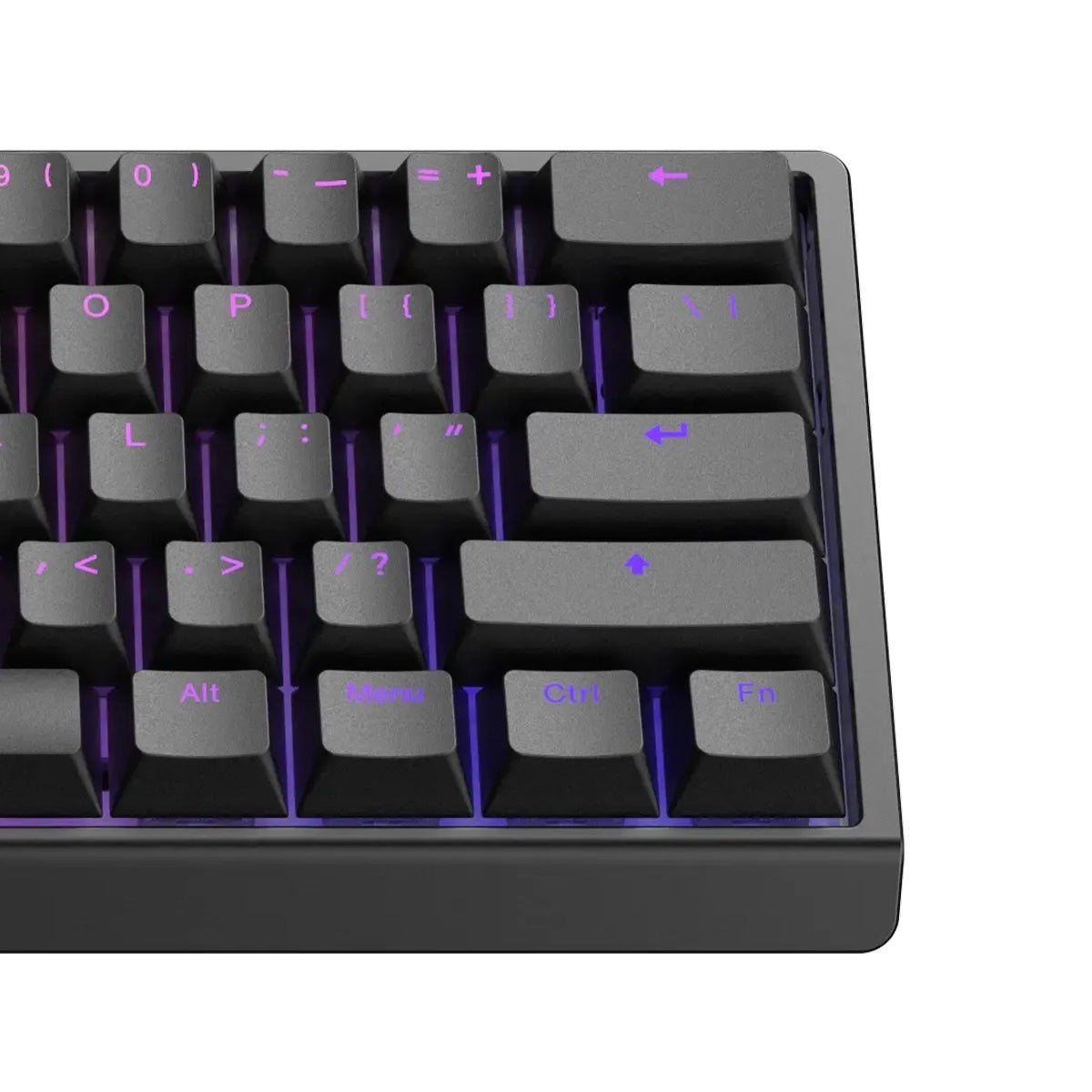

The pre-built keyboard includes textured PBT keycaps with transparent legends that allow the RGB lighting to pass through. PBT material retains its texture and resists surface shine and legend fading over time.

Lekker Tikken Switches

The Hall-effect Lekker Tikken switches provide a full 4mm travel range. The closed-bottom construction produces a deeper and more muted sound profile.

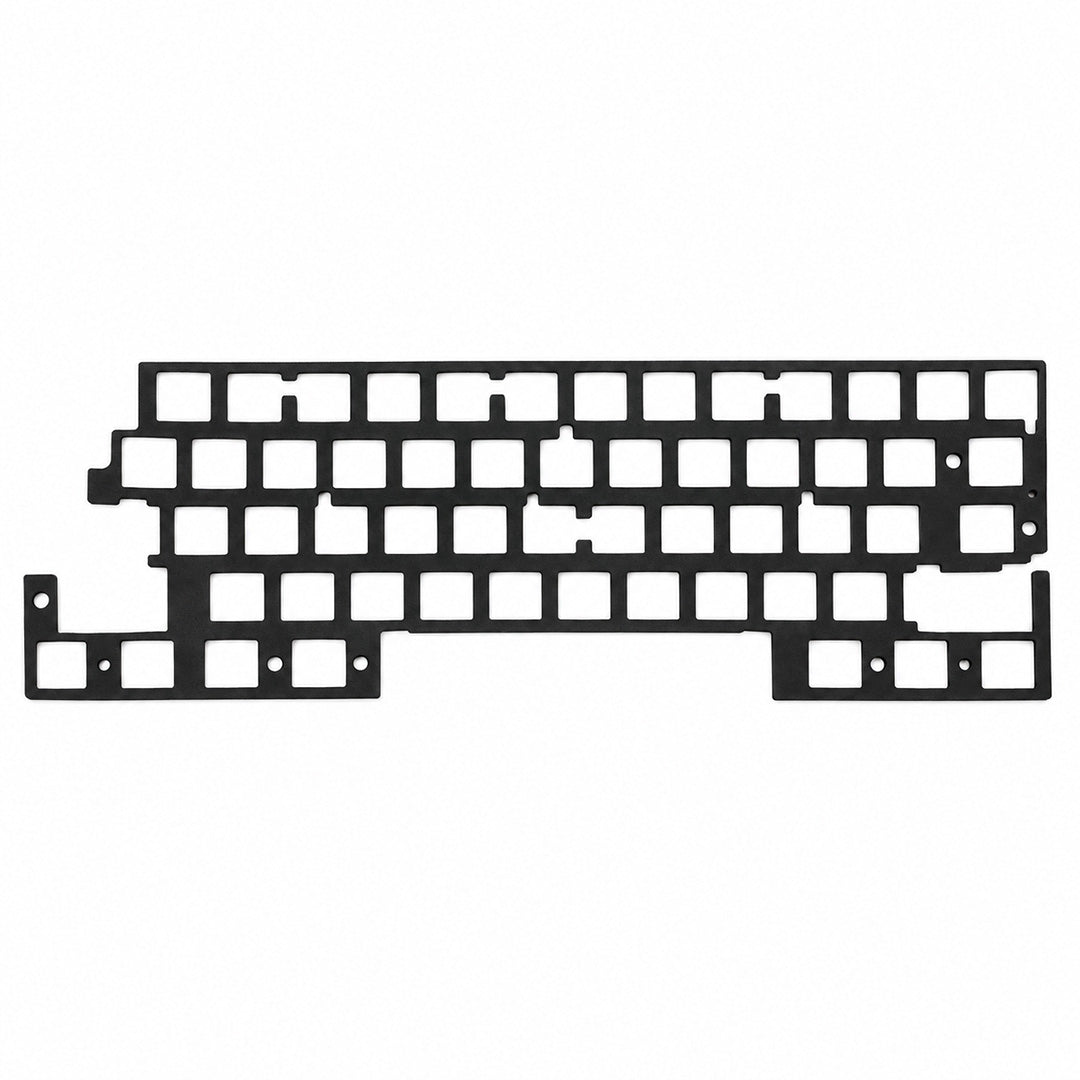

FR4 Switch Plate

The FR4 switch plate combines rigidity with controlled flex. It reduces key bounce and contributes to a muted sound profile.

HD Poron® Foam Layer

High-density Poron® foam is positioned between the PCB and switch plate to reduce vibration and lower the keyboard’s acoustic pitch.

Friction-Fit PCB Pad

The friction-fit pad holds the PCB in place without screws, reducing vibration and case resonance.

PET Acoustic Film

A PET film layer positioned beneath the switches reduces higher-pitched sounds and adjusts the keyboard’s overall sound profile.

Bottom Case Dampening

The aluminum case version supports interchangeable bottom dampening configurations using a silicone block, EPDM foam, or no dampening layer.

Interchangeable Strap Mounts

The aluminum case version includes interchangeable mounts that support no strap, one strap, or two straps.

8kHz Polling

The upgraded internal processor supports true 8kHz polling and scans every key at the same synchronized rate.

Low Input Latency

The keyboard provides a stable input speed of approximately 0.125ms when Tachyon Mode is enabled through Wootility.

Analog Hall-Effect Input

Hall-effect sensors measure how far each key is pressed instead of treating every keypress as a simple on or off input.

Rapid Trigger

Rapid Trigger activates and resets a key according to its physical movement rather than requiring it to pass a fixed reset point.

Adjustable Actuation

The actuation point of each key can be adjusted with settings ranging from 0.1mm to 4mm.

Wootility Software

Wootility provides controls for keyboard performance, RGB lighting, actuation settings, key assignments, and analog input features. It is available as an installed application or through a compatible web browser.

Onboard Profiles

Up to four profiles can be stored directly on the keyboard and used on another device without opening Wootility.

Rappy Snappy

Rappy Snappy links two keys and keeps the more deeply pressed key active. Both keys can only remain active simultaneously when both are fully pressed.

Snappy Tappy SOCD

Snappy Tappy controls how the keyboard handles two opposing keys pressed at the same time, including options such as prioritizing the most recently pressed key.

Dynamic Keystroke

Dynamic Keystroke allows multiple actions to be assigned to different stages of one keypress, including partial press, full press, and release.

Key Remapping

Individual keys and function-layer keys can be reassigned through Wootility.

Mod Tap

Mod Tap assigns two functions to one key, with one action triggered by tapping and another triggered by holding.

Analog Controller Input

Analog movement can be assigned to keys such as WASD, allowing variable movement, throttle, steering, or braking input in supported games.

Toggle Key

Toggle Key allows an action to be switched between active and inactive states with a tap while retaining the key’s normal function when held.
