TP-Link TX201 PCI Express Network Adapter 2.5 Gigabit

TP-Link  |  SKU 67529  |  MPN TX201
$49.00

Order now and it ships in 2-3 working days.

In-stock at Supplier

Pickup available at Computer Lounge

Usually ready in 2-3 working days.

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

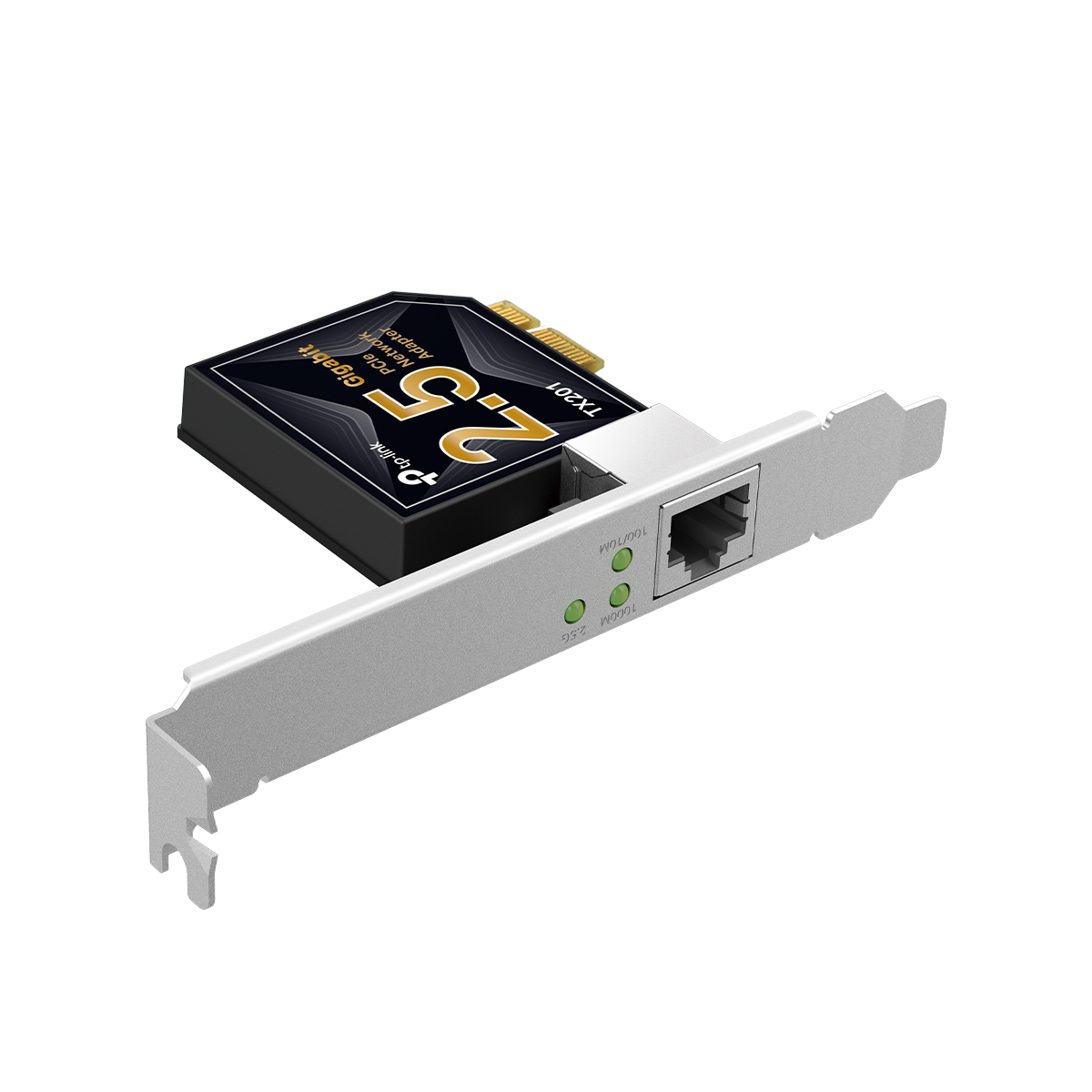

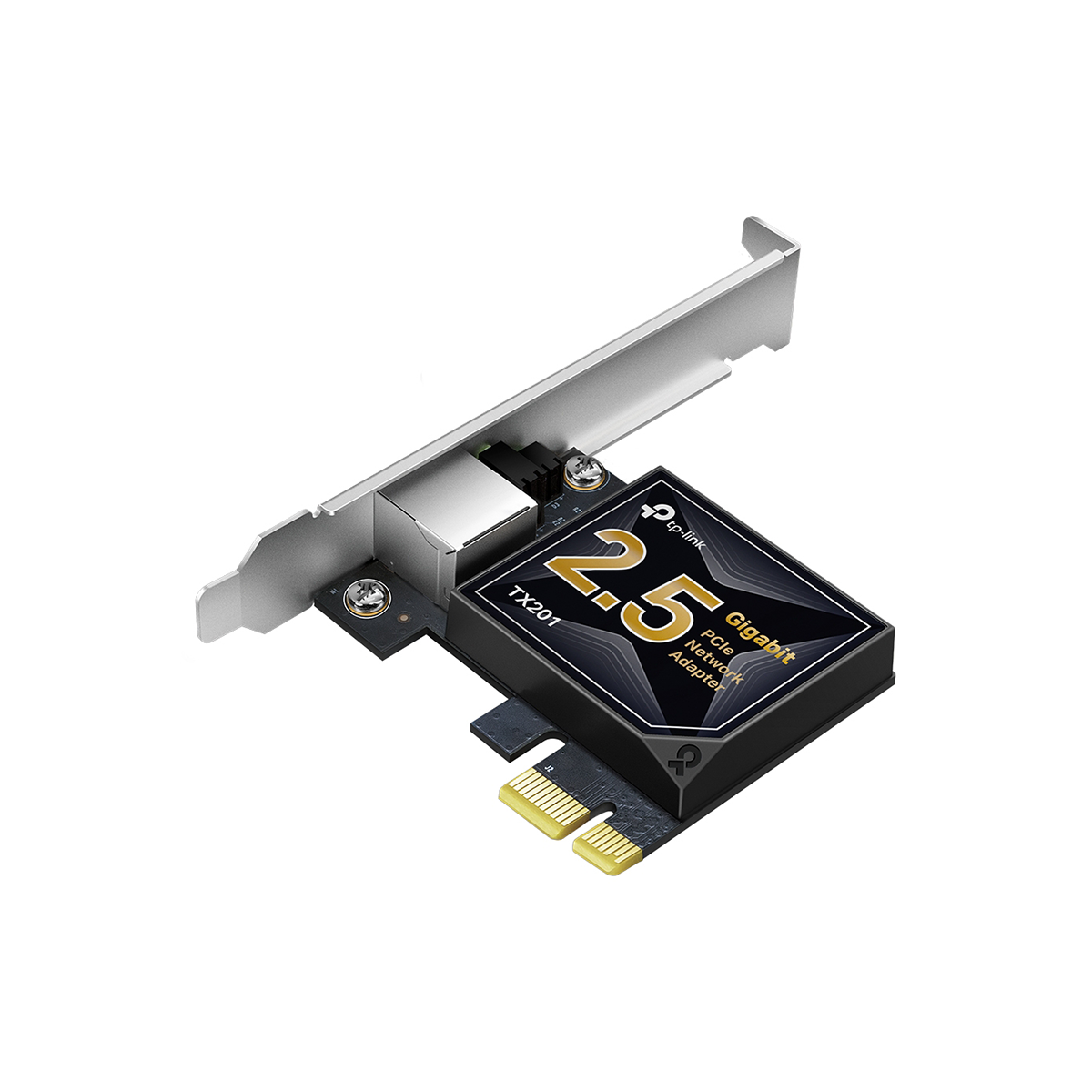

TX201 2.5 Gigabit PCIe Network Adapter
TX201 offers incredible 2.5 Gbps networking speed, low-latency compatibility, and versatile setup options for both full-height and low-profile systems. It’s designed for high-performance data transmission in home and office environments, providing up to 2.5x faster speeds than standard gigabit Ethernet.

  • 2.5 Gbps Networking
    2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.
  • Versatile Compatibility
    With extreme speed and ultra-low latency, 2.5GBase-T is backward compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
  • Low-Profile and Full-Height Brackets
    In addition to the standard bracket, a low-profile bracket is provided for mini-tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
  • Comprehensive System Support
    Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.

Incredible 2.5G Networking
2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.

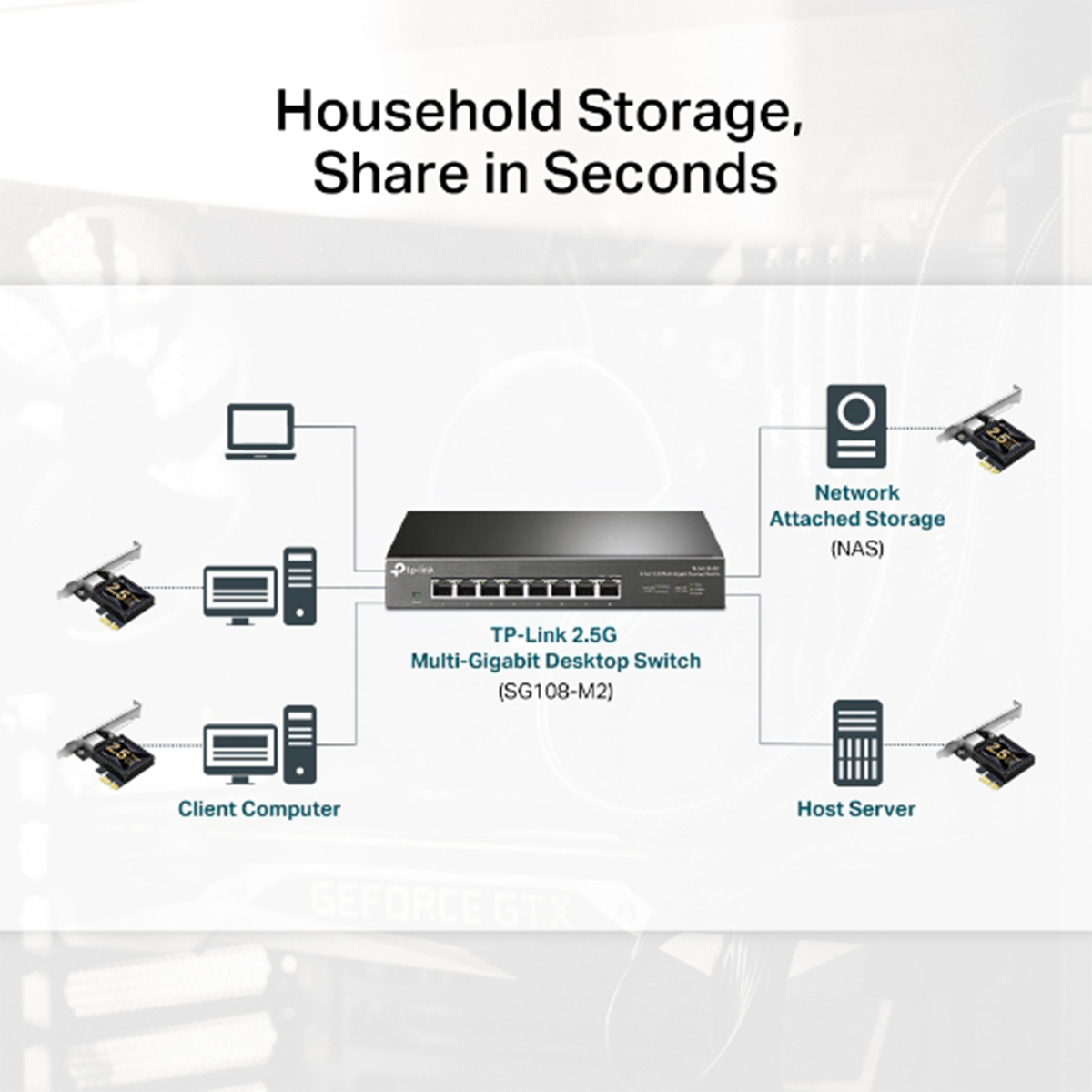

Household Storage, Share in Seconds
For local connections, a 2.5G PCIe adapter helps build a lightning-fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.


2.5G Extremely Fast Internet Response
With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.


  • QoS Support
    Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.
  • Wake On LAN
    Remotely power on/off your computer with WOL, good for centralized management.
  • Low-Profile Bracket
    In addition to the standard bracket, a low-profile bracket is also provided for mini-tower computer cases.
  • Easy Setup
    Simple software installation with the intuitive Utility on the provided CD.
  • Comprehensive System Support
    Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.

Specifications

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Interface 1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port
Network Media 2.5GBASE-T/1000BASE-T/100BASE-TX
LED 2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act
Data Rates 10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode,
20Mbps, 200 Mbps, 2 Gbps, 5 Gbps for Full-Duplex mode
Dimensions 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control 802.3x
Certification FCC, CE, RoHS
Package Contents 2.5 Gigabit PCIe Network Adapter (TX201),
Standard/Low-Profile Brackets,
Quick Installation Guide,
Resource CD
System Requirements Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉),
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing
