Thermaltake View 270 SP Edition TG ARGB Mid Tower Case Black Edition

Thermaltake  |  SKU 68970  |  MPN CA-1Y7-00M1WN-02
$139.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

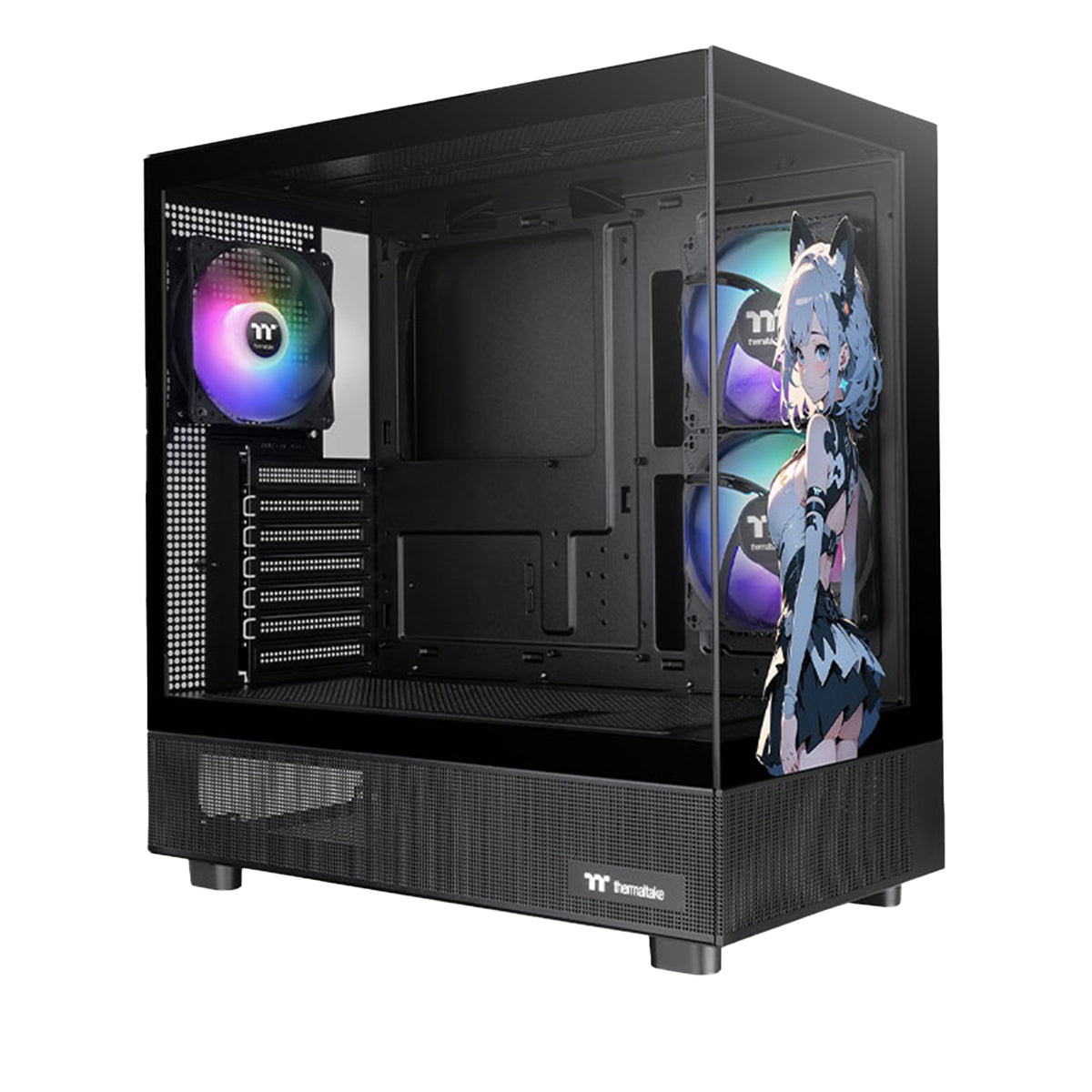

View 270 SP Edition Mid Tower Chassis

Built for amazing views, the View 270 SP Edition Mid Tower Chassis is an ATX case that features tempered glass front and left panels, with the front panel covered in specially designed graphics. The case comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed, and its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed inside the chassis, and a 360mm radiator can be placed on the top of the View 270 SP Edition Mid Tower Chassis.

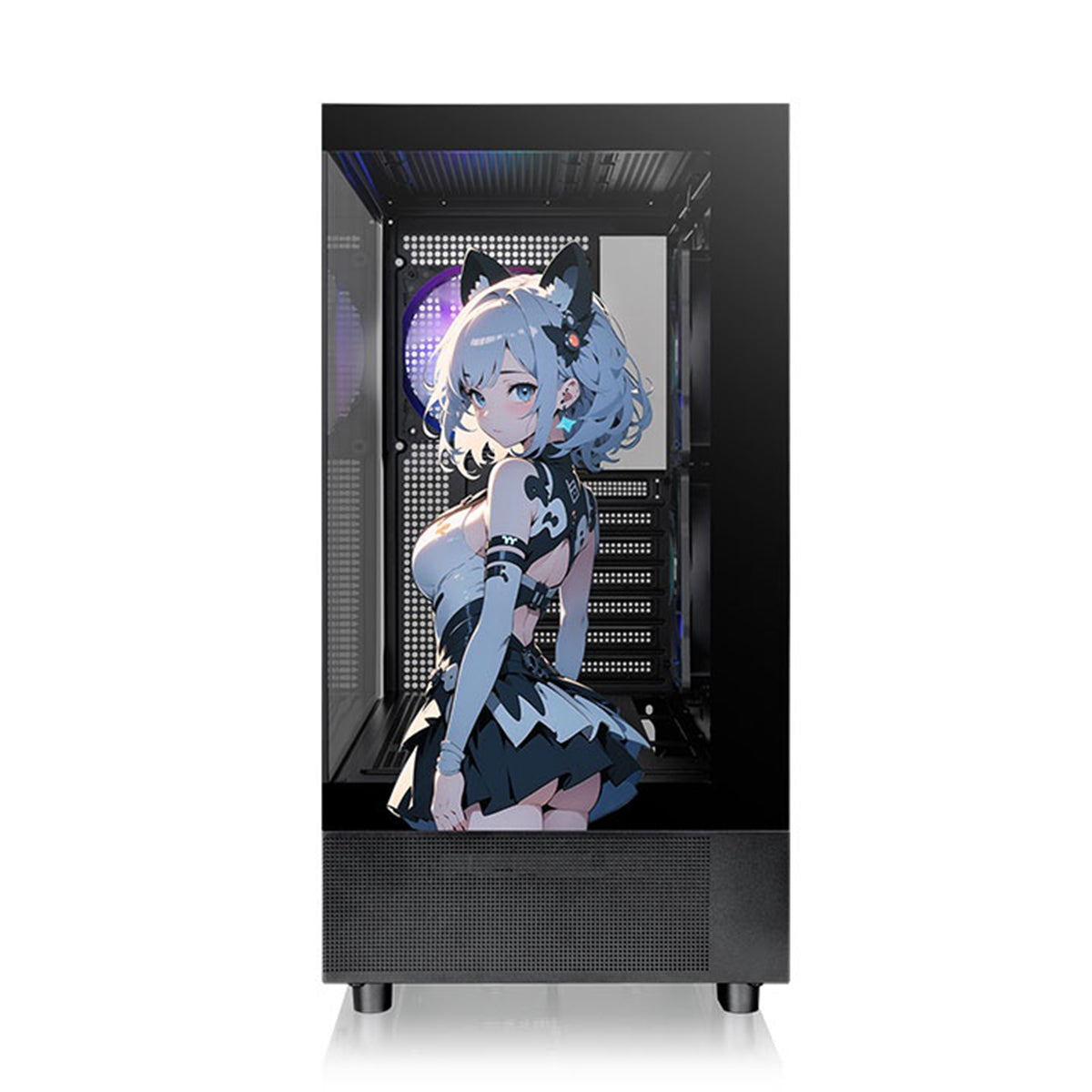

Tempered Glass Front and Left Panels

The View 270 SP Edition Mid Tower Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.

Supports up to a 360mm Radiator on the Top

Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 SP Edition Mid Tower Chassis.

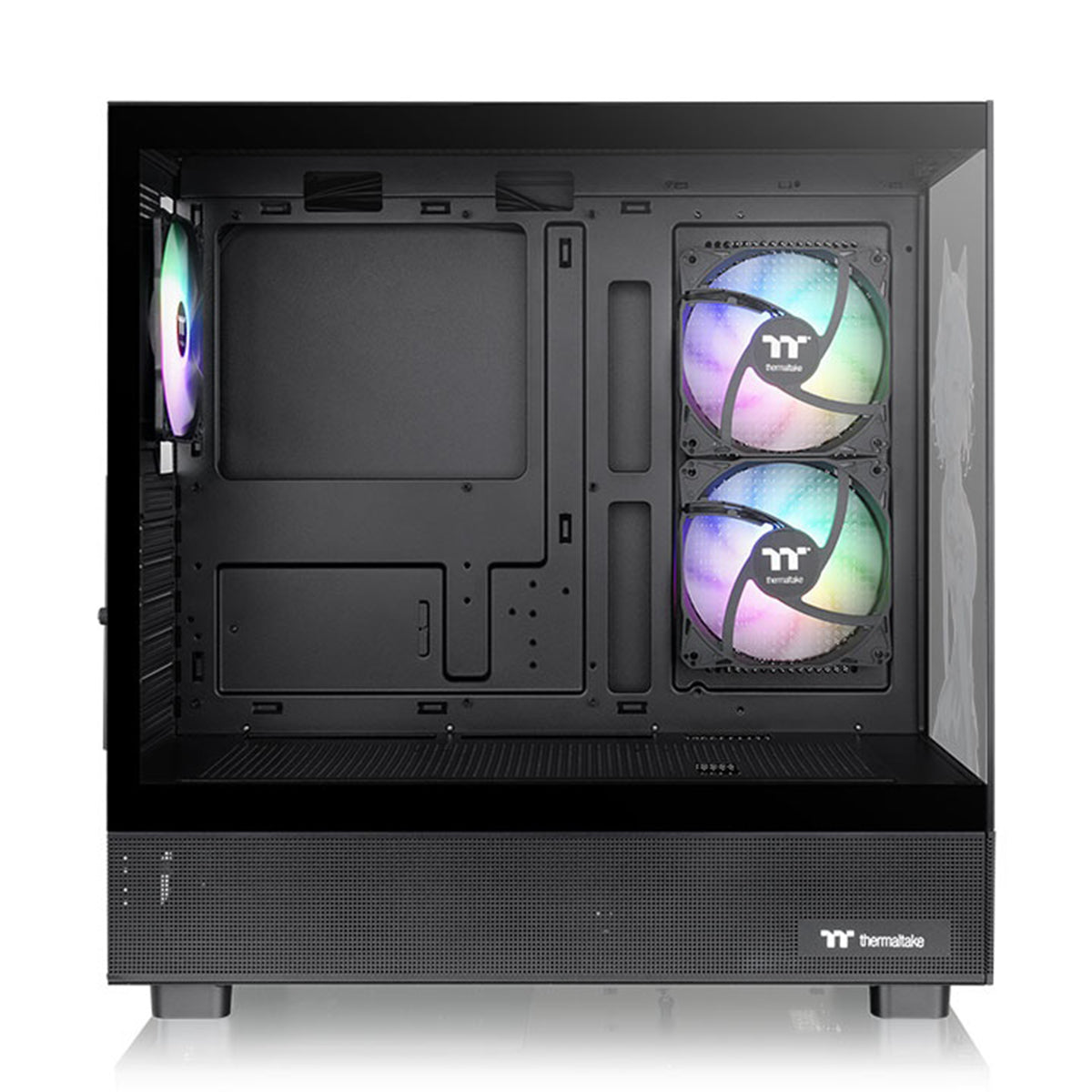

Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed

The View 270 SP Edition Mid Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. Its lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Built-in PSU Cover

The View 270 SP Edition Mid Tower Chassis features a full-length power supply cover, providing plenty of space to tuck away cables while keeping airflow clear for your hard drives and PSU.

Opportunities For High-End Expansion

The View 270 SP Edition Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, and a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to nine 120mm fans can be installed. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!

How Much Storage Is Totally Up To You

For storage compatibility, the View 270 SP Edition Mid Tower Chassis supports up to two 2.5’’ SSDs or two 3.5’’ HDDs in total.

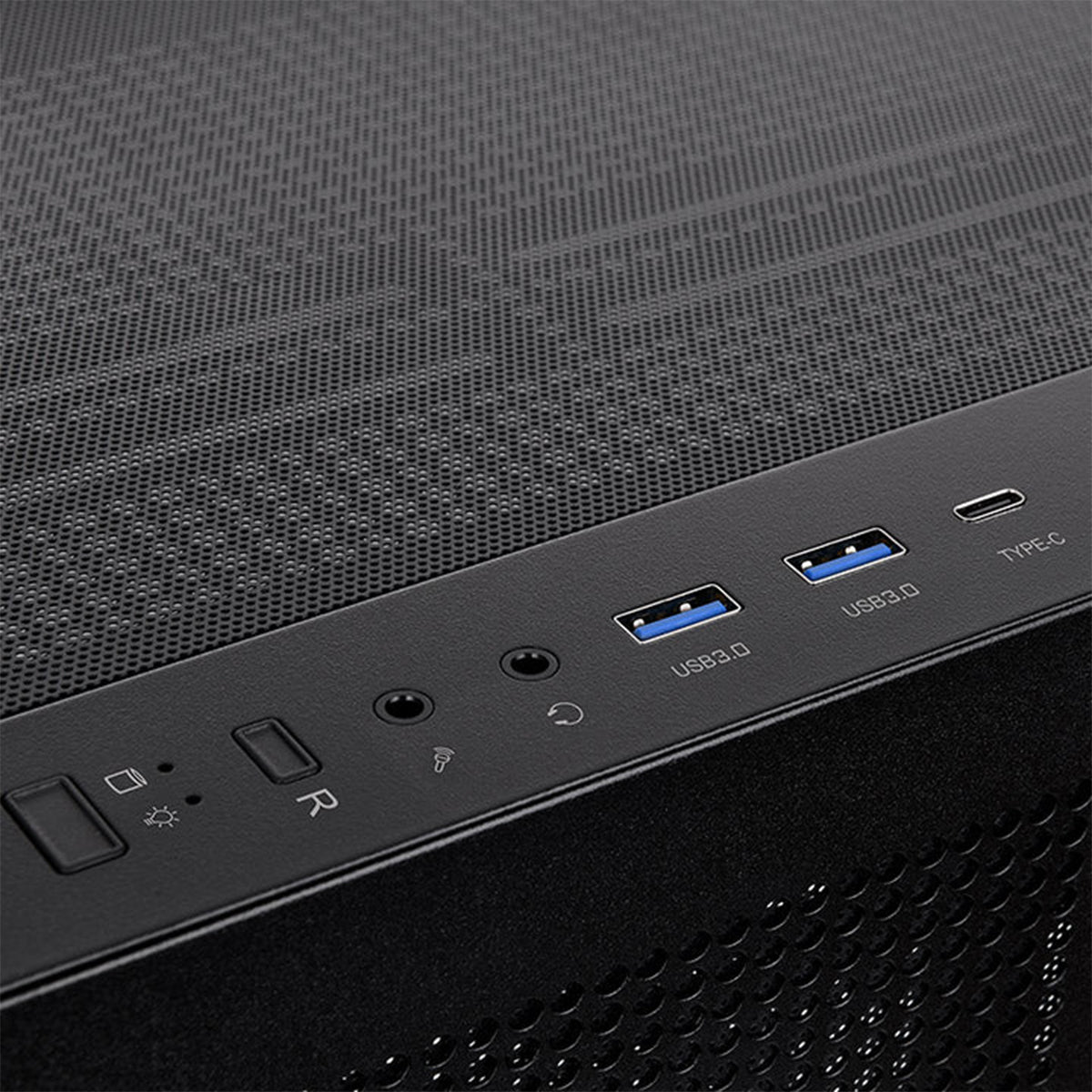

Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type C, and HD Audio ports are placed on the top panel to grant direct access when needed.

Specifications

Series View
Model View 270 SP Edition
Case Type Mid Tower
Dimension (H x W x D) 456 x 230 x 454 mm
(18 x 9.1 x 17.9 inch)
Net Weight 6.35 kg / 14 lbs.
Panel Tempered Glass x 2
Material SPCC
Cooling System Right (intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2

Rear (exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays 2 x 3.5”, 1 x 2.5” or 2 x 2.5”
Expansion Slots 7
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right (M/B Side):
2 x 120mm, 1 x 120mm

Rear:
1 x 120mm, 1 x 140mm

Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mm
Radiator Support Top:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mm
Clearance CPU cooler max height: 180mm
VGA max length: 420mm
PSU max length: 220mm
