Thermaltake View 270 PLUS TG ARGB Mid Tower Case Bubble Pink Edition
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

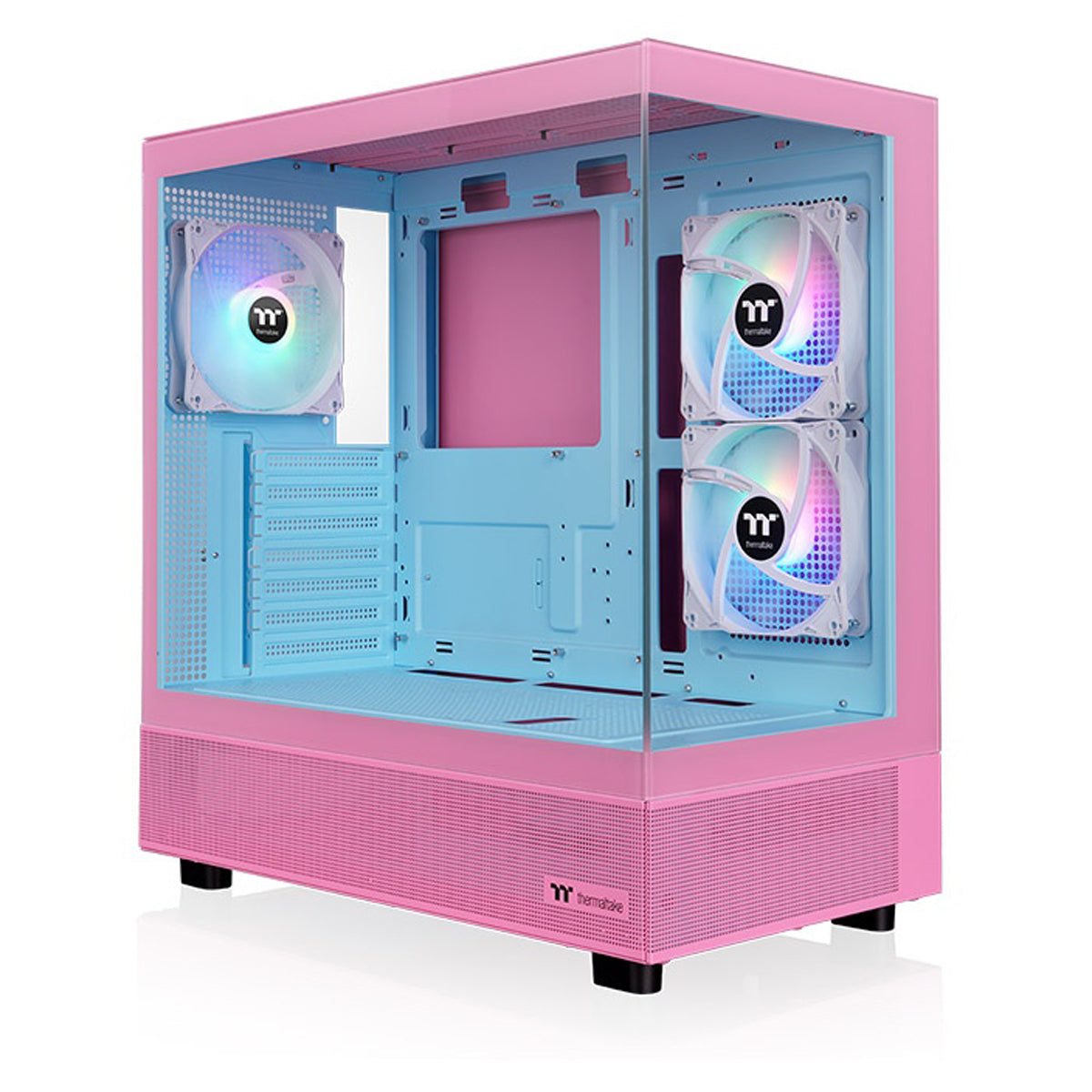

Built for amazing viewing, the View 270 Plus TG ARGB Bubble Pink is an ATX case featuring tempered glass front and left panels. It comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Up to nine 120mm fans can be installed, and up to a 360mm radiator can be placed on the top.

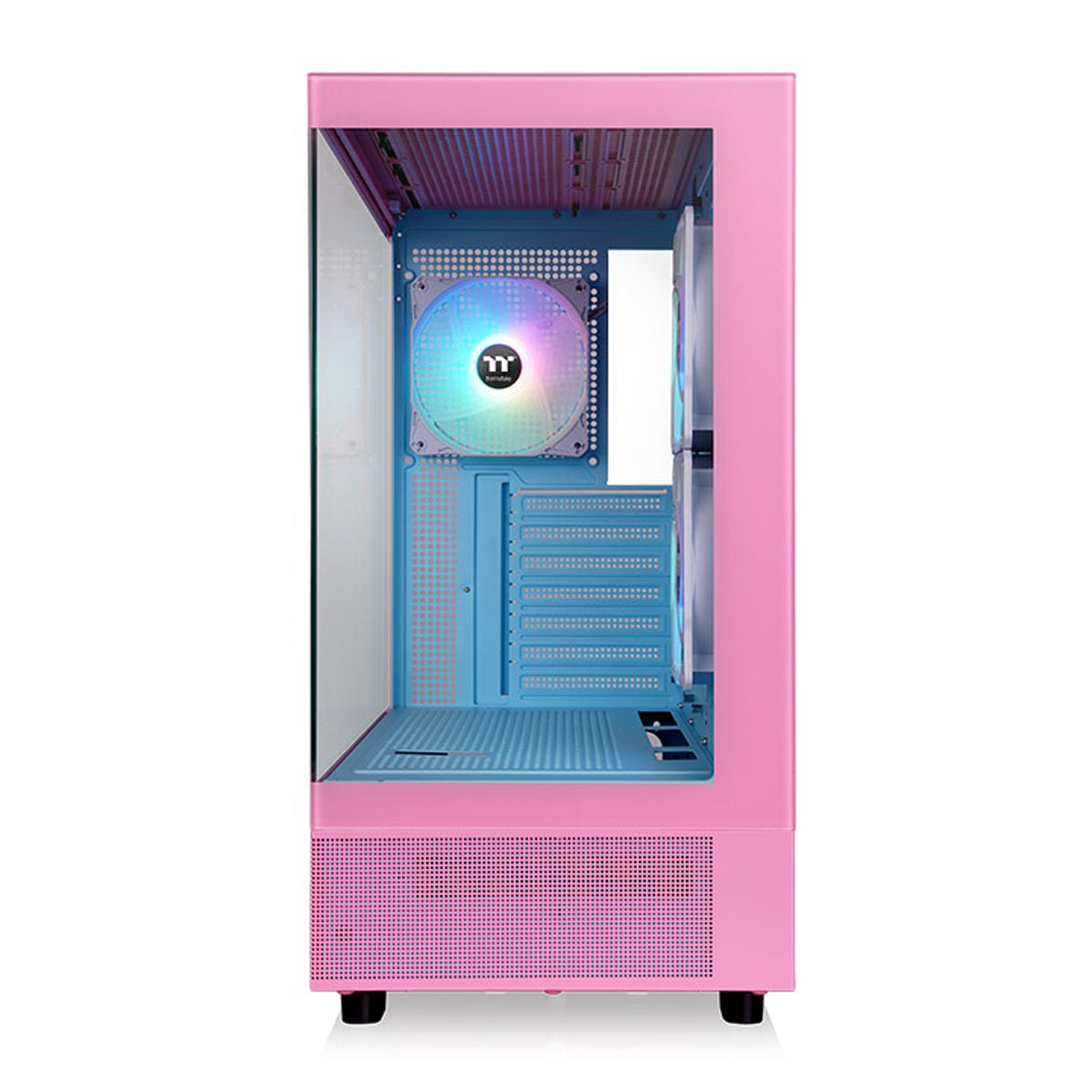

Tempered Glass Front and Left Panels
Designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Supports up to a 360mm Radiator on the Top
Provides cooling support with the option to place a 360mm radiator on the top of the chassis.

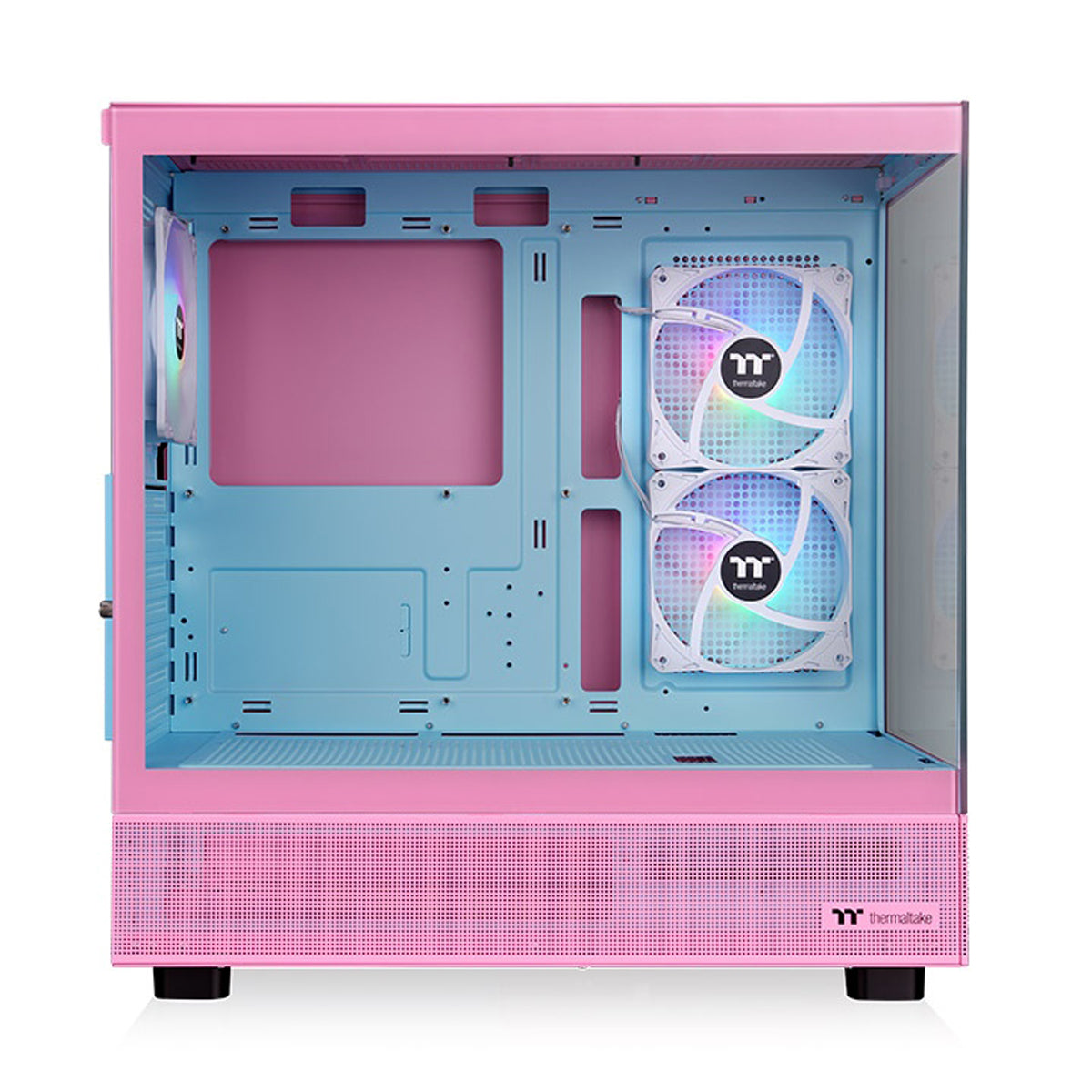

Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed
Comes with three fans at the front and motherboard side. Lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU Cover
Features a full-length power supply cover, providing space to tuck away cables while keeping airflow clear for hard drives and the PSU.
Opportunities For High-End Expansion
Supports a CPU cooler up to 180mm, VGA up to 420mm, and PSU up to 220mm. Comes with three pre-installed 120mm ARGB Lite Fans and supports up to nine 120mm fans. Radiator compatibility includes up to 360mm on top for enhanced cooling performance.
How Much Storage Is Totally Up To You
Supports up to two 2.5’’ SSDs or two 3.5’’ HDDs in total.

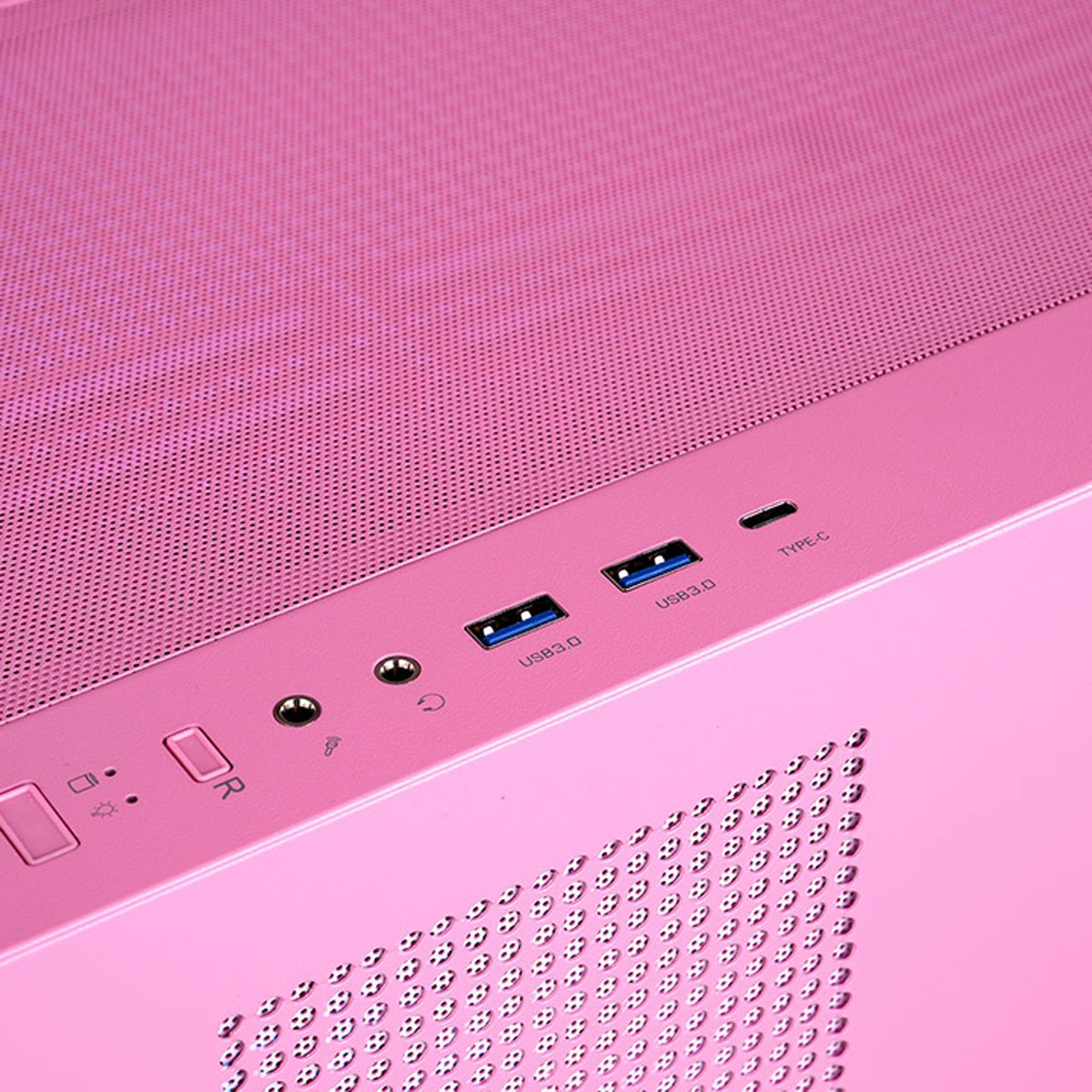

Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type-C, and HD Audio ports are located on the top panel for easy access.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. Supports motherboards with a 5V addressable RGB header, allowing direct control of lighting from the motherboard software without additional controllers or software.
Specifications
Specifications
| P/N | CA-1Y7-00MAWN-00 |
| Series | View |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 456 x 230 x 454 mm (18 x 9.1 x 17.9 inch) |
| Net Weight | 6.35 kg / 14 lbs. |
| Panel | Tempered Glass x 2 |
| Color | Bubble Pink |
| Material | SPCC |
| Cooling System |
Right (intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear (exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 1 x 2.5” or 2 x 2.5” |

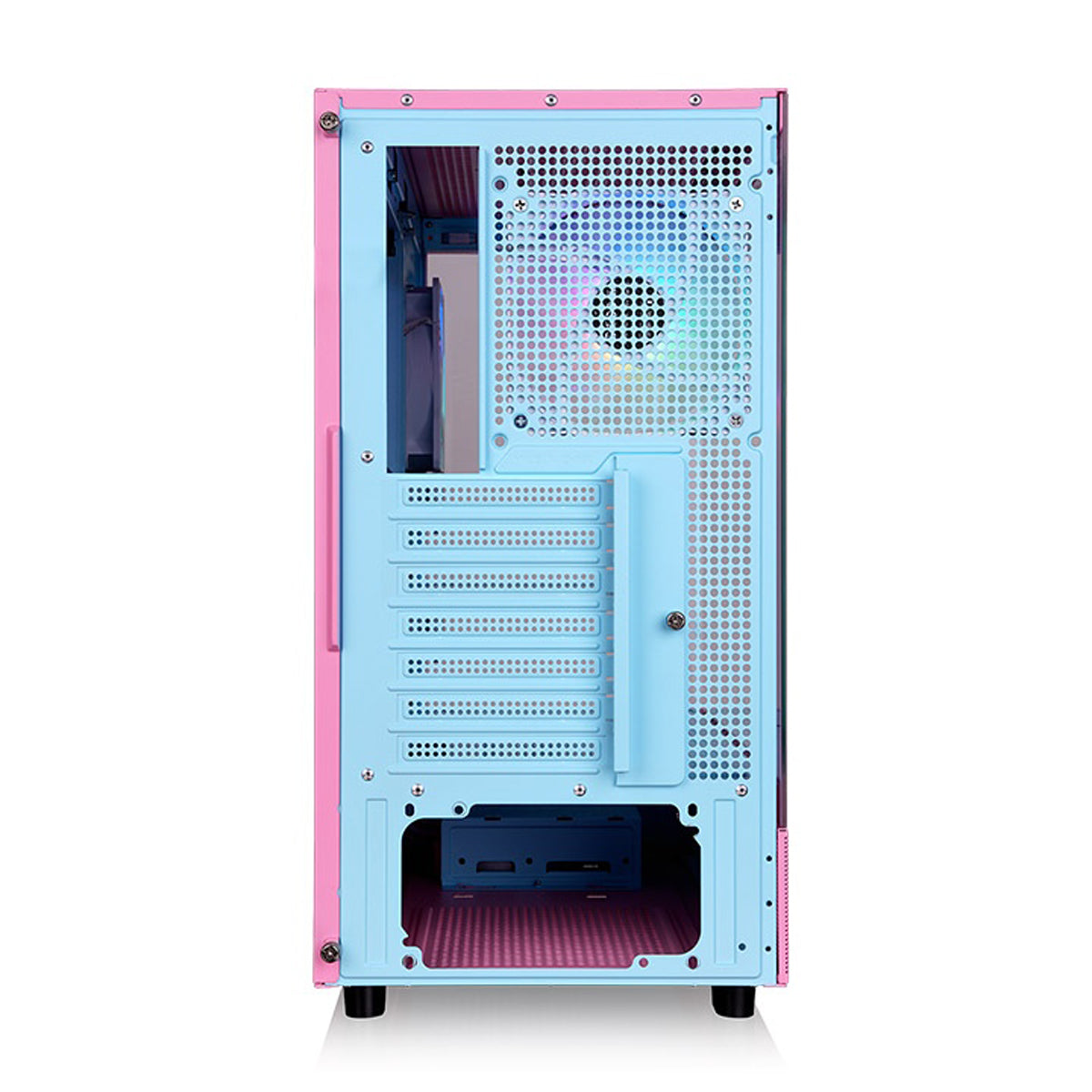

| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support |
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support |
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| Clearance |
CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm |
