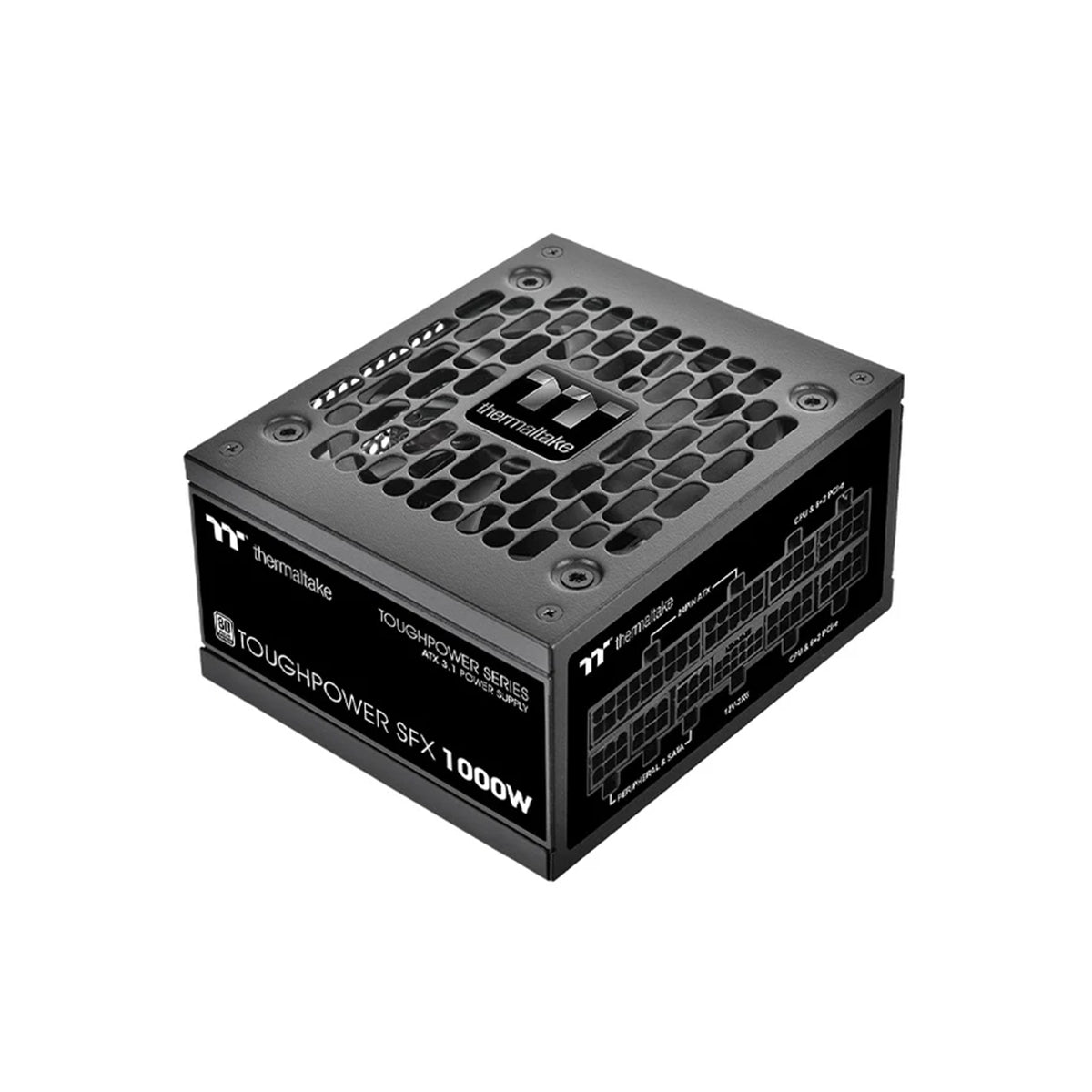

Thermaltake Toughpower SFX 1000W ATX 3.1 PCIe 5.1 80+ Platinum Fully Modular PSU
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Compact Power, Limitless Performance
The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12V 4.1 and ATX 12V 3.1 standards. With its native PCIe 12V-2x6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 PLUS Platinum efficiency but also guarantees stability, durability, and reliability.
No Matter the Case Size, We've Got You Covered
The dimensions of the Toughpower SFX Platinum are 125mm(W) x 63.5mm(H) x 103.8mm(D). It comes with an SFX to ATX adapter bracket as an accessory, giving users more options when choosing the ideal case for the build.
Fully Compatible with ATX 3.1 Standards
The Toughpower SFX Platinum series is fully compatible with ATX 3.1 specifications, supporting up to 200% power excursion, reaching 60% low load efficiency, and complying with required power supply timing standards.
PCIe Gen 5.1 Ready
Toughpower SFX Platinum series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
 The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower SFX Platinum 1000W can deliver up to 600W for PCIe 12+4pin graphics cards.
Made to Comply with the Latest Graphics Cards
Ready to supply graphics cards according to their different ways of connection, the Toughpower SFX Platinum series is designed to support NVIDIA and AMD graphics cards. It supports 8-pin slots for AMD graphics cards and some RTX 40 series graphics cards. It also comes with 1 x 12V-2x6 connector for RTX 40 series cards with a PCIe 12+4pin connector.
Be Smart, Stay Quiet

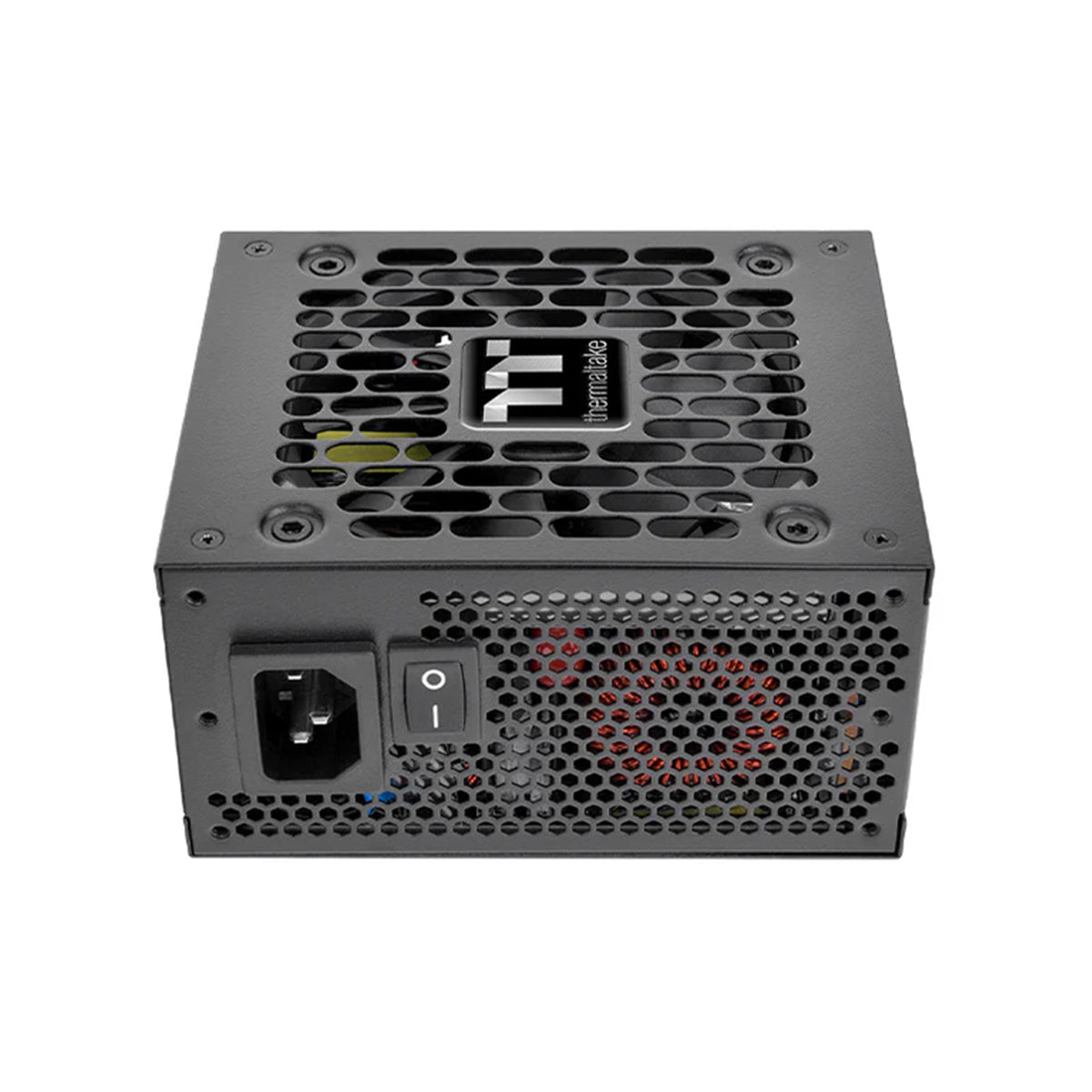

Equipped with a 90mm fluid bearing fan for superior airflow, the built-in Smart Zero Fan feature keeps the PSU silent until the load hits 30%, reducing unwanted noise.
80 PLUS® Platinum Certified
80 PLUS Platinum certification means the Toughpower SFX Platinum series converts power efficiently, saving energy through its high efficiency of up to 92%, resulting in lower power loss and heat buildup inside the power supply.
Extremely Strict Voltage Regulation <±2%
The voltage regulation is stricter than Intel's standard (+5%,-7% for major rails and ±10% for -12V), with a regulation of no more than ±2% for major rails, ensuring steady, clean power through exceptional voltage stability.
More Stable than Ever
100% high-quality Japanese 105°C/221°F electrolytic capacitors provide great durability and the highest stability while remaining reliable.
High Amperage Single +12V Rail & High-Class Technologies
The powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

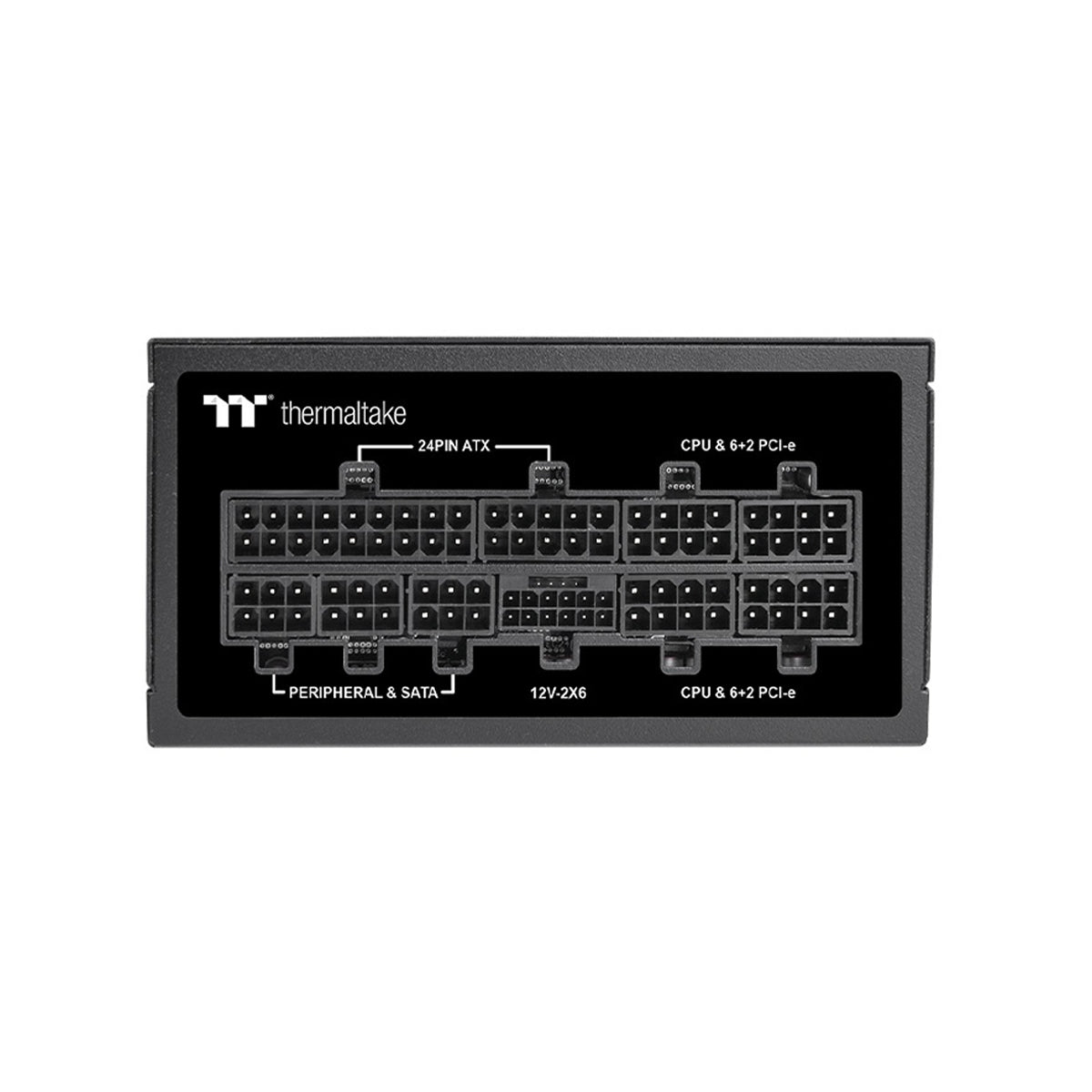

Fully Modular Low-Profile Cables
Fully modular low-profile cables allow for easy cable management, reducing clutter and increasing airflow inside the chassis while powering the system at an advantageous voltage.
Built-in Industrial Grade Protection
The Toughpower SFX Platinum series is built with industry-grade protections to safeguard hardware, including OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).
Specifications
Specifications
P/N | PS-STP-1000FNFAPA-1 |
watts | 1000W |
Form Factor | SFX |
Model | SFX-1000AH8FLP |
Dimension ( W / H / D ) | 125mm(W)x63.5mm(H)x103.8mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-150 msec |
Hold Up Time | > 17msec at 80% load |
Input Current | 15A - 8A |
Input Frequency Range | 50Hz/60Hz |
Input Voltage | 100-240V~ |
OPERATING TEMPERATURE | 5°C to + 40°C |
Operating Humidity | 20% to 85%,non-condensing |
Storage Temperature | -40°C to + 55°C |
Storage Humidity | 10% to 95%, non-condensing |
COOLING SYSTEM | 9cm FDB Fan |
Efficiency | Meet 80 PLUS® Platinum at 115Vac input. |
MTBF | 100,000 hrs minimum |
Safety Approval | CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM |
PCI-E 6+2pin | 4 |
PCIe 12+4pin | 1(600W) |
Smart Zero Fan | Fan will not spin until the load exceeds 30% No physical fan switch |
