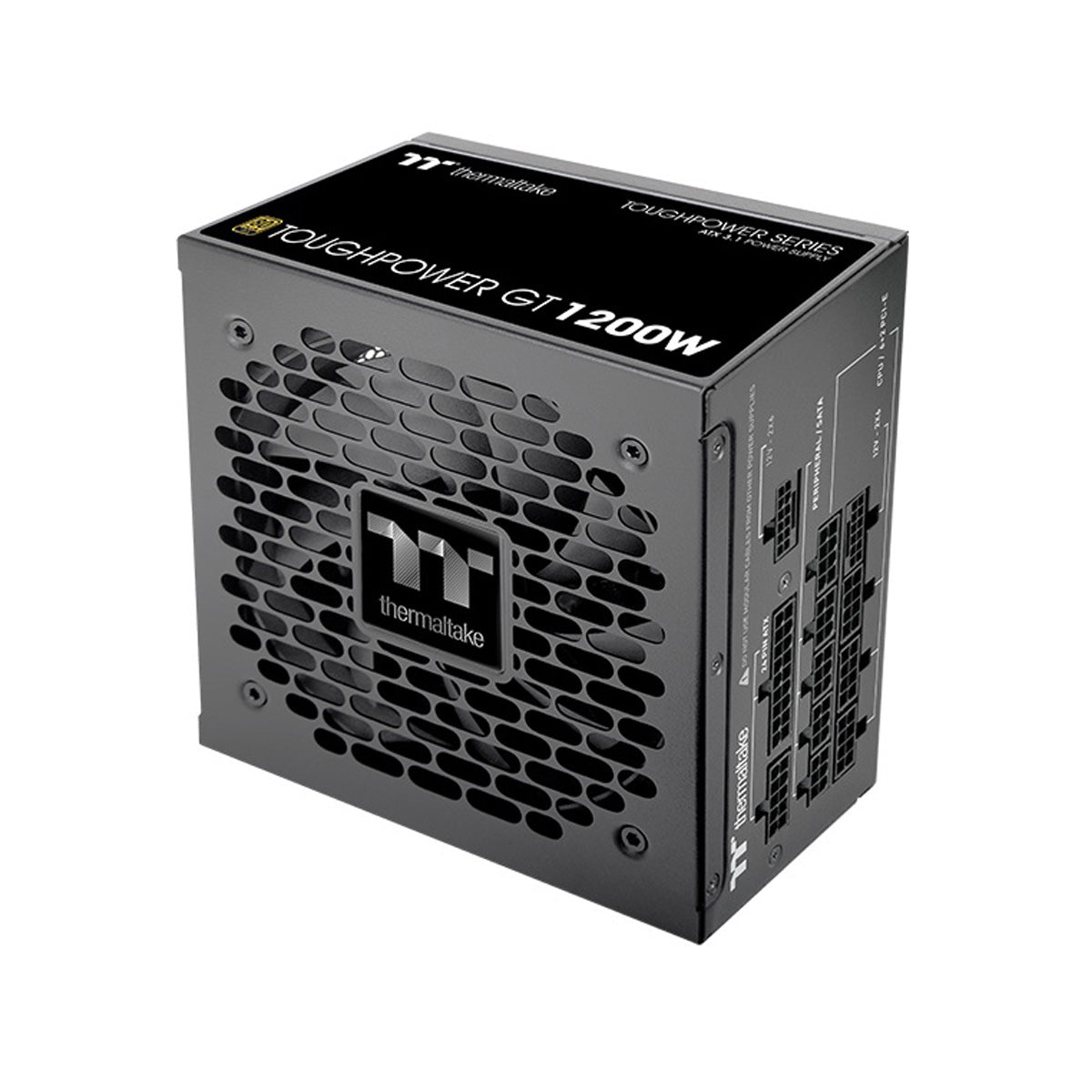

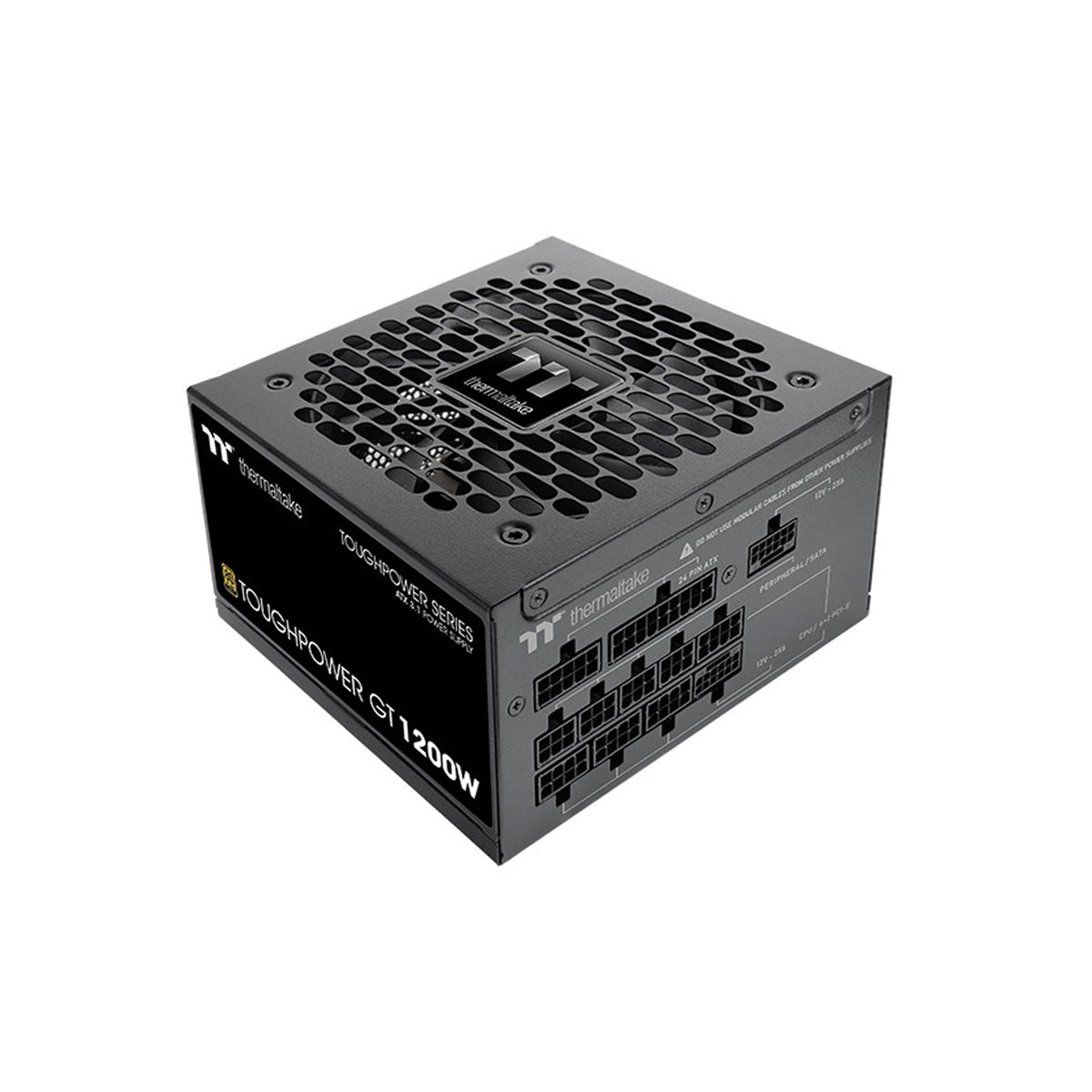

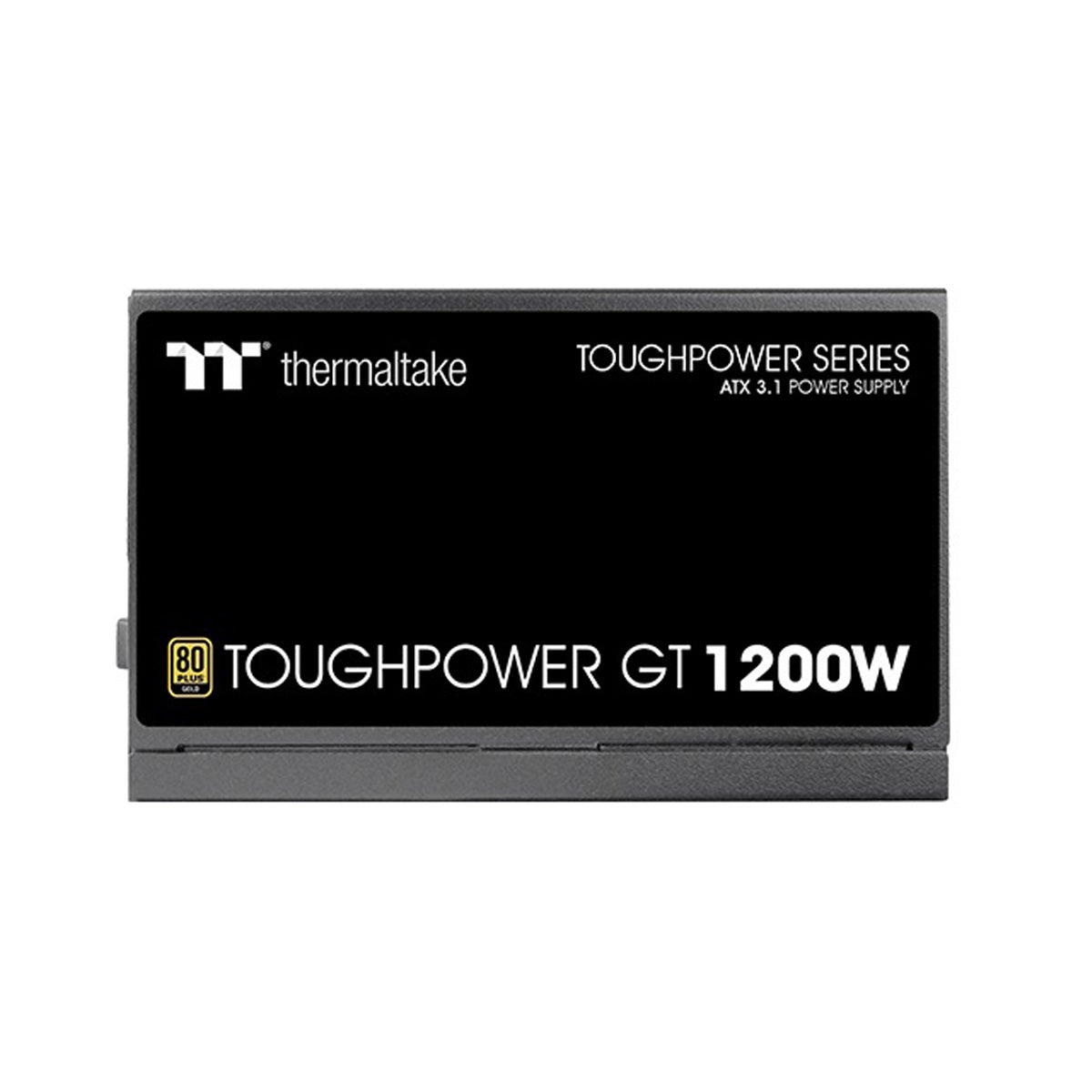

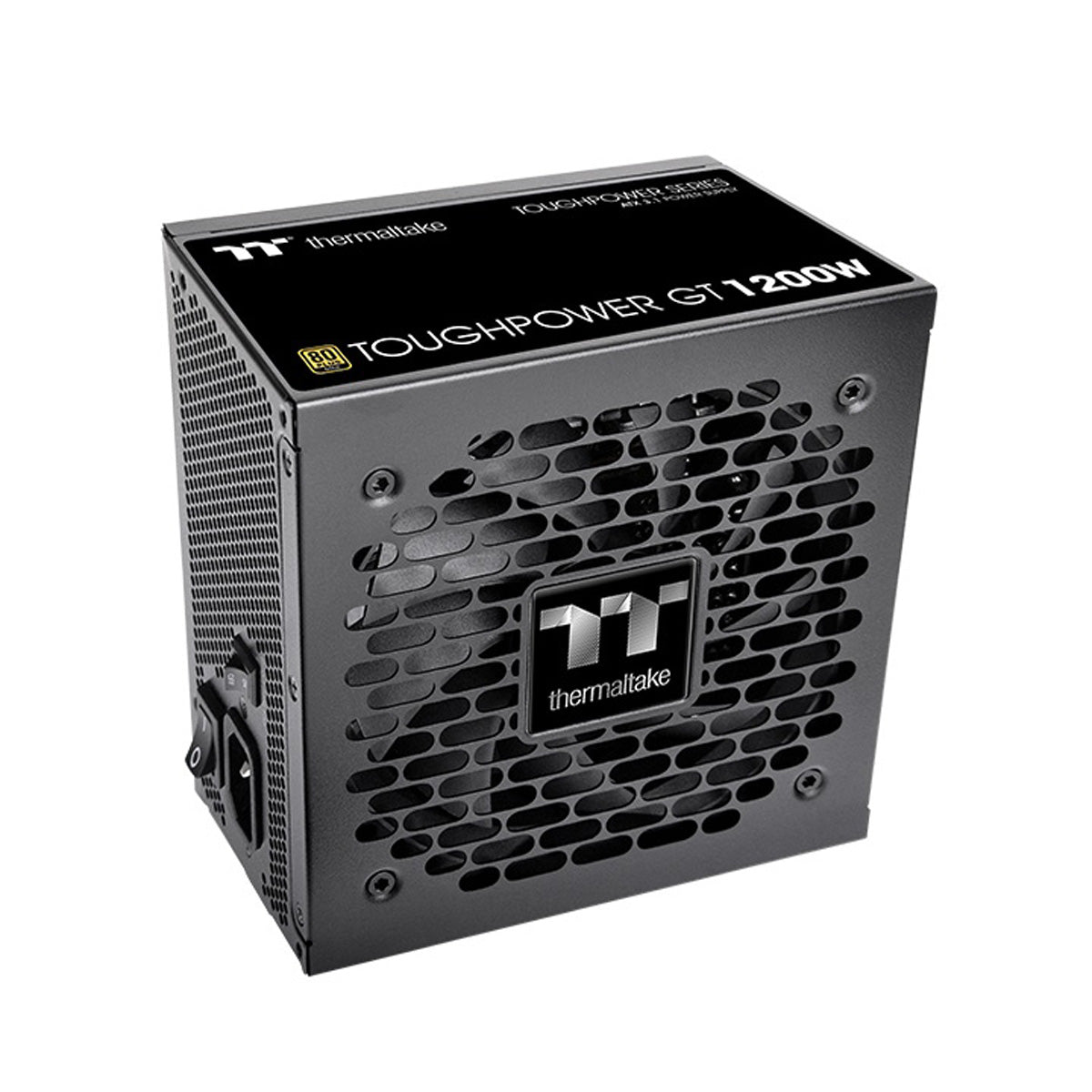

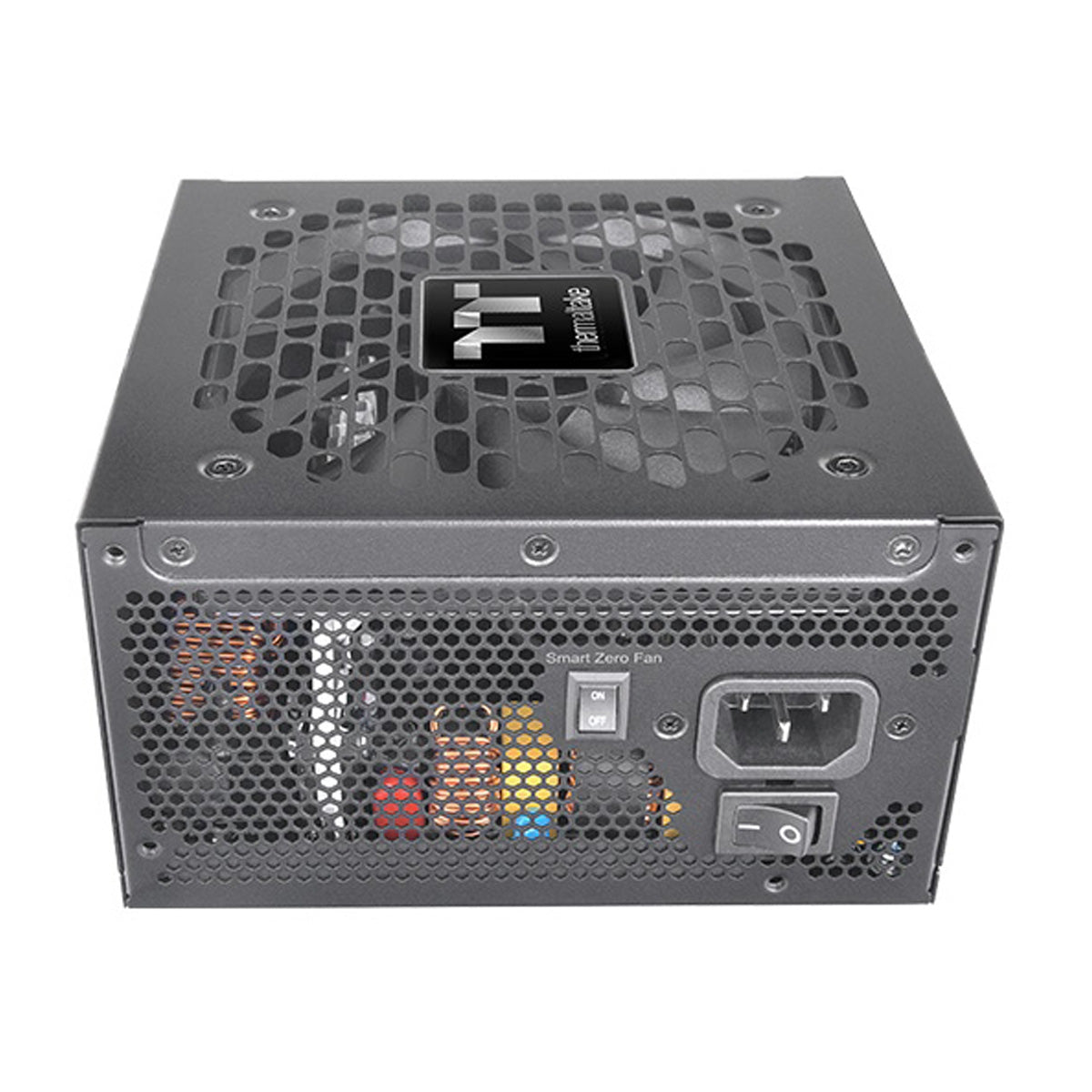

Thermaltake Toughpower GT 1200W 80+ Gold PCIe Gen 5.1 ATX 3.1 Fully Modular PSU
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Toughpower GT Series
The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT series meets the needs of value-oriented users seeking a reliable and high-performance power supply.
ATX 3.1 Ready
Fully compatible with ATX 3.1 specifications, supporting up to 200% power excursion, 60% efficiency at low load, and compliance with required power supply timing standards.
PCIe Gen 5.1 Ready
Comes with a PCIe 12V-2x6 connector for powerful and stable performance, allowing the PSU to natively run next-generation GPUs. The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT 1200W can deliver up to 600W for PCIe 12+4pin graphics cards.
Note:
- Recommended wattage is an estimation of system power demand. Actual power demands may vary based on components, usage, and other factors.
- Follow the recommended power requirements from GPU manufacturers before using the PCIe 12+4pin cable.
Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Features a 120mm Hydraulic Bearing Fan to reduce friction and noise. Smart Zero Fan technology adjusts fan speed to minimize unwanted noise.
High Amperage Single +12V Rail & Advanced Technologies
Powerful single +12V rail delivers consistent power. LLC and DC-to-DC circuit designs provide stable operation and enhanced voltage regulation.
Fully Modular Low-Profile Cables
Selectable modular cables with low-profile flat black design make cable management easier, reduce clutter, and improve airflow inside the chassis.
Built-in Industrial Grade Protection
Includes OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) to protect connected hardware.
80 PLUS Gold Certified
High energy efficiency up to 90% and certified 80 PLUS® Gold, ensuring lower energy consumption and optimized system performance.
Specifications
Specifications
| P/N | PS-TPT-1200FNFAG*-3 |
| Model | TPD-1200AH2FXG-3 |
| Watts | 1200W |
| Max Output Capacity | 1200W |
| Color | Black |
| Dimensions | 150mm (W) x 86mm (H) x 140mm (D) |
| PFC | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17 msec at 80% load |
| Input Current | 15-10A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100-240V～ |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% to 85%, non-condensing |
| Storage Temperature | -40°C to +70°C |
| Cooling System | 12cm Hydraulic Bearing Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE / UKCA / ICES / TUV / LVD / RCM / CB / FCC / cTUVus / BSMI / CCC / BIS / S-MARK / EAC |
| PCI-E 6+2PIN | 5 |
| PCI-E 12+4PIN | 2 |
| Protection | OVP / UVP / OCP / OPP / OTP / SCP |
