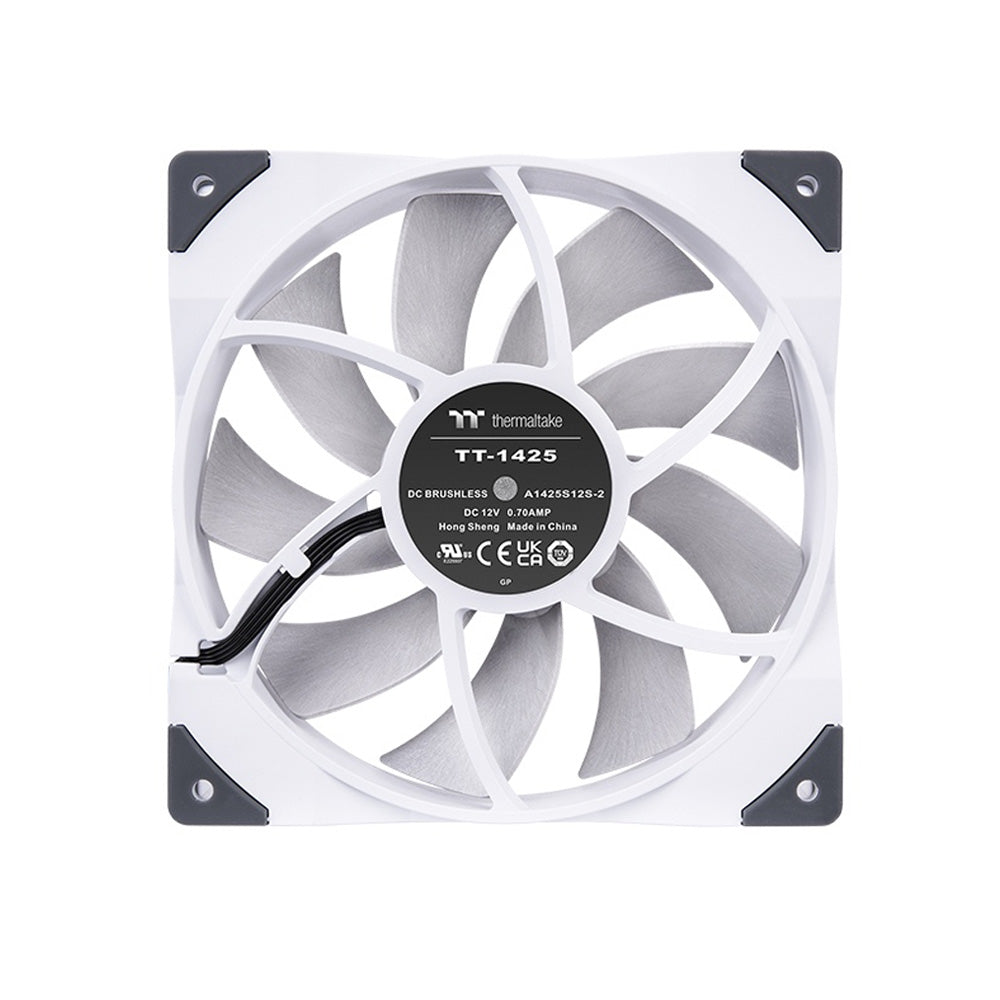

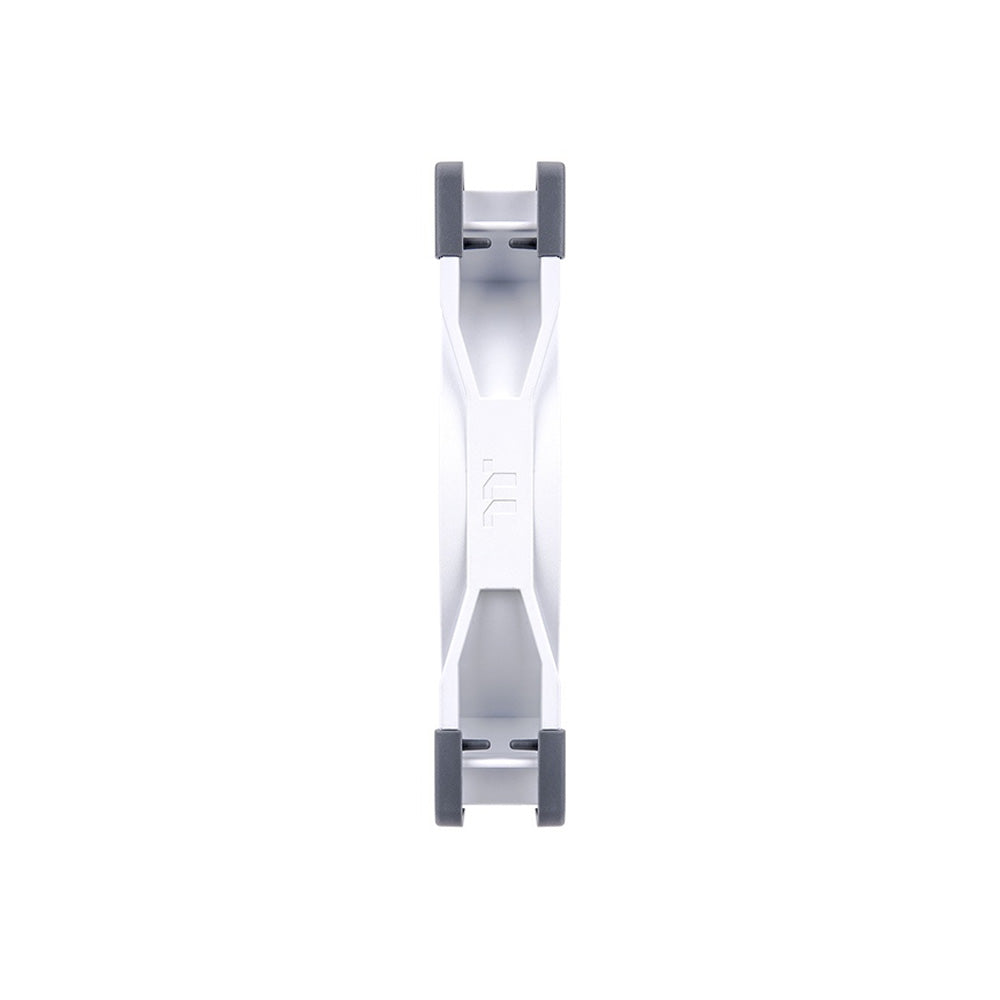

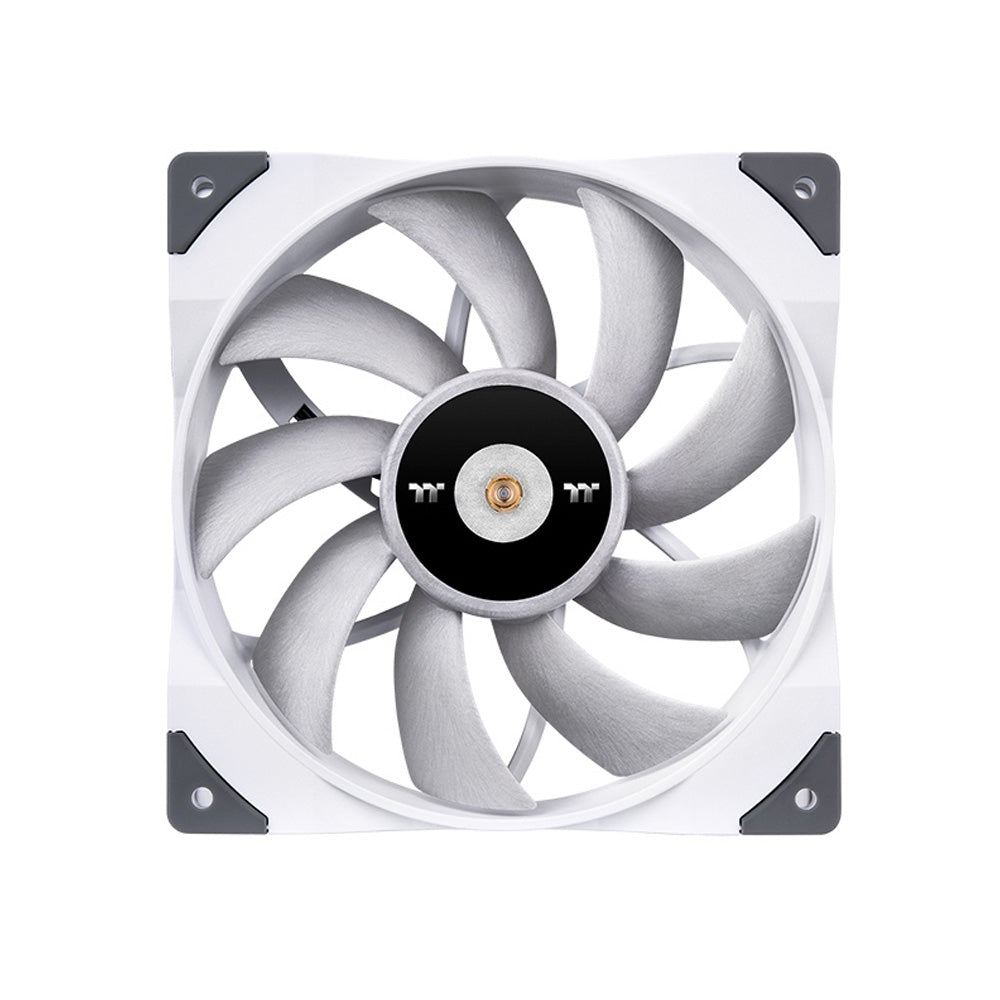

Thermaltake TOUGHFAN 14 High Static Pressure Radiator Fan - White

Liquid-Crysatl polymer (LCP) fan blade | Minimial vibration

Thermaltake  |  SKU 46498  |  MPN CL-F118-PL14WT-A
$45.00

In stock at Computer Lounge

Warranty and Support

Warranty: 2 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

TOUGHFAN 14 High Static Pressure Radiator Fan (Single Fan Pack)

Thermaltake TOUGHFAN PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs.


Unparalleled Cooling Performance

The TOUGHFAN is a PWM controlled fan which is designed to perform at a maximum operating speed of up to 2000 RPM allowing unparalleled cooling performance.


Exceptional Blade Design

Featuring high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.


Metal-Reinforced Motor Hub

The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.

*1. Designed for all air cooling applications. (119.1 CFM & 3.54 mm-H2O)

*2. Best for radiator fans. (With higher static pressure than other standard cooling fans)

*3. Best for air coolers. (With higher static pressure than other standard cooling fans)

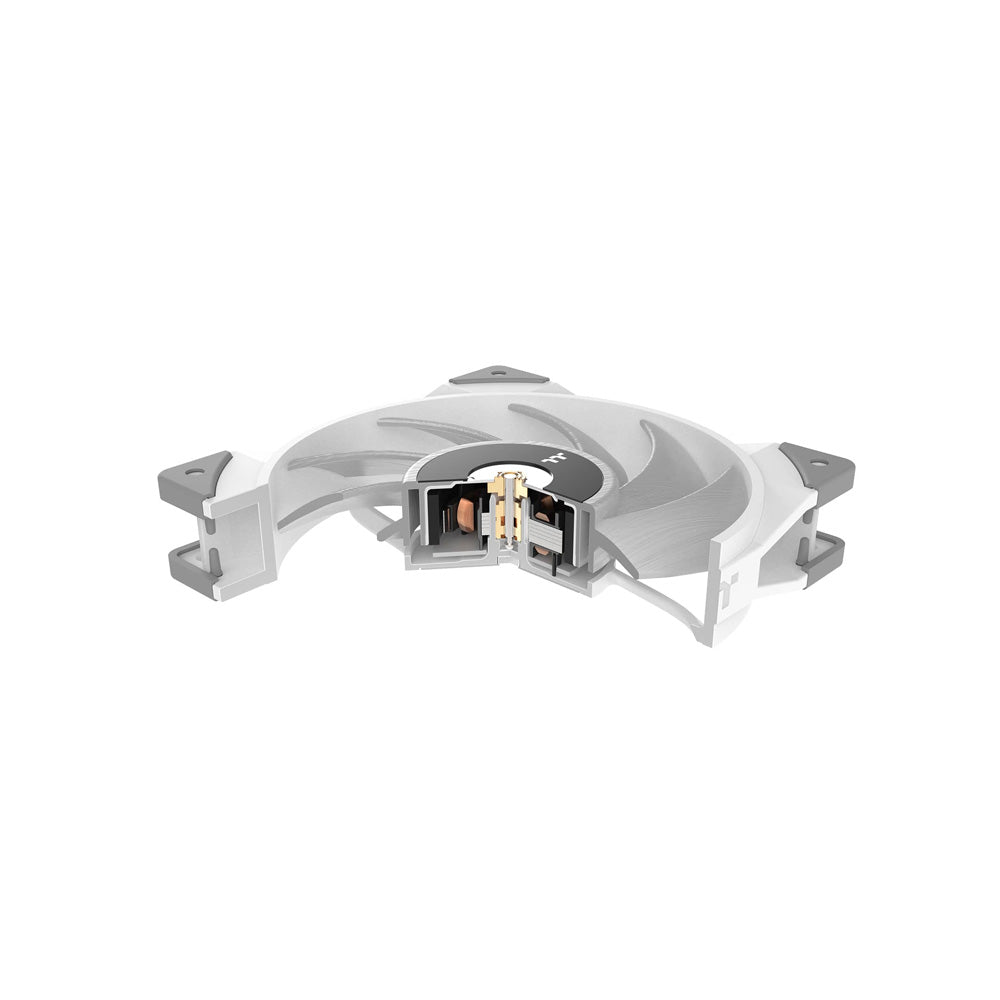

The 2nd Generation Hydraulic Bearing

The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.


Built for Superior Cooling

The TOUGHFAN is designed for all cooling applications. It’s your perfect go to solution whether your using it as radiator fan or on a air cooler. Level up with the TOUGHFAN for superior cooling performance.


Anti-Vibration Mounting System

The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

Specifications

P/NCL-F118-PL14WT-A
Fan Dimension140 x 140 x 25 mm
Started Voltage9.0 V
Rated Current0.34 A (Fan x1)
Rated Voltage12 V
Power Input4.08 W (Fan x1)
Fan SpeedPWM 500~2000 R.P.M
With L.N.C PWM 500~1300 R.P.M
Max. Air Pressure3.54 mm-H2O
With L.N.C 1.287 mm-H2O
Max Air Flow119.1 CFM
With L.N.C 77.42 CFM
NOISE LEVEL33.2 dB-A
With L.N.C 25.2 dB-A
Bearing TypeHydraulic Bearing Gen.2
Life Expectation40,000 hrs,25℃
Connector4 PIN PWM
Weight240.7 g
