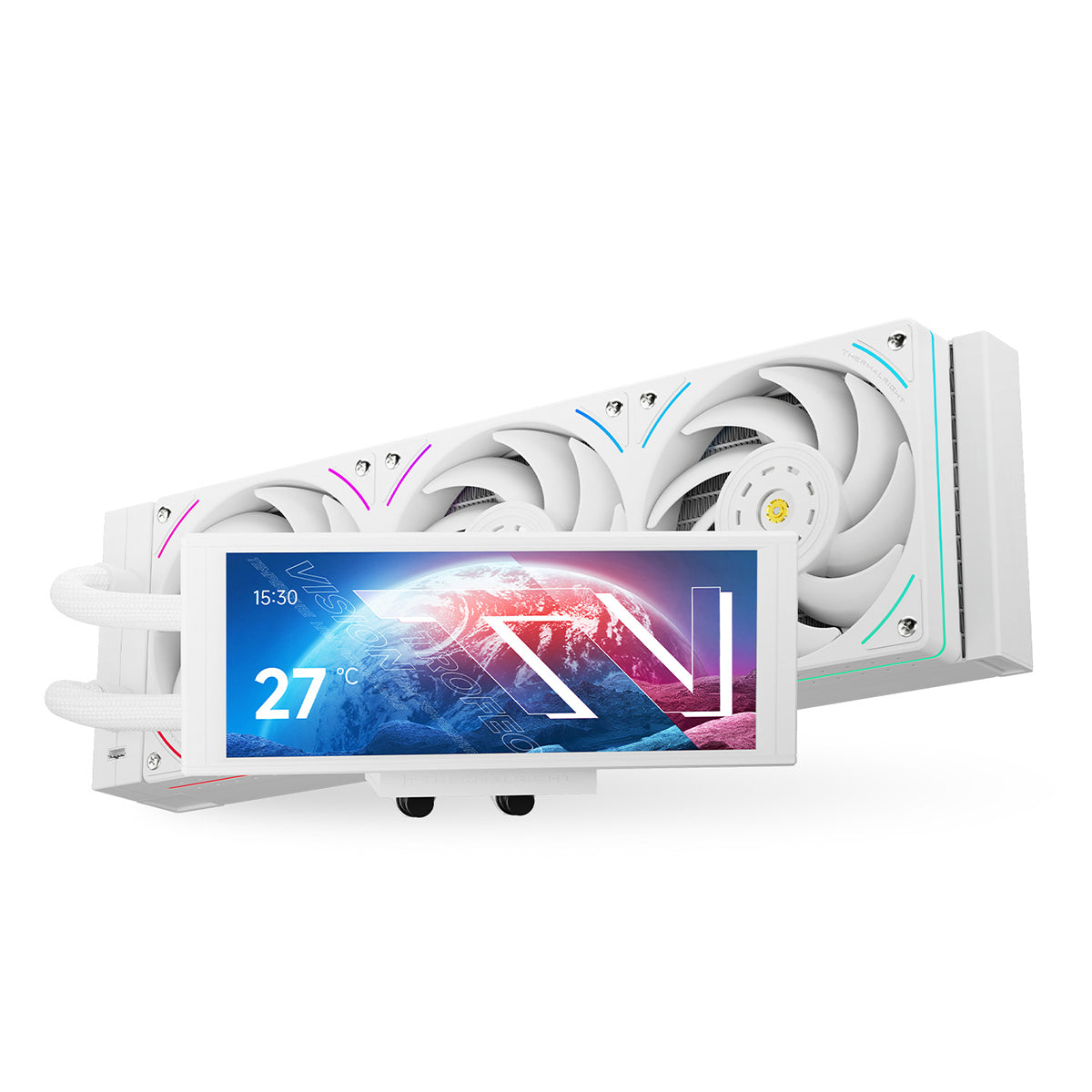

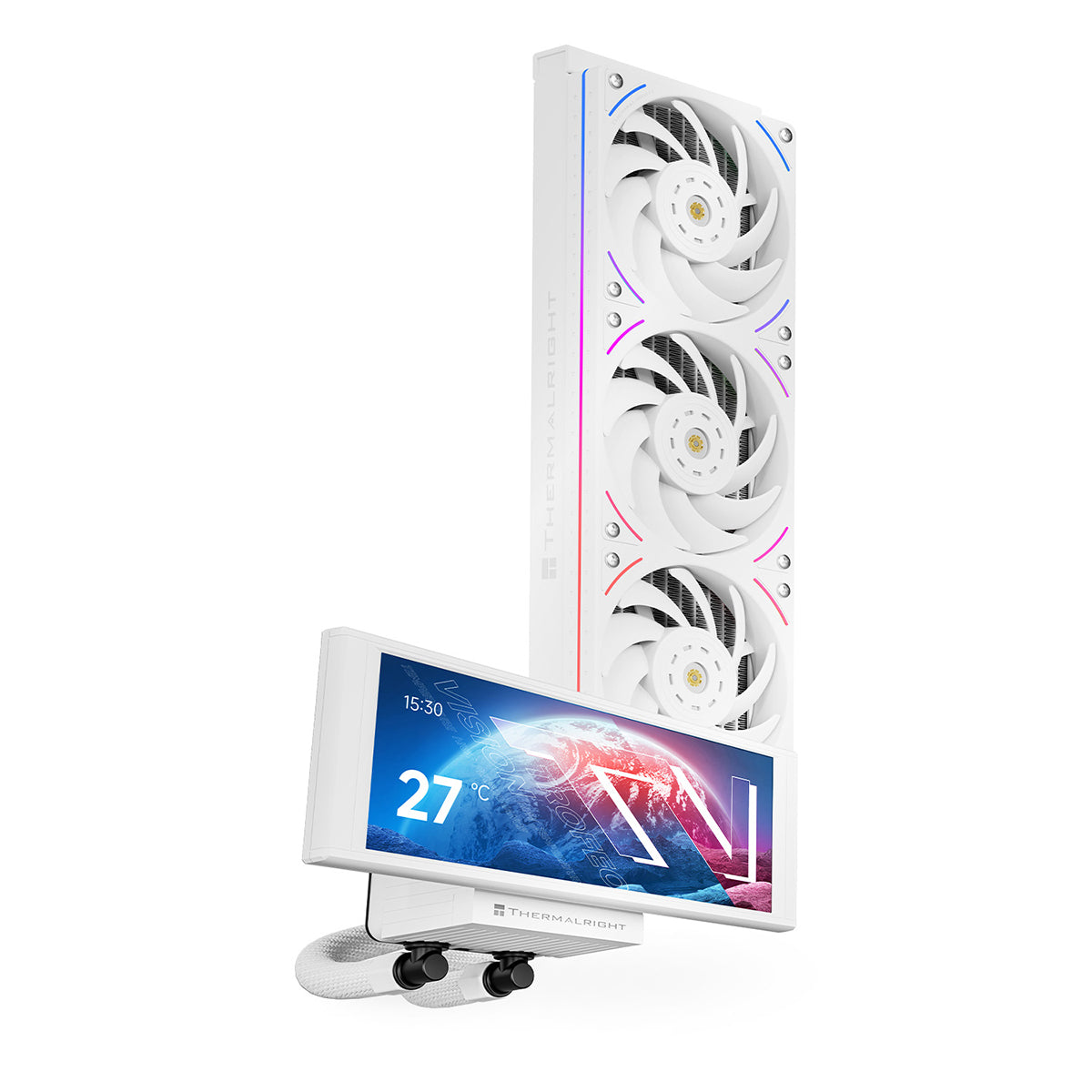

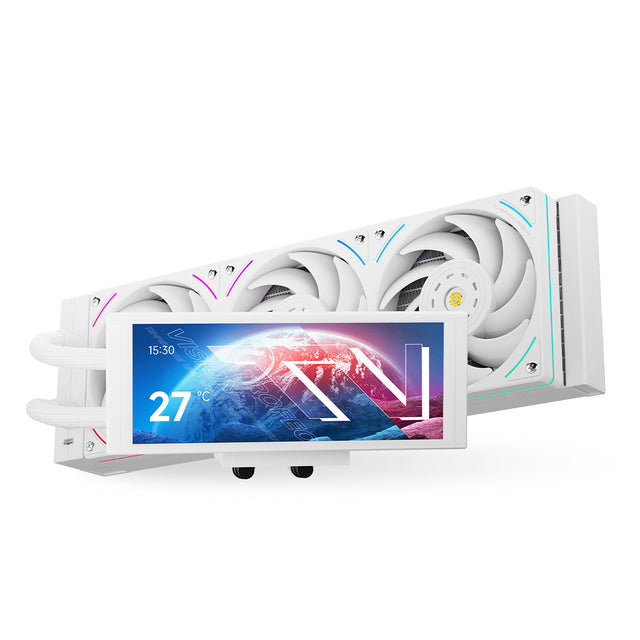

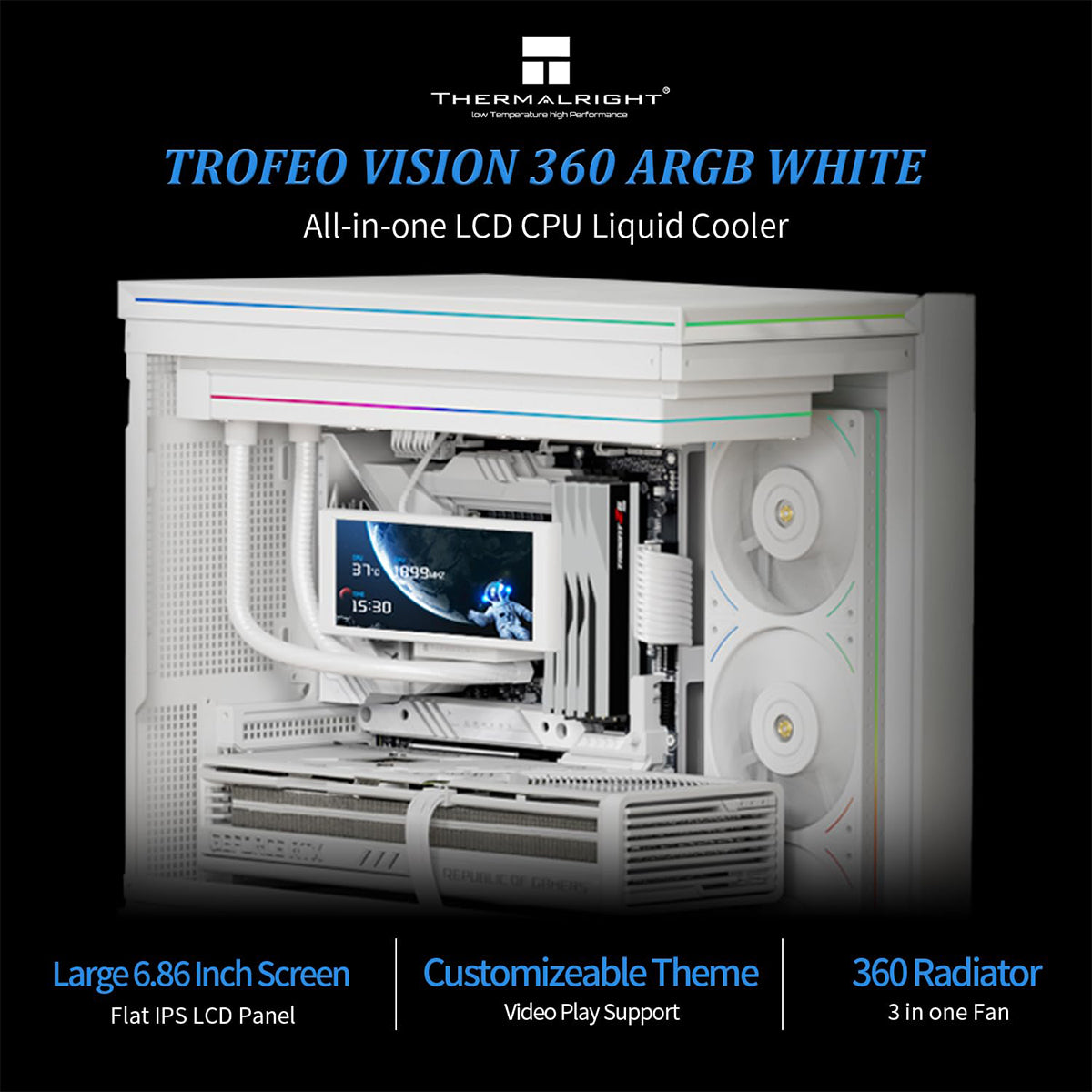

Thermalright Trofeo Vision 360 360mm LCD AIO Liquid CPU Cooler - White
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Good Heat Dissipation
CPU liquid cooler is composed of pre-installed three fans in a row, a cold head with a high-performance radiator + full-color LCD display, and a water pipe made of a mesh, aiming to create a unique, low-resistance, high-value, high-performance heat dissipation CPU liquid cooler.

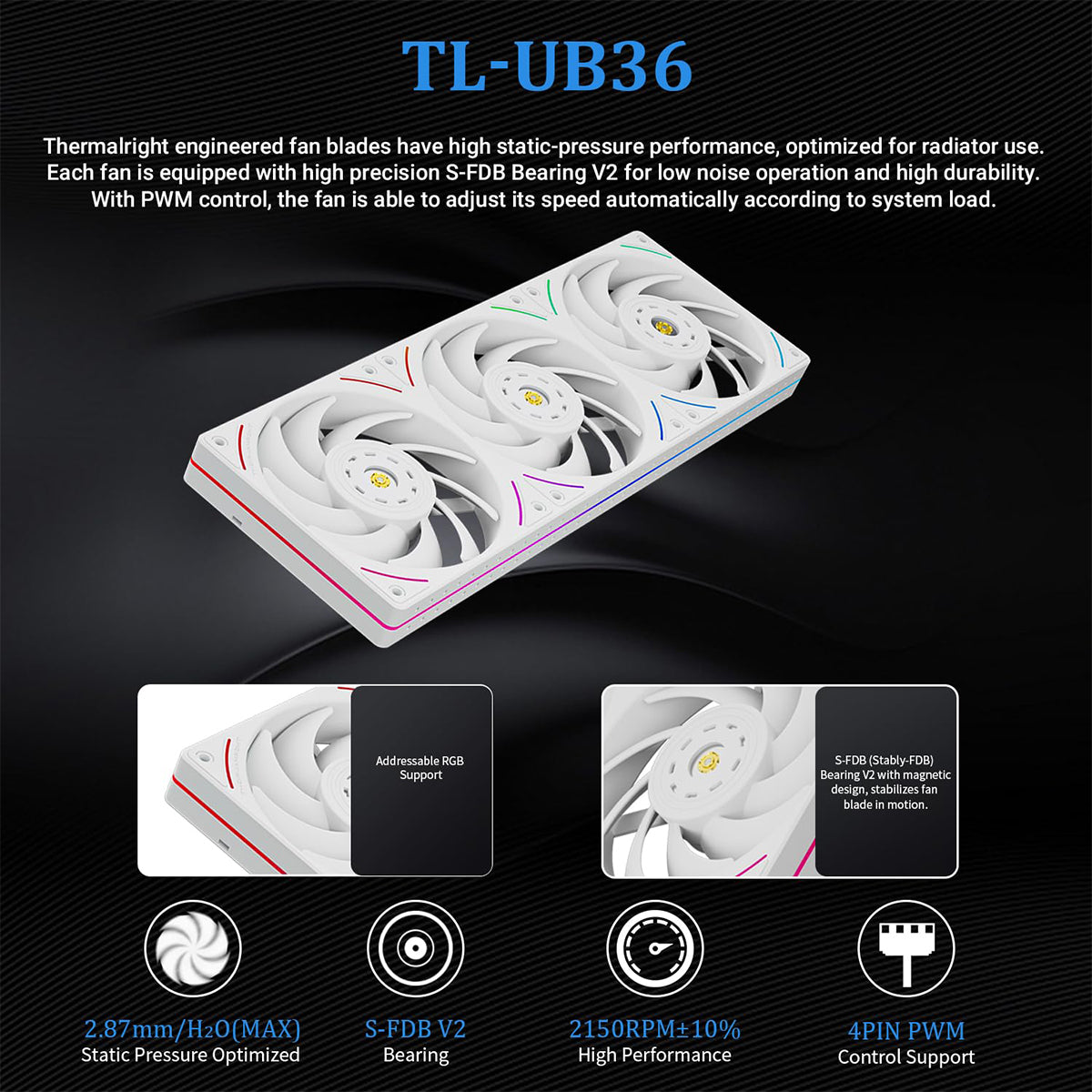

Fan Parameters
TL-UB36W, fan size 360x120x25mm, speed: 2150RPM±10%, noise≤27DBA, interface: 4pin PWM, air pressure: 2.87mmH2O (MAX), air volume: 69CFM (MAX). S-FDB V2 bearing can solve the problem of fan blade vibration in lifting mode, with PWM function, can automatically adjust the speed according to CPU temperature.
Row 3 Fans
Pre-installed one-piece fan with double-sided four ARGB arc light strips improves the appearance of the fan. The fan's secondary dispensing dynamic balance (red mud) correction and good S-FDB V2 bearing not only reduce friction and vibration, but also reduce the sound and prolong the life during operation.

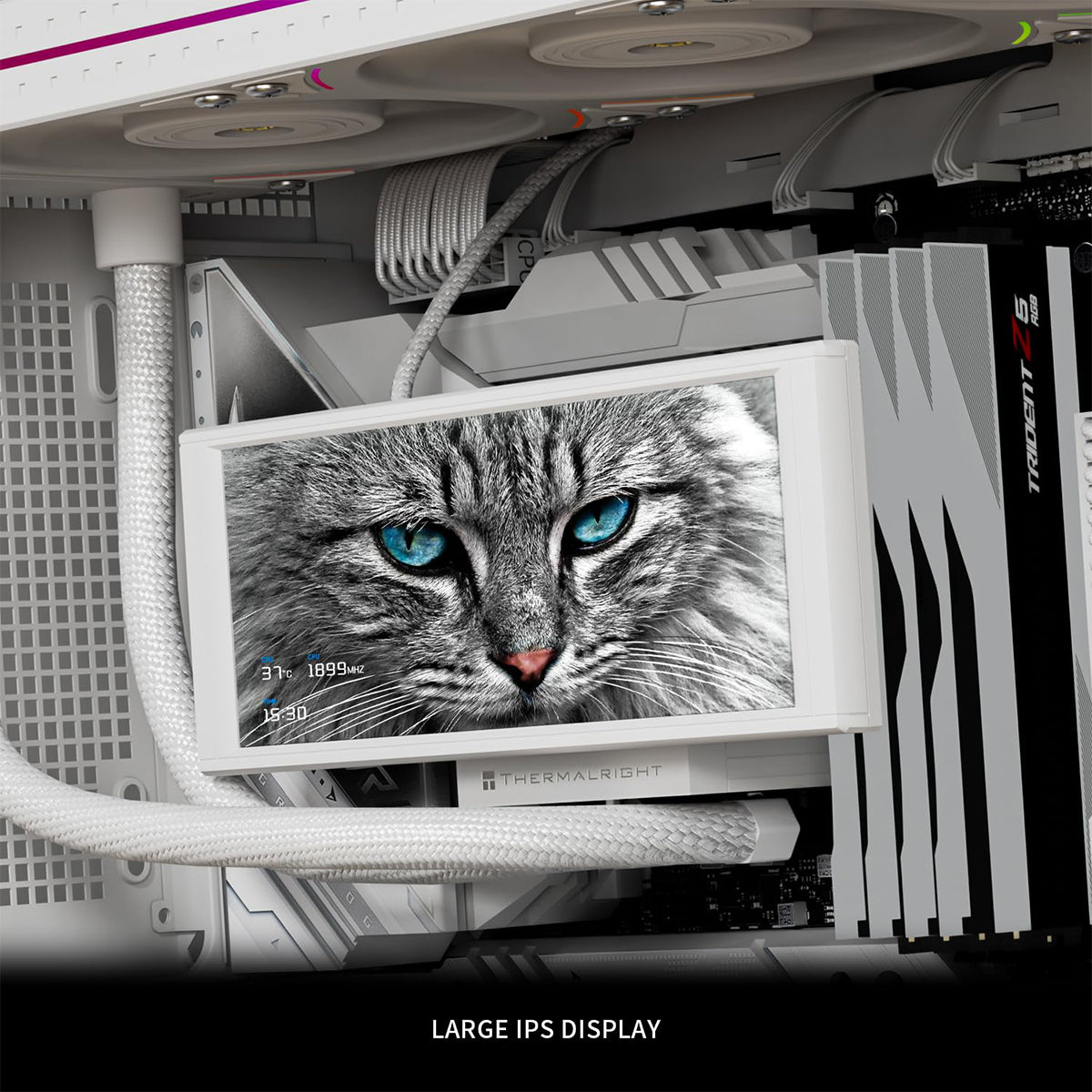

6.86 Inch Long Screen
Magnetic cold head full-color LCD display is easy to disassemble. 1280x480 resolution has good viewing angle stability, can accurately restore color, make the picture more real and delicate, and support magnetic chassis fixed screen panel.
TRCC Software
The various data monitoring and opening/closing of curved screens require TRCC software control. The screen is powered by the 9-pin USB interface of the motherboard. Before installation, please confirm the integrity of the wiring. TRCC software can be downloaded from the official website. If encountering uncontrollable situations, you can unplug and plug in the Type-C interface of the cold head for hardware restart.
Wide Compatibility
CPU liquid cooler supports Intel: LGA 1150/1151/1155/1156/1200/1700/2011/2066; AMD: AM4/AM5, with dual-platform all-metal fasteners, easy to install. It is recommended to install it in conjunction with the installation video or manual. (Note: The installation of the AMD platform requires the installation of the original backplate of the motherboard, which is not included with the product.)
Specifications
Specifications
| Pump Dimensions | L187.2 mm x W95.8 mm x H102 mm |
| Radiator Dimensions | L403 mm x W120 mm x H27 mm |
| Pump Rated Speed | 6400 RPM ±10% (MAX) |
| Screen Size | 6.86-Inch |
| Screen Resolution | 1280×480 |
| Pump Rated Voltage | 12V DC |
| Connector | 4 PIN PWM |
| Radiator Material | Aluminum |
| Warranty | 6 Years |
| Product Model | TL-UB36W |
| TL-UB36W Dimensions | L360 mm x W120 mm x H25 mm |
| TL-UB36W Rated Speed | 2150 RPM ±10% (MAX) |
| Noise Level | 27 dBA (MAX) |
| Air Flow | 69×3 CFM (MAX) |
| Air Pressure | 2.87 mm H2O (MAX) |
| TL-UB36W Connector | 4 PIN PWM |
| ARGB Connector | 3 PIN 5V |
| Bearing Type | S-FDB V2 Bearing |
