Description
Description
Better Cooling
Adopting a black paint fully electroplated reflow soldering process, the top features a blackened nano coating, fully electroplated heat pipe, and a fine micro-carved copper bottom. This greatly increases the effective heat dissipation area. The memory cut corner avoidance design ensures excellent heat dissipation performance during operation.
154mm Height

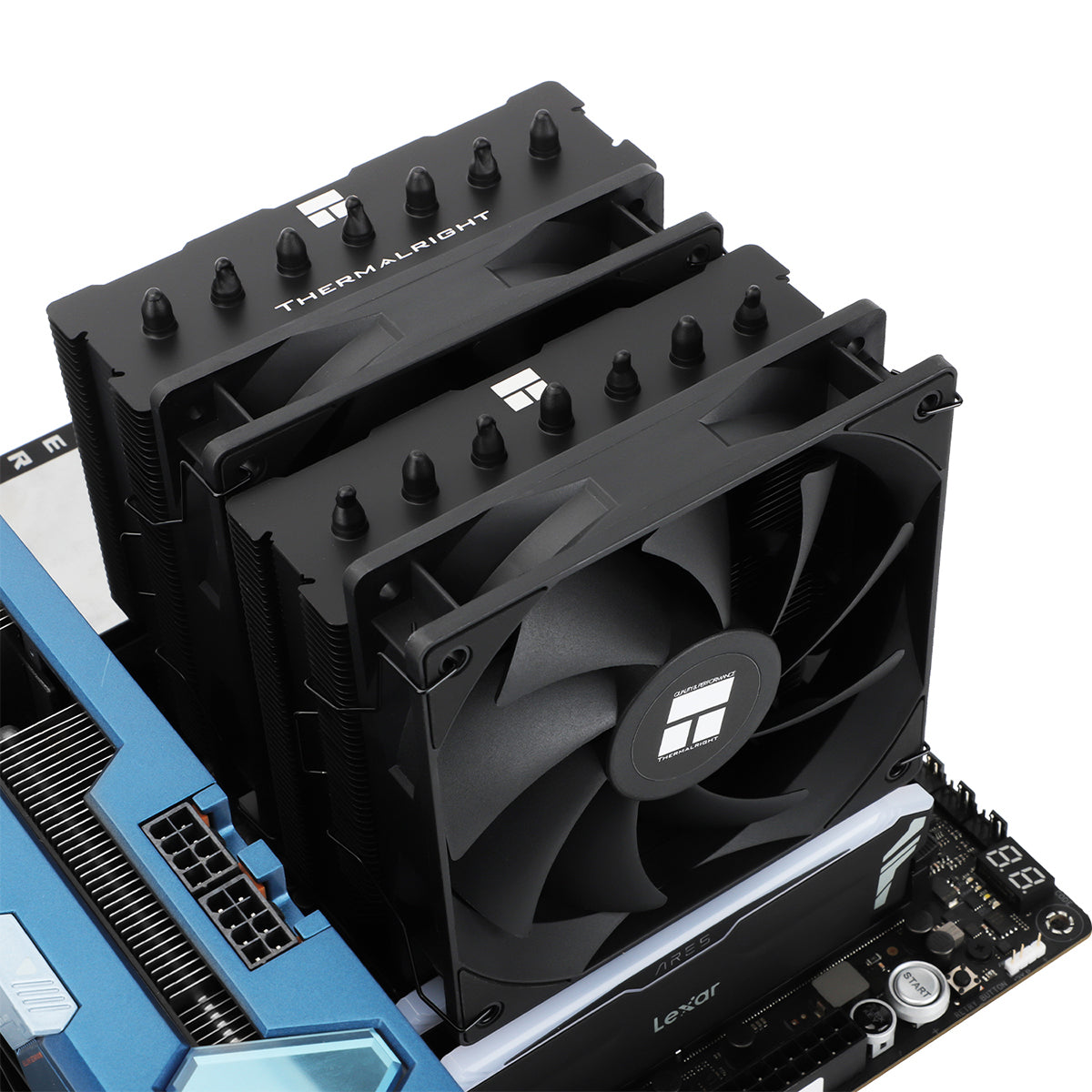

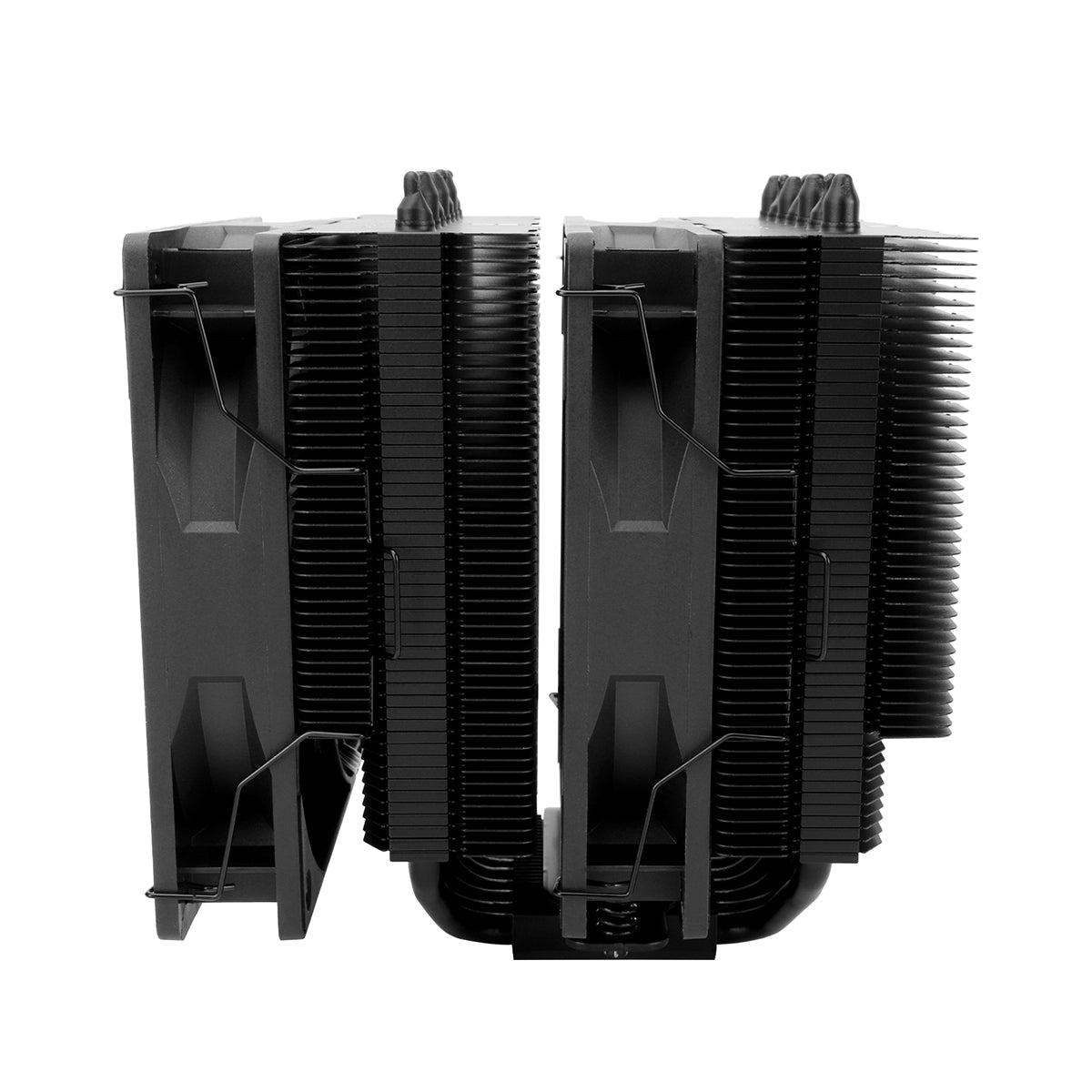

The double tower radiator stands at a height of 154mm, providing more compatibility for the chassis. You won’t have to worry about ATX motherboard clearance or memory height. The all-aluminium fins of the main body maximize the cooling area.
Product Specification

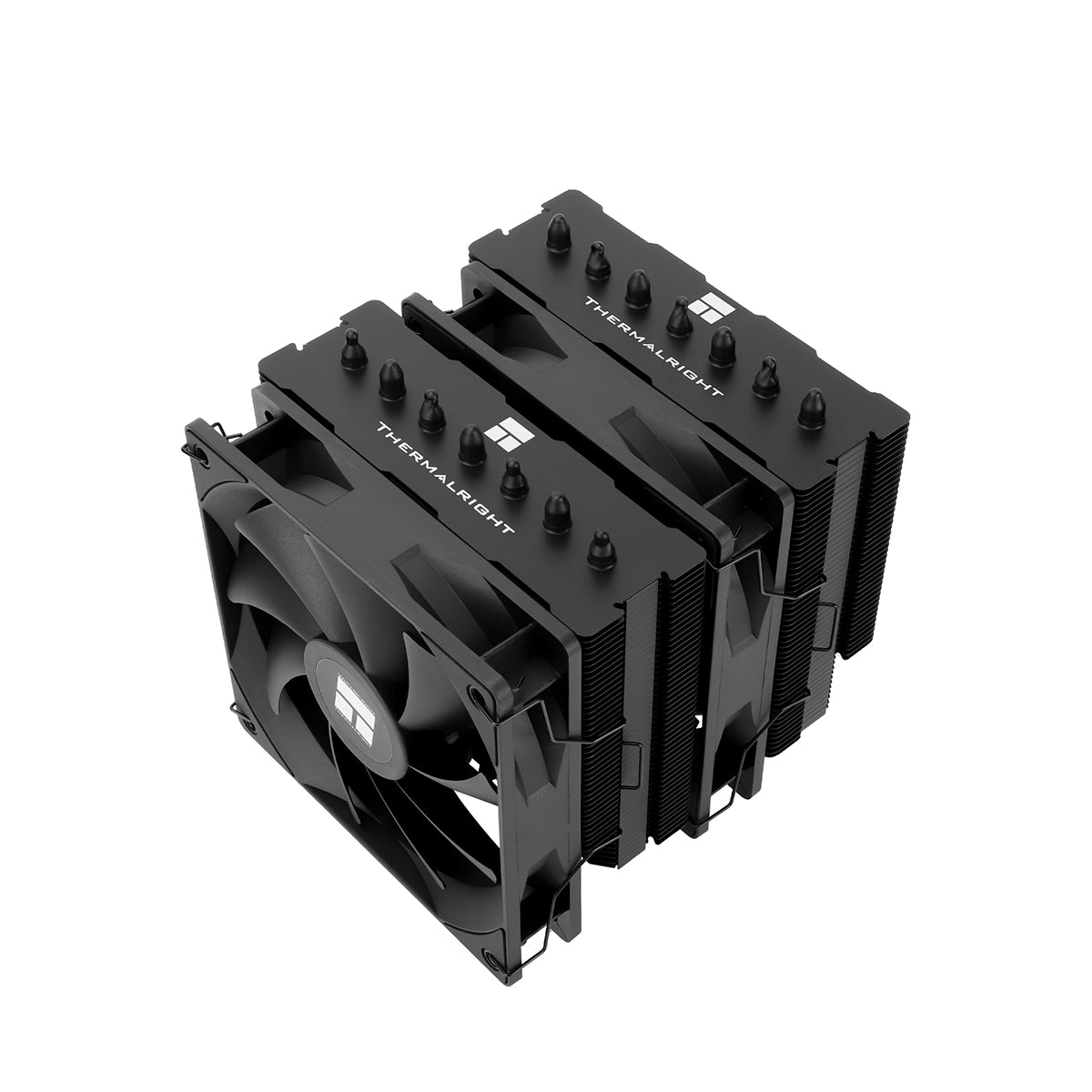

PS120SE Black; CPU Cooler dimensions: 125(L) x 135(W) x 154(H)mm (4.92 x 5.31 x 6.06 inches); Heat sink material: aluminum. The main body features anodized black frosted top pieces and finely carved pure copper base technology. Fully aluminum fins provide maximum heat dissipation area. Combined with high thermal conductivity thermal paste, this cooler delivers its most powerful cooling effect.
AGHP Technique

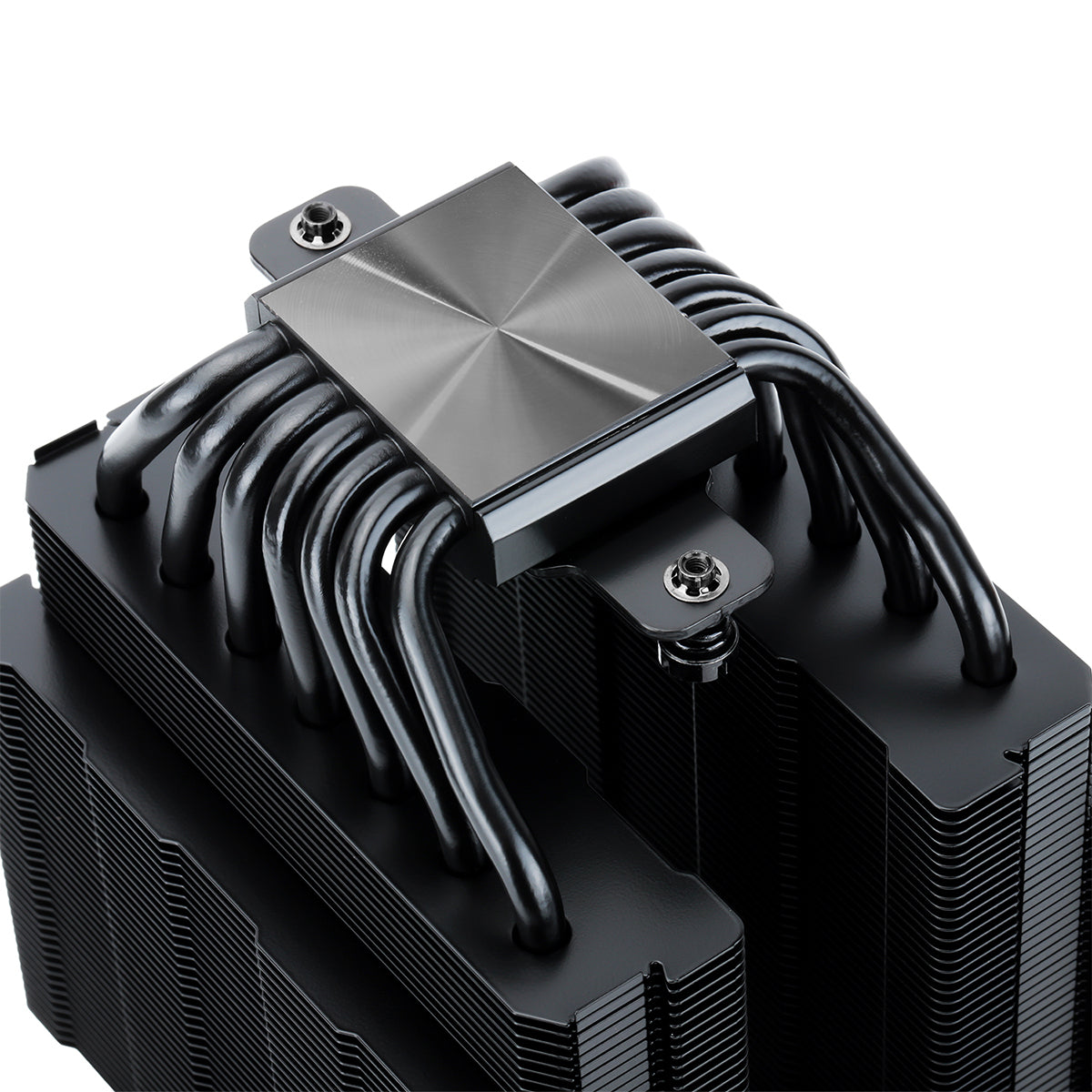

The cooler features 7x6mm heat pipes with AGHP upgraded 4th generation technology. It accounts for the inverse gravity effect caused by vertical/horizontal orientation. The air cooler radiator is built to last with up to 20,000 hours of industrial service life. S-FDB bearings ensure long service life, and UL class A safety insulation low-grade, industrial-strength PBT + PC material guarantees high-quality construction.
Compatibility
CPU cooling slot support: Intel: LGA1851/1700/1150/1151/1155/1156/1200; AMD: AM4/AM5. For different CPU slot platforms, the corresponding mounting plate or fasteners are provided. Installation can be done using the provided instructions or by following the tutorial. (Note: For AMD motherboards, use the original motherboard backplane for installation.)
Specifications
Specifications
Heatsink Specifications: | |
Dimension: | L110 mm x W125 mm x H154 mm |
Weight: | 765g |
Heat pipes: | 6mm heatpipe x 7 units |
Copper Base: | C1100 Pure copper nickel plated |

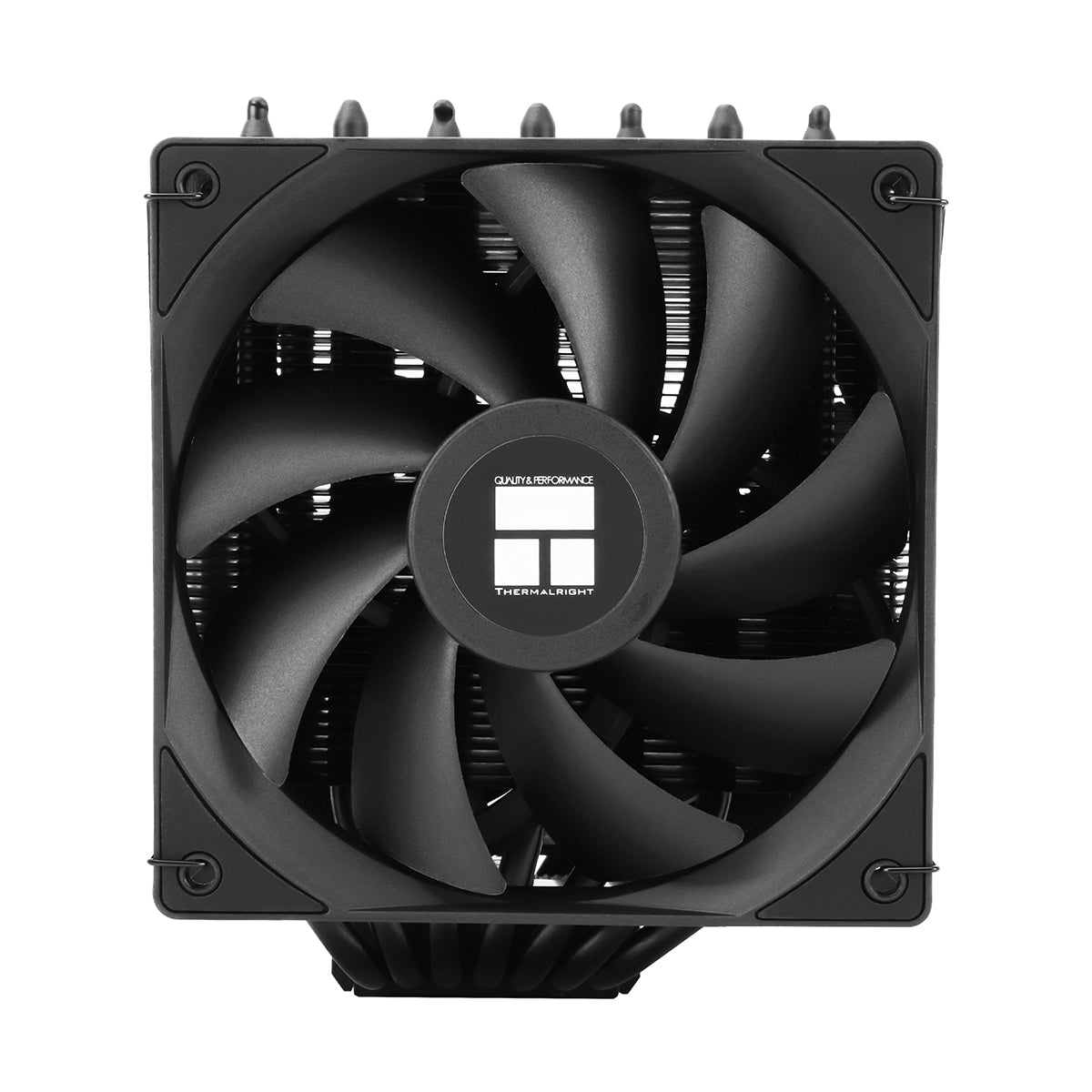

TL-C12B V2 FAN Spec: | |
Dimension: | L120 mm x W120 mm x H25 mm |
Weight: | 135g |
Rated Speed: | 1500 RPM±10% (MAX) |
Noise Level: | 25.6 dBA |
Air Flow: | 66.17 CFM (MAX) |
Air Pressure: | 1.53 mm H2O (MAX) |
Ampere: | 0.20 A |
Connector: | 4 Pin (PWM Fan connector) |
Bearing Type: | S-FDB Bearing |
