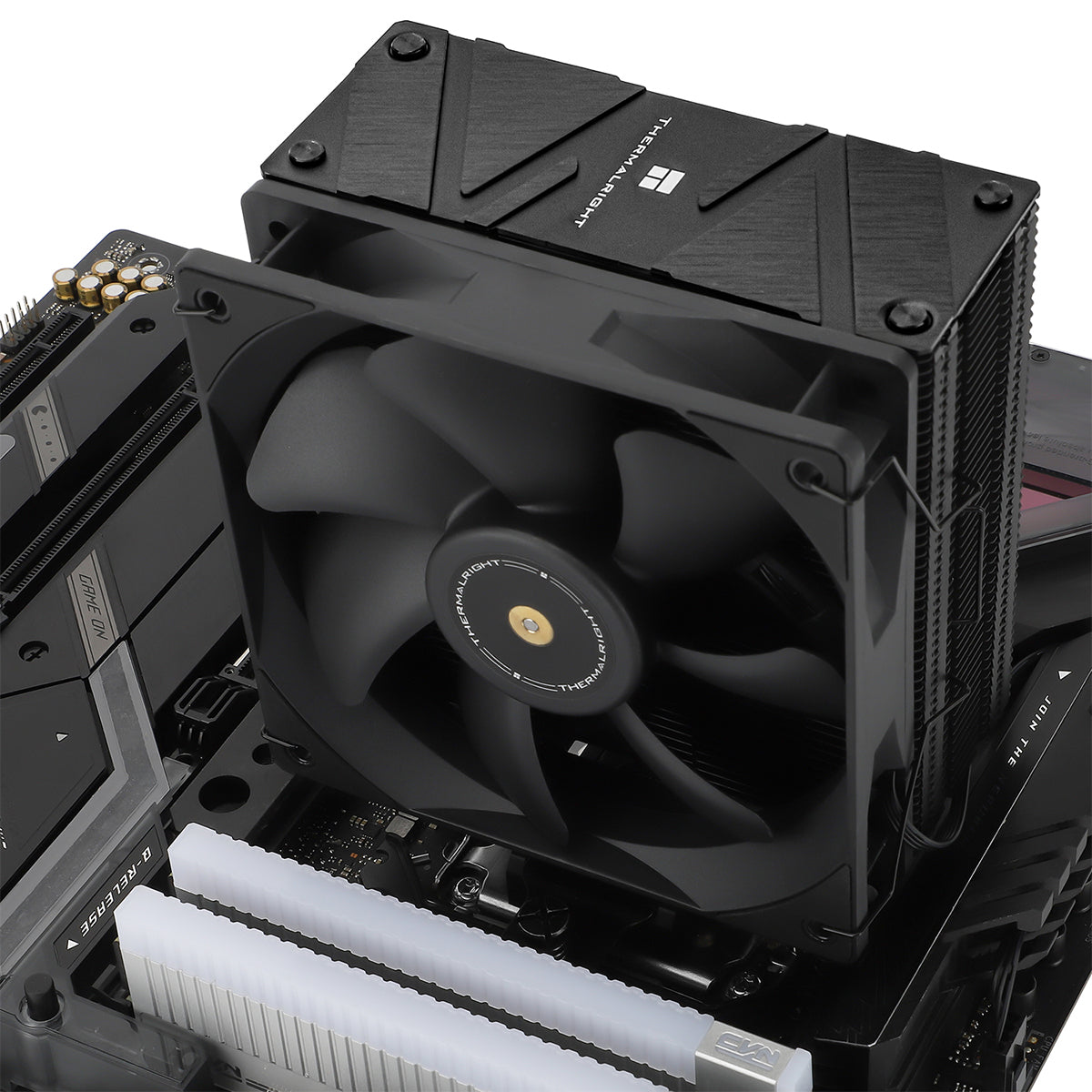

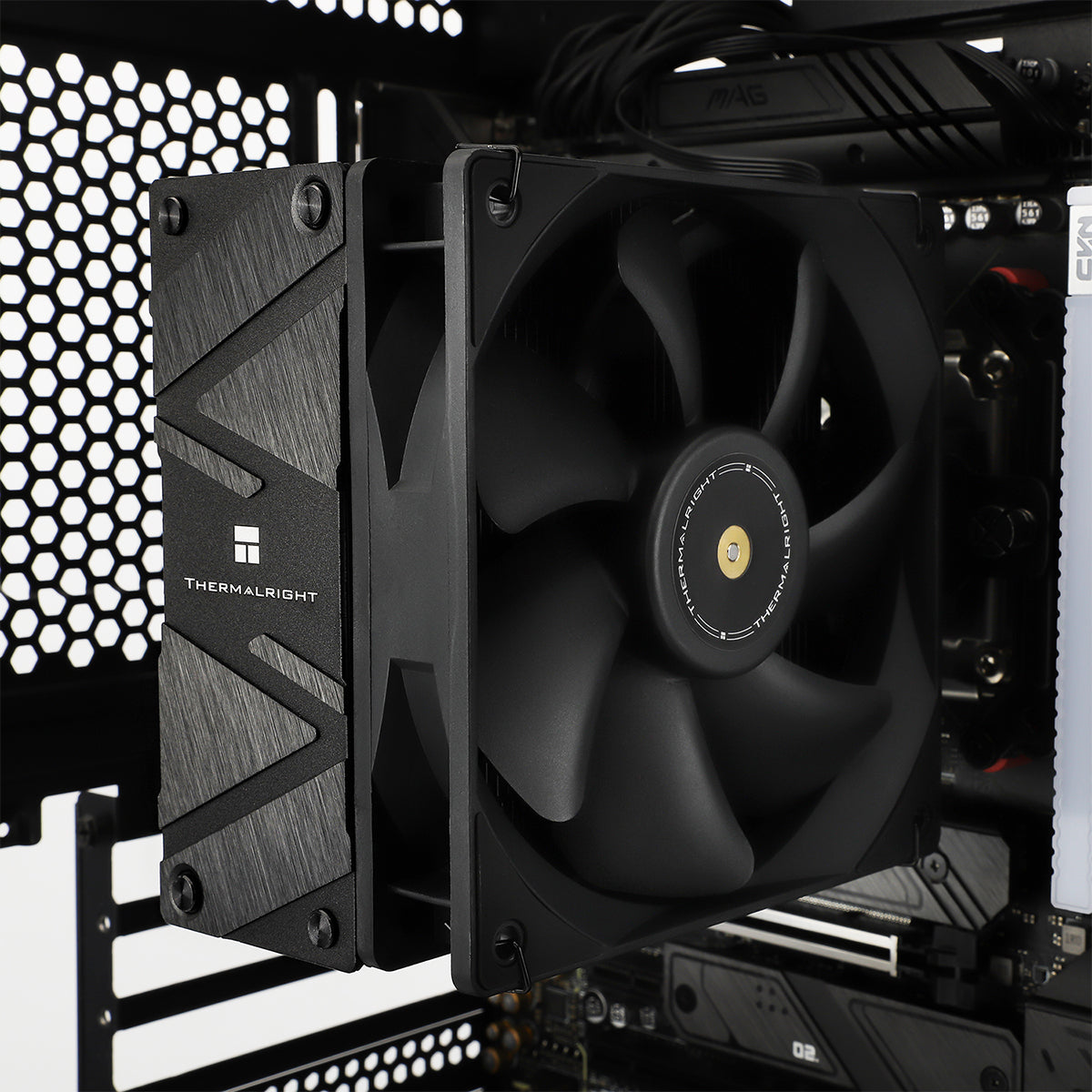

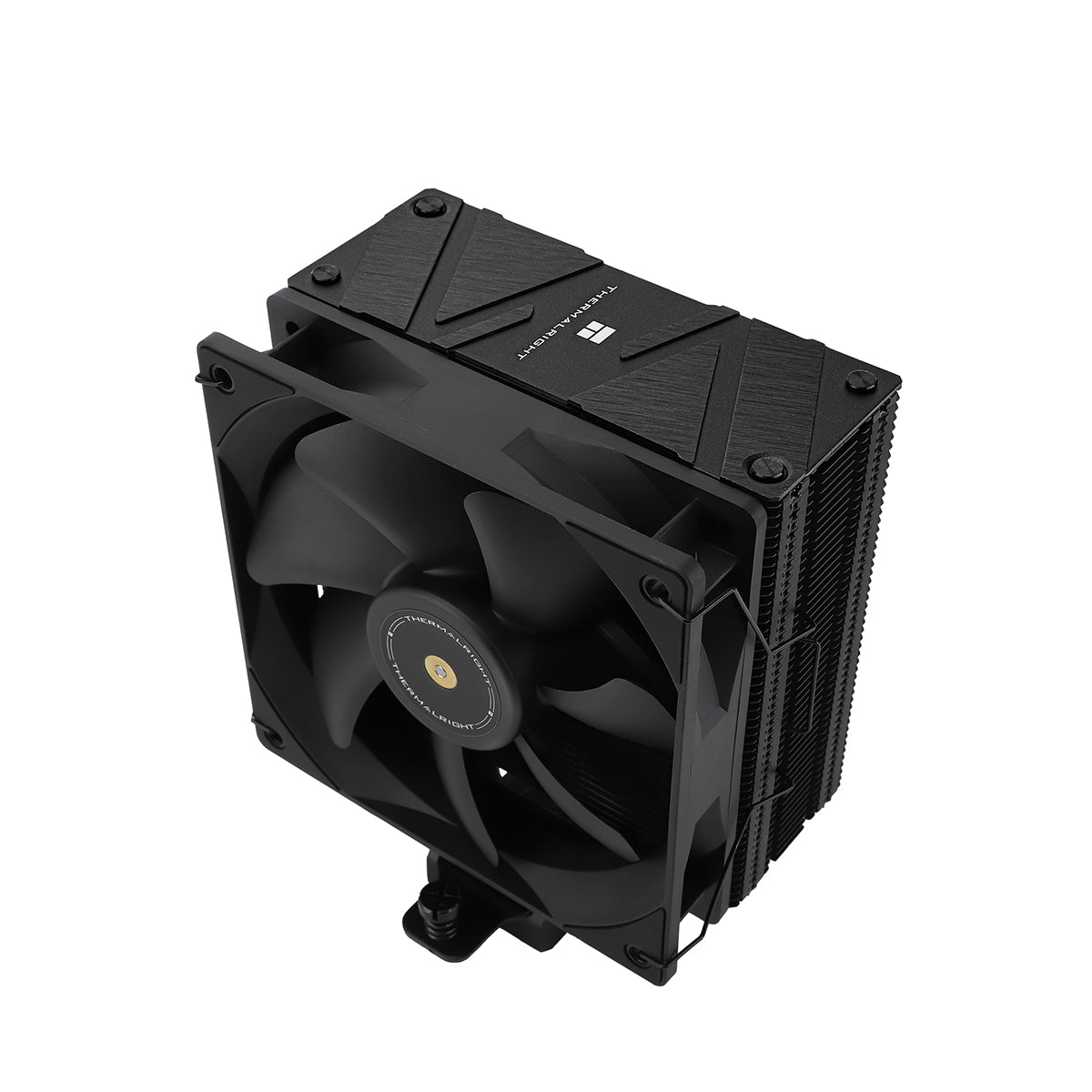

Thermalright Assassin Spirit 120 EVO Dark CPU Air Cooler
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Product Specifications
AS120 EVO DARK (Abbreviation); CPU Cooler; Size: 120 (L) x 73 (W) x 156 (H) mm (4.72 x 2.87 x 6.14 inches); Cooler Material: Aluminium. The all-aluminium fins in the main body maximize the heat dissipation area. Combined with the high-speed PWM fan, it delivers excellent cooling efficiency.

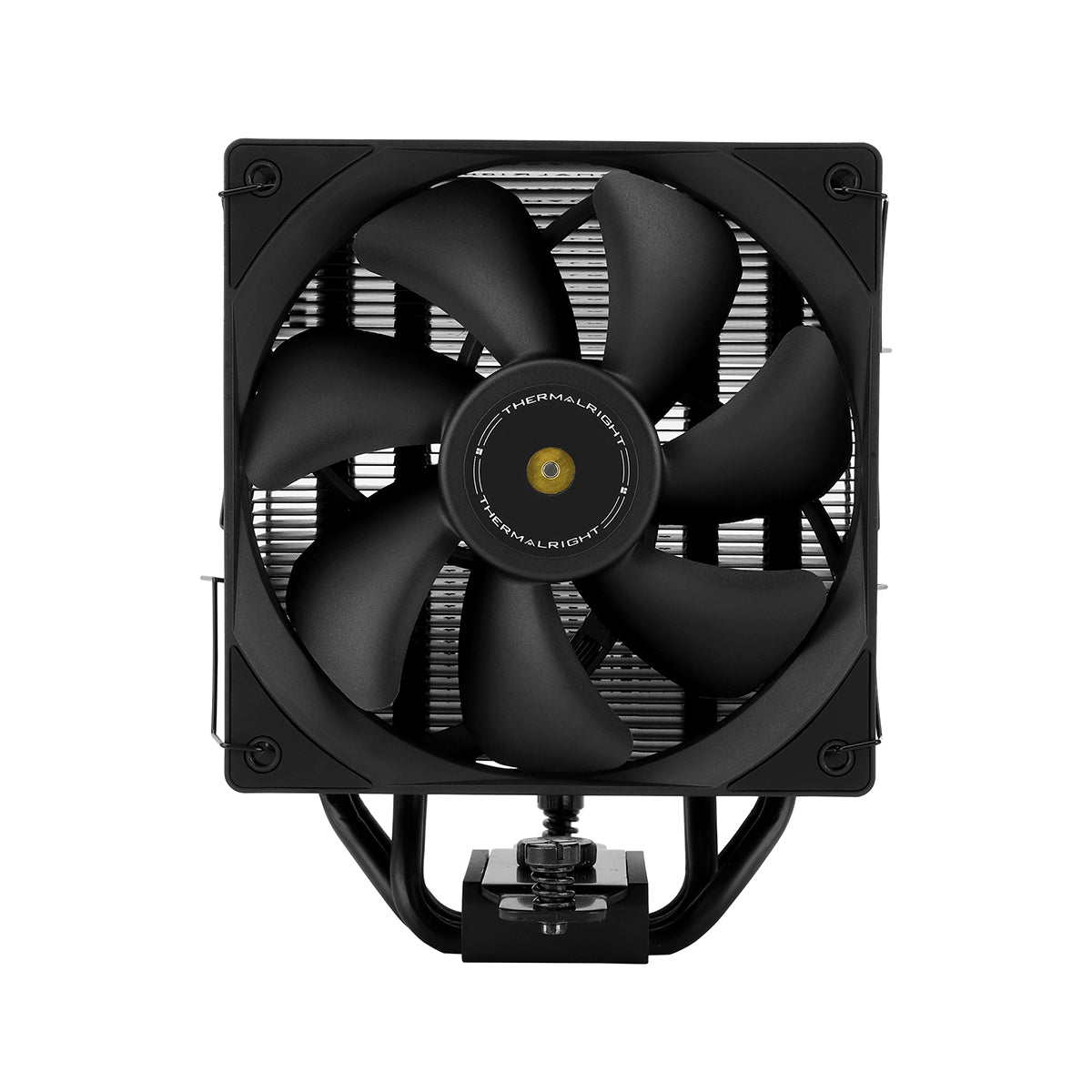

PWM Fan
TL-E12B V2; Standard 120MM size PWM performance fan: 120 x 120 x 25mm (4.72x4.72x0.98 inches); Fan speed (RPM): 1850RPM±10%; Power supply connector: 4-pin; Voltage: 12V DC; Airflow rate: 70.4CFM (max); Noise level ≤ 27dB (A). The high-performance fan, in combination with the efficient cooling body, provides superior cooling performance.
Excellent Price/Performance Ratio

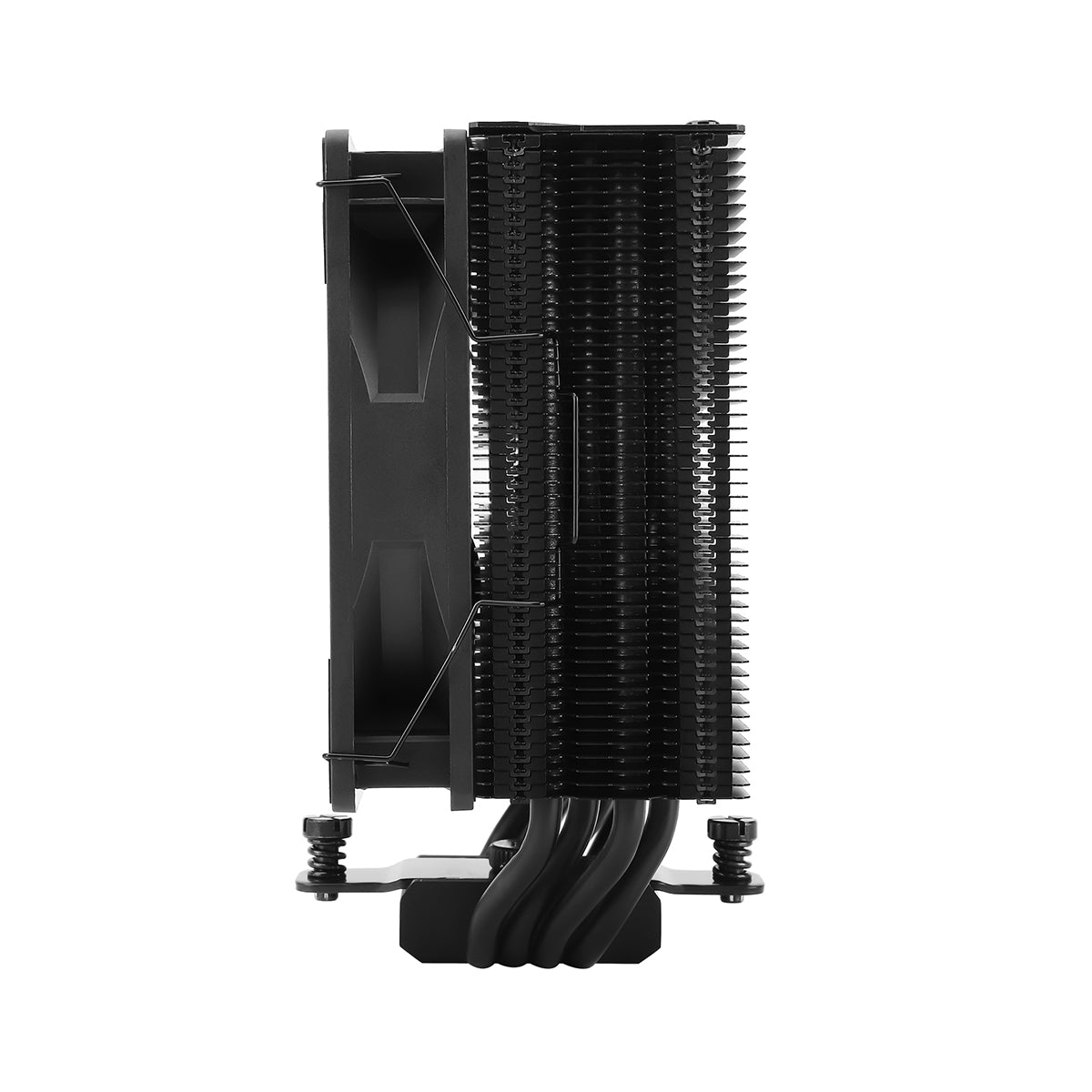

The top cover of the CPU air cooler features an anodic black brushed process, enhancing its visual appeal. The cooler also includes four black-painted fully plated heat pipes with Seiko HDT direct touch copper base. The 1850RPM rotation speed and the improved heat dissipation performance work together to enhance overall cooling efficiency.
Compatibility
The CPU cooling slot supports: Intel: LGA1150/1151/1155/1156/1200/1700/17XX; AMD: AM4/AM5. For different CPU slot platforms, corresponding mounting plates or fasteners are included. Installation instructions or tutorials can guide the setup. (Note: For AM4/AM5 motherboards, use the original backplate that comes with the motherboard for installation.)
Specifications
Specifications
| Heatsink Specifications | |
| Dimension | L120 mm x W48 mm x H156 mm |
| Weight | 525g (Without Fan) |
| Heat Pipes | 6mm heatpipe x 4 units |
| TL-E12B V2 FAN Spec | |
| Dimension | L120 mm x W120 mm x H25 mm |
| Rated Speed | 1850 RPM±10% (MAX) |
| Weight | 150g |
| Noise Level | 27 dBA |
| Air Flow | 70.4 CFM (MAX) |
| Air Pressure | 2.64 mm H2O (MAX) |
| Ampere | 0.16A |
| Connector | 4 Pin (PWM Fan connector) |
| Bearing Type | S-FDB Bearing |
