Description
Description
Product Overview:

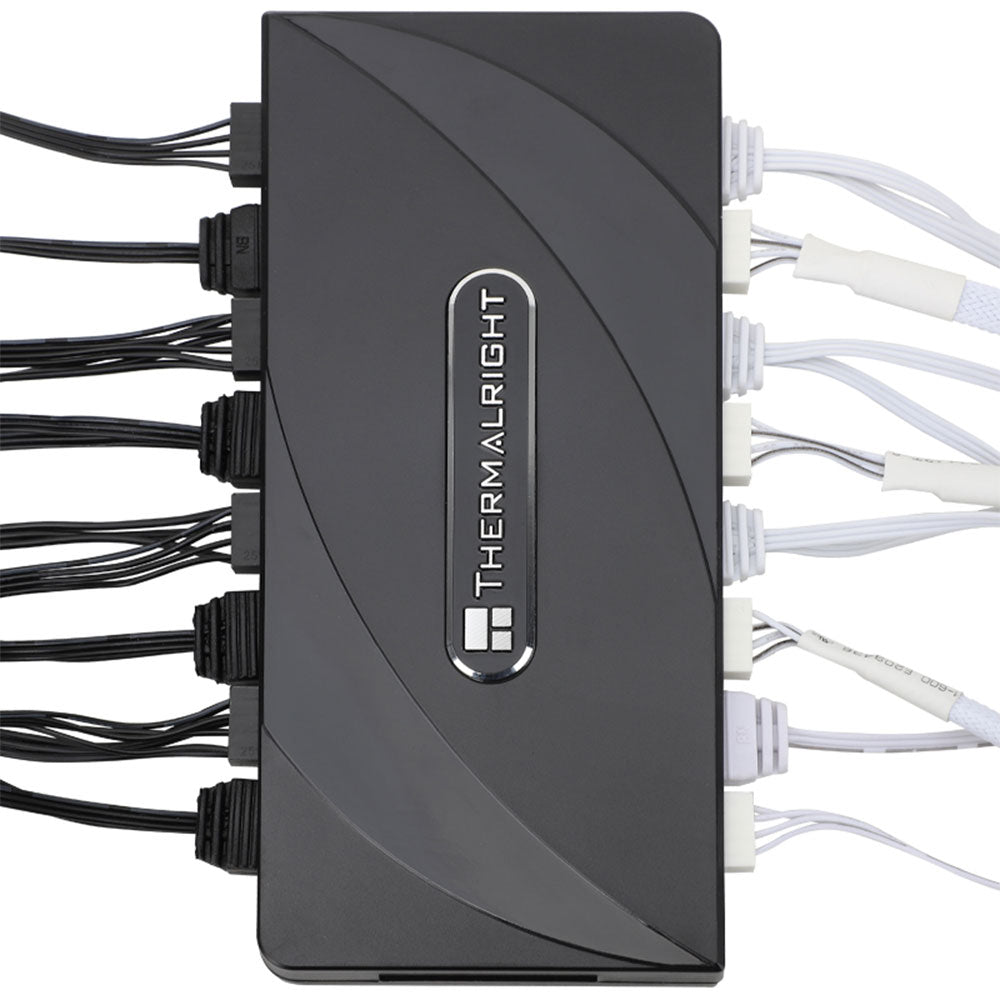

This fan hub supports the installation of 8 groups of ARGB fans, making it easy to manage wiring. Strong paste installation mode, convenient SATA power line direct transmission, and safety is guaranteed.

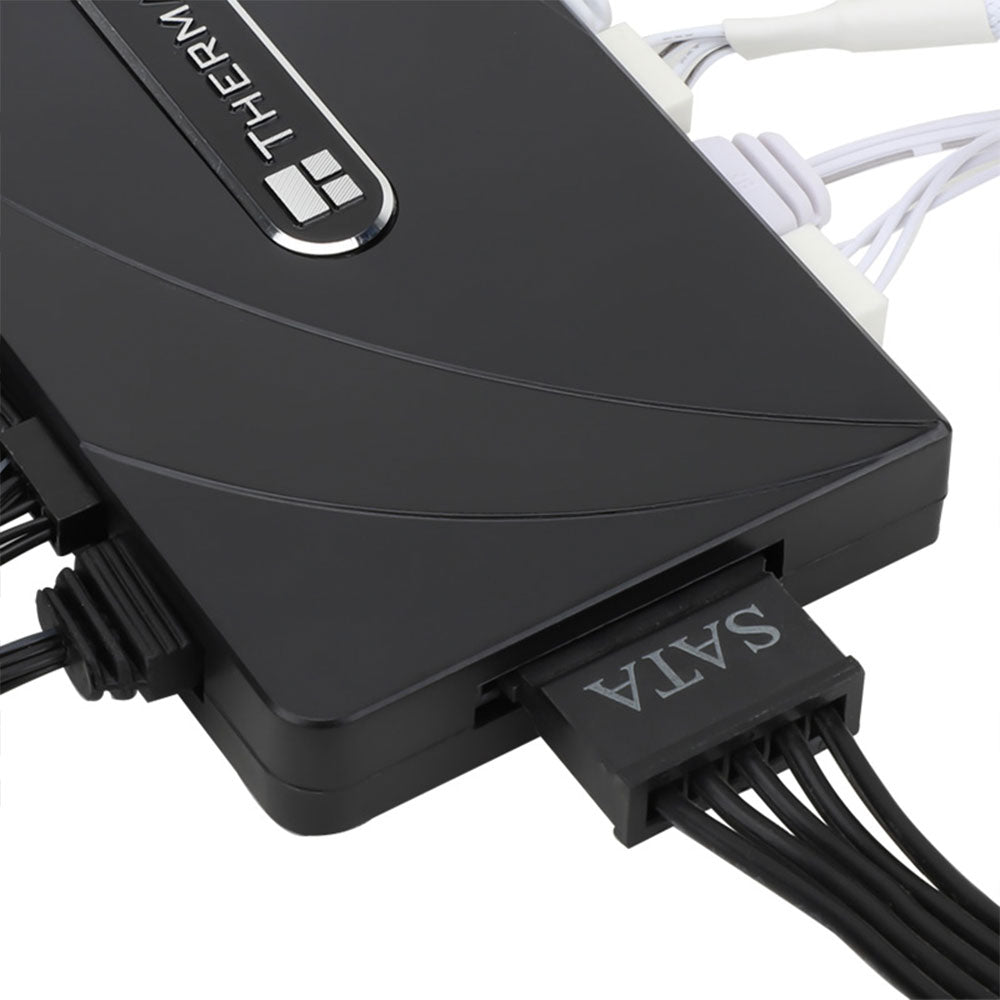

Built-in strong double-sided sticker, fixed on the chassis with double-sided sticker. SATA power line direct transmission, more concise and more efficient. Maintains stable output under high load.
Features:
- Supports fan speed reading and PWM fan regulation (due to the limitation of PWM mainboard IC reading principle, only the speed of a single fan inserted into the red interface is recognized).
- Small body, large capacity.
- Multi-line management and control to keep cables neat.
- Supports ARGB fans, ARGB light bars, etc.
- Synchronizes the light efficiency of 5V 3-pin interface equipment.
Important Note:
- The +12V 4-pin RGB interface device is not supported. Do not insert!
- Please pay attention to the arrow marked on the ARGB equipment plug and insert it in the direction of 5V.
- Incorrect insertion direction may risk damaging the equipment.
Specifications
Specifications
| Specifications | |
| Size | 140 x 64 x 16mm |
| Weight | 70g |
| Color | Black |
| Material | Plastic |
| Connector | 4 Pin PWM / 3 Pin (+5V ARGB) |
| Function | PWM Fan HUB Controller + 3 Pin (+5V ARGB) synchronizing signal |
