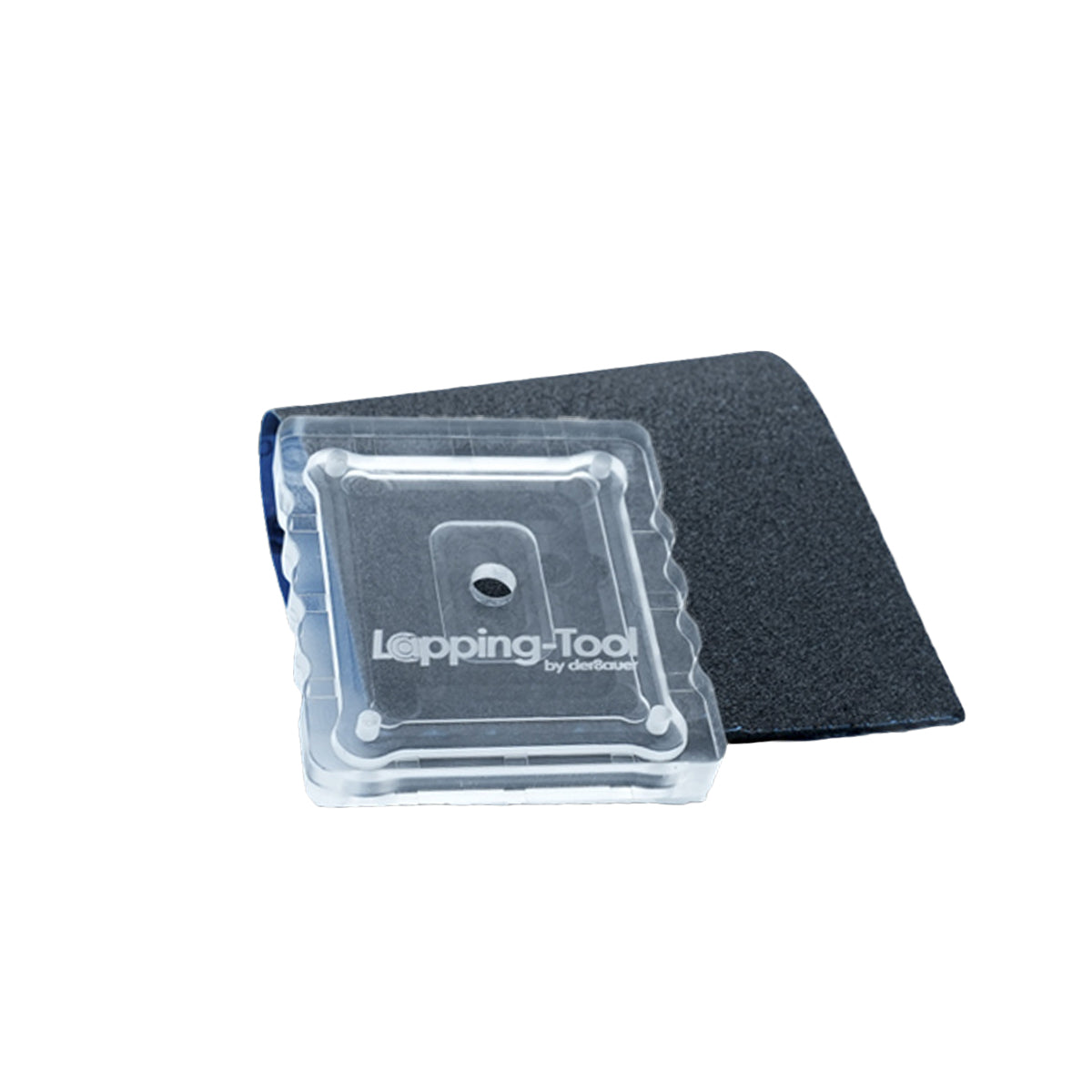

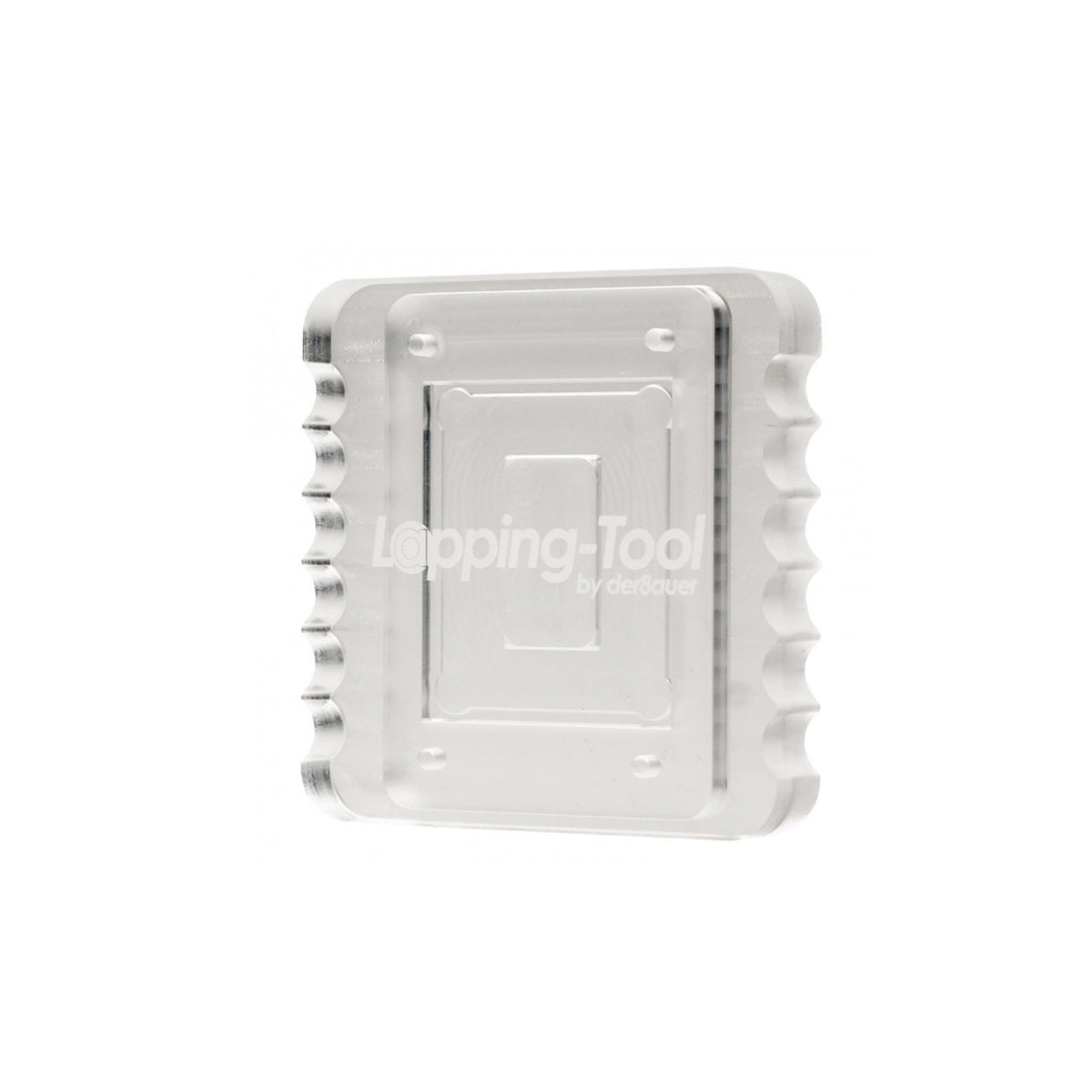

Thermal Grizzly Lapping Tool for Intel 13/14th Gen

Thermal Grizzly  |  SKU 47097  |  MPN TG-LT-i13G
$39.00

In stock at Computer Lounge

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

The lapping tool for Intel's 13th Gen processors enables the heat spreader to be sanded down safely. The CPU is easily mounted on the lapping tool using the screws provided. The tolerances of the lapping tool allow the heat spreader to be ground down by 0.2 millimeters.


The 13th Gen Lapping Tool is compatible with 12th Gen Intel Core CPUs. 400, 1200 and 2500 grit sandpaper is included.


  • For Intel Core 13th Gen (Compatible with 12th Gen)
  • CNC-milled acrylic glass
  • Simplifies CPU looping
  • Complete set with sandpaper
  • Single use recommended

On the lapping tool there are bars on the acrylic glass around the clamped CPU. These bars are 0.2 millimeters high. If the bars are completely worn away, the grinding must be stopped. 12th and 13th Gen processors are compatible with both 12th and 13th Gen Contact Frames as long as they are not abraded more than 0.2 millimeters.

It should be noted that grinding the CPU will void the warranty. For the largest possible contact area between the IHS and the base plate of the CPU cooler, the latter should also be sanded.


The lapping tool for Intel's 13th Gen CPUs comes with a total of three sheets of sandpaper. The included sandpaper is 400, 1200 and 2500 grit (one sheet each). The lapping tool for Intel's 13th Gen CPUs is intended for one-time use, but can also be used multiple times. When using multiple times, particular care must be taken not to grind off too much material from the IHS.


    Technical specifications

  • Length: 65mm
  • Width: 58mm
  • Height: 9mm
  • Colour: Clear
  • Material: acrylic glass

    scope of delivery

  • 1x lapping tool
  • 4x screw
  • 4x washer PU
  • 1x Allen key 2.5mm
  • 1x sandpaper 400 grit
  • 1x sandpaper 1,200 grit
  • 1x sandpaper 2,500 grit
