Description
Description

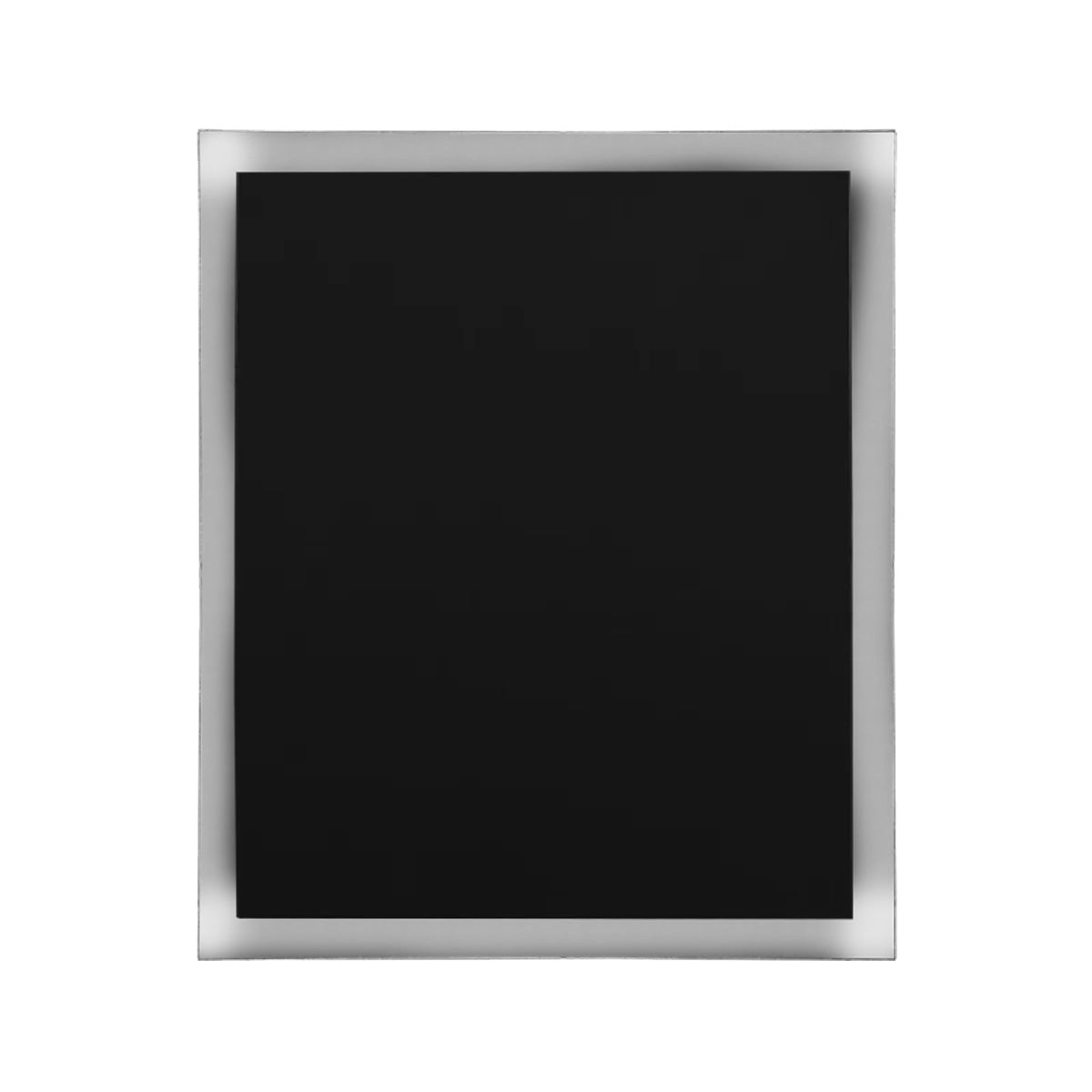

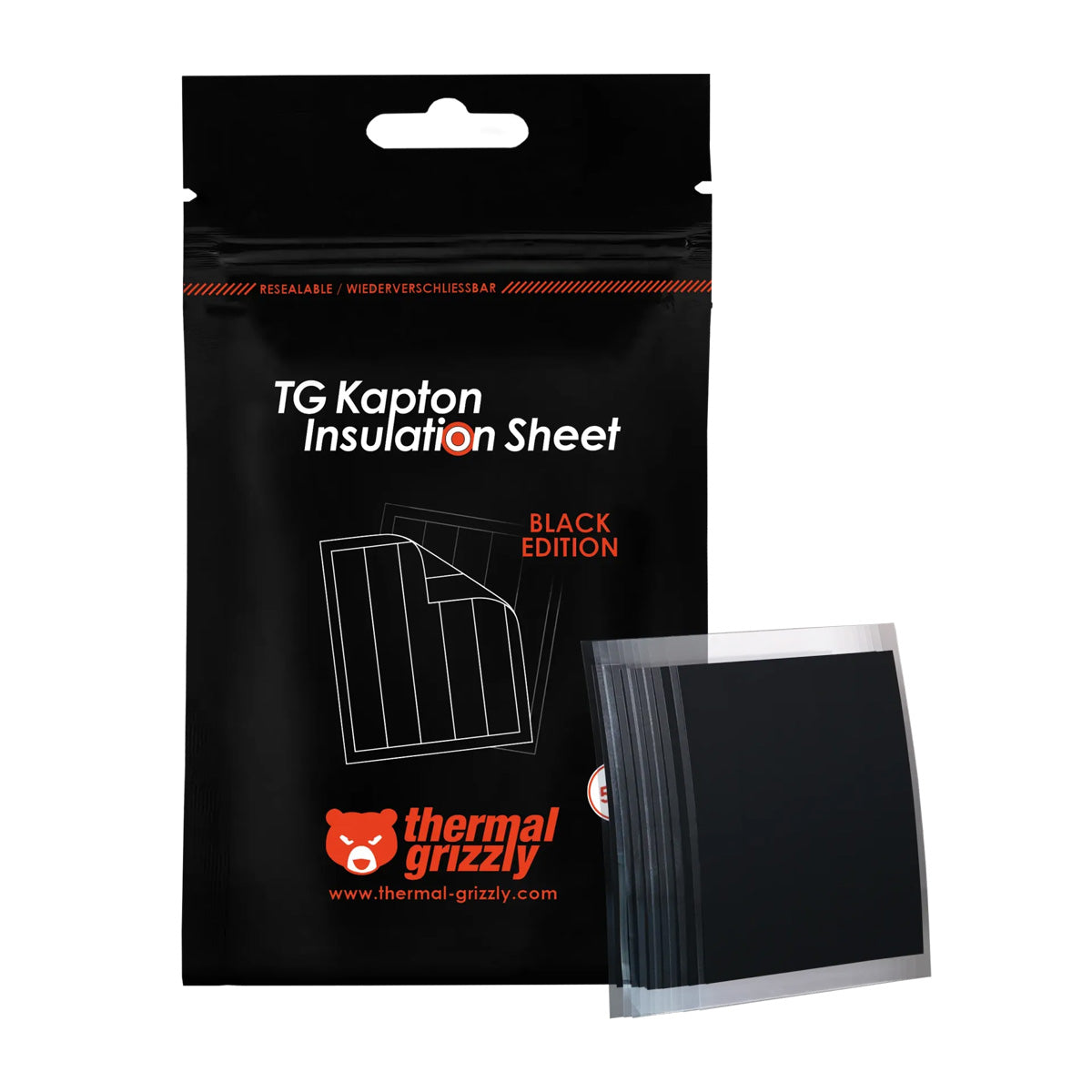

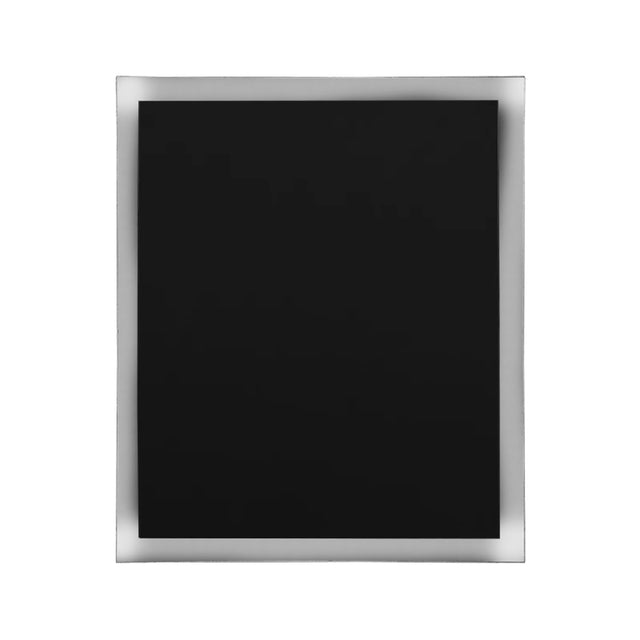

TG Kapton Insulation Sheet Black Edition
The Kapton Insulation Sheet Black Edition is a polyimide film designed for high-temperature applications up to 260 °C. It serves as an installation aid for electrically conductive thermal interface materials (TIM), such as Conductonaut liquid metal, Carbonaut, or KryoSheet.
Black Edition: Thinner, Stronger, and Ideal for Precise Masking

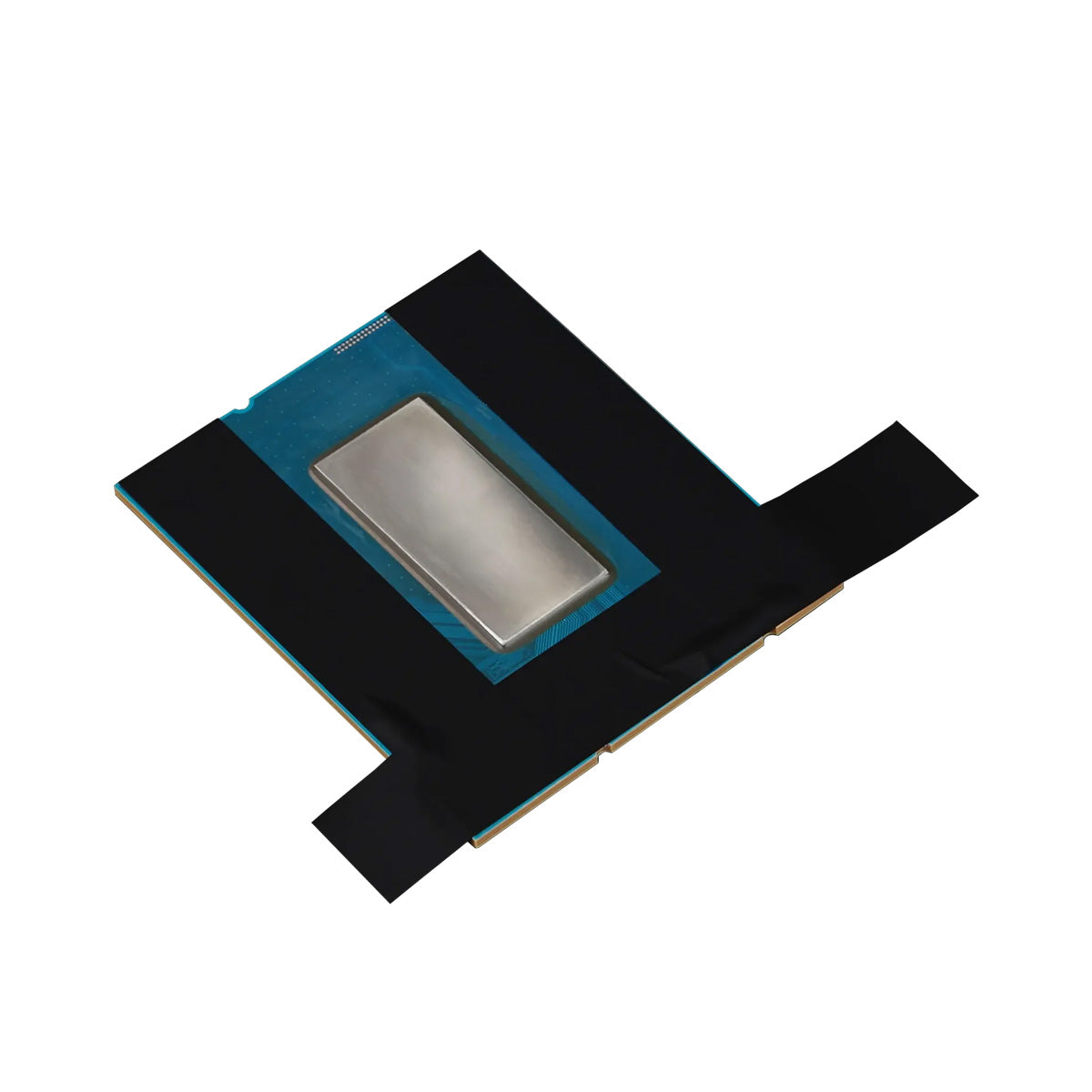

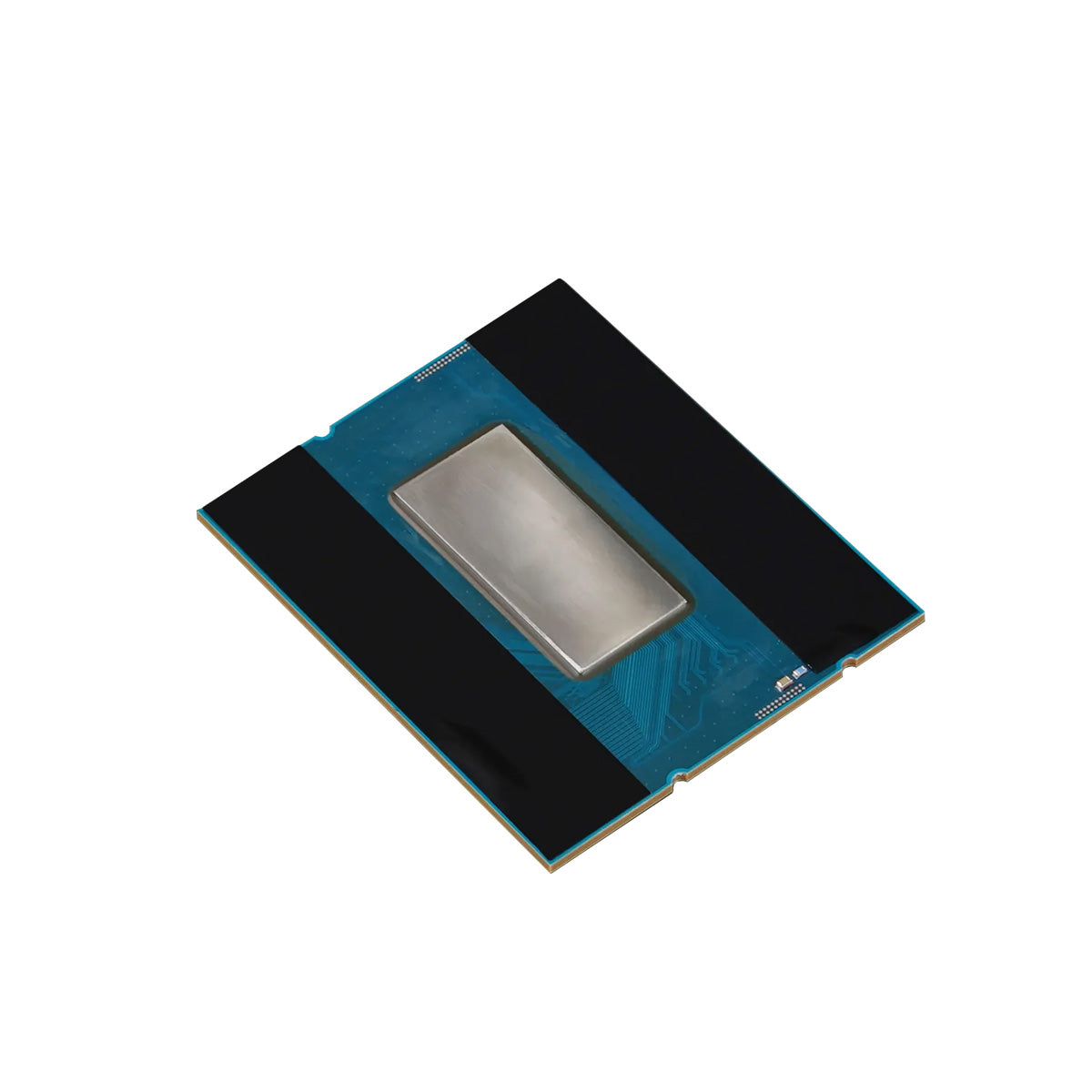

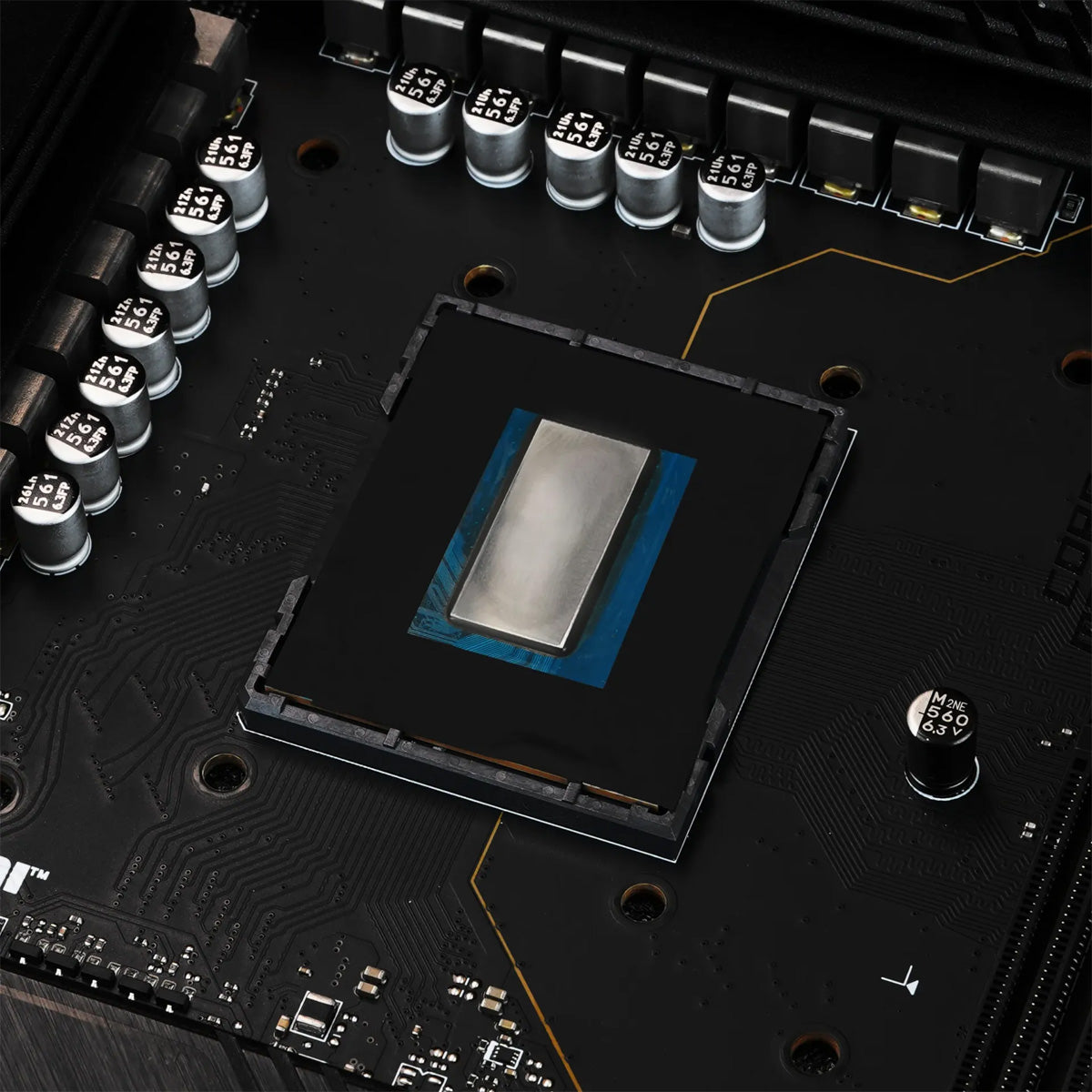

This insulation sheet is ideal for masking sensitive components such as SMDs on a CPU or GPU when using electrically conductive materials. Compared to the standard Kapton Insulation Sheet, the Black Edition is thinner and offers a significantly higher breakdown voltage, making it suitable for more demanding applications.
The Kapton Insulation Sheet Black Edition is supplied as carrier sheets with pre-cut adhesive strips for convenient handling. It is recommended to thoroughly clean the contact surfaces before application, for example by using isopropyl alcohol, to ensure optimal adhesion and performance.
Specifications
Specifications
| Product Name | Kapton Insulation Sheet Black Edition |
| Material | Polyimid (PI) |
| Color | Black, matte |
| Total Thickness | 30 µm |
| Long-term Temperature | 180 °C |
| Short-term Temperature | 260 °C |
| Breakdown Voltage | 5 kV |
| Electrically Insulating | Yes |
| Scope of Delivery | 10x carrier foil 5 Kapton Insulation Sheets each |
