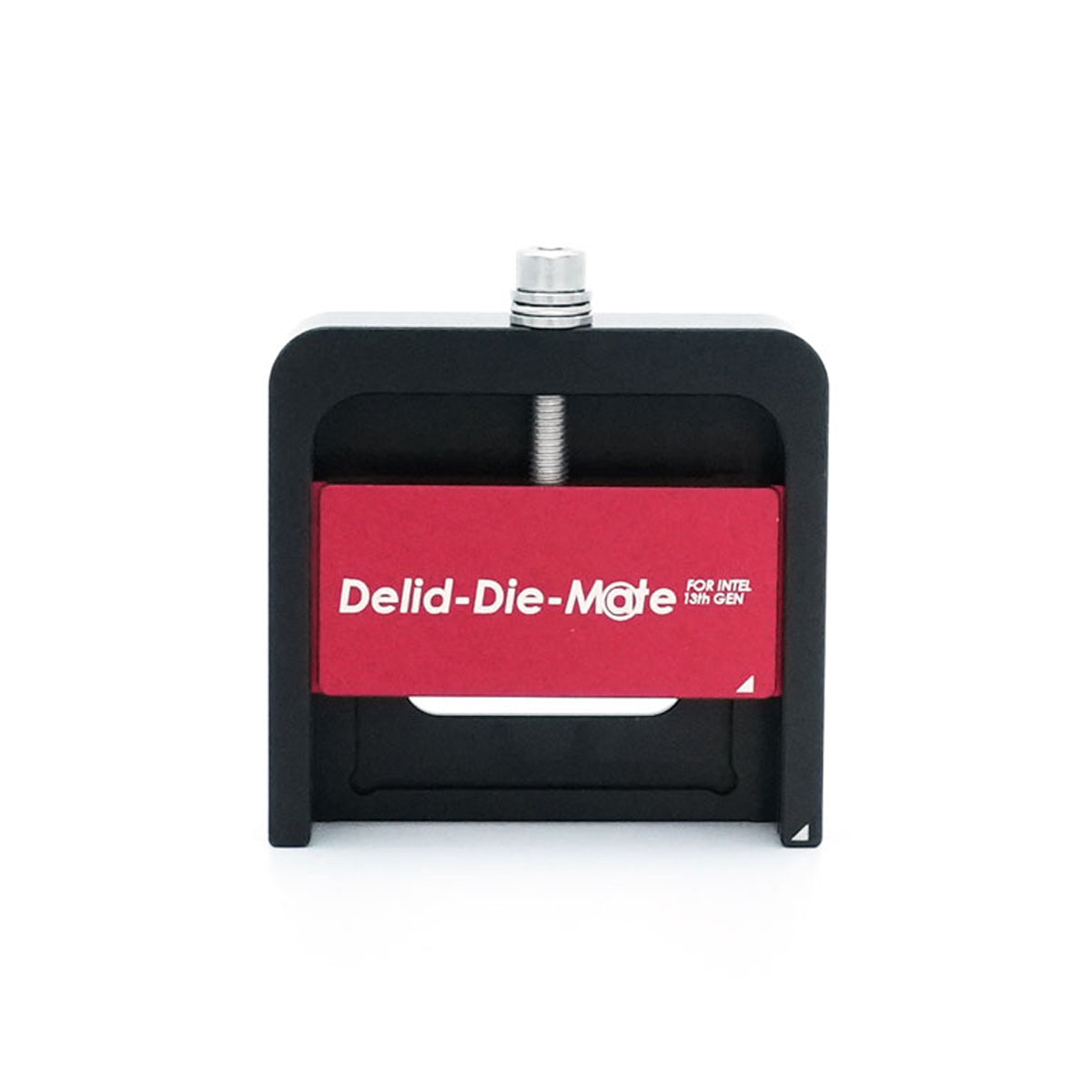

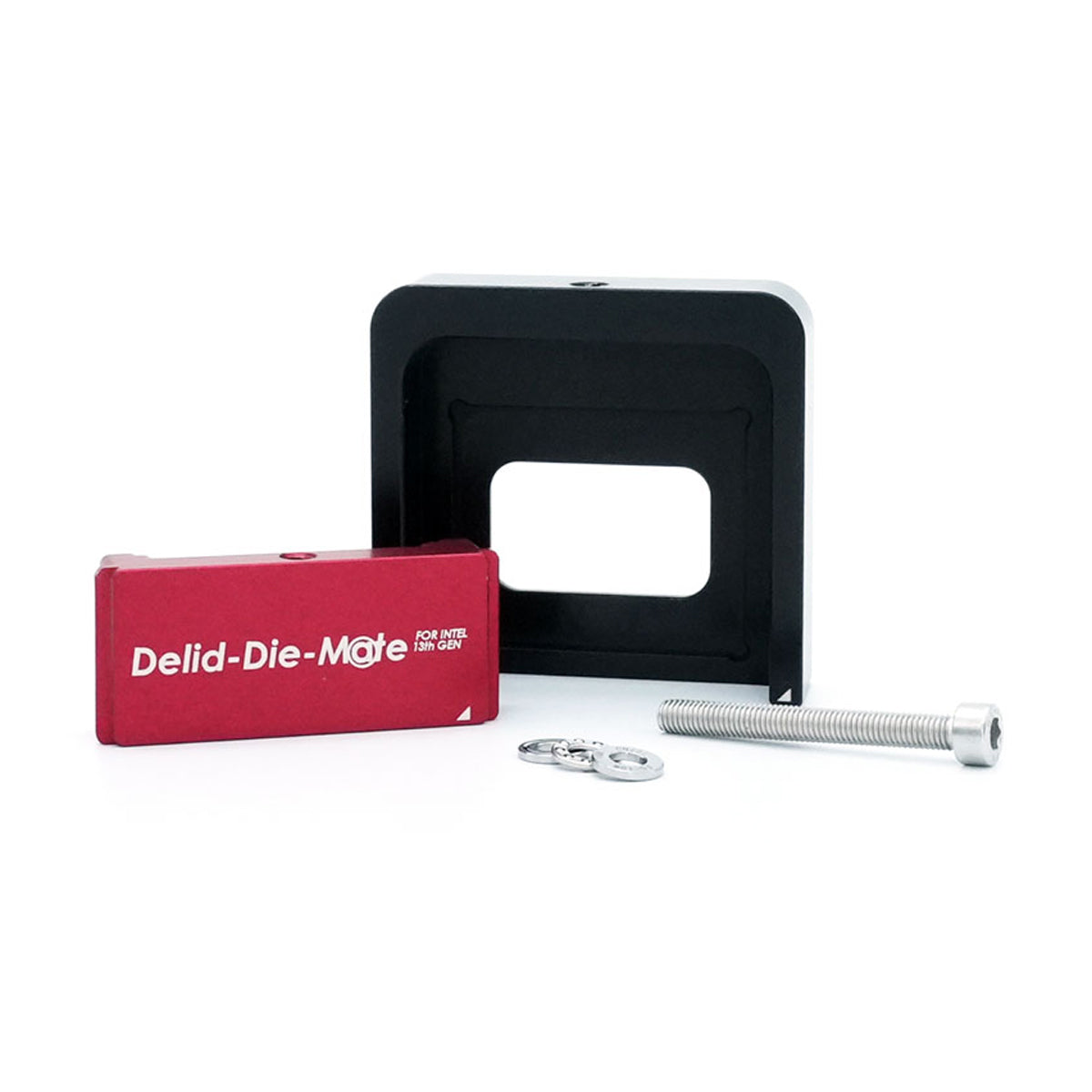

Thermal Grizzly Delid-Die-Mate For Intel 13/14th Gen

Thermal Grizzly  |  SKU 47102  |  MPN TG-DDM-i13G
$48.99 $89.00

In stock at Computer Lounge

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

The Intel 13th Gen Delid-Die-Mate is a tool for removing the heatspreader ("behead", "delidden") on Intel processors for the socket LGA1700. By removing the heat spreader, the CPUs can be cooled via "Direct Die", for example. With the so-called “Direct Die”, the CPU cooler is mounted directly on the processor chip. By omitting the heat spreader in the cooling circuit, a significantly optimized heat transfer from the dies to the CPU cooler is possible.


  • Compatible with 12th/13th Intel Core generation
  • delidding tool
  • Made from aluminum

Why "Delidding" & Direct Die Method on Intel Processors?

During delidding, or "heading", the processor's heat spreader is removed. For unsoldered processors, delidden is typically used to replace the thermal interface (TIM) between the CPU die and heatspreader with high quality thermal paste or liquid metal before the heatspreader is reassembled. However, since 13th Gen Intel Core processors are soldered, this is not an option as removing the indium solder would create too large a gap between the IHS and CPU dies.


Therefore, the 13th Gen Intel Core CPUs are primarily delidded for a possible installation of the CPU cooler directly on the CPU dies. Experience has shown that by leaving out the heatps reader and mounting the CPU cooler directly on the die, the temperatures can be reduced by 10-15 °C if liquid metal such as Conductonaut is used as a TIM. A corresponding test with an Intel Core i9-13900K was carried out by content creator and tech YouTuber Roman "der8auer" Hartung, professional overclocker and engineer.


Specifications
