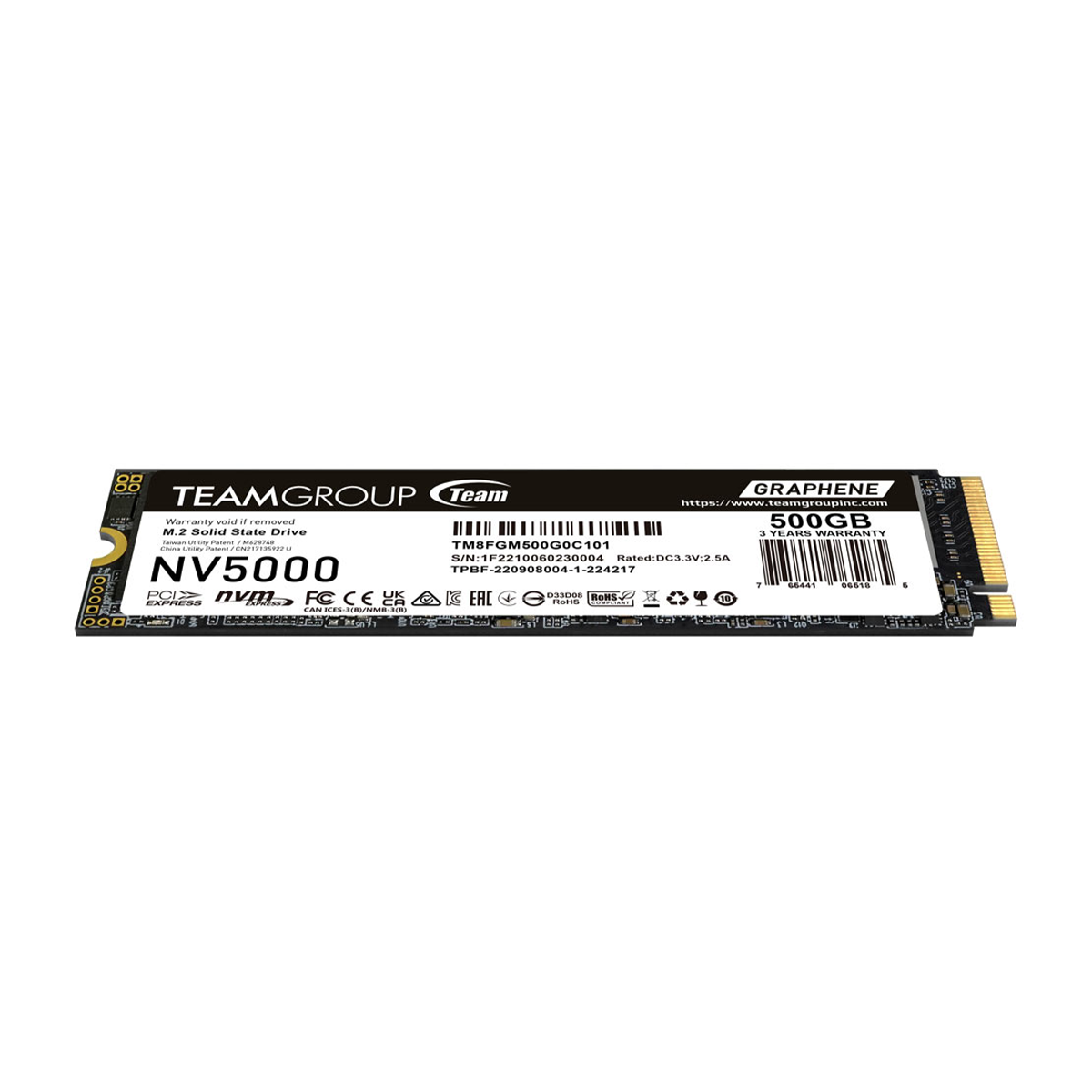

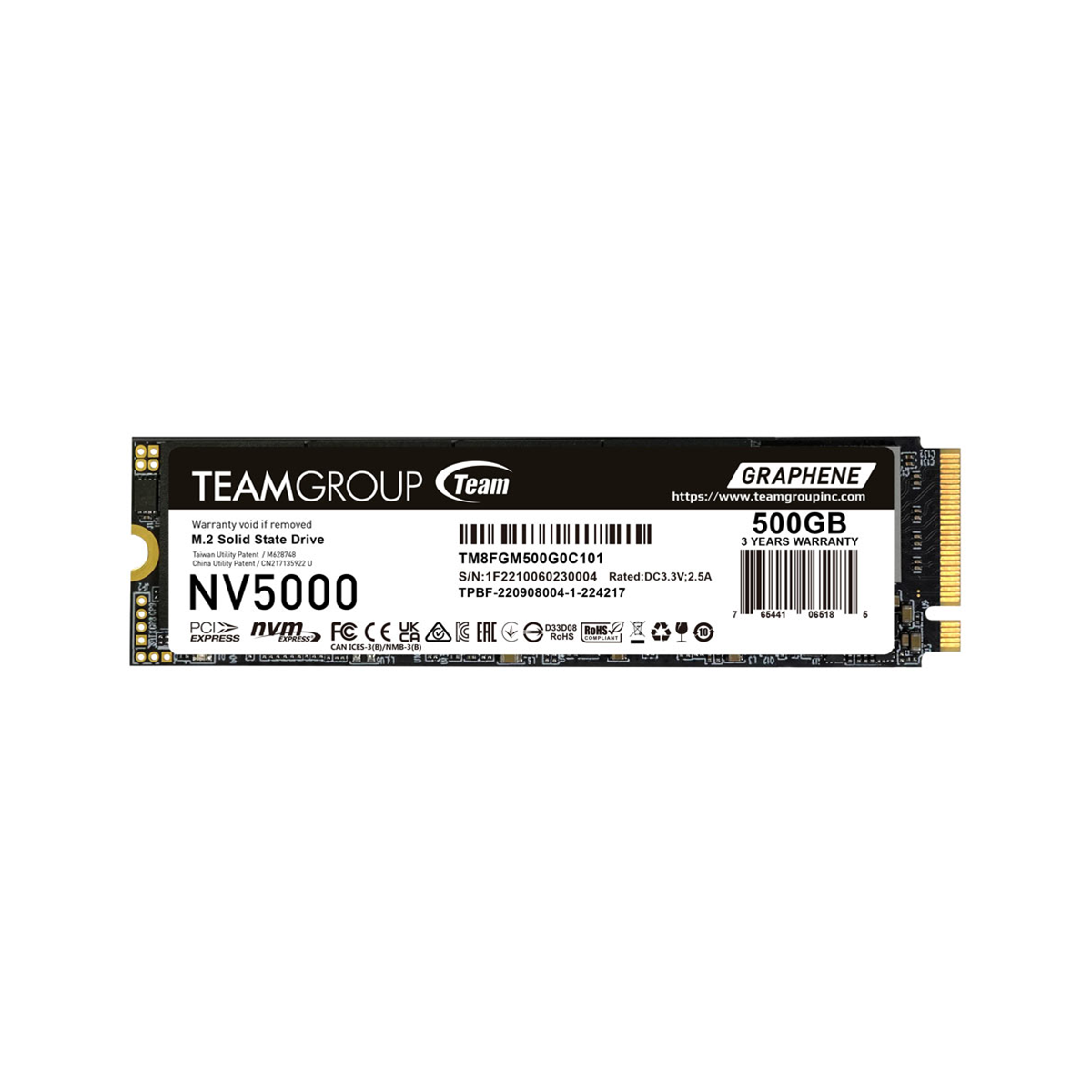

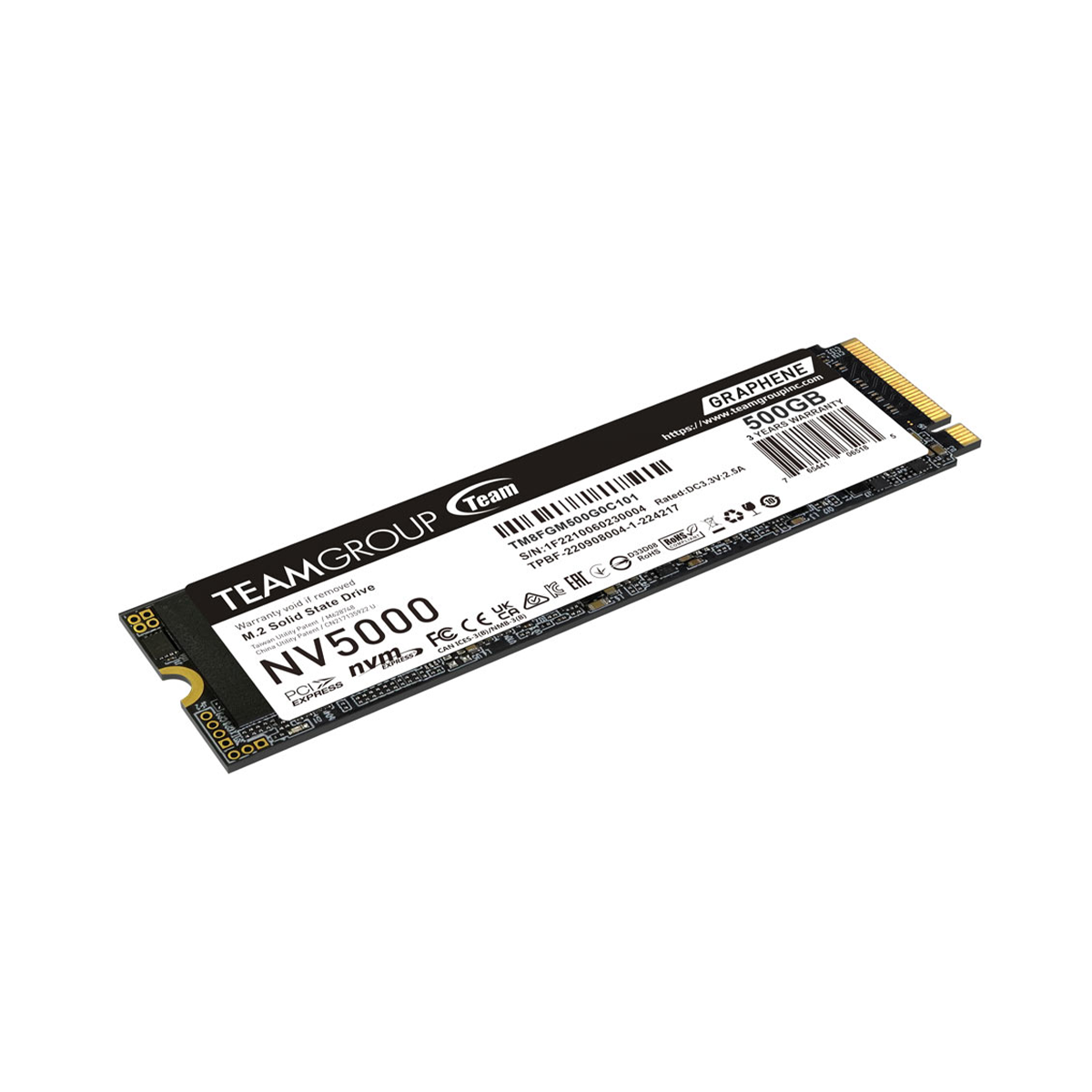

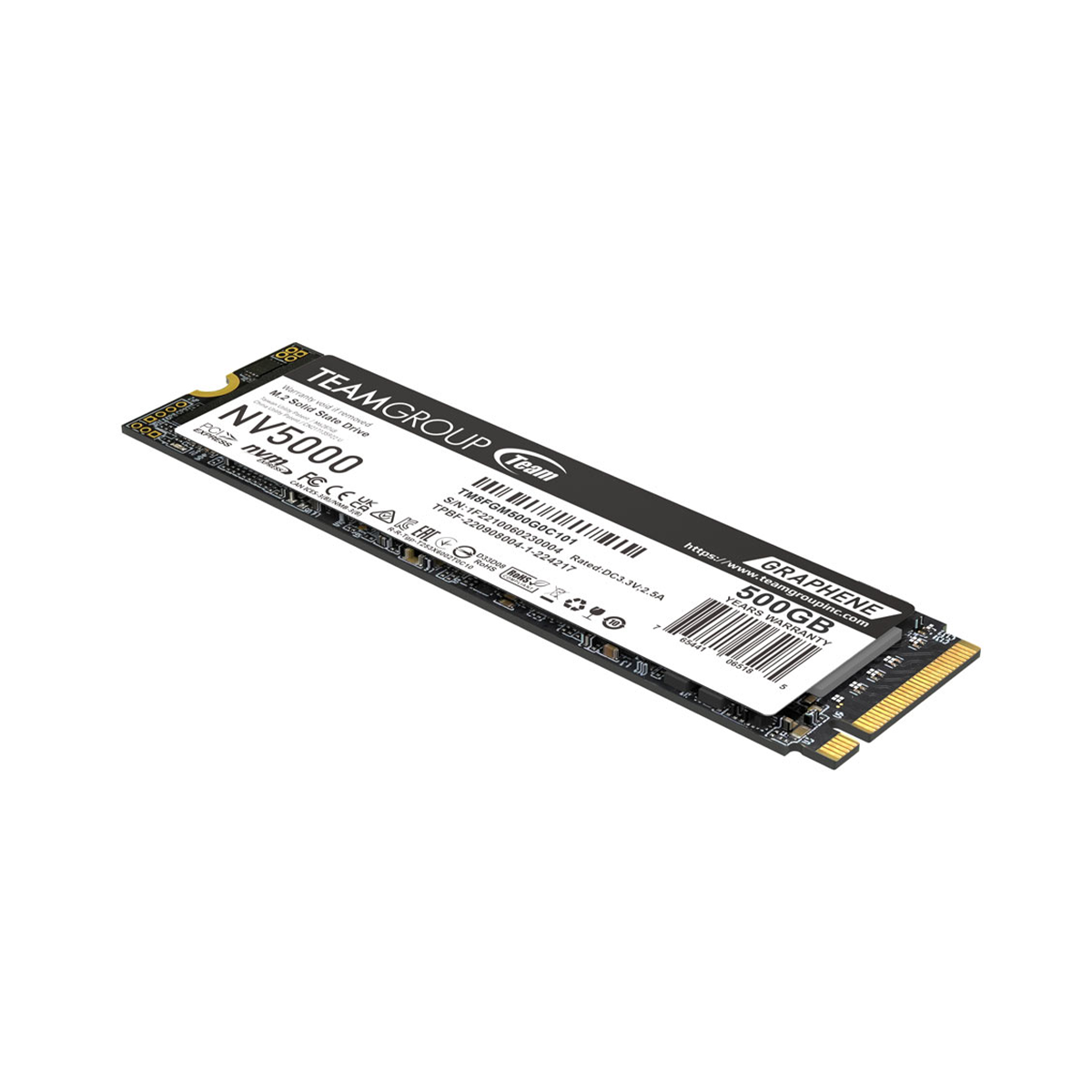

TeamGroup NV5000 500GB M.2 Gen4 NVMe SSD
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
High-performance Entry-level PCIe Gen4 x4 SSD
The NV5000 SSD features a PCIe Gen4 x4 interface and supports the latest NVMe protocol, delivering read speeds of up to 5,000 MB/s – more than double the speed of PCIe Gen3 SSDs and over 9 times faster than SATA SSDs. Whether you're working with documents, backing up data, editing videos, or launching games, the NV5000 SSD significantly reduces wait times and boosts multitasking and work efficiency.
Store Everything with 2TB Storage
Built with advanced 3D NAND flash technology, the NV5000 not only enhances storage stability but also offers up to 2TB of capacity – perfect for storing high-resolution photos, videos, and large files with ease.
Patented Graphene Cooling Technology for Stable Performance
TEAMGROUP’s exclusive patented graphene heat dissipation label effectively reduces operating temperatures to ensure consistent SSD performance. Compatible with both Intel and AMD’s latest platforms, the NV5000 SSD is suitable for both desktops and laptops.
Taiwan Utility Model Patent (Patent No.: M628748) / China Utility Model Patent (Patent No.: CN 217135922 U)
Monitor SSD Health with S.M.A.R.T.
TEAMGROUP’s proprietary S.M.A.R.T. monitoring software lets users check SSD use status at all times, offering fast and intuitive settings and diagnostic tools to effectively monitor the health and performance of storage devices.
Taiwan Invention Patent (Patent No.: I751753)
Specifications
Specifications
| Product | NV5000 M.2 PCIe 4.0 SSD |
| Capacity | 500GB |
| Sequential Read | Up to 4,500 MB/s |
| Sequential Write | Up to 1,800 MB/s |
| Endurance | 160TBW |
| Model Number | TM8FGM500G0C101 |
| Interface | PCIe Gen4 x4 with NVMe |
| Voltage | DC +3.3V |
| Operating Temperature | 0°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Weight | 7g |
| Dimensions | 80.0(L) x 22.0(W) x 3.7(H)mm |
| Vibration | 80Hz ~ 2,000Hz / 20G |
| Shock | 1,500G / 0.5ms |
| MTBF | 2,000,000 Hours |
| Operating System |
Compatible with Intel and AMD platforms Windows 11 / 10 / 8.1 / 8 / 7 / Vista Mac OS 10.4 or later Linux 2.6.33 or later |
