Description
Description
Product Overview:

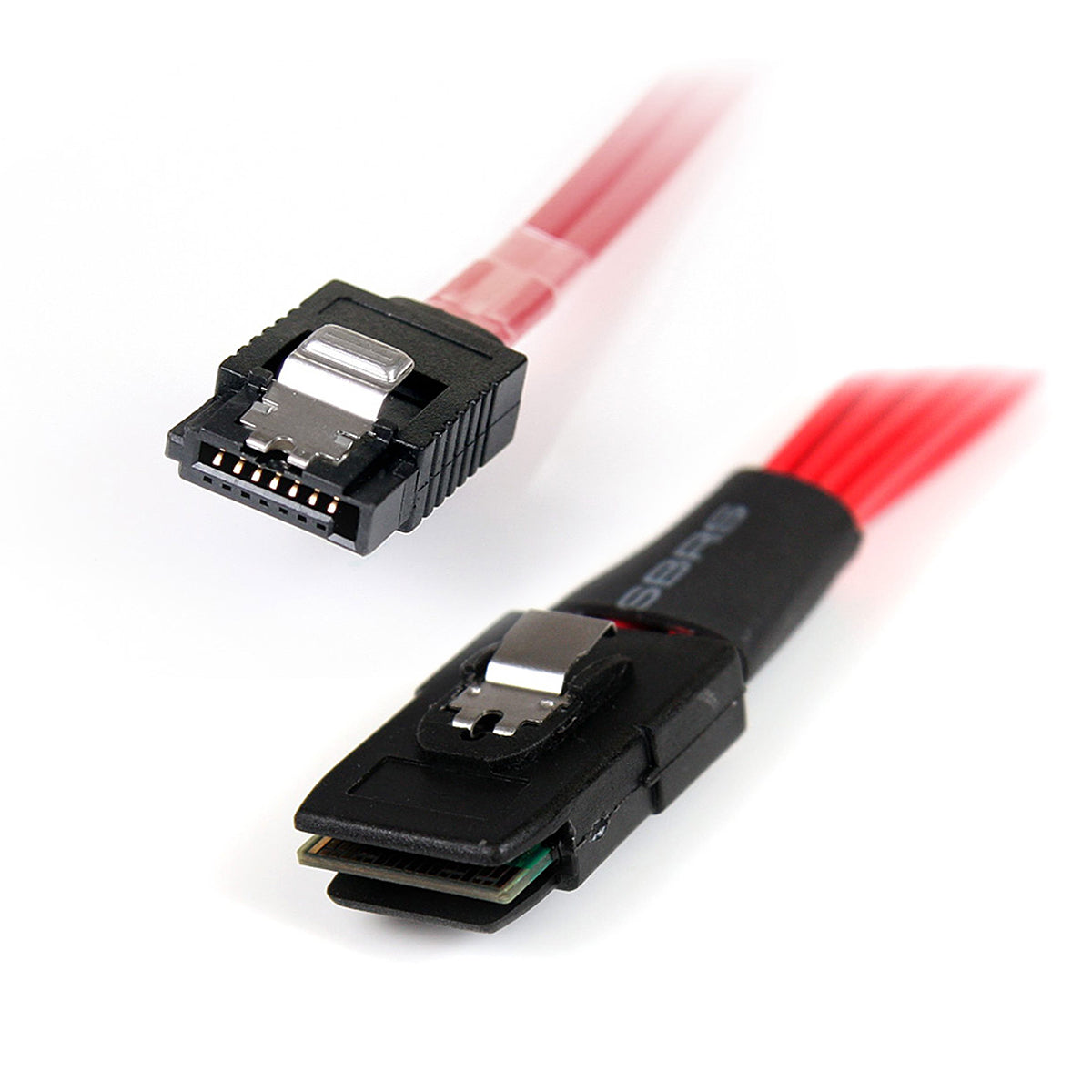

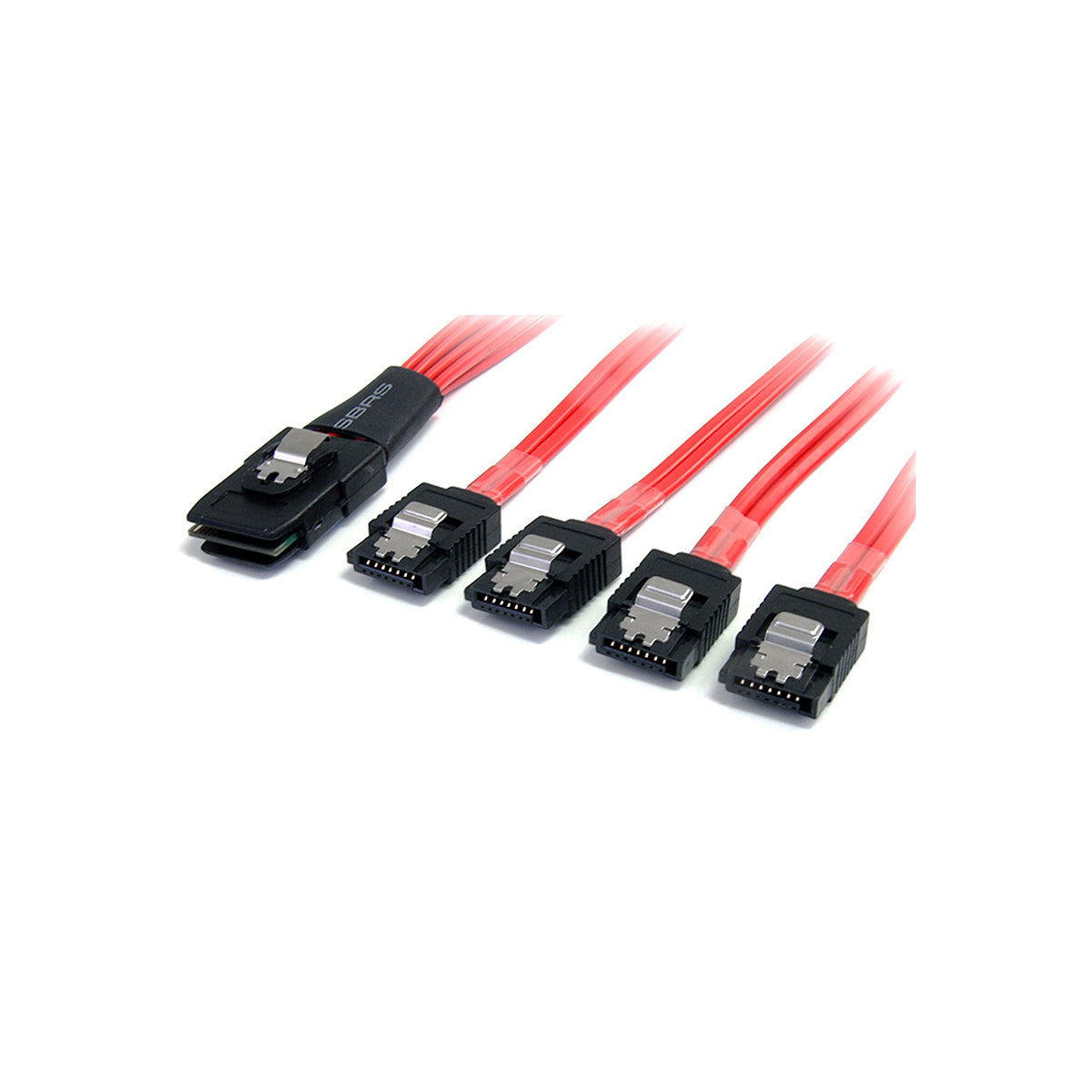

The SAS8087S450 SFF-8087 to 4x SATA SAS cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting up to four SATA HDDs to a SAS controller or backplane.
Designed and constructed for long-lasting dependability and reliability, the 50cm (19.7in) Mini-SAS to 4x SATA cable is backed by lifetime warranty.
Applications:
- Connects up to four Serial ATA hard drives to a Serial-Attached SCSI (SAS) controller or backplane.
The StarTech.com Advantage:
- Latching connectors eliminate accidental disconnections.
- Guaranteed reliability.
Specifications
Specifications
| Connector(s) | |
| Connector A | 1 - SFF-8087 (36 Pin, Internal Mini-SAS) |
| Connector B | 4 - SATA (7 pin, Data) |
| Hardware | |
| Number of Conductors | 2 |
| Packaging Information | |
| Package Height | 0.8 in [2.0 cm] |
| Package Length | 8.9 in [22.5 cm] |
| Shipping (Package) Weight | 1.8 oz [52.0 g] |
| Package Width | 4.9 in [12.5 cm] |
| Package Quantity | 1 |
| Performance | |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Weight of Product | 1.7 oz [47.0 g] |
| Product Width | 0.5 in [1.2 cm] |
| Product Height | 0.4 in [1.0 cm] |
| Color | Red |
| Connector Style | Latching |
| Wire Gauge | 30 AWG |
| Cable Length | 1.6 ft [0.5 m] |
| Product Length | 19.7 in [50.0 cm] |
| What's in the Box | |
| Included in Package | 1 - 50cm Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA |
