Description
Description

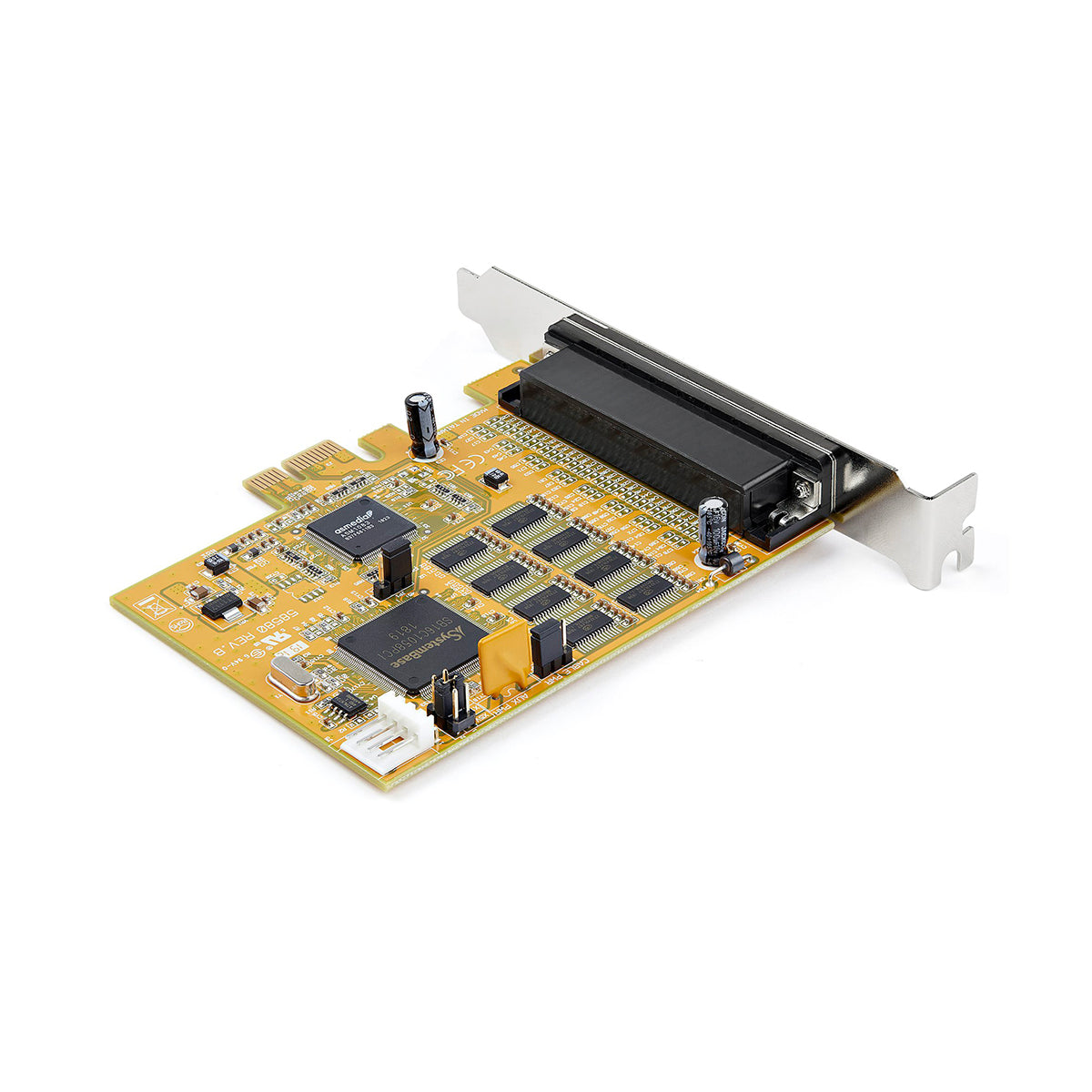

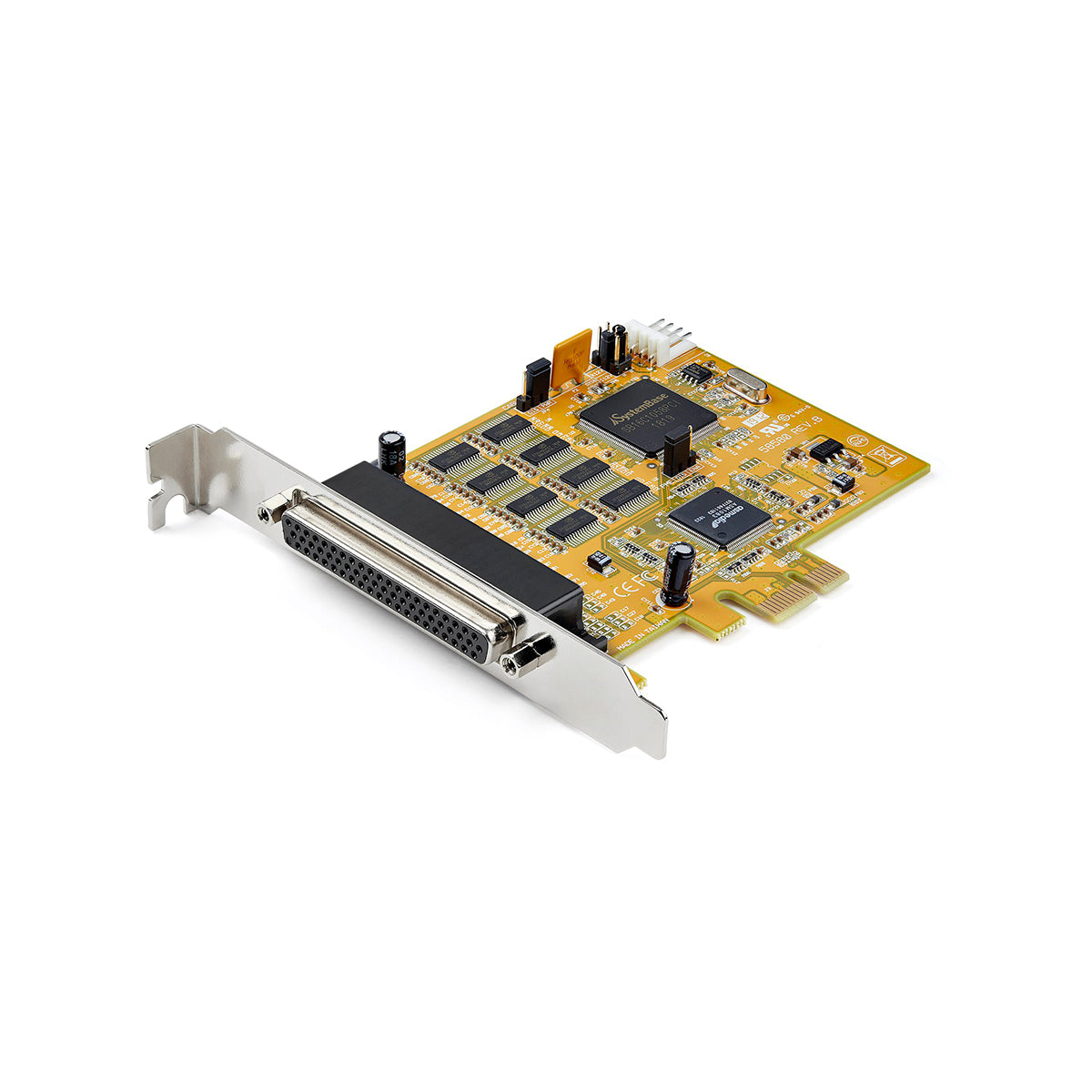

8 PORT SERIAL CARD
Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/ 15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952.
OPTIONAL CONFIGURABLE POWER

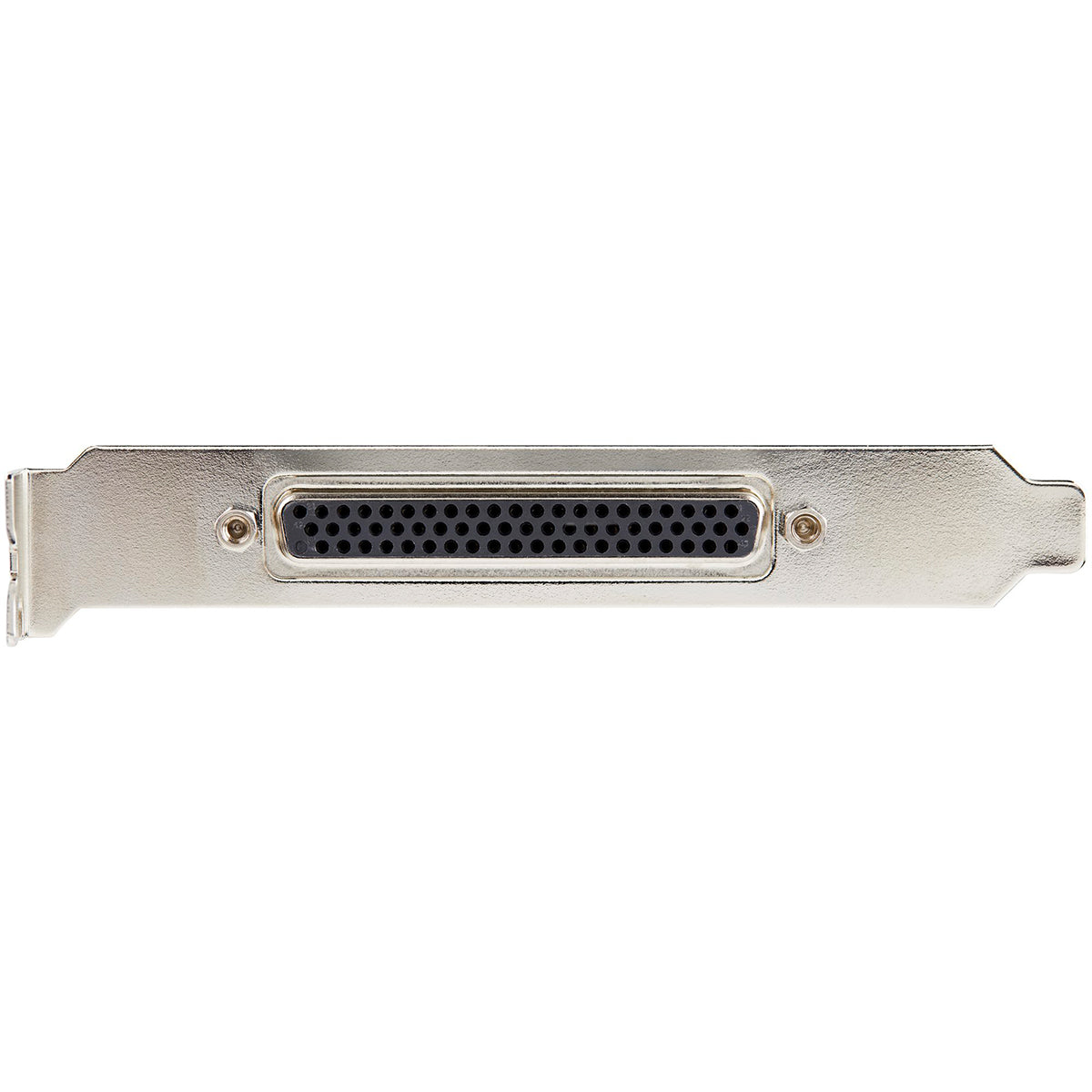

Multiport serial card provides 12v/5v, or none on pin 9 w/ up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface.
WINDOWS ONLY
Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For standard profile desktop/servers.
VERSATILE APPLICATIONS
PCI Express RS232 serial adapter card for use within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope.
TECH SPECS
- System Base SB16C1058PCI Chipset
- 16C1050 UART compatible
- 8x 9-Pin D-Sub Ports
- Max Baud 921.6Kbps per port
- 256 Byte FIFO
- Supports Windows Only
- None, Even, or Odd Parity Modes
- 5/6/7/8 Data Bits
- RS-232 Protocol
- Standard Profile Bracket
Specifications
Specifications
| Compatibility | Windows® CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 |
| Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022 | |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 |
| External Ports | 8 - DB-9 (9 pin, D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 75°C (-40°F to 167°F) |
| Humidity | 5~95% RH |
| Hardware | |
| Ports | 8 |
| Interface | Serial |
| Bus Type | PCI Express |
| Card Type | Standard Profile |
| Port Style | Dongle (Included) |
| Industry Standards | 16C1050 UART |
| Chipset ID | ASMedia - ASM1083 |
| System Base - SB16C1058PCI | |
| Packaging Information | |
| Package Height | 2.8 in [7.0 cm] |
| Package Length | 11.6 in [29.4 cm] |
| Shipping (Package) Weight | 1.5 lb [0.7 kg] |
| Package Width | 7.6 in [19.2 cm] |
| Package Quantity | 1 |
| Performance | |
| Serial Protocol | RS-232 |
| ESD Protection | +/-15kV (Air), +/-8kV (Contact) |
| Max Baud Rate | 921.6 Kbps |
| Data Bits | 5, 6, 7, 8 |
| FIFO | TX: 1-255 Byte, RX: 1-255 Byte (*Depending on mode and configurations) |
| Flow Control | Software (XON/XOFF), Hardware (RTS/CTS), and Xoff Re-Transmit function |
| Parity | None, Even, or Odd |
| Stop Bits | 1, 1.5, 2 |
| General Specifications | Power on Pin 9: 12V DC, 5V DC or None |
| MTBF | 160,013 hours |
| Physical Characteristics | |
| Color | Yellow |
| Product Height | 4.7 in [12.0 cm] |
| Product Length | 4.1 in [10.5 cm] |
| Weight of Product | 2.6 oz [74.0 g] |
| Product Width | 0.6 in [1.6 cm] |
| Material | Steel |
| Cable Length | 18.9 in [48 cm] |
| Power | |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Software | |
| OS Compatibility | Windows® CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 |
| Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022 | |
| What's in the Box | |

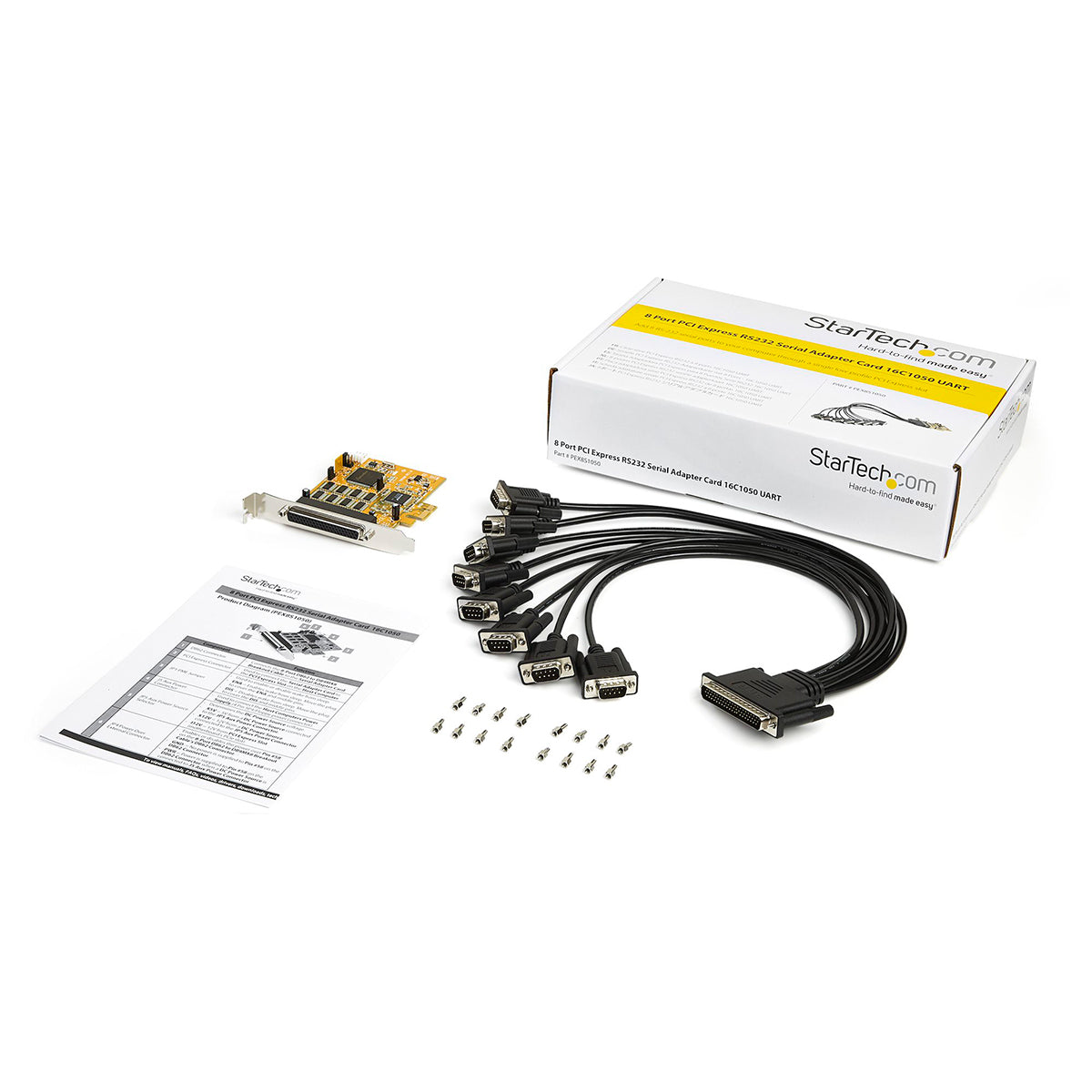

| Included in Package | 1 - PCIe Serial Card |
| 1 - 18 in [48 cm] DB62 to 8 Port DB9 Breakout Cable | |
| 1 - Full Profile Bracket (Installed) | |
| 1 - Quick Start Guide | |
| 8 - Optional DB9 Connector Hex Nut Pairs |
