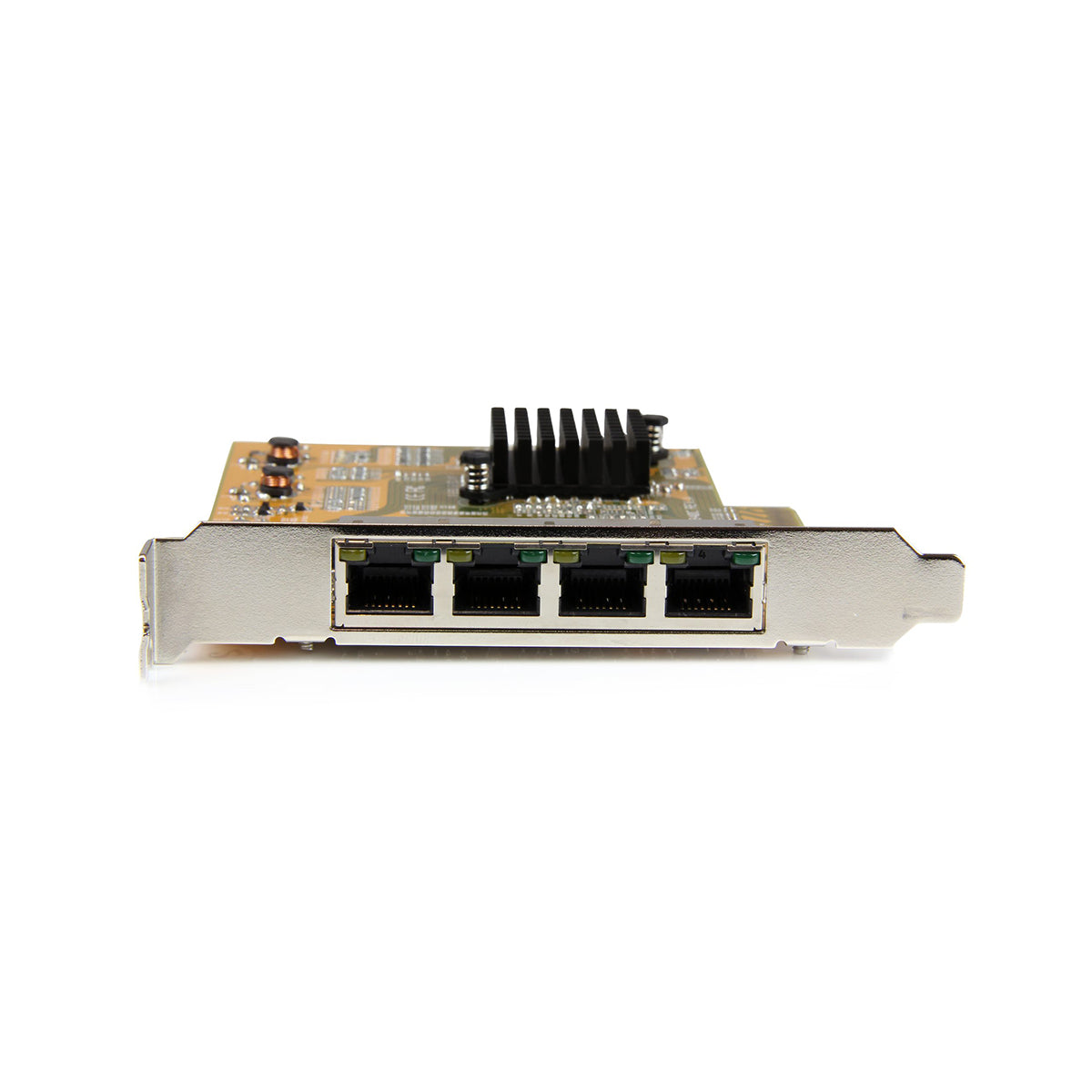

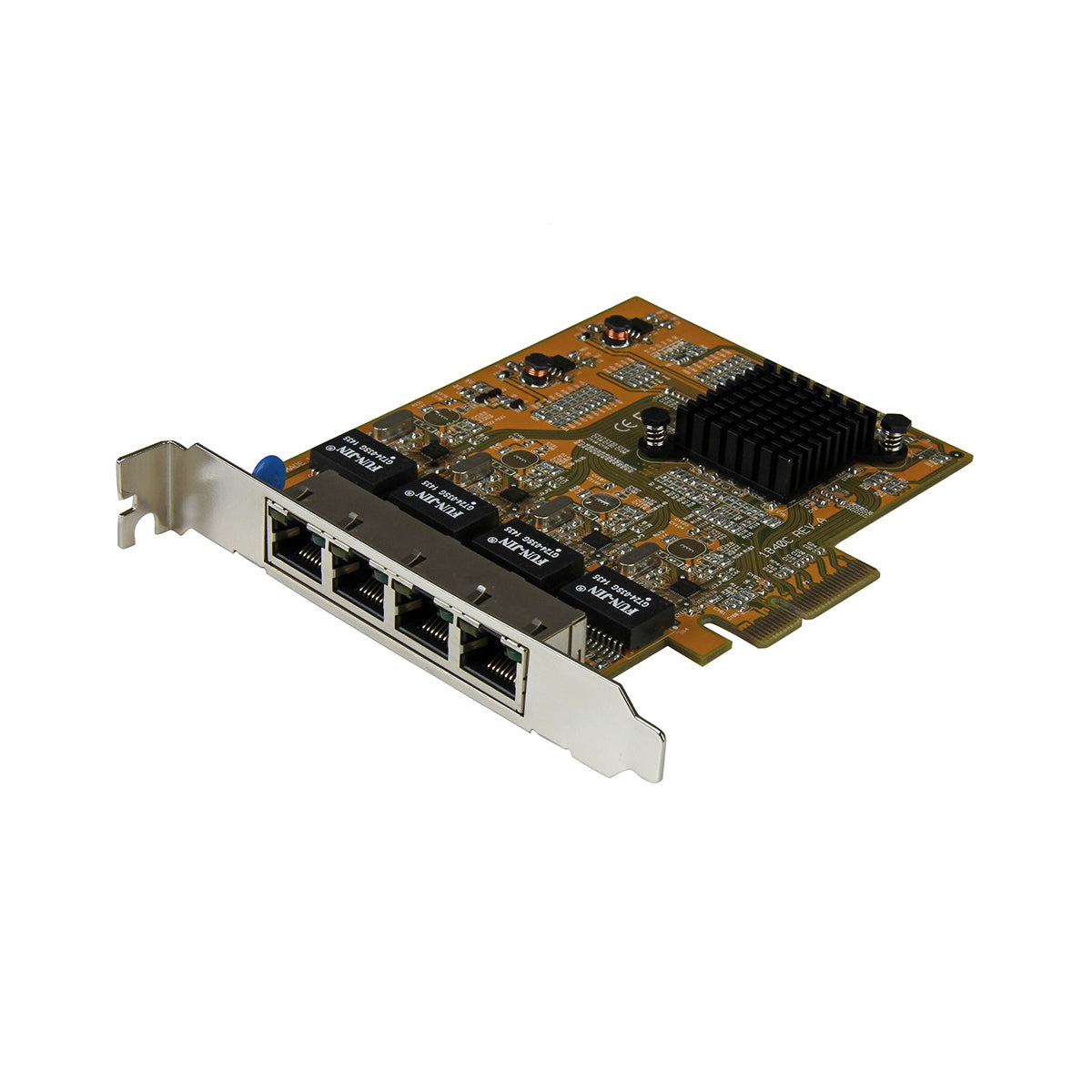

StarTech 4-Port PCIe Gigabit Network Adapter Card

Startech  |  SKU 61562  |  MPN ST1000SPEX43
$365.00

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Reliable connectivity to multiple networks

This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111H chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.

A versatile and cost-effective solution

This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).

The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.

Applications

  • Provides simultaneous access to multiple networks for desktop PC clients, servers, and workstations that have a limited number of PCI Express slots available
  • Maximizes the number of RJ45 ports within a system or high-end workstations and servers
  • Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
  • Provides redundant connectivity to ensure an uninterrupted network connection

Specifications

Connector(s)
Connector Type(s) 1 - PCI Express x4
External Ports 4 - RJ-45
Environmental
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -40°C to 75°C (-40°F to 167°F)
Humidity 5% ~ 95% RH
Hardware
Ports 4
Interface RJ45 (Gigabit Ethernet)
Bus Type PCI Express
Card Type Standard Profile
Industry Standards Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Chipset ID Realtek - RTL8111H
Indicators
LED Indicators 4 - Link
4 - Activity
Packaging Information
Package Height 1.6 in [4.1 cm]
Package Length 8.3 in [21.0 cm]
Shipping (Package) Weight 6.6 oz [188.0 g]
Package Width 5.7 in [14.5 cm]
Package Quantity 1
Performance
Maximum Data Transfer Rate 2000Mbps (Full Duplex)
Compatible Networks 10/100/1000 Mbps
Auto MDIX Yes
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Promiscuous Mode Yes
Physical Characteristics
Weight of Product 3.4 oz [95.0 g]
Color Yellow
Material Steel
Product Length 5.4 in [13.8 cm]
Product Width 4.7 in [12.0 cm]
Product Height 0.7 in [1.8 cm]
Software
OS Compatibility Windows® XP, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2012, 2016, 2019
Linux Kernel 2.4.x and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements Available PCI Express x4 or higher (x8, x16) slot
What's in the Box

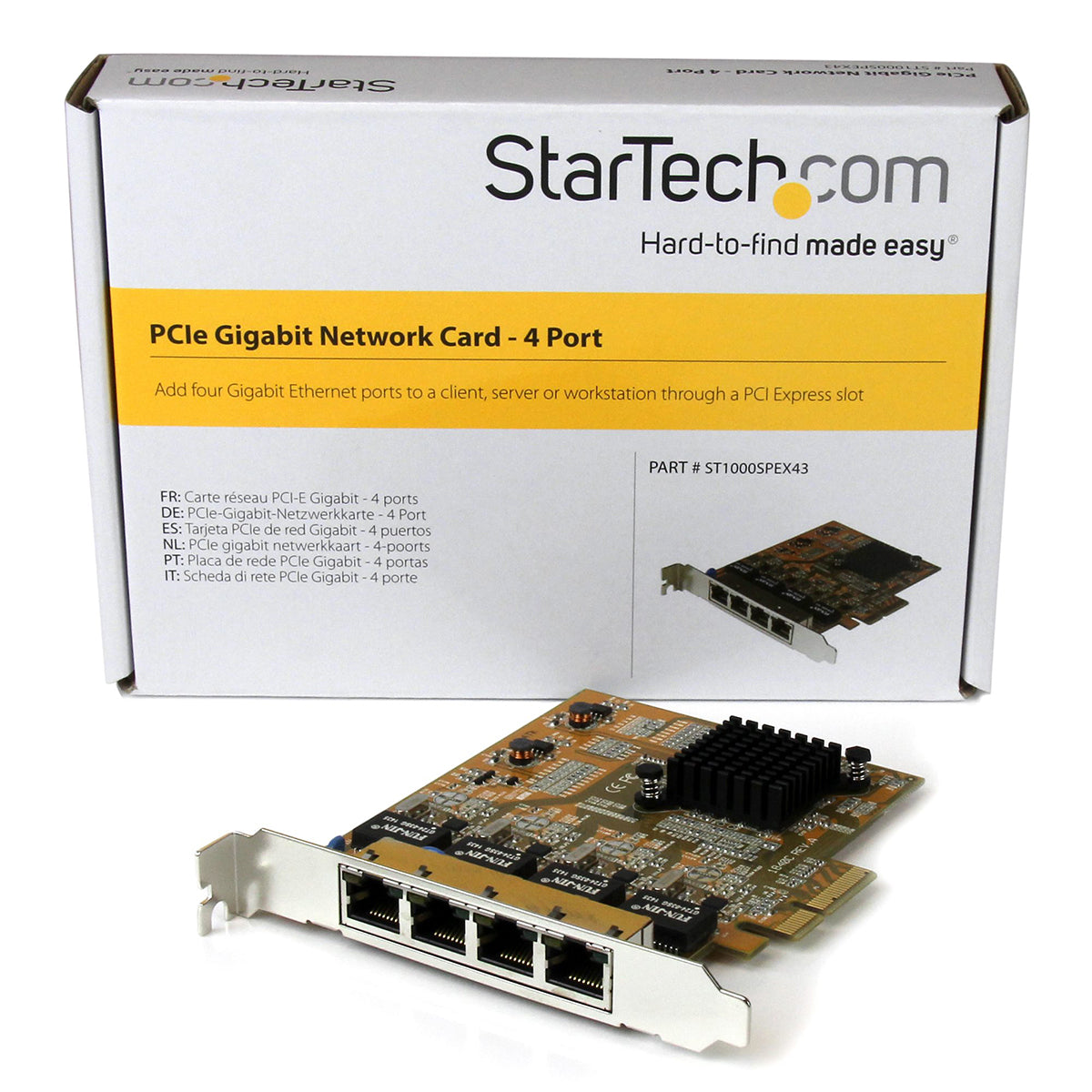

Included in Package 1 - PCIe Gigabit network card - 4 port
