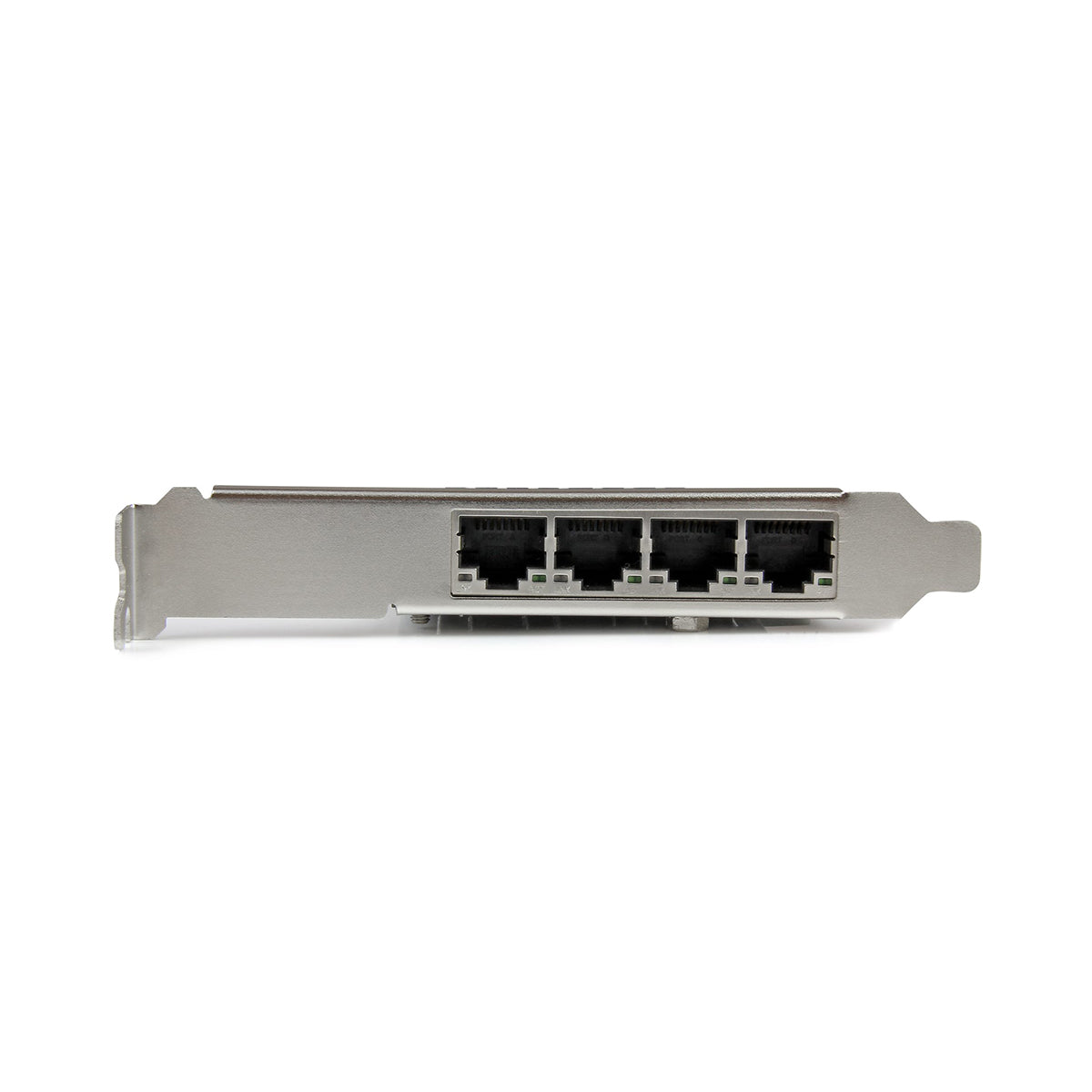

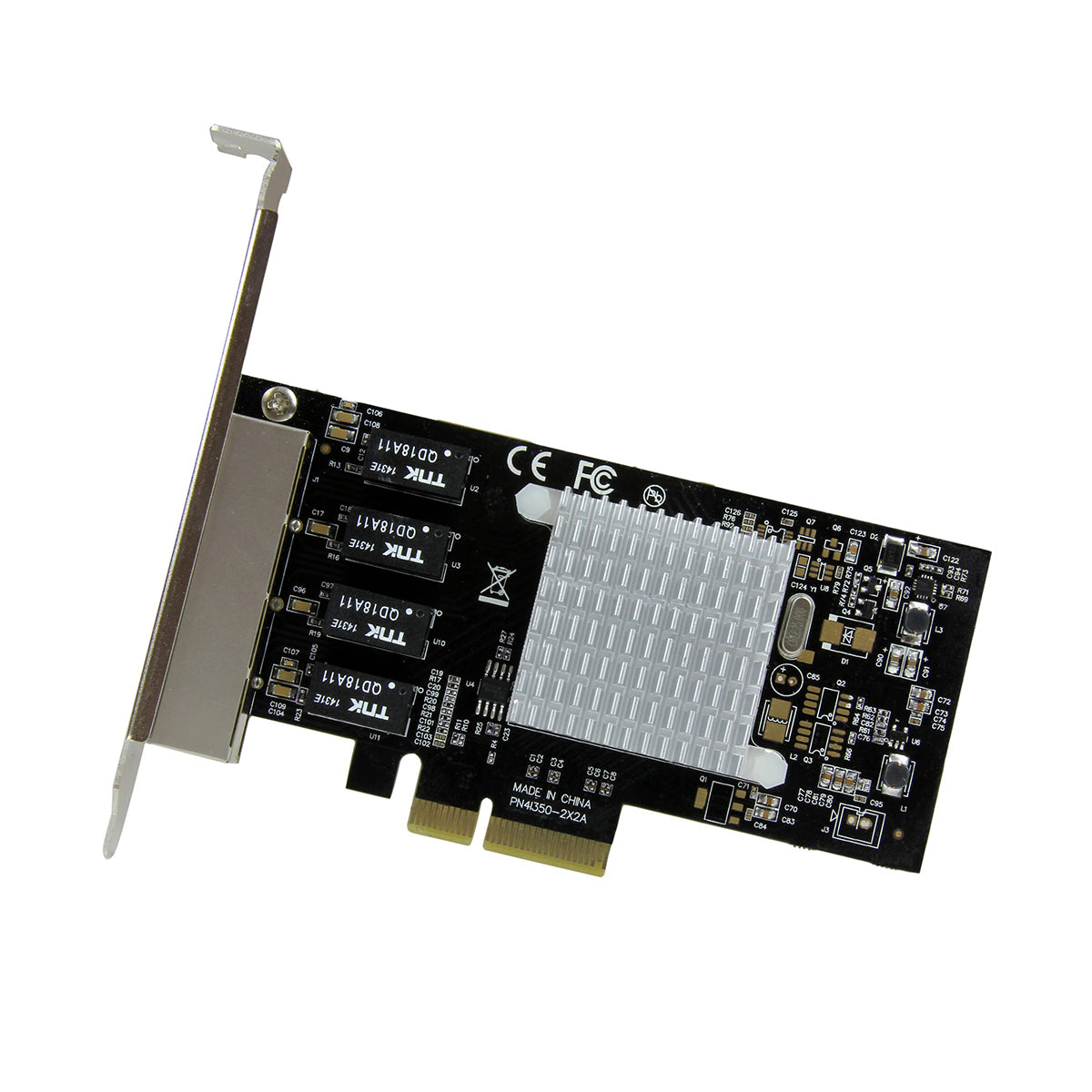

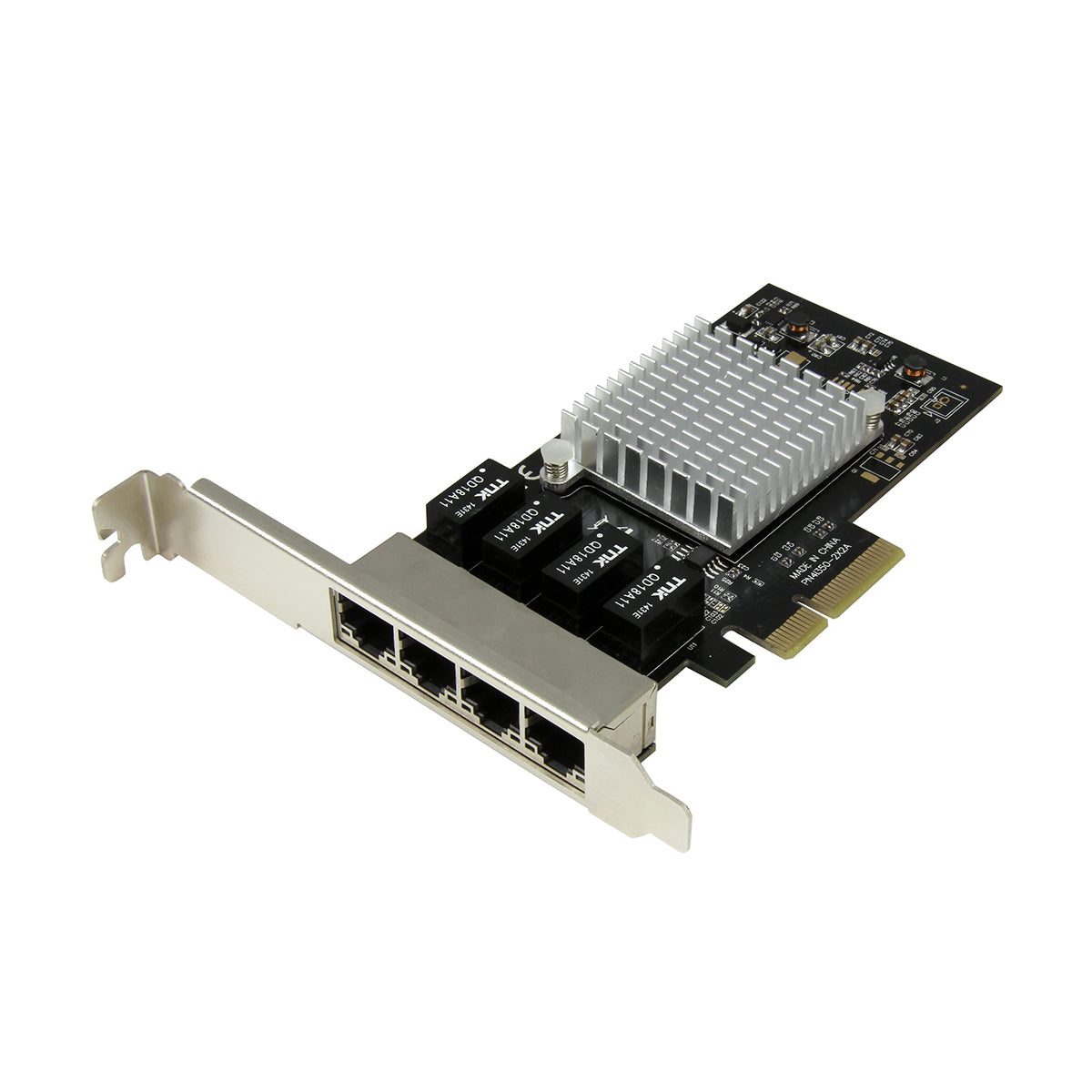

StarTech 4-Port Gigabit Ethernet Network Card - PCI Express, Intel I350 NIC

Startech  |  SKU 61560  |  MPN ST4000SPEXI
$475.00

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Reliable network connectivity with high performance

This Gigabit Ethernet network card features the Intel® I350-AM4 chipset, designed to deliver the power, performance, and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip provides a number of advanced driver options, including IEEE 802.3ad link aggregation / teaming support, which enables you to add additional bandwidth to your system.

Compliant with IEEE 802.3/u/ab standards, the network card provides full support for high-performance, four-channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Cost-effective access to multiple networks

The quad-port Gigabit network card makes it easy to access multiple networks. It offers a cost-effective solution for IT professionals in government, educational, corporate, health care, or business environments where access to multiple networks from numerous workstations is needed. The server adapter card gives you four redundant, independent Gigabit Ethernet ports, and it supports advanced features such as Jumbo Frames and VLAN tagging.

Enhanced versatility and efficiency

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is suitable for many business and enterprise applications - including virtualized environments with multiple operating systems, requiring multiple shared or dedicated NICs. The 4-port Gigabit network card is equipped with Intel® Virtualization Technology for Connectivity (Intel® VT-c), which reduces system latency and improves networking throughput. Four dedicated ports allow you to maximize your virtualized server’s networking efficiency and create a more agile data center.

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card is equipped with a full-sized bracket and includes a low-profile/half-height installation bracket that you can use as needed.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Mac Address Pass-Through Utility: To improve network security.
  • Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

Specifications

Connector(s)
Connector Type(s) 1 - PCI Express x4
4 - RJ-45
Environmental
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 20% ~ 80% RH
Hardware
Ports 4
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Full Duplex Flow Control
Chipset ID Intel - I350-AM4
Indicators
LED Indicators 4 - 100/1000 Mbps Indicator
4 - Link/Activity
Packaging Information
Package Height 1.0 in [2.6 cm]
Package Length 6.5 in [16.6 cm]
Shipping (Package) Weight 5.6 oz [160.0 g]
Package Width 5.7 in [14.4 cm]
Package Quantity 1
Performance
Wake On Lan Yes
Maximum Data Transfer Rate 2000 Mbps (full-duplex)
Compatible Networks 10/100/1000 Mbps
Auto MDIX Yes
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Supported Protocols IEEE 802.3ad (link aggregation), IEEE 1588 (time sync)
Physical Characteristics
Weight of Product 3.2 oz [90.0 g]
Color Black
Material Steel
Product Length 5.2 in [13.2 cm]
Product Width 0.7 in [1.8 cm]
Product Height 4.7 in [12.0 cm]
Power
Power Consumption (In Watts) 4.4W
Software
OS Compatibility Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.4.x and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements Available PCI Express x4 or higher (x8, x16) slot
What's in the Box
Included in Package 1 - 4 Port Network Card
1 - Low Profile Bracket
1 - Instruction Manual
