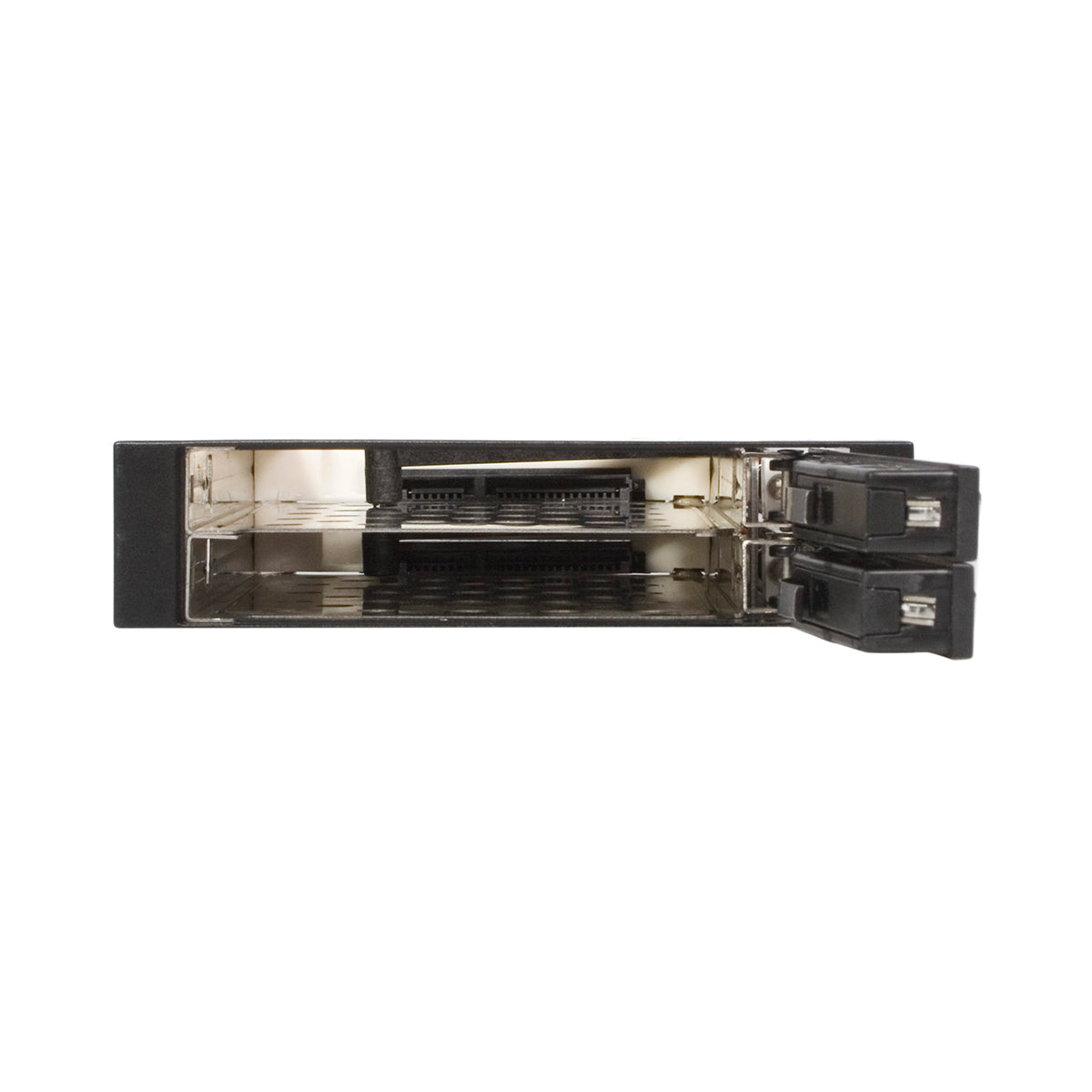

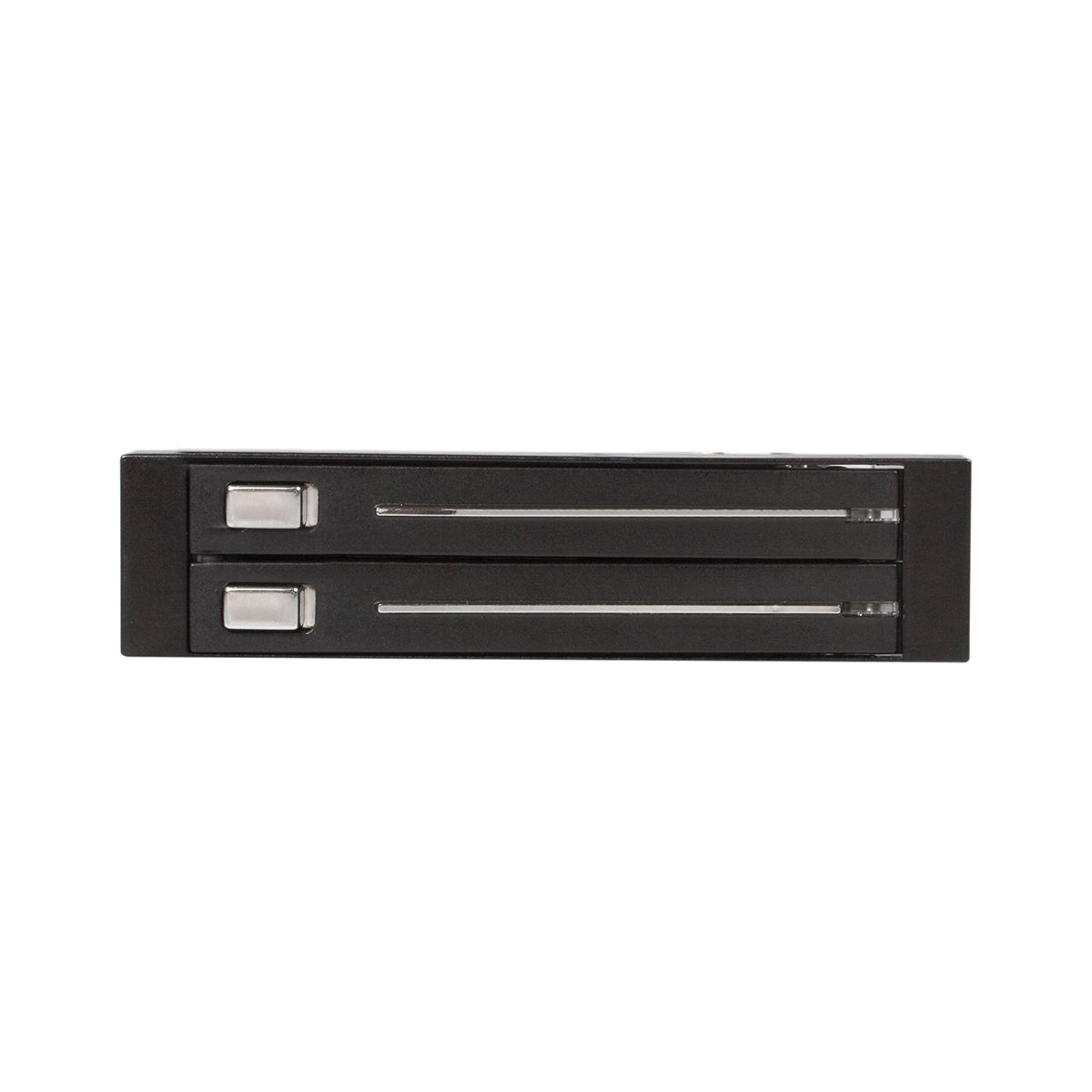

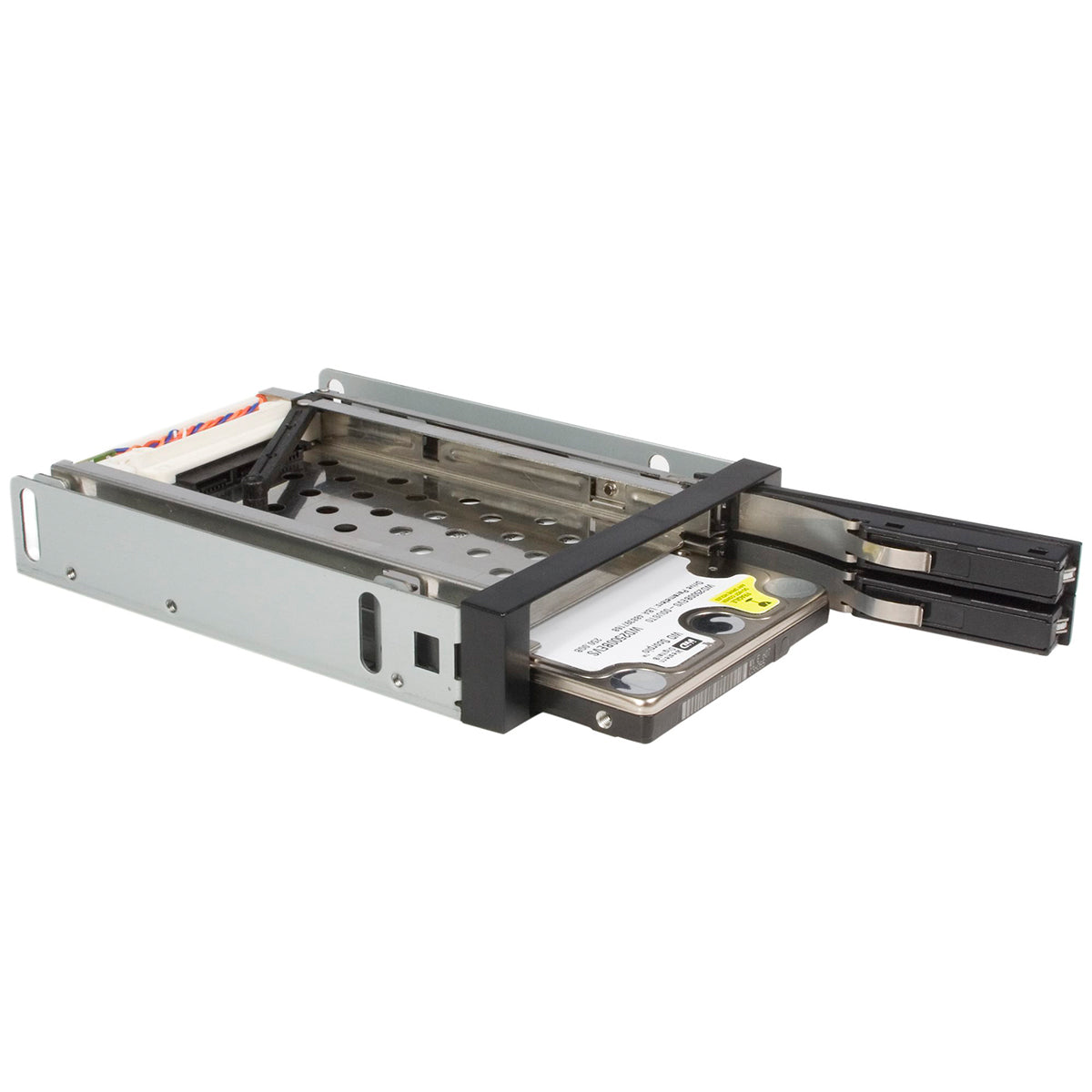

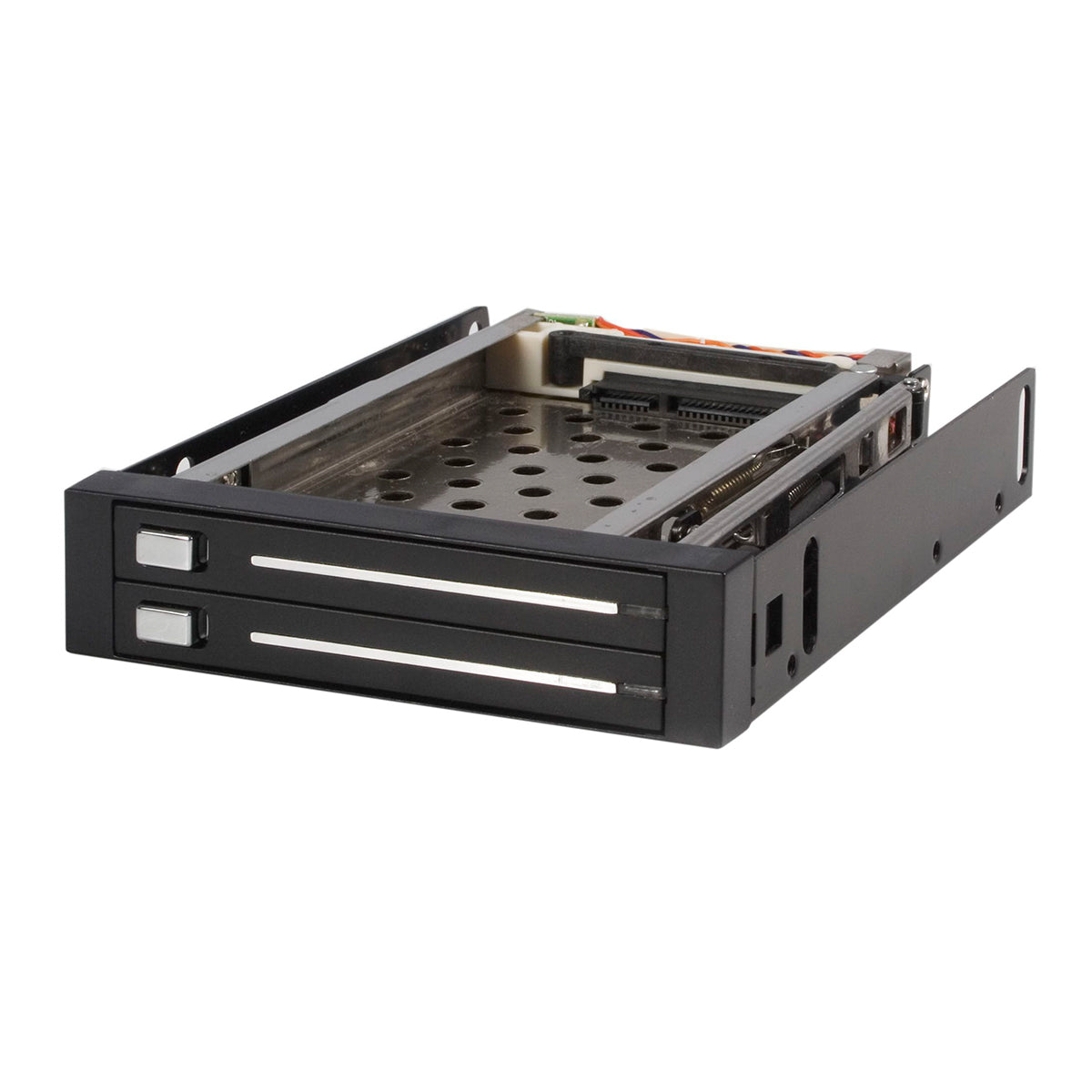

StarTech 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
INCREASED PRODUCTIVITY
The mobile rack backplane for 2.5in SATA III turns a single 3.5in bay into a hot-swappable interface for up to two 2.5" SATA hard drives (HDDs) and solid-state drives (SSDs).
MAXIMUM COMPATIBILITY
The hot swap backplane for 2.5in SATA III can interface with SATA I/II/III SSDs and HDDs and does not require additional drivers or software - an ideal solution for technicians and IT professionals.
EASY TO USE
This trayless hot swap mobile rack backplane features dedicated front eject buttons and individual power and activity LEDs for each drive slot. Includes screw kit, LP4 to SATA, and SATA cables: 7-pin (data) and 15-pin (power).
MAINTAIN OPTIMAL TEMPERATURE
To help prevent drive failure, the aluminum mobile rack backplane features an open-top design and vented slot divider for maximum passive heat dissipation.
DURABILITY
Aluminum construction with 50,000+ insertion rating for maximum durability and performance. Includes two plastic protective film sheets for the bottom side of the hard drives.
Specifications
Specifications
| Connector(s) | |
| Connector Type(s) | 2 - SP4 (4 pin, Small Drive Power) |
| 2 - SATA Power (15 pin) | |
| 2 - SATA (7 pin, Data) | |
| Drive Connectors | |
| 2 - SATA (7 pin, Data) | 2 - SATA Power (15 pin) |
| Host Connectors | 2 - SATA Power (15 pin) |
| 2 - SATA (7 pin, Data) | |
| Hardware | |
| Front Door Key Lock | No |
| Number of Drives | 2 |
| Drive Size | 2.5in |
| Compatible Drive Types | SATA |
| Indicators | |
| LED Indicators | 1 - Power/Drive Activity |
| Packaging Information | |
| Package Height | 2.0 in [5.2 cm] |
| Package Length | 6.7 in [17.0 cm] |
| Shipping (Package) Weight | 1.1 lb [0.5 kg] |
| Package Width | 5.0 in [12.8 cm] |
| Package Quantity | 1 |
| Performance | |
| Type and Rate | SATA III (6 Gbps) |
| Max Drive Capacity | Tested up to 500GB per drive |
| Hot Swap Capability | Yes |
| Physical Characteristics | |
| Weight of Product | 10.1 oz [286.0 g] |
| Color | Black |
| Material | Aluminum |
| Max Drive Height | 0.4 in [9.5 mm] |
| Product Length | 5.3 in [13.4 cm] |
| Product Width | 4.0 in [10.2 cm] |
| Product Height | 0.9 in [2.4 cm] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |

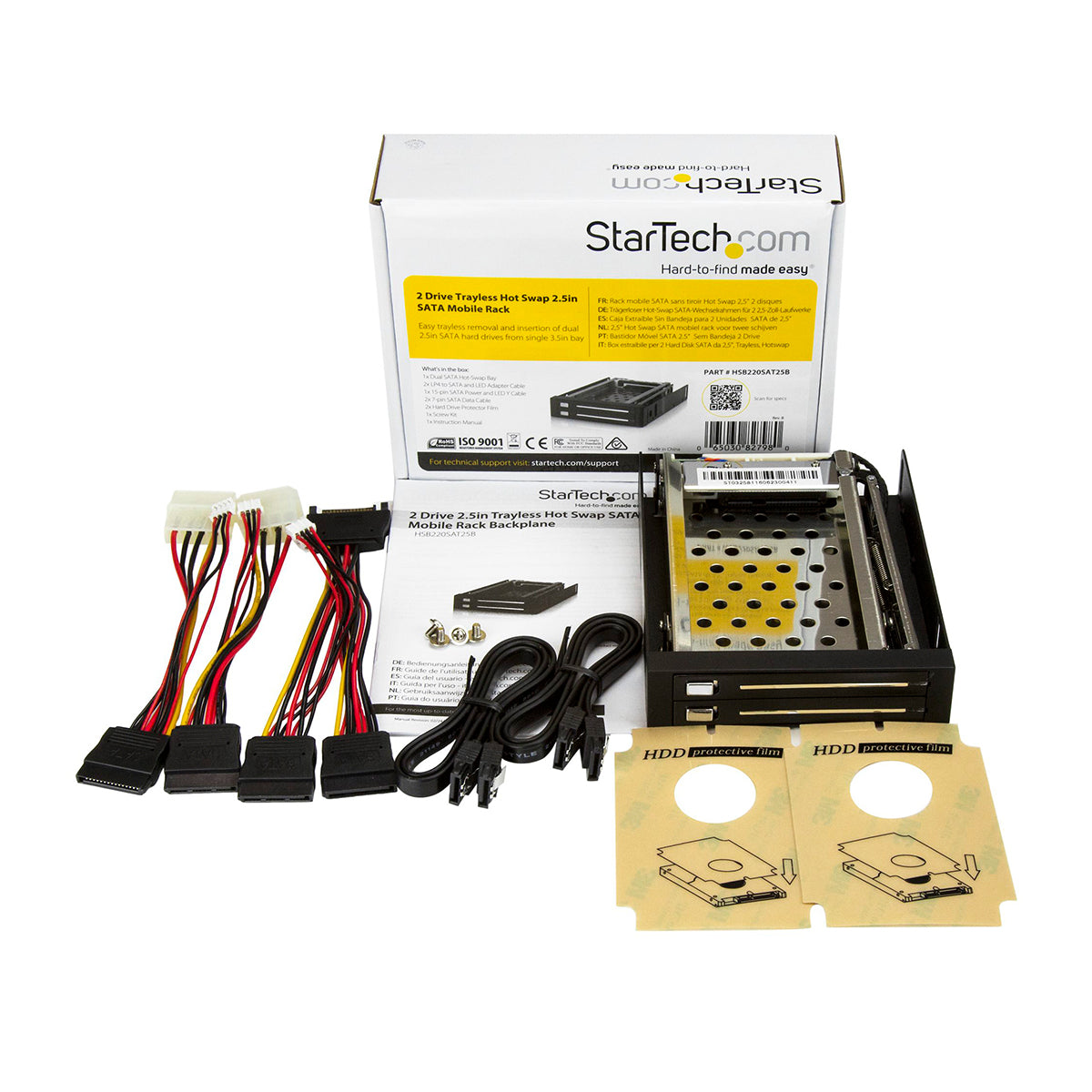

| What's in the Box | |
| Included in Package | 2 - LP4 to SATA and LED adapter cable |
| 1 - dual SATA hot-swap bay | |
| 1 - 15-pin SATA power and LED Y cable | |
| 2 - 7-pin SATA data cable | |
| 2 - hard drive protector film | |
| 1 - screw kit | |
| 1 - instruction manual |
