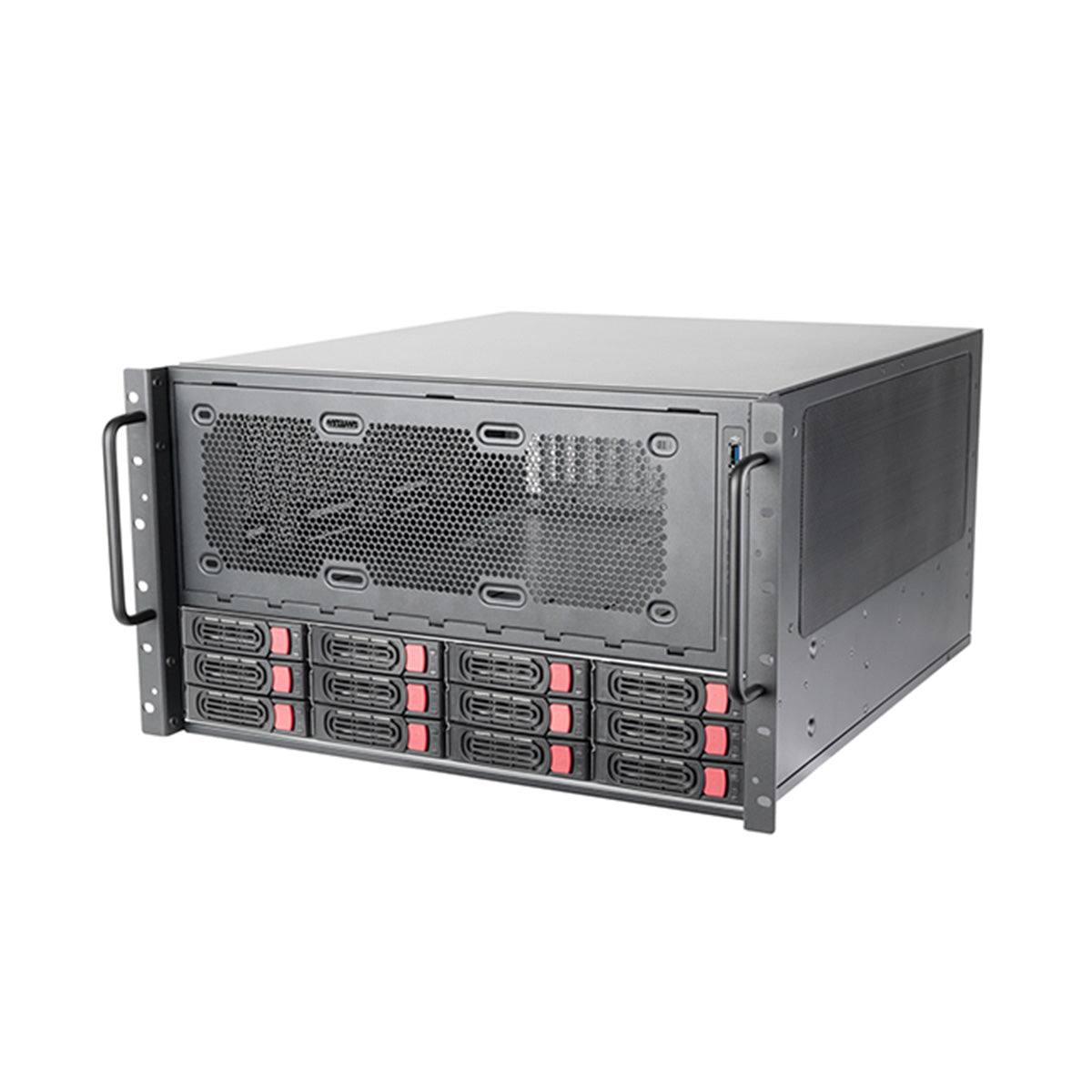

Silverstone RM61-312 6U 12-Bay Dual PSU Compatible Rackmount Chassis
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
RM61-312
6U 12-Bay Rackmount Chassis equipped with dual PSU compatibility, triple 360mm radiator support, and 12 Gb/s Mini-SAS HD SFF-8643 featuring SGPIO compatibility
Equipped with 12 x 2.5" SSD or 3.5" HDD hot-swappable trays
Internal backplane supports 12-port SAS / SATA drives and features 12 Gb/s Mini-SAS HD SFF-8643 connectors along with SGPIO compatibility
Dual PSU support for PS2 (ATX), Mini Redundant, or 2U Redundant
Triple 360mm radiator support

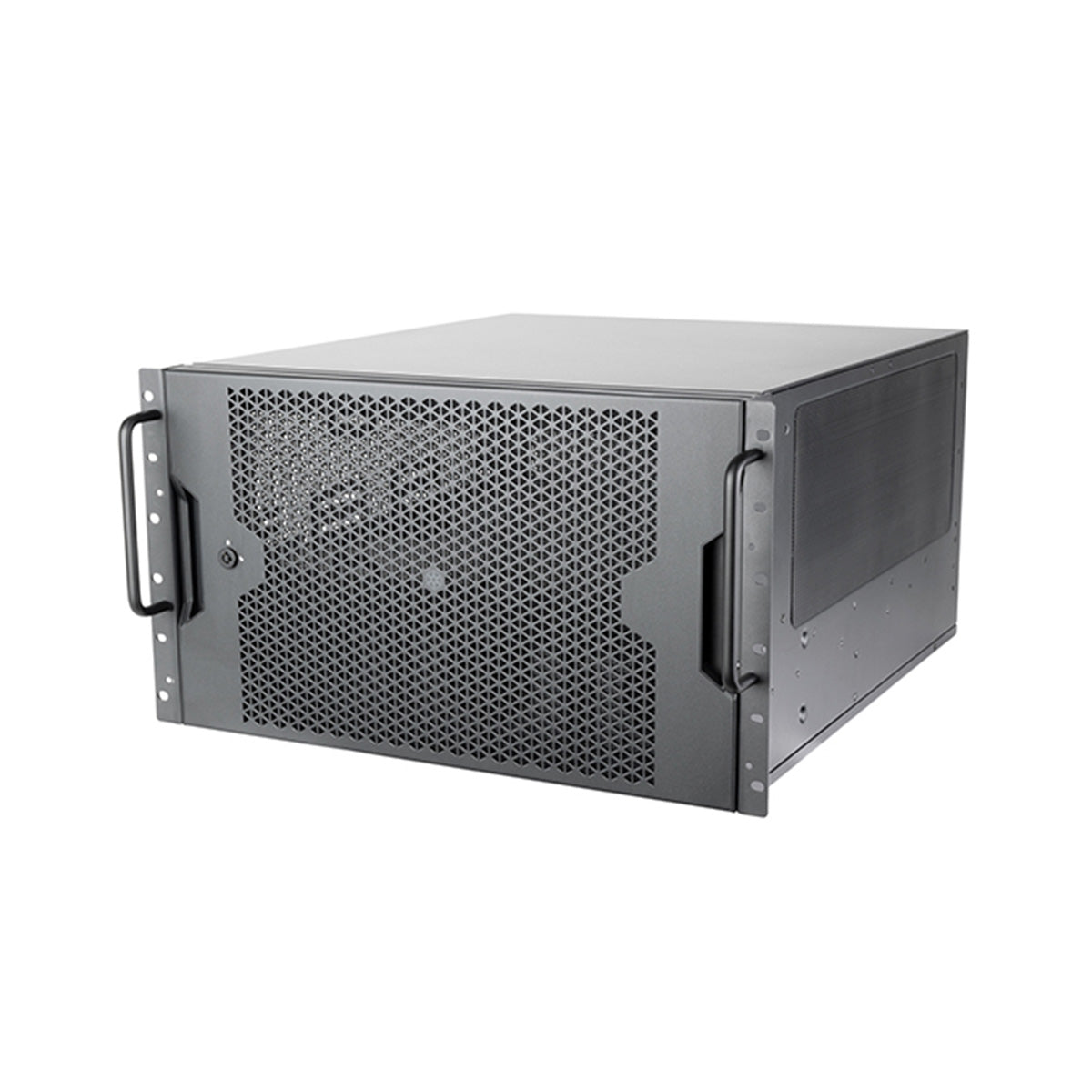

Security lock fitted on the front removable door
Support up to E-ATX or SSI-EEB motherboards
Upright or horizontal placement flexibility
8 PCI expansion slots
Enhanced Storage Capabilities
Based on the design foundation of the RM600, the bottom 2U height of the front panel in the RM61-312 is equipped with 12 hot-swappable drive trays that support 2.5" SSDs or 3.5" HDDs in 12G-SAS or 6G-SATA formats, in contrast to the perforation design seen in the RM600.
Transcending Conventional Cooling Standards
With three sets of 3 x 120mm fan mounts positioned at the front and on both sides of the chassis, each set facilitating the installation of a single 360mm radiator, a total of three 360mm radiators can be accommodated. This design not only establishes a unique niche in the market but also surpasses traditional rackmount cooling standards.
Enhanced Power Options
A feat that's been incorporated in many SilverStone chassis, the support for dual power supplies is a standout feature also present in the RM61-312. This capability proves extremely beneficial, offering enhanced reliability, power redundancy, and the flexibility to manage demanding power requirements systems seamlessly. Primary PSU slot : PS2 (ATX) / Mini Redundant / 2U Redundant Secondary PSU slot : PS2 (ATX)
Versatile Chassis for Diverse Environments
This dual-purpose chassis seamlessly accommodates both industrial rackmount applications and high-end home systems. Its flexible design allows for placement in either vertical or horizontal orientations, catering to diverse usage preferences.
Specifications
Specifications
| Model No. | SST-RM61-312 |
| Chassis Form Factor | 6U |
| Material | Steel |
| Motherboard | **SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| HDD | backplane 12 ports SAS / SATA to Mini-SAS HD SFF-8643 x 3 with SGPIO |
| interface | SAS-1 / SAS-2 / SAS-3 SATA-1 / SATA-2 / SATA-3 |
| Power connector on backplane | 4-pin Peripheral x 6 |
| Drive bay | External 3.5" hot-swap x 12 Internal 2.5" x 4 |
| Cooling system | Front 120mm x 3 Rear 80mm x 2 (2 x 80mm fans included) Side Left : 120mm x 3 / 140mm x 2 Right : 120mm x 3 / 140mm x 2 Internal 80mm x 3 |
| Radiator support | Front 120mm / 240mm / 360mm Side Left : 120mm / 140mm / 240mm / 280mm / 360mm Right : 120mm / 240mm / 240mm / 360mm |
| Limitation of CPU cooler | w/ GPU holder: 132mm w/o GPU holder: 150mm |
| Expansion slot | 8 |
| Limitation of expansion card | Length : 340mm Width : 156mm |
| Power supply | Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant Secondary PSU slot: PS2 (ATX) |
| Front I/O port | USB3 Type-C x 1 USB3 Type-A x 2 |
| LED Indicators | Chassis Power LED x 1: Blue HDD Access x 1: Green LAN LED x 2: Green HDD Tray HDD Power LED x 12: Yellow HDD Access x 12: Blinking green |
| Front Buttons | Power ON/OFF System Reset |
| Dimension | 438mm (W) x 265mm (H) x 522mm (D), 60.6 liters 17.24" (W) x 10.43" (H) x 20.55" (D), 60.6 liters |
| Net weight | 17.9 kg |
