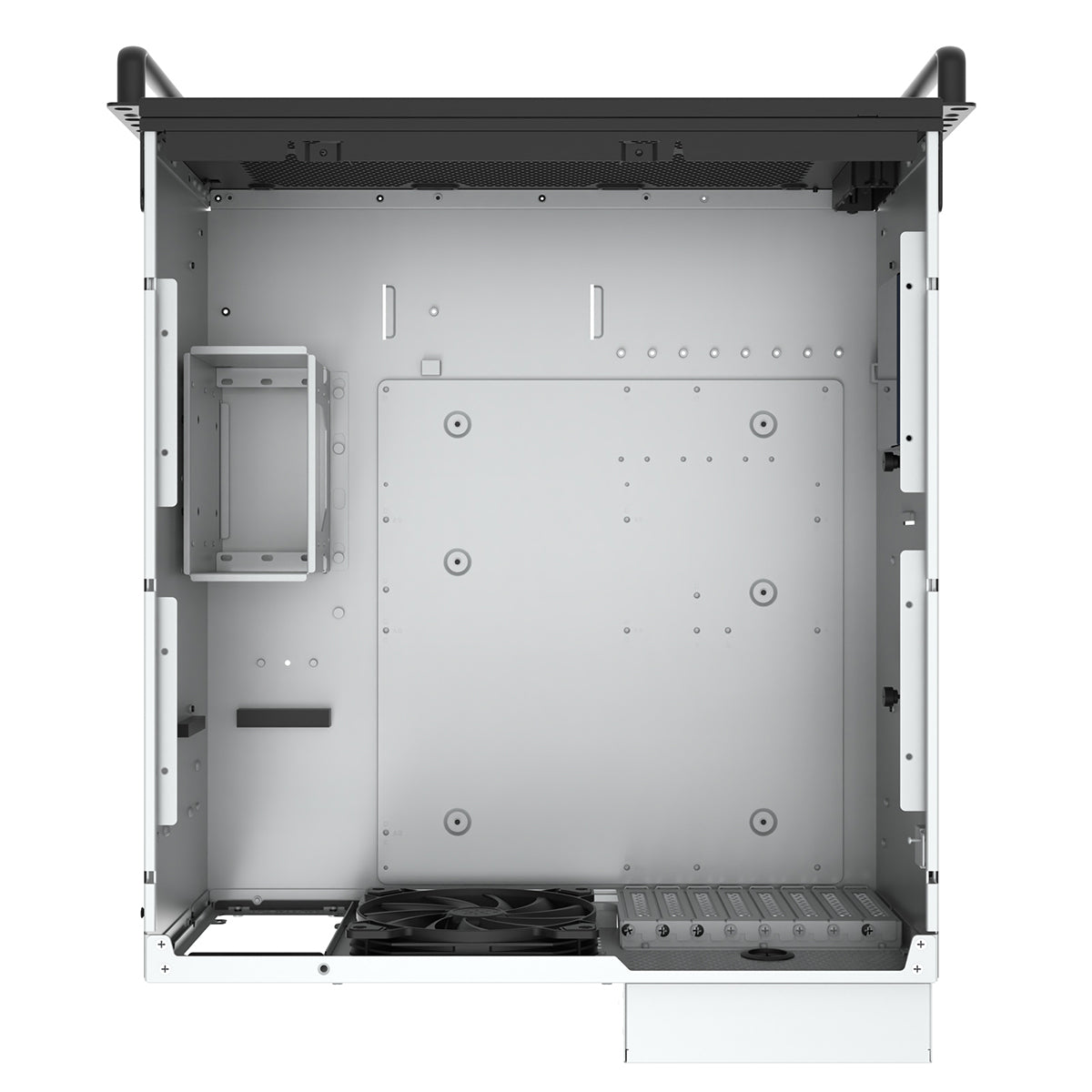

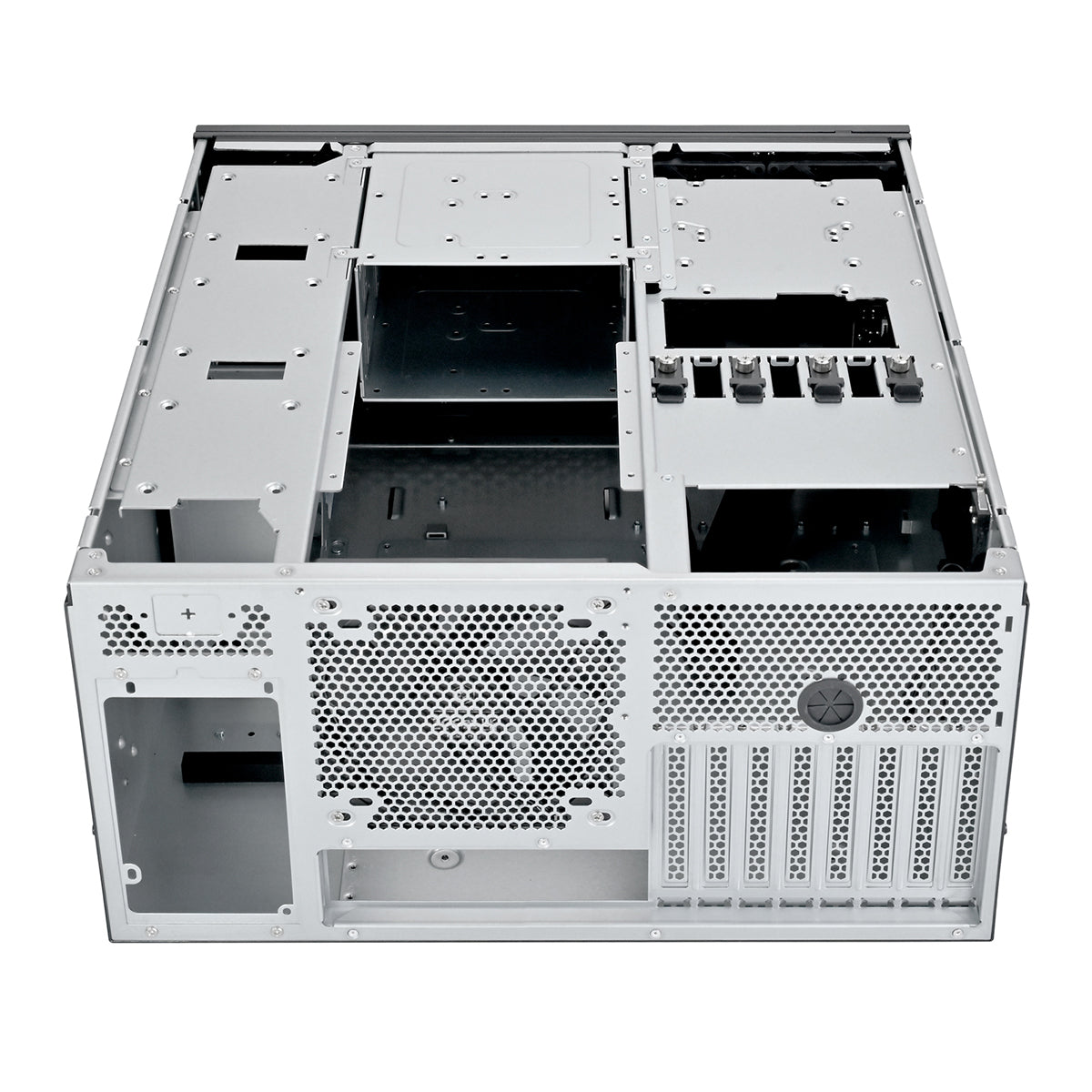

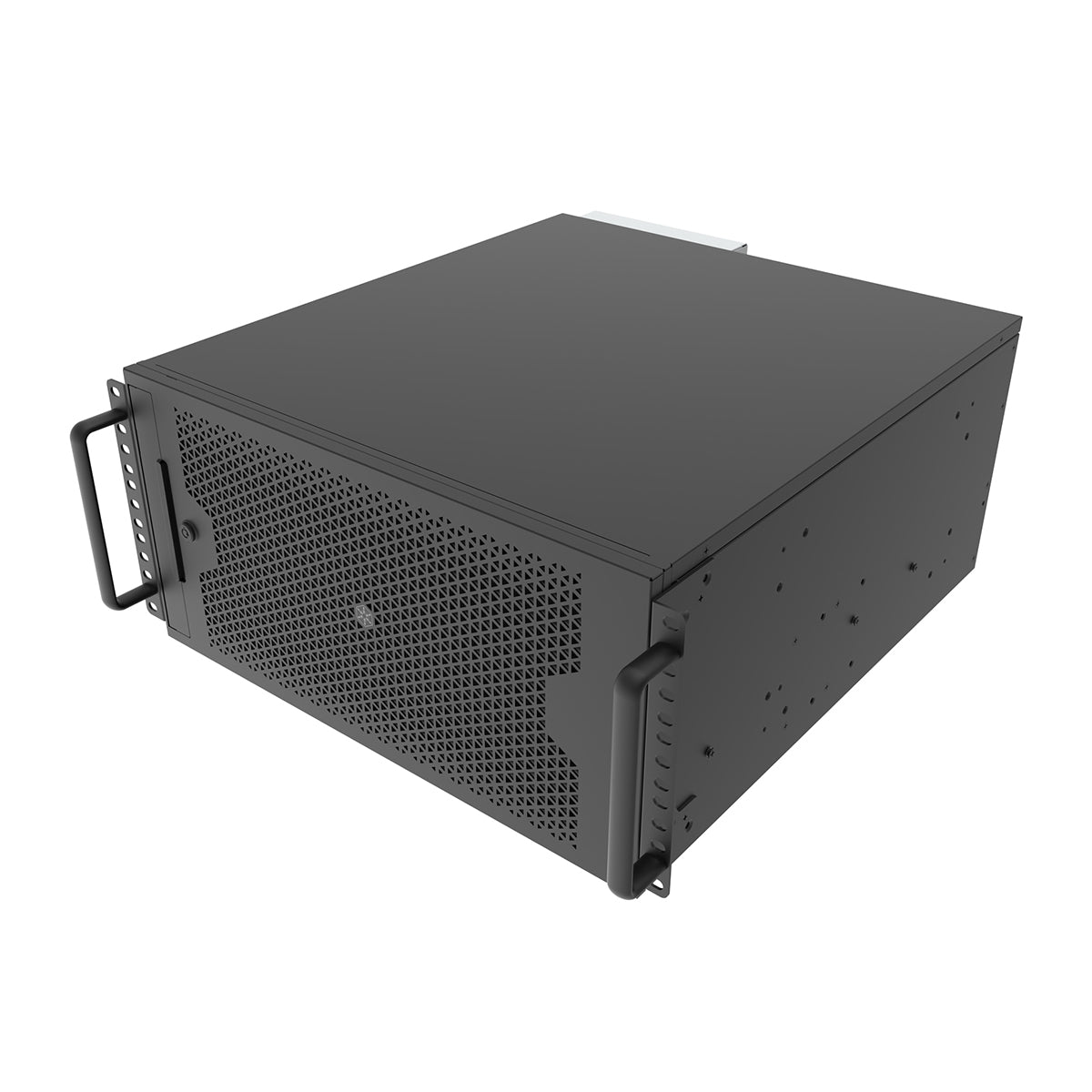

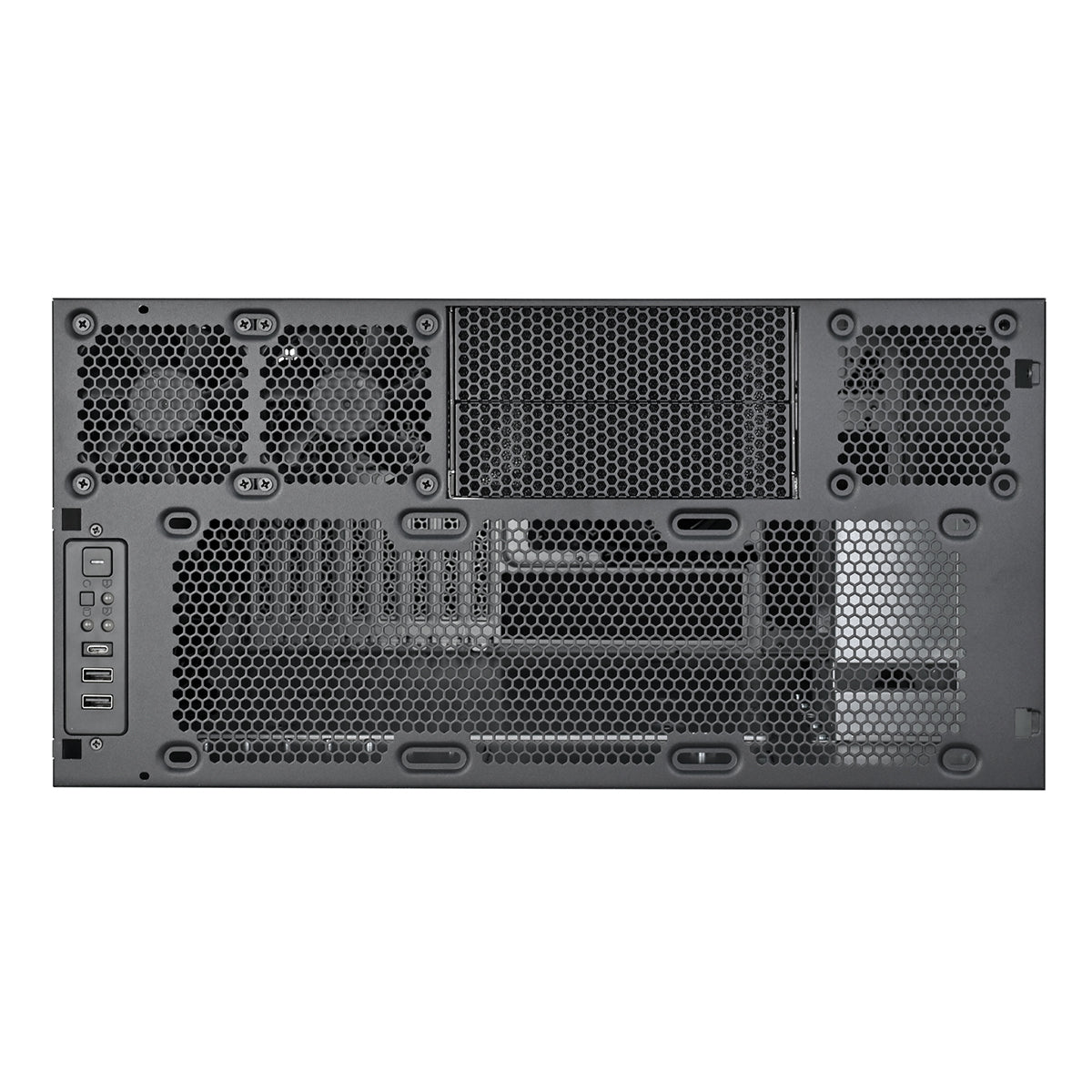

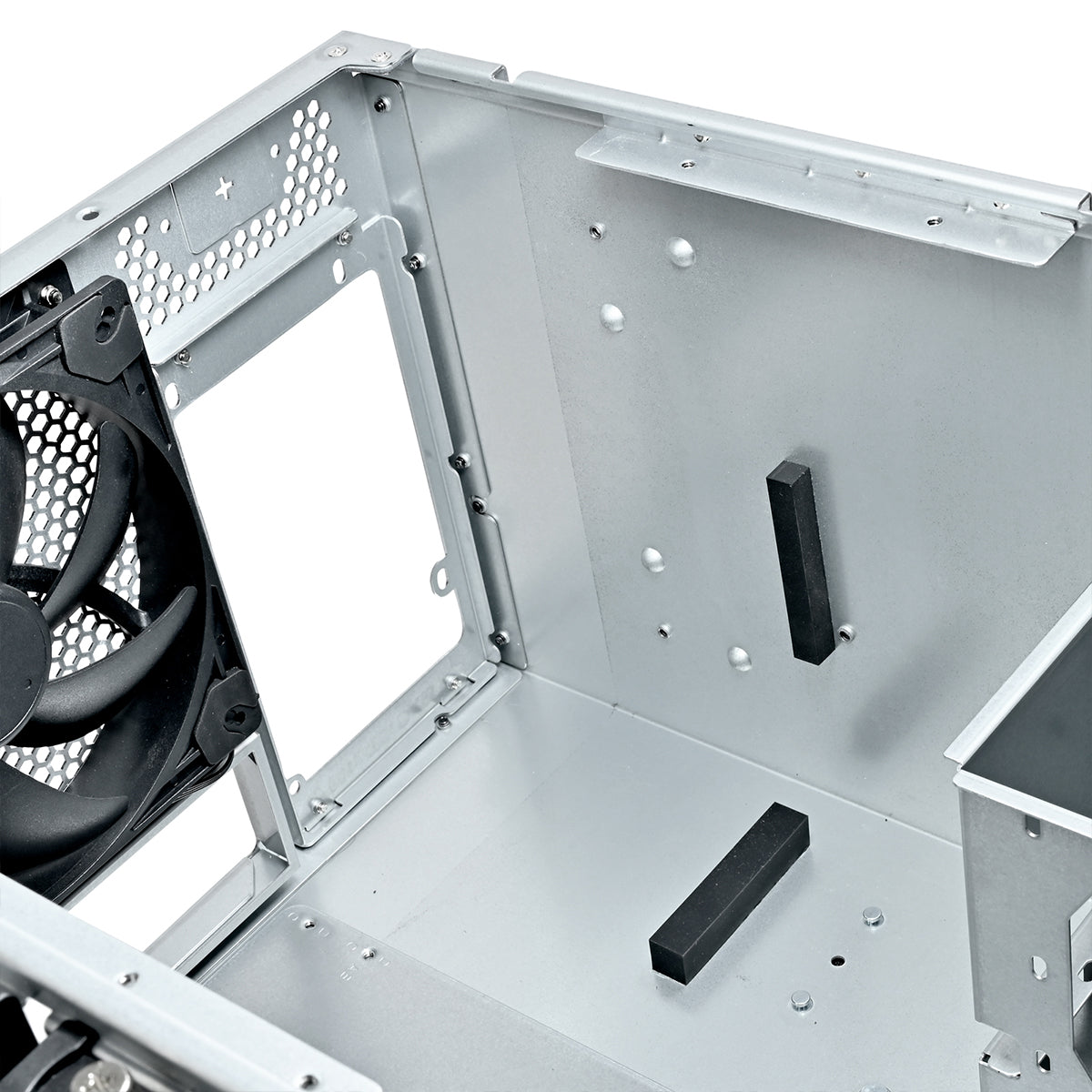

Silverstone RM53-502 5U Rackmount Server Chassis
Dual 5.25" Bays & 360mm Radiator Support
Silverstone
| SKU
93087
New Arrivals
$849.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
RM53-502 Rackmount Server Chassis
5U Rackmount Server Chassis with Dual 5.25" Bays & 360mm Radiator Support
- Supports up to SSI-EEB motherboards
- Universal hard drive cage design supports 5.25", 3.5" and 2.5" storage devices
- Supports 360mm liquid cooling radiator
- Security lock fitted on the front removable door
- Dual PSU support for PS2 (ATX)+SFX PSU, Mini Redundant, or 2U CRPS Redundant
- Upright or horizontal placement flexibility
- 8 PCI expansion slots
- Provides additional cooling solutions for graphics cards
Specifications
Specifications
| Model No. | SST-RM53-502 |
| Chassis Form Factor | 5U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Material | Steel |
| Drive Support |
External: 5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2) Internal: 3.5” x 1 (compatible with 2.5” x 2), 3.5” x 2 (compatible with SFX PSU x 1), 2.5” x 5 (two expansion cards occupy the 8th slot position) |
| Cooling System |
Front: 120mm x 3, 80mm x 3 (2 x 80mm fans included) Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fan included) Rear Fan Cage: 80mm x 2 |
| Radiator Support |
Front: 120mm / 240mm / 360mm Rear: 120mm |
| Limitation of CPU Cooler | Single CPU: 178mm Dual CPU: 101–178mm * |
| Expansion Slot | 8 |
| Limitation of Expansion Card | Length: 454mm (without installing front fans, radiators) Width: w/ GPU holder: 160mm; w/o GPU holder: 185mm |
| Power Supply |
Primary PSU Slot: PS2 (ATX) / Mini Redundant / 2U CRPS Redundant Secondary PSU Slot: SFX (occupies 3.5" bracket) |
| Limitation of PSU | Primary PSU Slot: 190mm (Removal of 3.5" drive cage eliminates PSU depth limitation) Secondary PSU Slot: 130mm |
| Front I/O Port | USB Type-C x 1, USB 3.0 x 2 |
| LED Indicators | Power status x 1, HDD activity x 1, LAN activity x 2 |
| Dimension |
Incl. Rear Fan Cage: 440mm (W) x 220mm (H) x 530mm (D), 51.3 liters Excl. Rear Fan Cage: 440mm (W) x 220mm (H) x 485mm (D), 46.95 liters |
| Net Weight | 11.47 kg |
| Extra | Side switch for chassis intrusion security * For dual CPU cooler installation, refer to manual for detailed limitations. |
