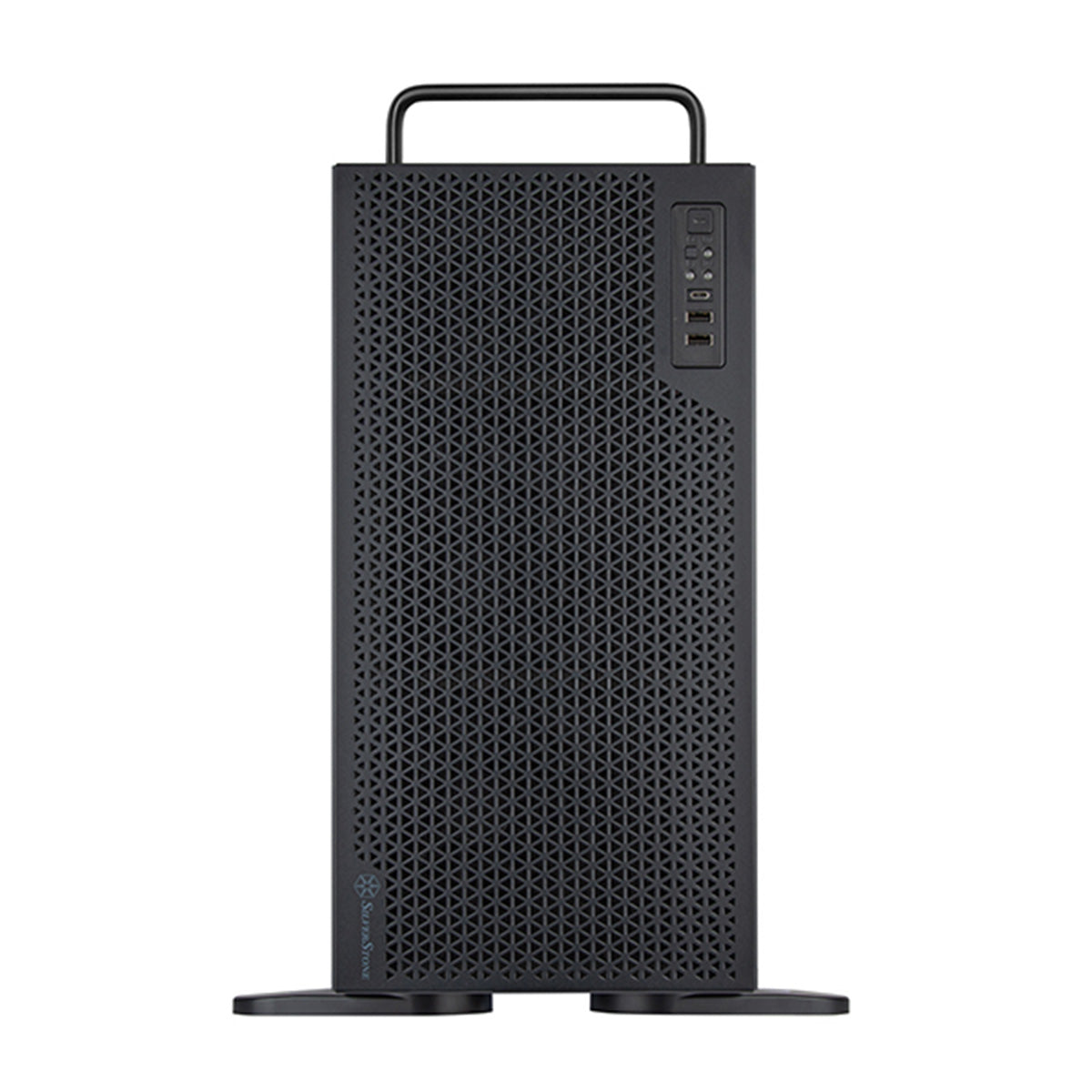

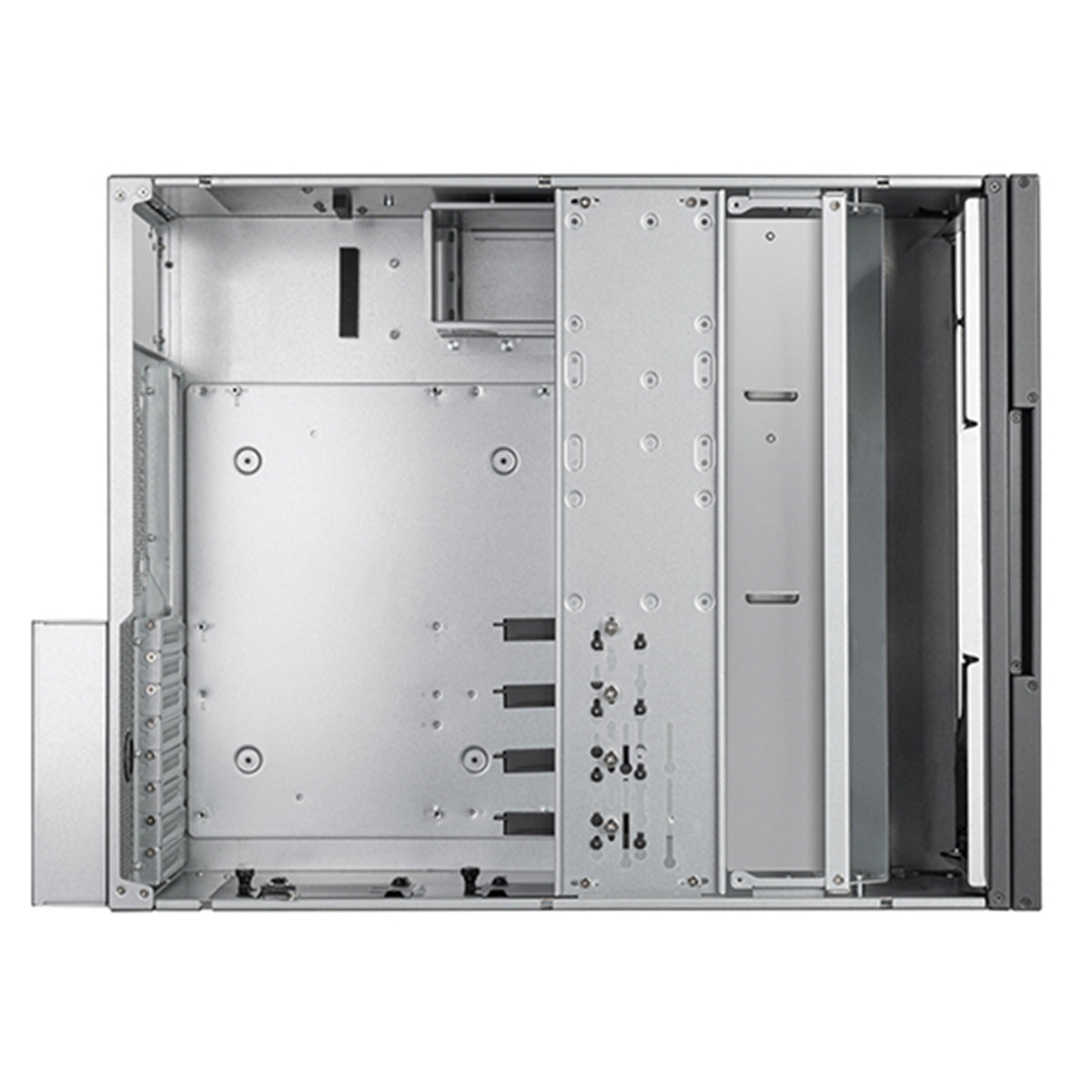

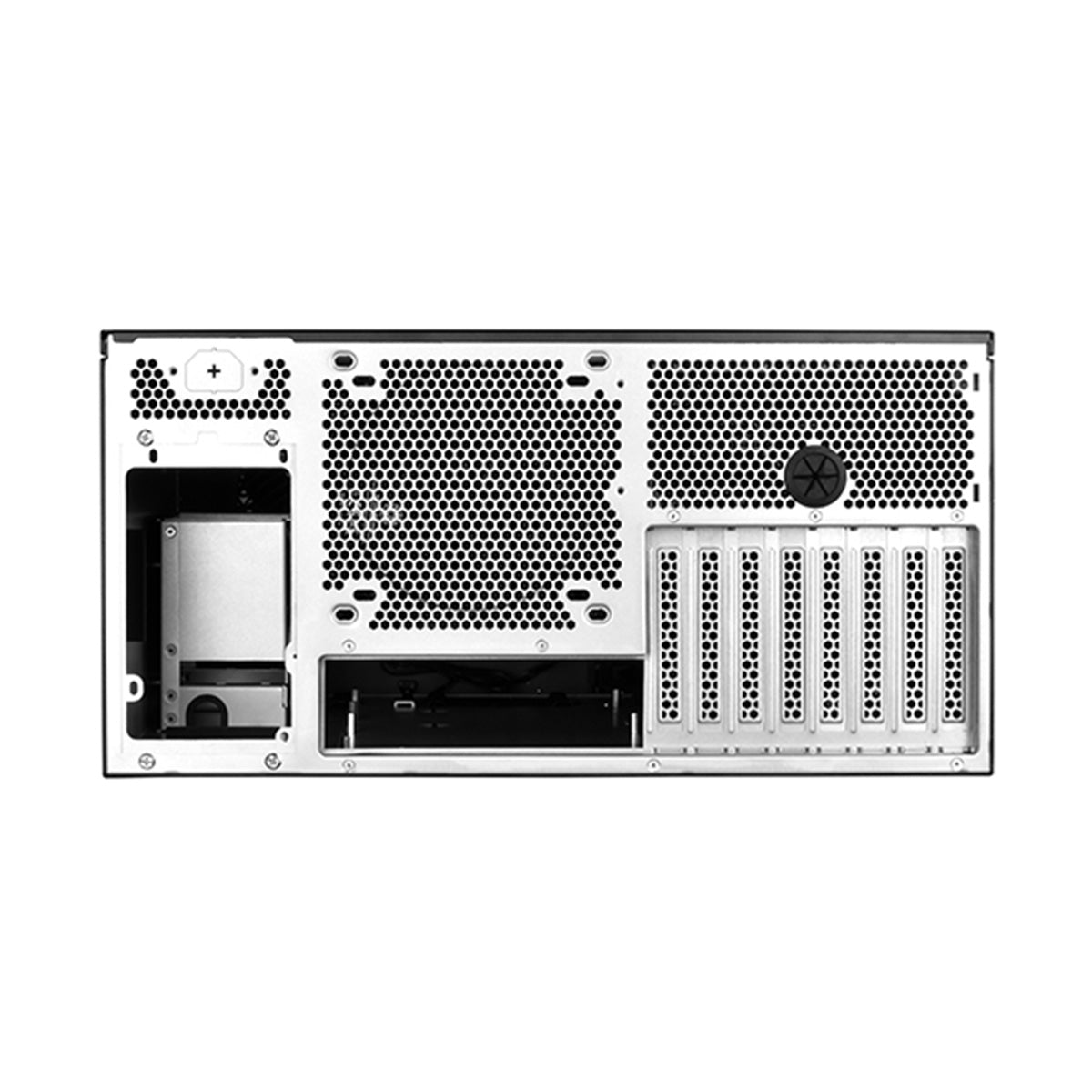

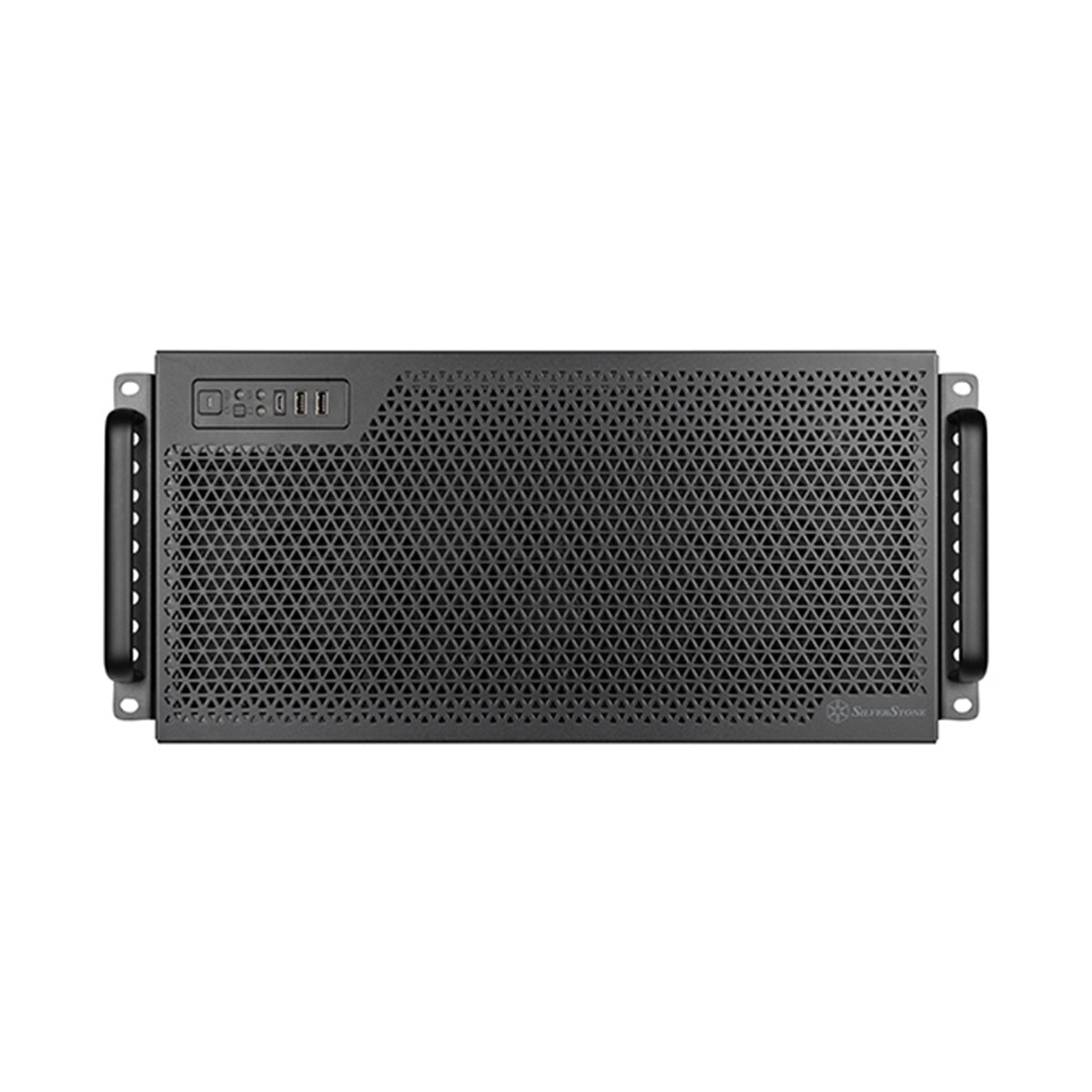

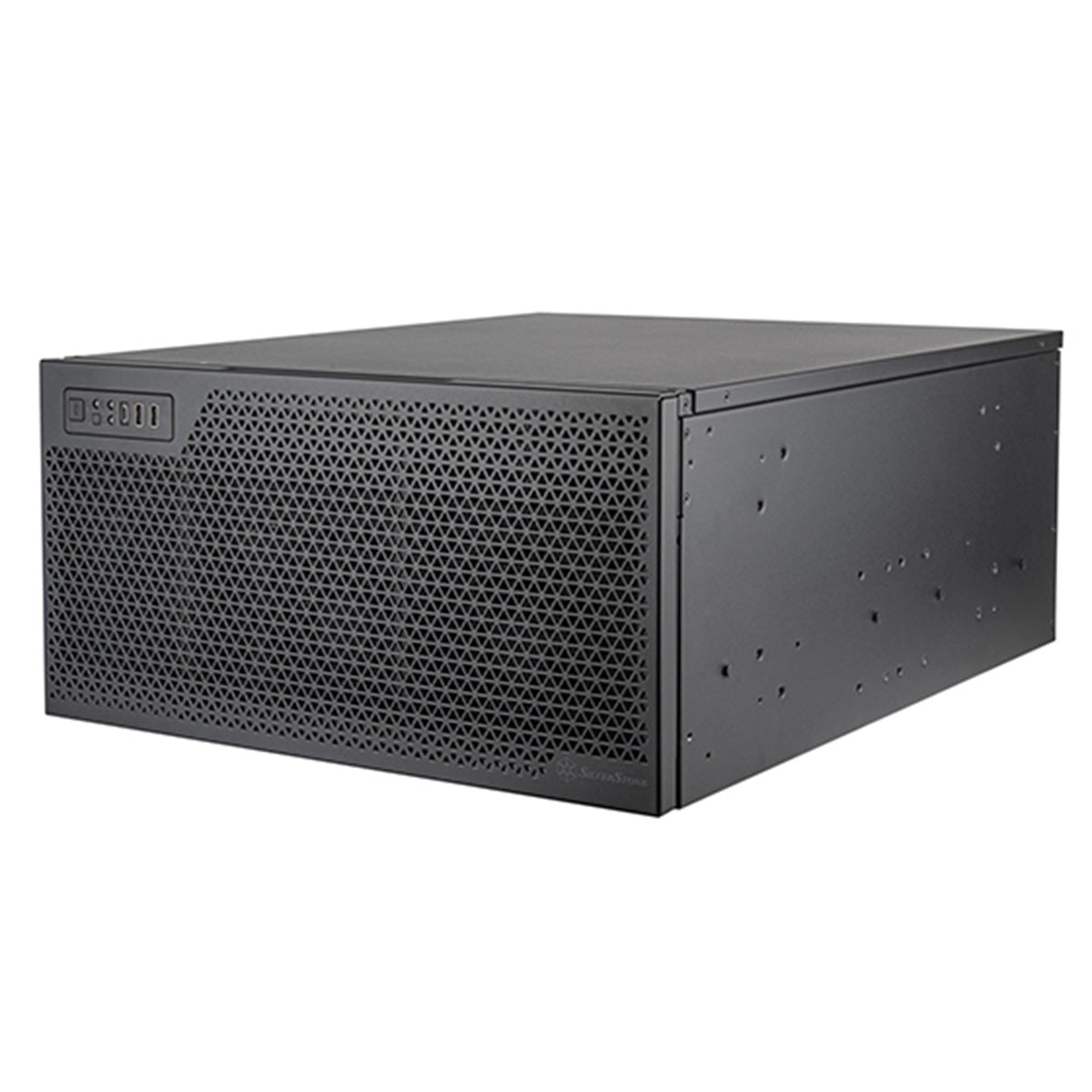

Silverstone RM52 5U Rackmount Server Case
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Cooling performance up another notch!
SilverStone's unwavering commitment toachieving superior cooling performance isevident in the RM52, which boasts dual 360mmradiator compatibility, a notable improvementover the single 360mm radiator featured in itspredecessor.
Tremendous hardware versatility
An internal 3.5" drive cage allows the installation of 2 x 3.5" HDDs. If it’s to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor
Excellent space maximization
To avoid any unforeseen damages to either themotherboard or the graphics cards, an expansioncard retainer with storage drive mounting holesis included to prevent sagging of graphics cardswhile maximizing space utilization
Dual-purpose chassis – Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.
Specifications
Specifications
```html
| Model No. | SST-RM52 |
| Chassis form factor | 5U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Material | Steel |
| Drive Bay | Internal 3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU) 2.5" x 4 |
| Power Supply | Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant (V3.0 or after) Secondary PSU slot: SFX (occupies 3.5" bracket) Limitation of PSU 160mm~190mm (Removal of 3.5" drive cage eliminates PSU depth limitation) |
| Cooling system | Front 120mm x 6 Rear Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fan included) Rear fan cage: 80mm x 2 (2 x 80mm fans included) Radiator support Front 120mm x 4 / 360mm x 2 Rear 120mm x 1 |
| Limitation of CPU cooler | Height w/ expansion card retainer: 181mm Height w/o expansion card retainer: 192mm |
| Expansion card | Length: 512mm (without installing front fans, radiators, and internal radiator bracket removed) / 365mm (dual radiators installed with each radiator with fans having a combined thickness of 53mm) * Width w/ expansion card retainer: 160mm Width w/o expansion card retainer: 198mm |
| Expansion Slot | 8 |
| Front I/O Port | USB Type-C x 1 USB 3.0 x 2 |
| LED Indicators | Power status x 1 HDD activity x 1 LAN activity x 2 |
| Dimension | Incl. rear fan cage: 440mm (W) x 220mm (H) x 605mm (D), 58.56 liters Excl. rear fan cage: 440mm (W) x 220mm (H) x 560mm (D), 54.21 liters Incl. rear fan cage: 17.3" (W), 8.66" (H), 23.82" (D) Excl. rear fan cage: 17.3" (W), 8.66" (H), 22.05" (D) |
| Net Weight | 11.45 kg |
