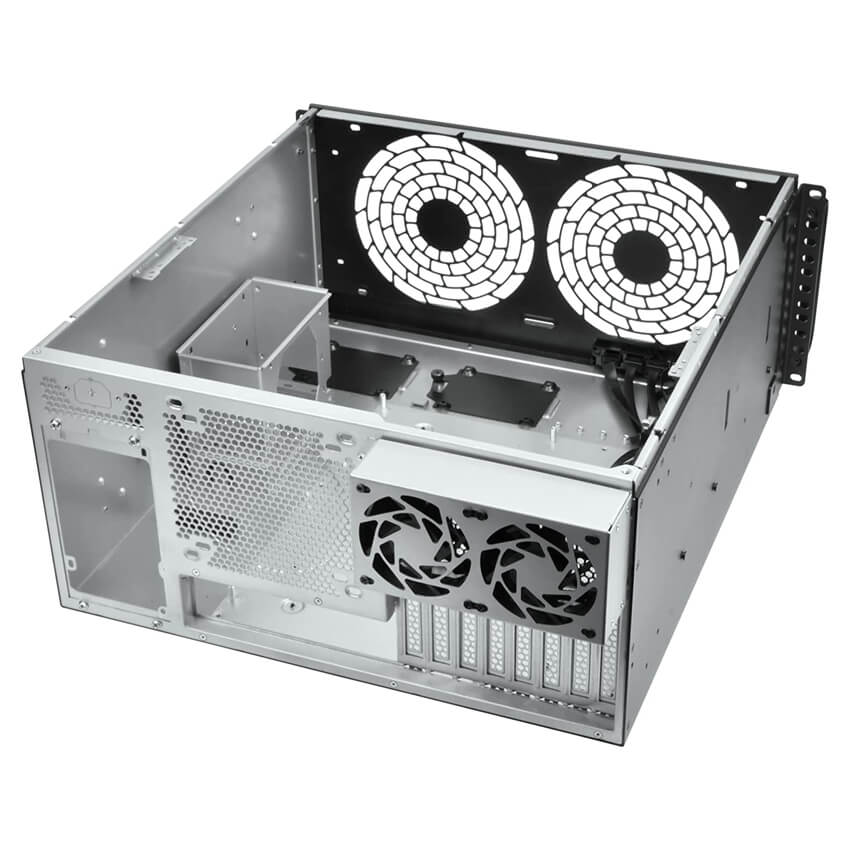

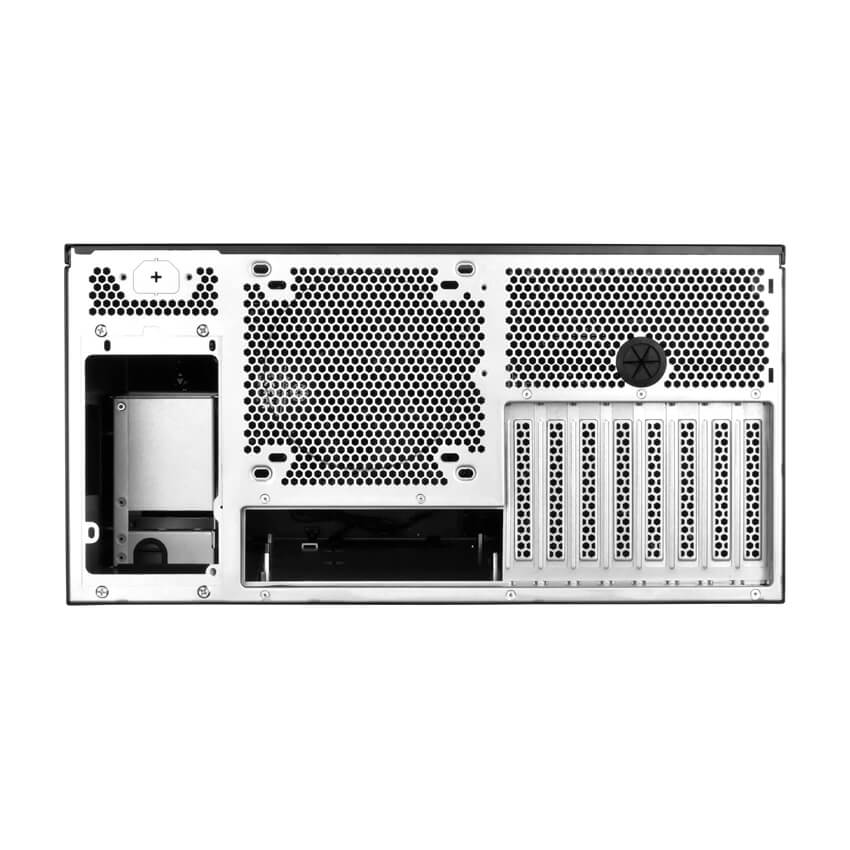

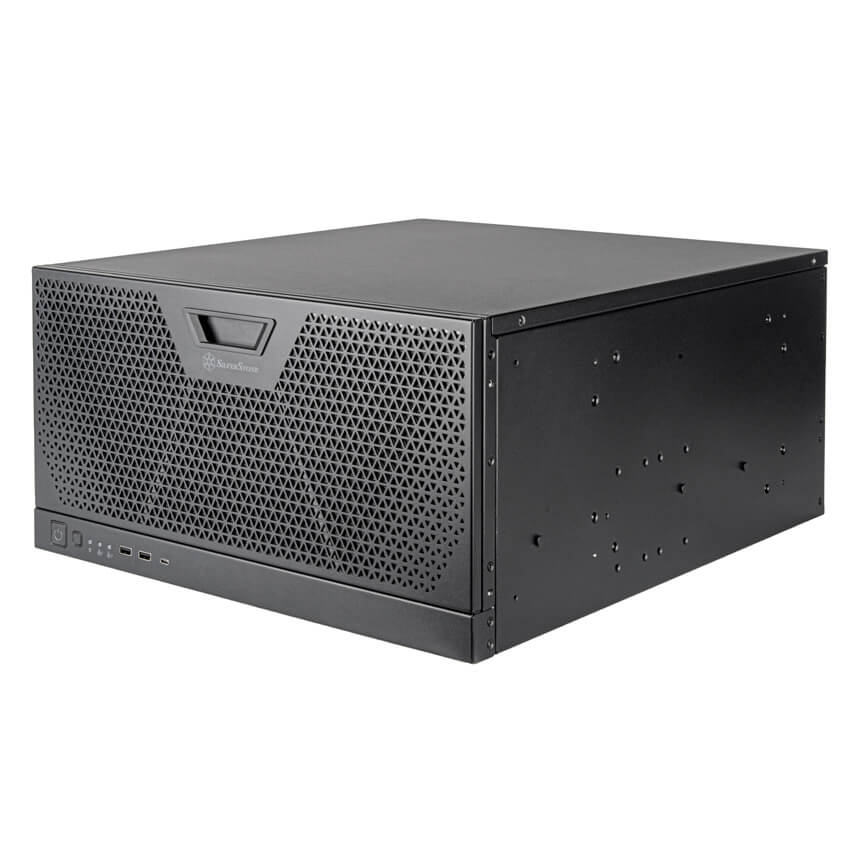

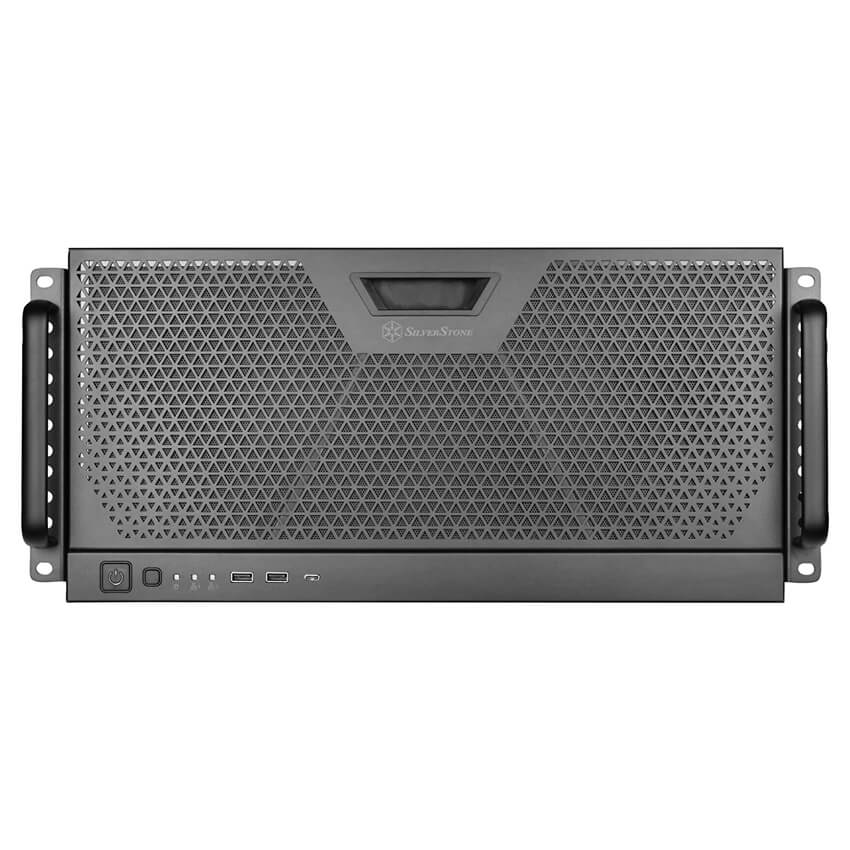

Silverstone RM51 5U Rackmount Server Case
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Dual-purpose chassis – Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.
Unparalleled rackmount cooling performance

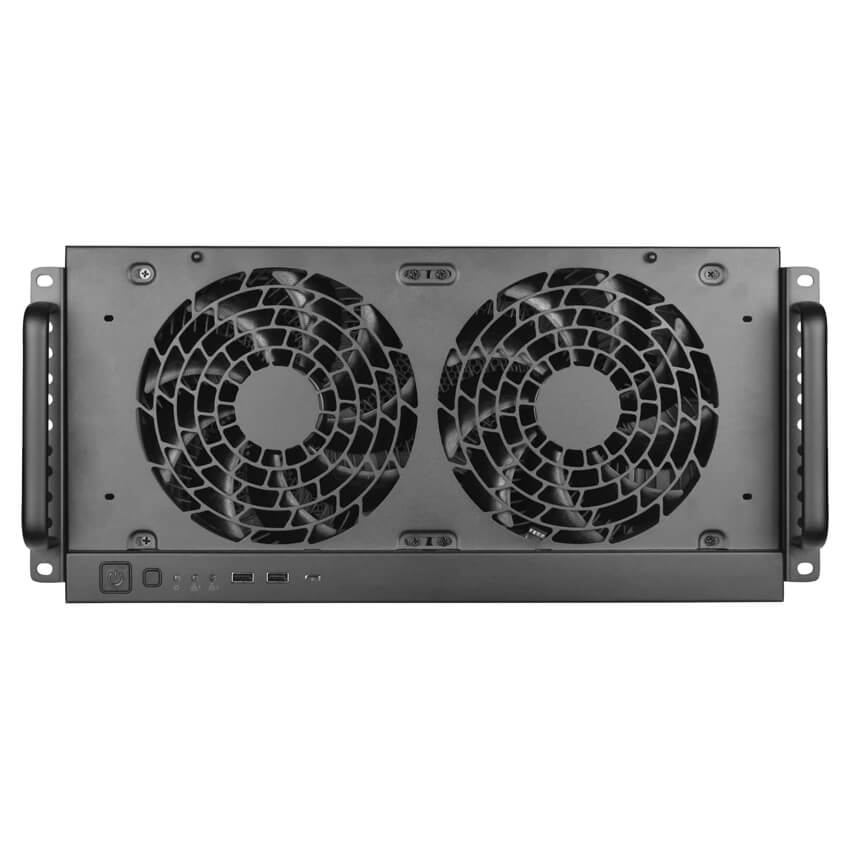

2 x Air Penetrator 184i PRO fans pre-installed to provide excellent system cooling. Downward compatible with 3 x 120mm fans which also allows for triple 120mm or dual 180mm liquid cooling radiator.
Tremendous hardware versatility
An internal 3.5" drive cage allows installation of 2 x 3.5" HDDs. If it’s to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor
Excellent space maximization
To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization
Server rack sliding rails can be easily fitted onto the chassis with the reserved mounting holes.
*SST-RMS05-22 (sold separately)
Specifications
Specifications
| Model No. | SST-RM51 |
| Chassis form factor | 5U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Material | Steel |
| Drive Bay | Internal 3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU) 2.5" x 4 |
| Power Supply | Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant (V3.0 or after) Secondary PSU slot: SFX (occupies 3.5" bracket) |
| Limitation of PSU | 160mm~190mm (Removal of 3.5" drive cage eliminates PSU depth limitation) |
| Cooling system | Front 120mm x 3 / 180mm x 2 (2 x Air Penetrator 184i PRO fans included) Rear Rear I/O: 120mm x 1 / 140mm x 1 Rear fan cage: 80mm x 2 |
| Radiator support | Front 120mm x 3 / 120mm x 1 + 240mm x 1 / 360mm x 1 (120mm x 3) / 360mm x 1 (180mm x 2) Rear 120mm x 1 |
| Limitation of CPU cooler | Height w/ expansion card retainer: 181mm Height w/o expansion card retainer: 192mm |
| Expansion card | Length: 455mm (without installing front fans and radiators) Width w/ expansion card retainer: 157mm Width w/o expansion card retainer: 198mm |
| Expansion Slot | 8 |
| Front I/O Port | USB Type-C x 1 USB 3.0 x 2 |
| LED Indicators | Power status x 1 HDD activity x 1 LAN activity x 2 |
| Dimension | Incl. rear fan cage: 440mm (W) x 220mm (H) x 530mm (D), 51.3 liters Excl. rear fan cage: 440mm (W) x 220mm (H) x 485mm (D), 46.95 liters Incl. rear fan cage: 17.3" (W), 8.66" (H), 20.87" (D) Excl. rear fan cage: 17.3" (W), 8.66" (H), 19.1" (D) |
| Net Weight | 10.6 kg |
