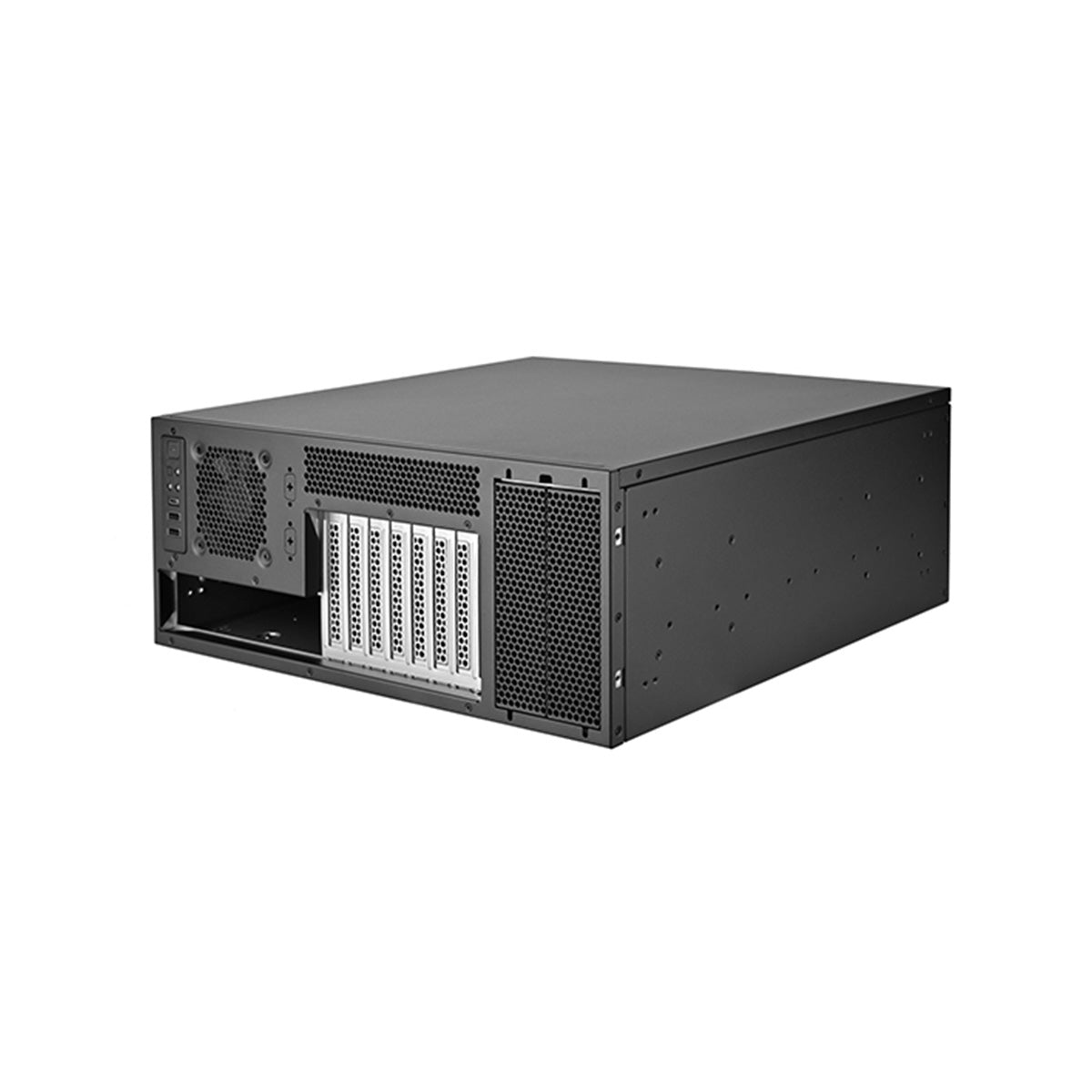

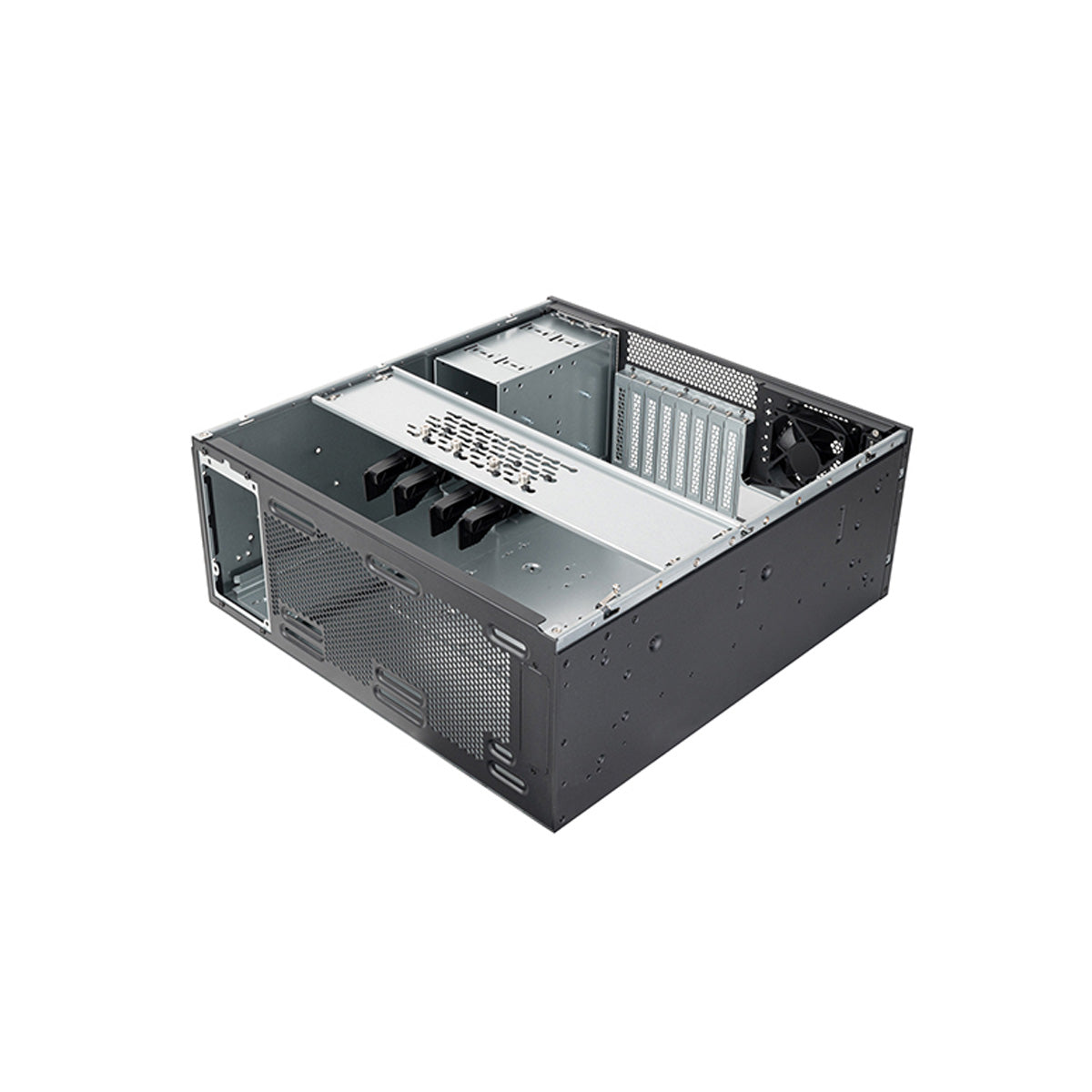

Silverstone RM46-502-I 4U Interchangable Rackmount case

Silverstone  |  SKU 64496  |  MPN SST-RM46-502-I
$529.00

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

RM46-502-I

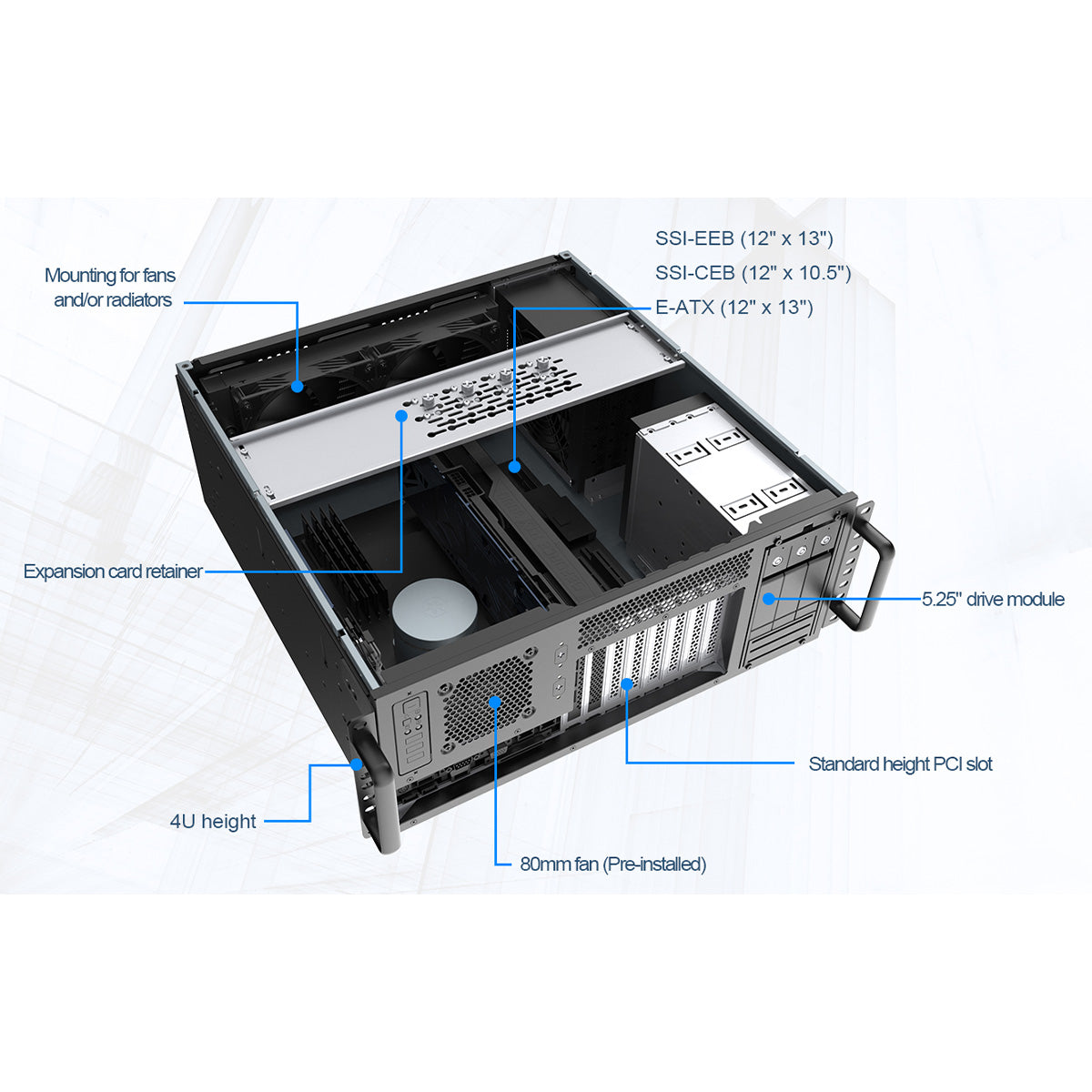

4U Interchangeable Rackmount Chassis with Front Accessible Expansion Slots

  • Front-facing motherboard I/O
  • Interchangeable front panel I/O, rackmount sliding rails, handlebars, 5.25” device, and PSU mounts can all be swapped between the front and back
  • 8 standard height PCI expansion slots
  • Support up to SSI-EEB motherboards
  • Supports 280mm radiator or 2 x 160mm fans*
  • 1 x USB Type-C interface
  • Upright or horizontal placement flexibility**

Elevated Versatility via Interchangeable Components

With a front-accessible expansion slot card ports and I/O components design, both the handlebars and rackmount sliding rail positions are interchangeable to facilitate this orientation. Internally, both the 5.25” drive cage and PSU mount positions offer interchangeable options between the front and rear configurations.


Multi-Expansion Card Configuration

The RM46-502-I supports motherboards of up to SSI-EEB form factor, paired with a total of 8 PCI expansion slots to effortlessly accommodate up to 4 server-grade graphics cards.


Excellent Cooling Capabilities

Aligned with SilverStone’s rackmount design philosophy, the RM46-502-I incorporates compatibility with liquid cooling radiators of up to 280mm in size, enhancing the cooling capabilities of the server chassis, allowing for efficient heat dissipation and optimal performance.


Advancing Flexibility to New Heights

RM46-502-I’s core functionality is encapsulated within its front-facing PCI expansion slots, offering specific advantages to users in scenarios where convenience and accessibility to the expansion slot area are paramount.


  • * Since 160mm fans use 140mm mounting holes for installation, two 160mm fans cannot be installed when I/O is relocated to the rear side.

  • ** Vertical orientation requires an optional vertical kit – RAC-CF4-440.

  • **** Anti-theft lock designed to deter theft and unauthorized access of system effectively.

  • ***** 2 x reserved RS232 mounting ports for enhanced connectivity and versatility. The ECD01 serial adapter card is available for this enhancement.

Specifications

Model No.SST-RM46-502-I
Chassis Form Factor4U
MaterialSteel
MotherboardSSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

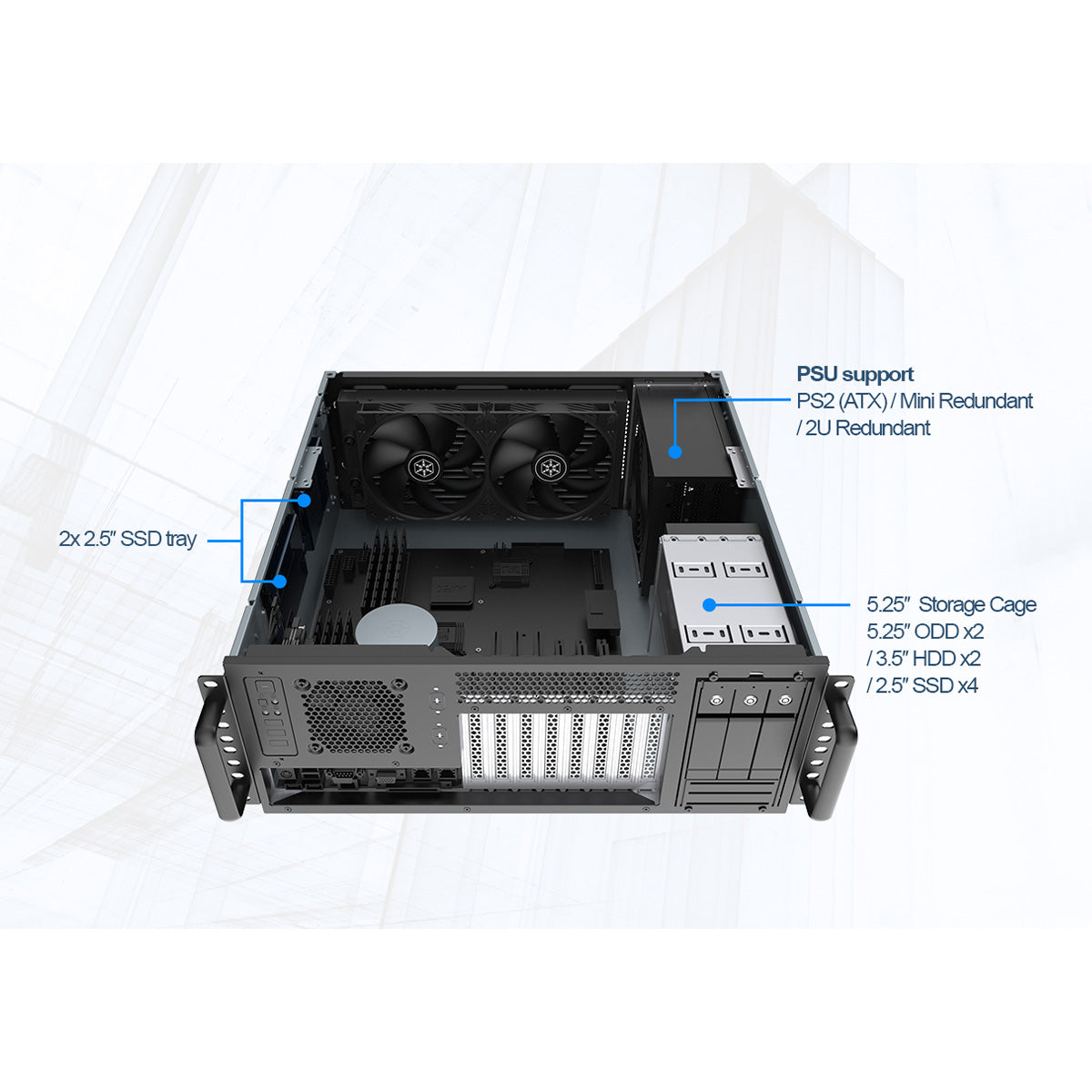

Drive bayExternal 5.25" x 2 (downwards compatible with 2.5" SSD x 4 or 3.5" HDD x 2) Internal 2.5" x 2
Cooling systemFront 80mm x 1 (80mm x 1 fan included) Rear 120mm x 2 / 140mm x 2 / 160mm x 2* Radiator support Rear 120mm x 2 / 240mm x 1 / 280mm x 1
Limitation of CPU cooler132mm (with GPU holder) 148mm (without GPU holder)
Expansion slot8
Limitation of expansion cardLength : 437mm (without rear fans and radiator installed) Width : 116mm (with expansion card retainer) 154mm (without expansion card retainer)
Power supplyPS2 (ATX) / Mini Redundant / 2U Redundant / 2U 1+1 CRPS Limitation of PSU PSU + ODD / 5.25" device: 430mm
Front I/O portUSB Type-C x 1 USB 3.0 x 2
LED IndicatorsPower LED x 1 HDD Access x 1 LAN LED x 2
Dimension440mm (W) x 176mm (H) x 456mm (D), 35.3 Liters 17.32" (W) x 6.93" (H) x 17.95" (D), 35.3 Liters
Net weight8.69 kg
