Silverstone RM44 4U Rackmount Server Chassis
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
4U rackmount server chassis with enhanced liquid cooling compatibility
- Supports up to SSI-EEB motherboards
- Supports 360mm liquid cooling radiators
- 8 PCI expansion slots
- Includes sliding rail mounting holes for quick rail installation
- Includes one USB Type-C interface
- Upright or horizontal placement flexibility
- Front panel features anti-theft lock design providing additional security
Dual-purpose chassis - Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal placements.
Enhanced rackmount cooling capabilities
The front chassis supports up to 360mm radiators with 2 x 80mm pre-installed rear fans contributing to excellent front-to-back-directional airflow.
Feature-rich panel

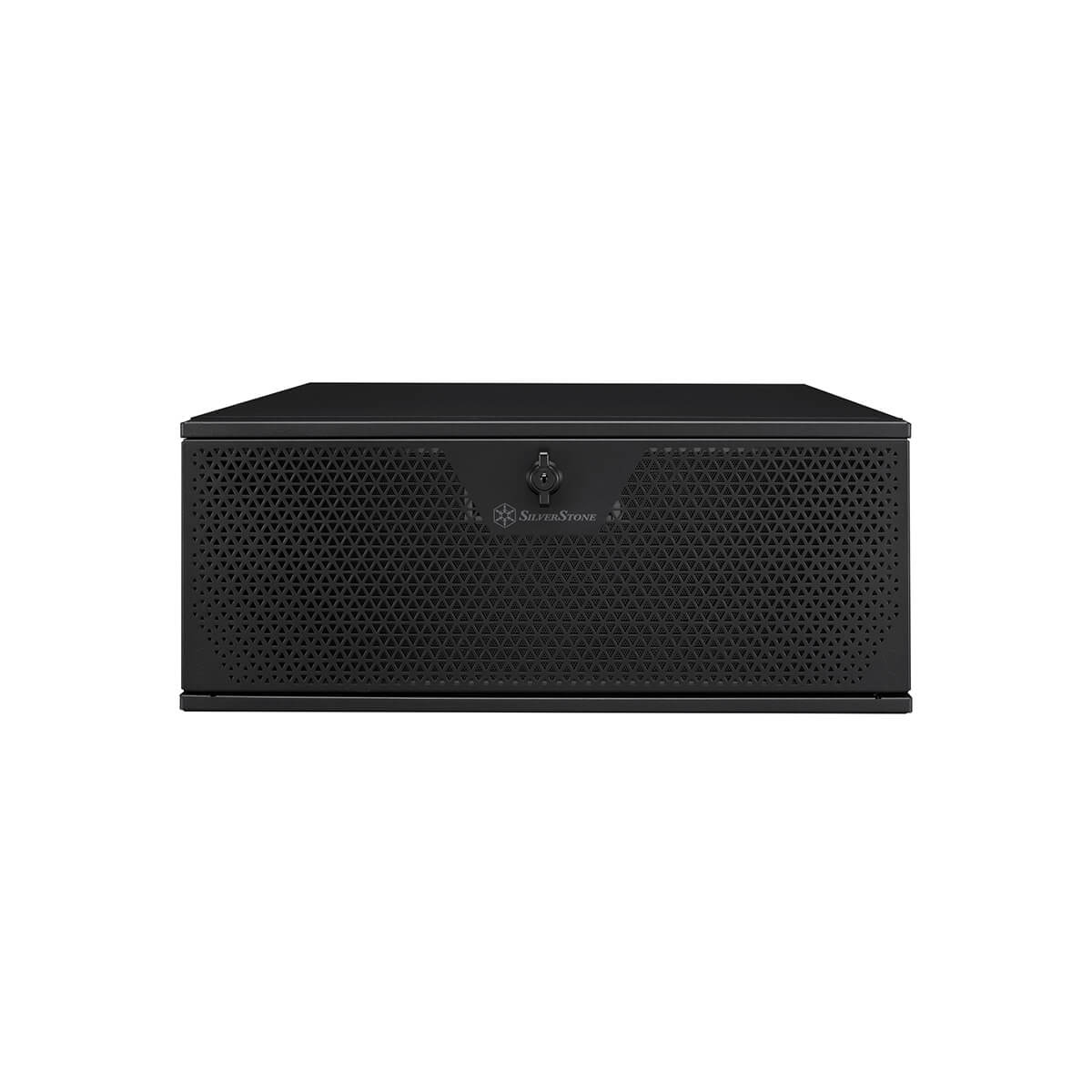

The front panel features star-crossed ventilation holes which provides an unobstructed air intake, along with anti-theft lock and aluminum handle bars for added security and accessibility.
Excellent space maximization
To avoid any unforeseen damages to either the motherboard or the graphics card, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization.

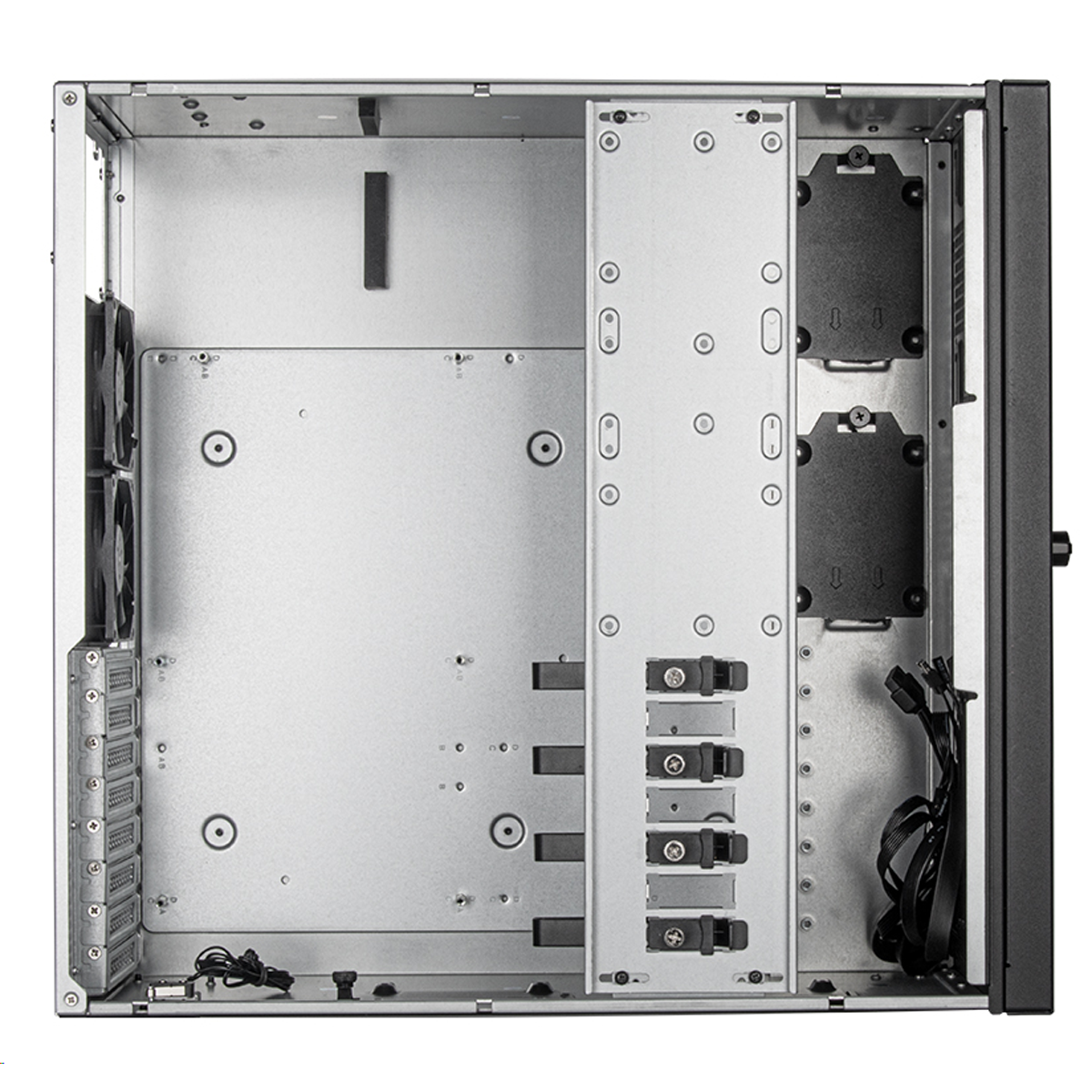

Highly versatile internal layout
Server rack sliding rails can be easily installed onto the chassis with the reserved mounting holes.
*SST-RMS05-22 rails (sold separately)
Specifications
Specifications
| Model No. | SST-RM44 |
| Chassis form factor | 4U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Material | Steel |
| Drive Bay | Internal 3.5" x 2 (compatible with 2.5" x 3), 2.5" x 4 |
| Power Supply | PS2 (ATX) / Mini Redundant / 2U Redundant (V3.0 or after) |
| Limitation of PSU | 255mm |
| Cooling system | Front 120mm x 3, Rear 80mm x 2 (80mm black fan x 2 included) |
| Radiator support | Front 120mm x 3 / 120mm x 1 + 240mm x 1 / 360mm x 1 |
| Limitation of CPU cooler | Height w/ expansion card retainer: 137mm, Height w/o expansion card retainer: 148mm |
| Expansion card | Length: 424mm (without installing front fans and radiators), Width w/ expansion card retainer: 113mm, Width w/o expansion card retainer: 154mm |
| Expansion Slot | 8 |
| Front I/O Port | USB Type-C x 1, USB 3.0 x 2 |
| LED Indicators | Power status x 1, HDD activity x 1, LAN activity x 2 |
| Dimension | 440mm (W) x 176mm (H) x 468mm (D), 36.32 liters, 17.32" (W) x 6.93" (H) x 18.43" (D), 36.32 liters |
| Net Weight | 9.2 kg |
