Silverstone RM43-324-RS 4U 24-Bay 2.5''/3.5'' HDD Rackmount Server Chassis
Backplane support for 24 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

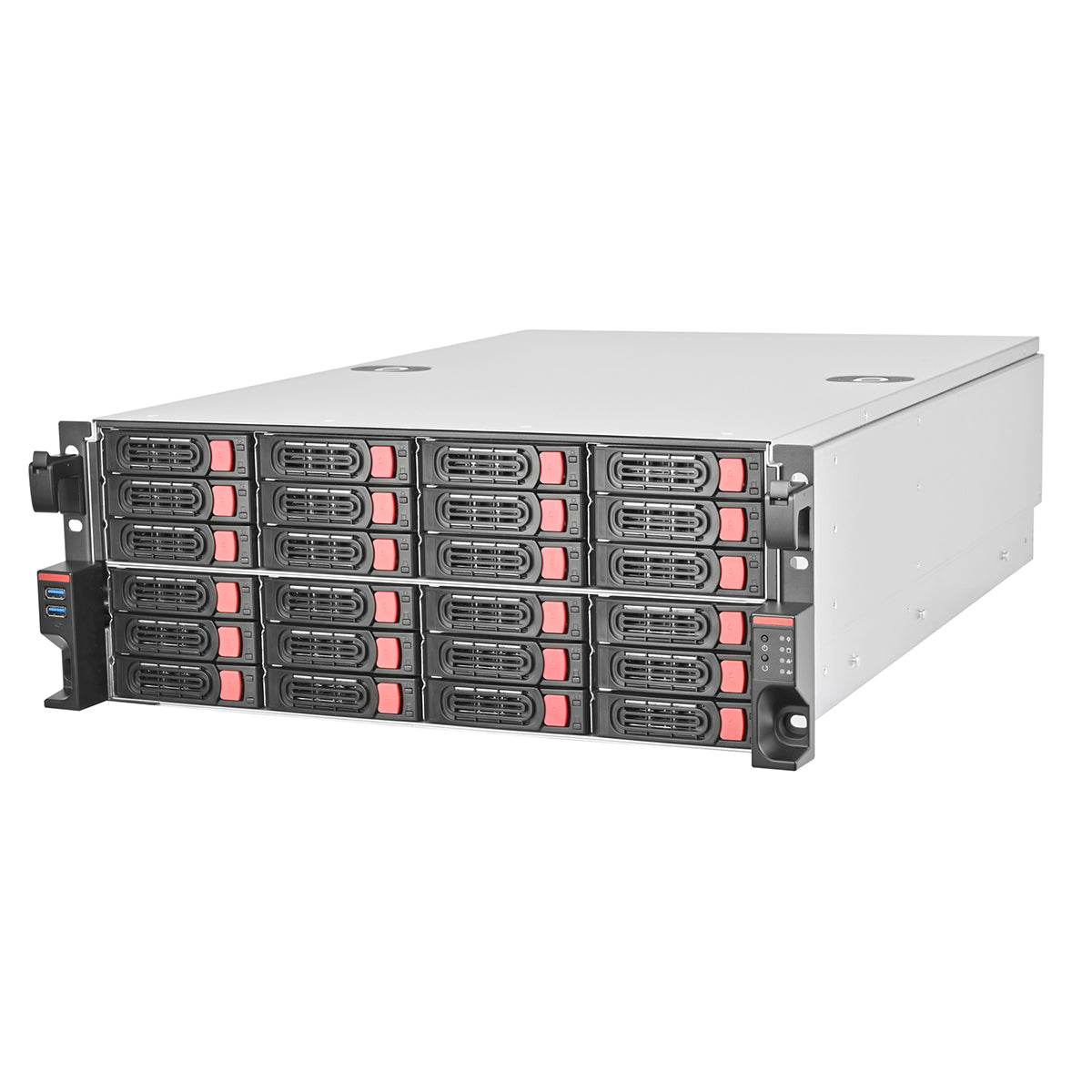

RM43-324-RS Rackmount Case
4U 24-bay 2.5"/3.5" HDD rackmount storage chassis with Mini-SAS HD SFF-8643 12 Gb/s interface
- Backplane support for 24 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
- Supports twenty-four 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays
- Ball bearing sliding rail included for simple server rack integration

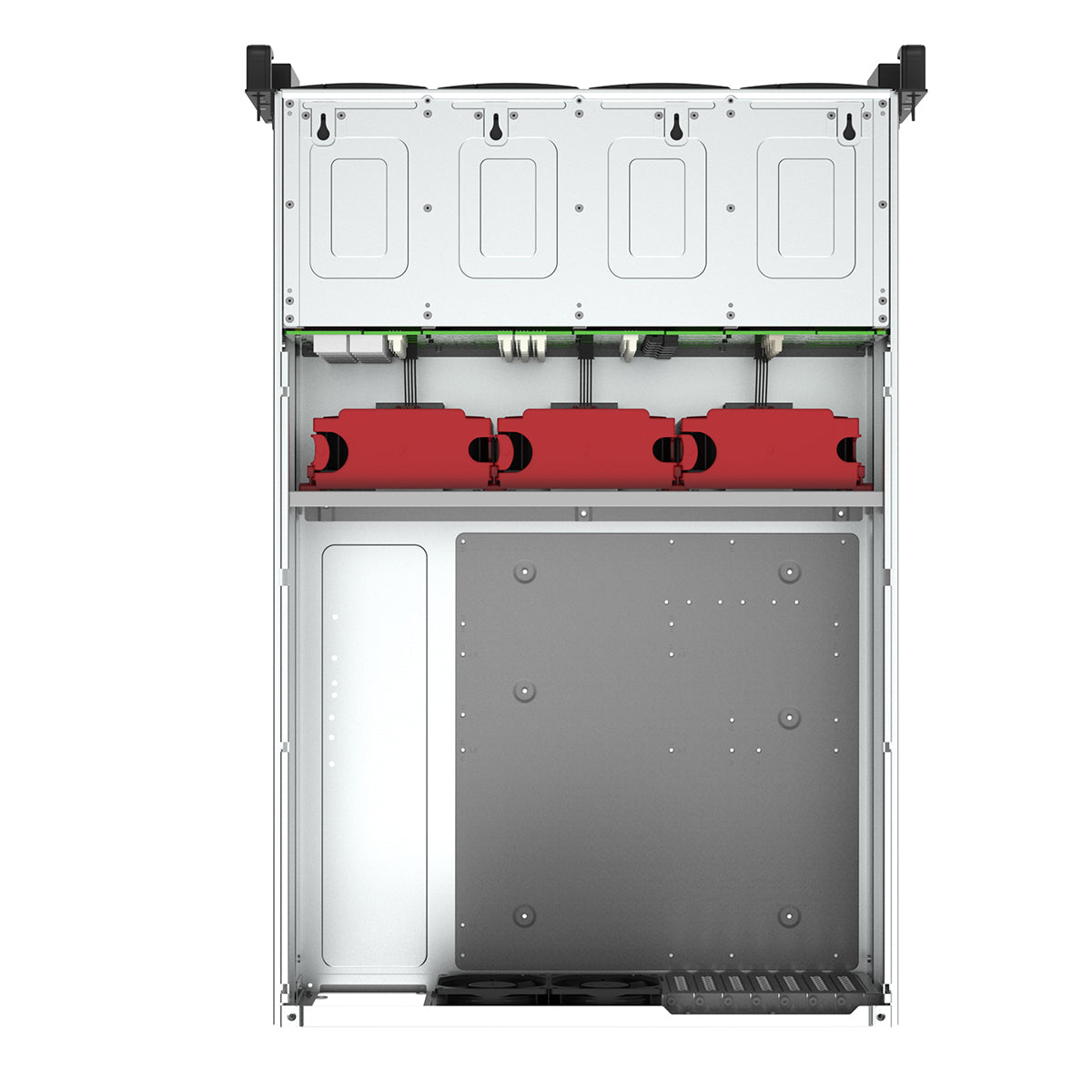

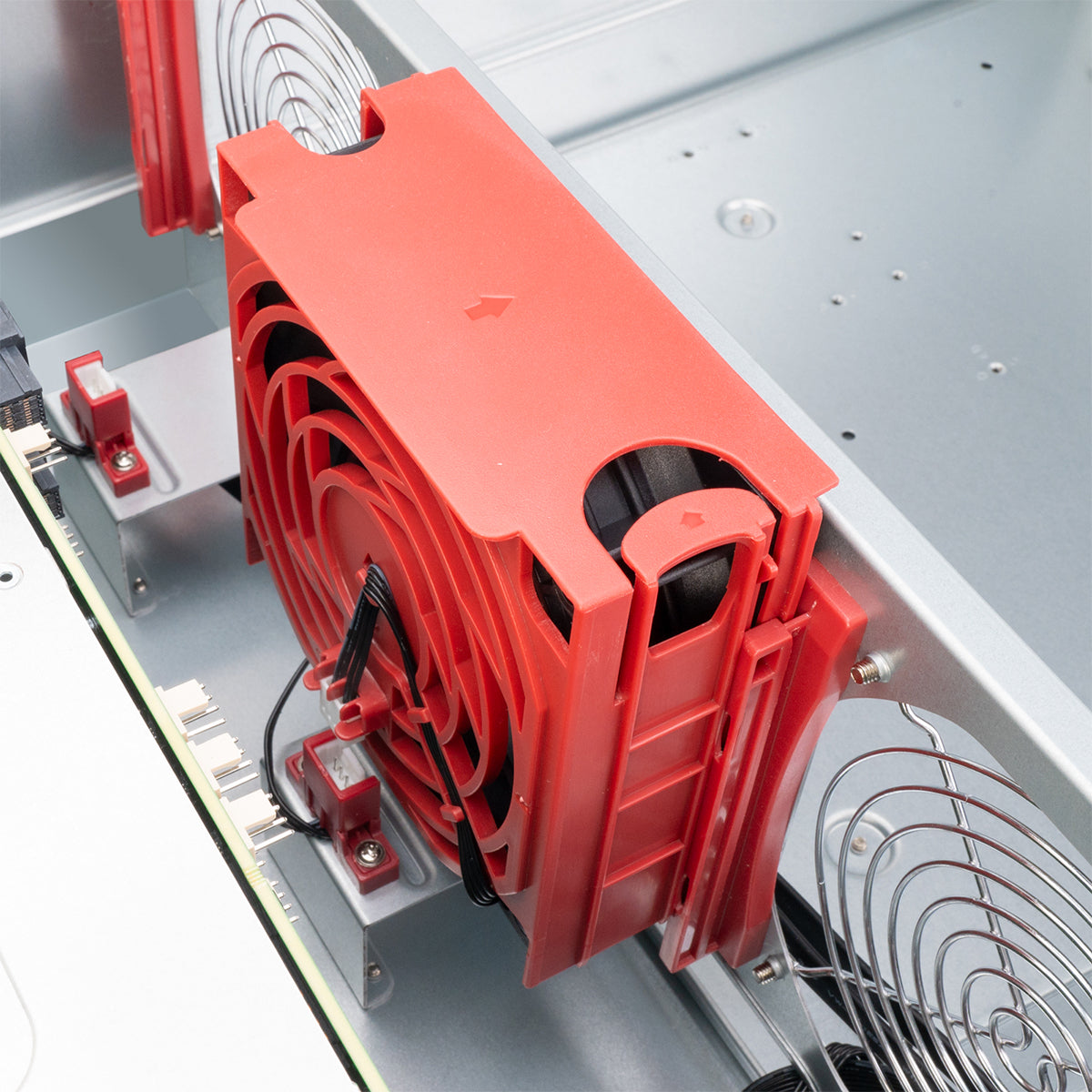

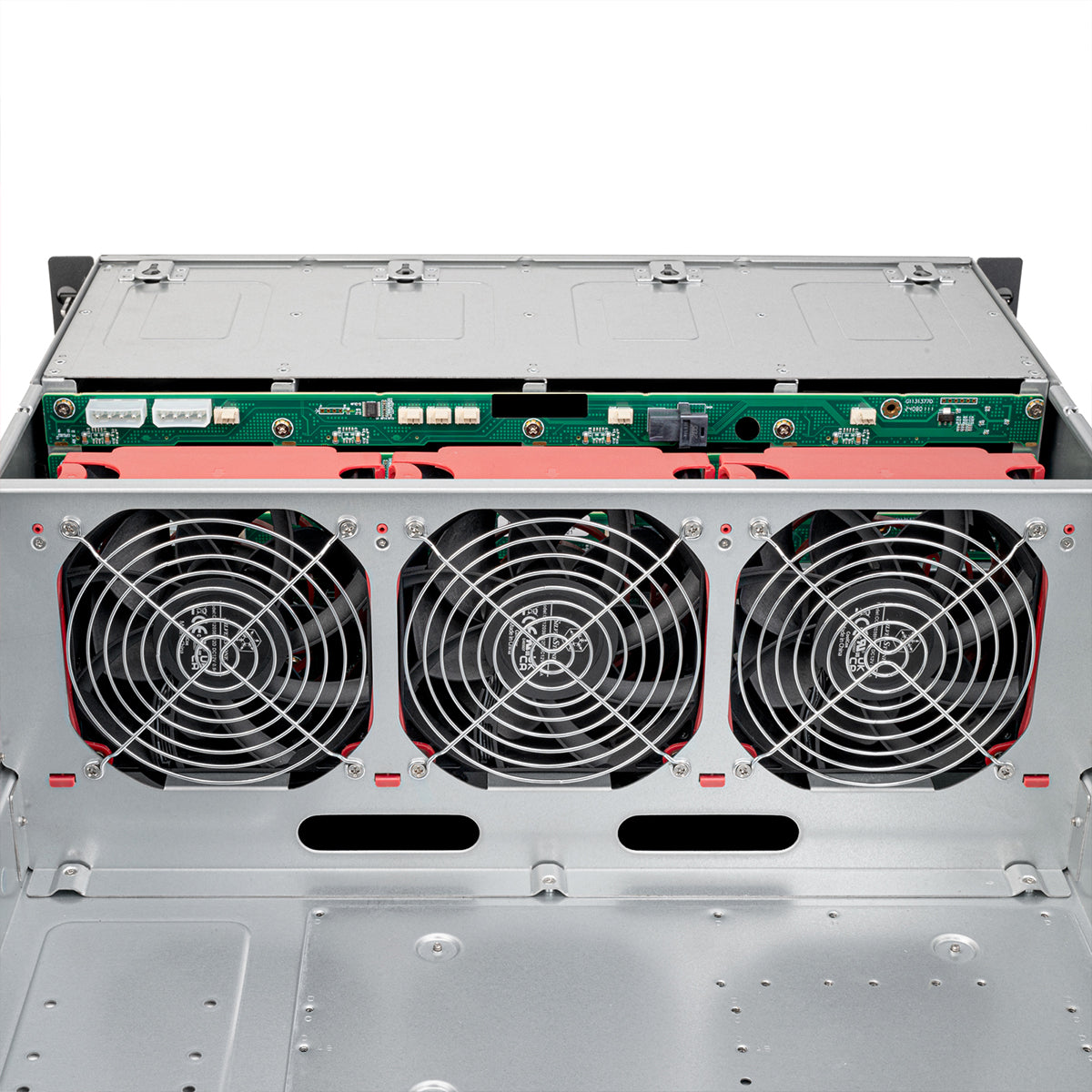

- Includes three 120mm x 38mm hot-swappable PWM fans
- Auto lock handle for convenient fixation of chassis into rack cabinet
- Supports ATX (PS2) / mini-redundant PSU/2U redundant[1]
- Supports E-ATX or SSI-EEB motherboards
- Supports 7 standard PCI / PCIe slots
- Independent drive status LED
Simple server rack integration
RM43-324-RS comes included with a sliding rail kit allowing the chassis to be fixated into server racks without extra purchase.
Specifications
Specifications
| Model No. | SST-RM43-324-RS |
| Chassis Form Factor | 4U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Main Metal Thickness | 1.0mm ~ 1.2mm |
| HDD Backplane | Backplane, 24 ports SAS / SATA to Mini-SAS HD SFF-8643 x 6 with SGPIO |
| Power Connector | 4-Pin peripheral x 12 |
| Interface | SAS III / II / I, SATA III / II / I |
| Drive Support | External 3.5" hot-swap x 24 |

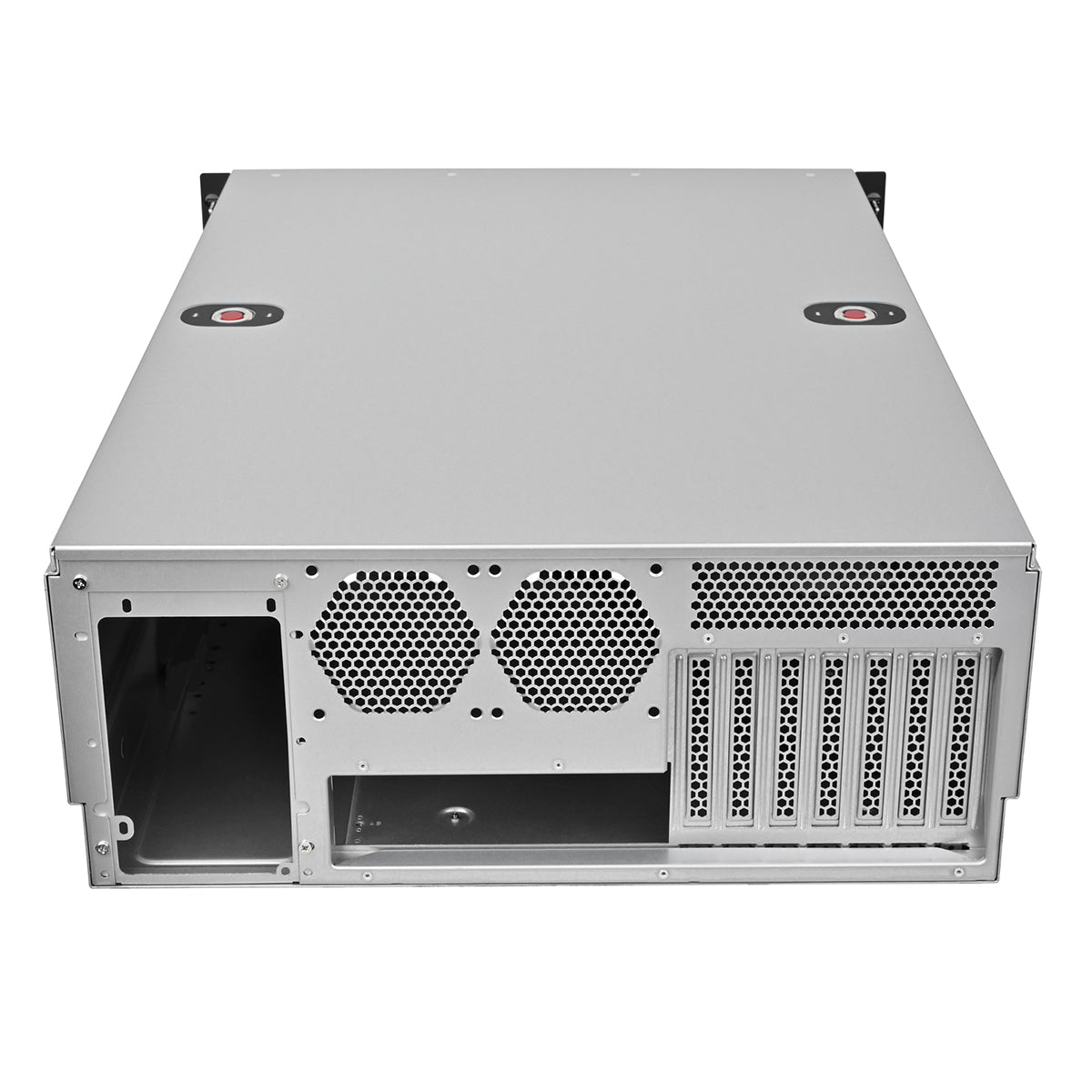

| Cooling System | Rear: 80mm x 2 fan slots Internal: Hot-swap 120 x 38mm PWM ball bearing fan x 3 |
| Limitation of CPU Cooler | 148mm |
| Expansion Slot | 7 |
| Limitation of Expansion Card | Length 345mm, Width 154mm |
| Power Supply | ATX (PS2) / Mini Redundant / 2U Redundant [1] |
| Max. Supported Weight | 16.8 kg |
| Front I/O Port | USB 3.1 Gen 1 Type-A x 2 [2] |
| Front Buttons | Power On / Off, System Reset |
| LED Indicators |
Chassis: Power LED x 1: Blue, HDD Access x 1: Green, LAN LED x 2: Green HDD Tray: HDD Power LED x 24: Yellow, HDD Access x 24: Blinking Green |
| Dimension | 442mm (W) x 175mm (H) x 660mm (D), 51.1 liters 17.4” (W) x 6.9” (H) x 26” (D), 51.1 liters |
| Extra | [1] Please ensure the mounting holes of your Mini Redundant PSU matches the mounting holes on the rear panel of RM43-324-RS. [2] RM43-324-RS’s USB internal cable is 800mm long, so for external enclosures, use shorter cables to prevent performance loss. |
| Rail Sliding | Max. supported weight: 80 kg Rack cabinet mounting hole distance (Min. ~ Max.): 663mm ~ 915mm ±3mm |
