Silverstone RM43-320-RS 4U 20-Bay Rackmount Storage Server Chassis
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Distinctive exterior

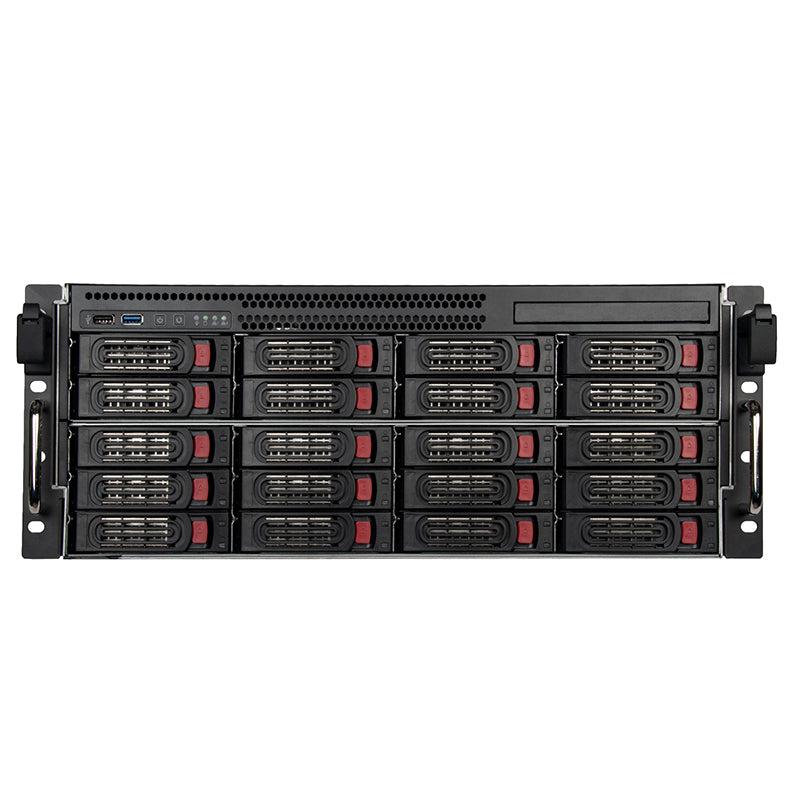

Distinctive front panel features 20 x hot-swappable 3.5" bays or 20 x hot-swappable 2.5" bays with handle bars allowing for easy accessibility to the internal components
Storage device performance
HDD backplane supports 20 ports SAS / SATA drives and 12Gb/s Mini-SAS HD SFF-8643 x 5 with SGPIO
Excellent cooling capabilities
Utilizing the typical front-to-back directional airflow, RM43-320-RS comes pre-installed with three 120mm x 38mm hot-swappable PWM fans, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Simple server rack integration
RM43-320-RS comes included with a sliding rail kit allowing the chassis to be fixated into server racks without extra purchase
RMS series rail slide compatibility (Learn More)
Specifications
Specifications
| Model No. | SST-RM43-320-RS |
| Chassis form factor | 4U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Main metal thickness | 1.0mm ~ 1.2mm |
| Drive Bay | External 3.5" hot-swap x 20 Slim optical drive x 1 (up to 12.7mm) Internal 2.5" x 2 (up to 15mm) |
| HDD backplane | 20 ports SAS / SATA to Mini-SAS HD SFF-8643 x 5 with SGPIO |
| Power connector on HDD backplane | 4-Pin peripheral x 10 |
| HDD Interface | SAS III / II / I, SATA III / II / I |
| Power Supply | ATX (PS2) / Mini Redundant* |
| Cooling system | Rear 80mm x 2 fan slots Internal Hot-swap 120 x 38mm PWM ball bearing fan x 3 |
| Limitation of CPU cooler | 148mm |
| Expansion Slot | Standard profile PCI / PCIe x 7 |
| Front I/O Port | USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1** |
| Front buttons | Power On / Off, system reset |
| LED Indicators | Chassis Power LED x 1: Blue HDD Access x 1: Green LAN LED x 2: Green HDD Tray HDD Power LED x 20: Yellow HDD Access x 20: Blinking green |
| Dimension | 442mm (W) x 175mm (H) x 660mm (D), 51.1 liters |
| Net Weight | 16.2 kg |
