Description
Description
Dual-purpose chassis - Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal placements.

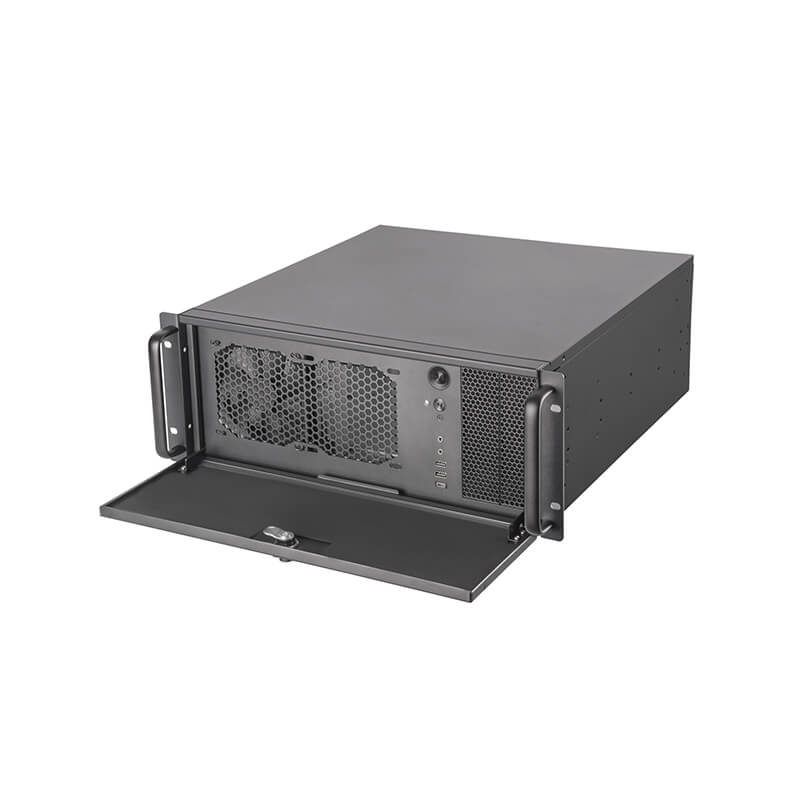

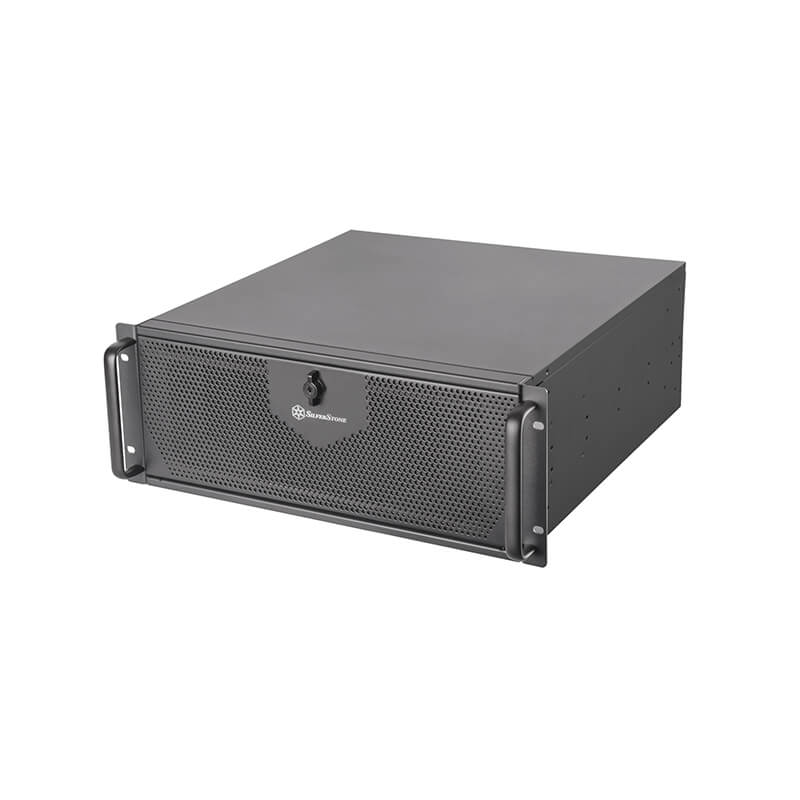

Distinctive exterior
Distinctive front panel features anti-theft lock design to provide additional security along with one USB Type-C interface.

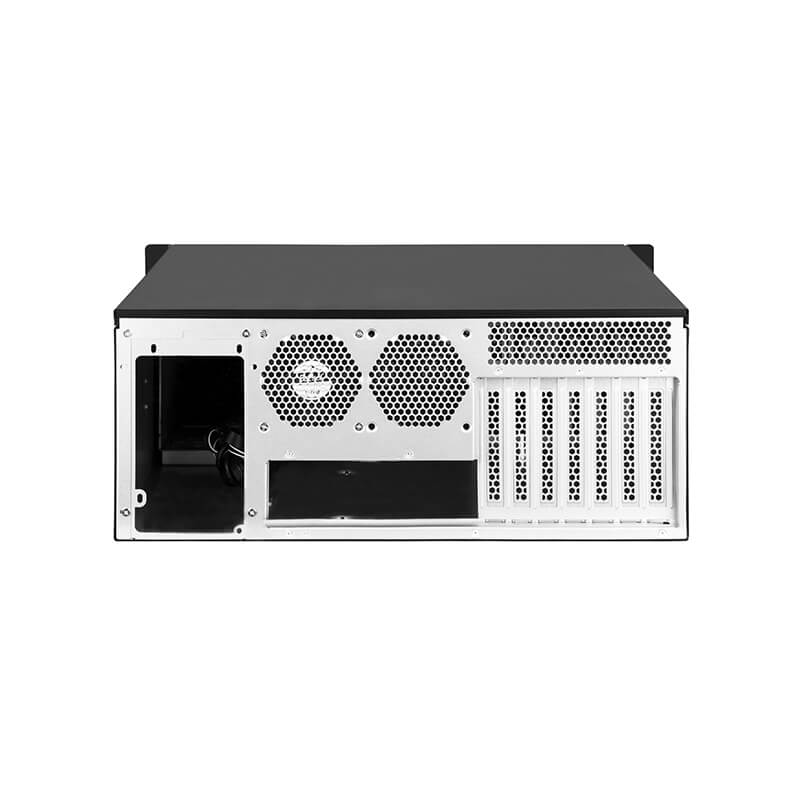

Cooling capabilities
RM42-502 comes pre-installed with 1 x 120mm fan at the front and 1 x 80mm fan at the rear achieving front-to-back directional airflow out of the box, and unlike most rackmounts cases on the market, RM42-502 supports up to 240mm liquid cooling radiators
Anti-sag prevention
To avoid any unforeseen damages to either the motherboard or the graphics card, RM42-502 comes with an expansion card retainer that keeps your graphics cards in place when moving and to prevent it from sagging
Storage bays
Offers users a wide range of hard drive options including support for two 5.25" drive bays directly compatible with 3.5" or 2.5" drives
Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with the RMS06-22 rail (sold separately)
RMS series rail slide compatibility (Learn More)
Specifications
Specifications
| Model No. | SST-RM42-502B (Black) |
| Chassis form factor | 4U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Material | Steel |
| Drive Bay | External 5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2) Internal 2.5" x 1 |
| Power Supply | PS2 (ATX) (PSU + optical drives / 5.25" devices = 442mm) / Mini Redundant 2U Redundant (V2.0 or after) |
| Cooling system | Front 120mm x 2 (120mm x 1 fan included) Rear 80mm x 2 (80mm x 1 fan included) Radiator support Front 120mm x 2 / 240mm x 1 |
| Limitation of CPU cooler | w/ GPU holder: 130mm w/o GPU holder: 148mm |
| Expansion card | Length w/ expansion card retainer: 337mm Length w/o expansion card retainer: 426mm Width w/ GPU holder: 116mm Width w/o GPU holder: 154mm |
| Expansion Slot | 7 |
| Front I/O Port | USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1 |
| LED Indicators | Power status x 1, HDD activity x 1 |
| Dimension | 430mm (W) x 176mm (H) x 468mm (D) |
| Net Weight | 9.9kg |
| Extra | Side switch for chassis intrusion security |
