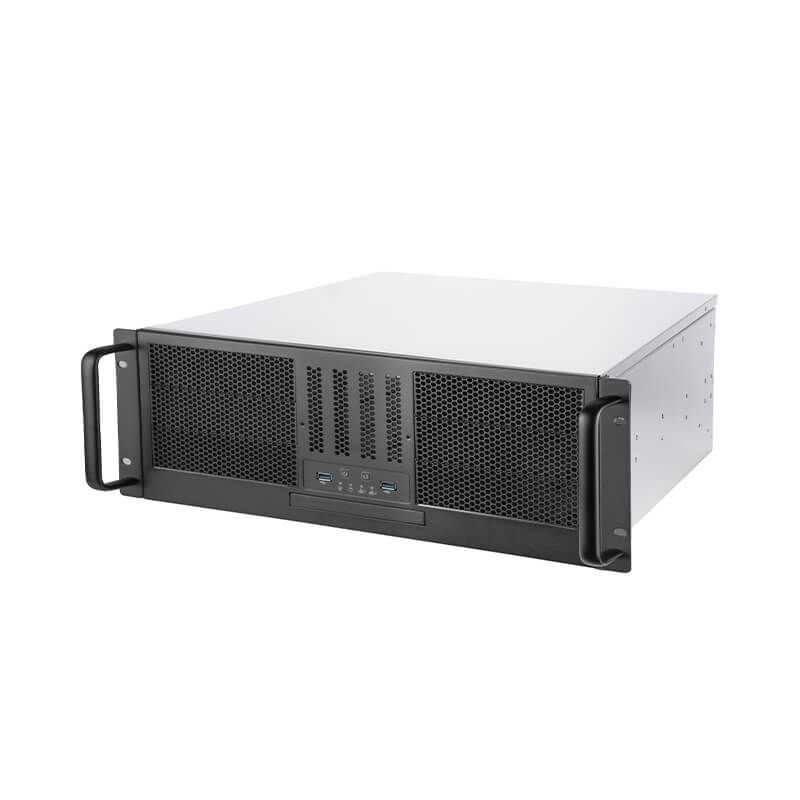

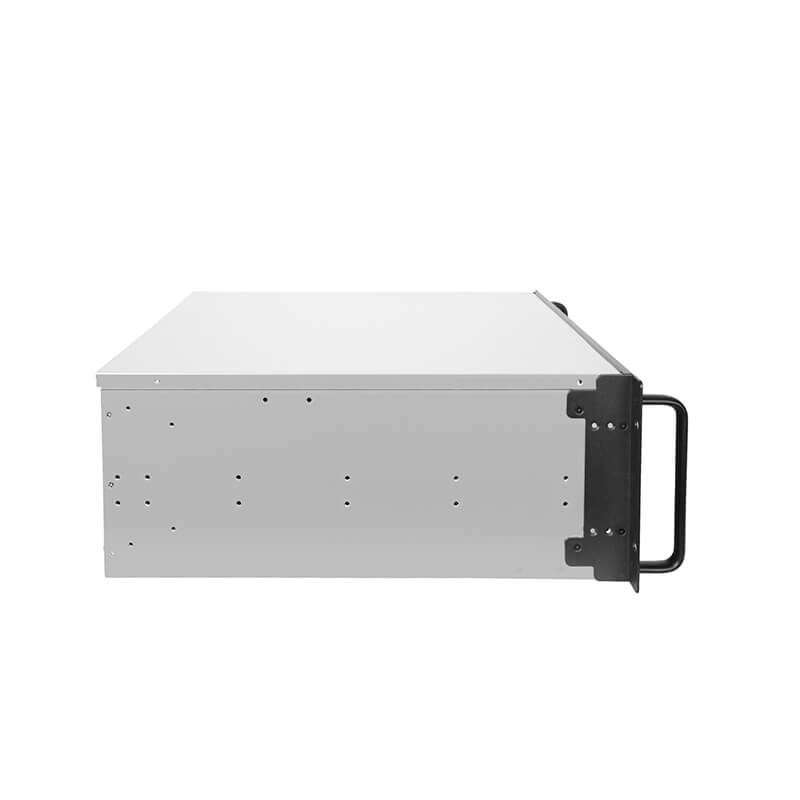

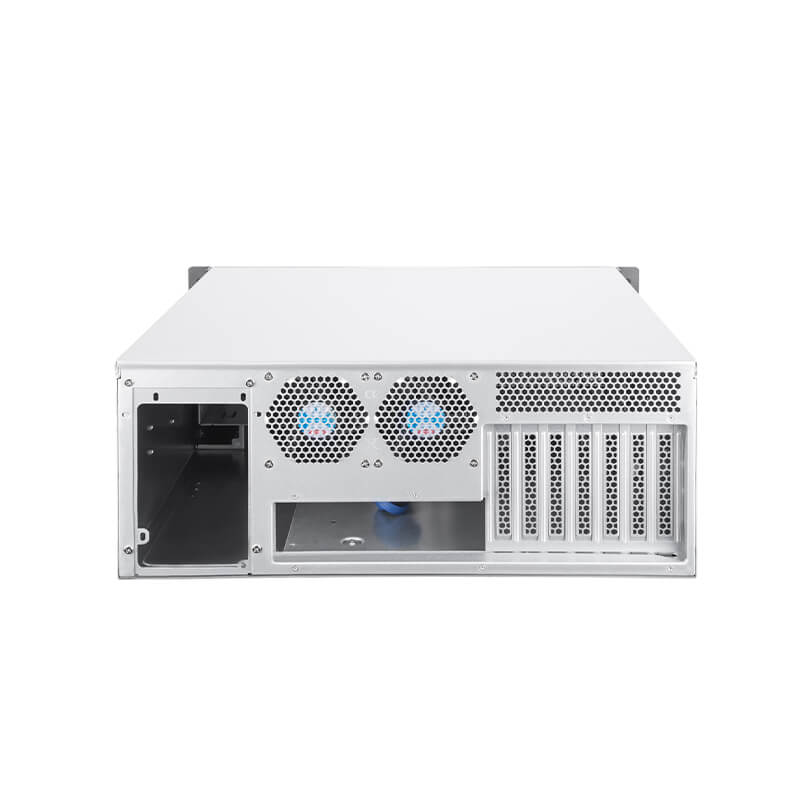

Silverstone RM41-506 4U 6-Bay 5.25” Rackmount Server Chassis
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

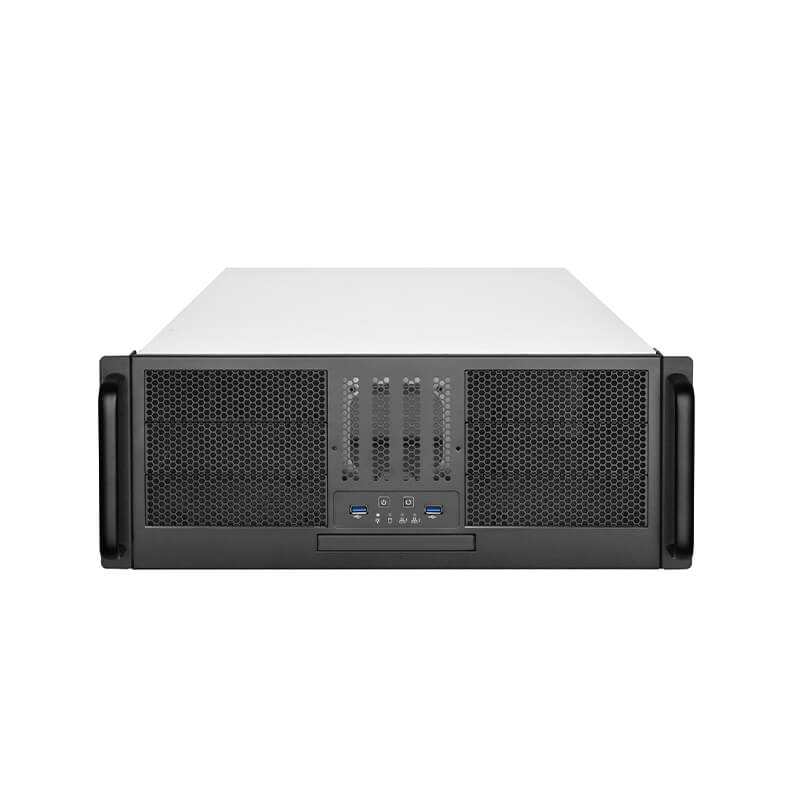

Distinctive exterior
Distinctive front panel features a handle design allowing for easy accessibility to the internal components, along with two USB 3.0 data transfer ports.
Storage device performance
Supports optional 5.25” storage devices: FS204, FP510, FS305, FS305-12G
Storage bays
Offers users a wide range of hard drive options including support for 5.25"/3.5"/2.5" hard drives and slim optical drives

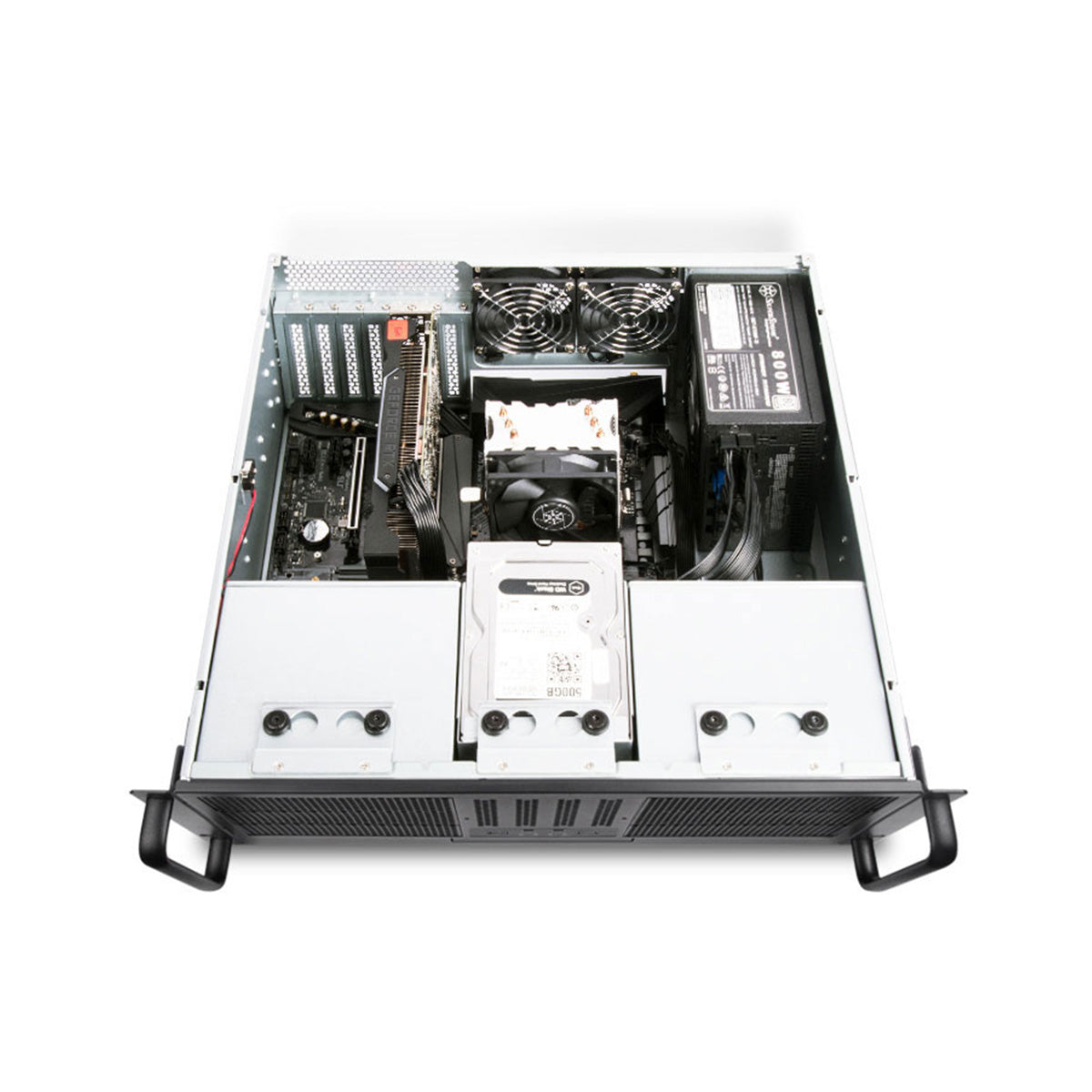

Internal configurations
- Length limitation: 7.87” (200mm)
- Supports ATX (PS2) / Mini Redundant
- Supports up to SSI-CEB (12" x 10.5") motherboards
Cooling capabilities
Utilizing the typical front-to-back directional airflow, RM41-506 comes pre-installed with two 80mm PWM fans for exhaust, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with the RMS06-22 rail
RMS series rail slide compatibility (Learn More)
Specifications
Specifications
| Model No. | SST-RM41-506 |
| Chassis form factor | 4U |
| Motherboard | CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
| Material | SGCC |
| Main metal thickness | 1.2mm |
| Drive Bay | External 5.25" drive bay x 6 Internal 4 x 3.5" 2 x 2.5” (up to 15mm) 1 x 2.5” (up to 15mm) or slim optical (12.7mm) |
| Power Supply | PS2 / ATX / Mini Redundant (supports up to 200mm) 2U Redundant (V2.0 or after) |
| Cooling system | Front 80 x 25mm fan x 1(fan not included) Rear 80 x 25mm fan x 2 |
| Limitation of CPU cooler | Height w/ expansion card retainer: 130mm Height w/o expansion card retainer: 148mm |
| Expansion card | Length w/ 5.25” drive cage: 278mm Length w/o 5.25” drive cage: 426mm |
| Expansion Slot | Standard profile PCI / PCIe x 7 |
| Front I/O Port | USB 3.1 Gen1 Type-A x 2 |
| Front buttons | Power On / Off, system reset |
| Indicators | Power status x 1, HDD activity x 1, LAN activity x 2 |
| Dimension | 430mm (W) x 176mm (H) x 446mm (D) |
| Net Weight | 9.7 kg |
