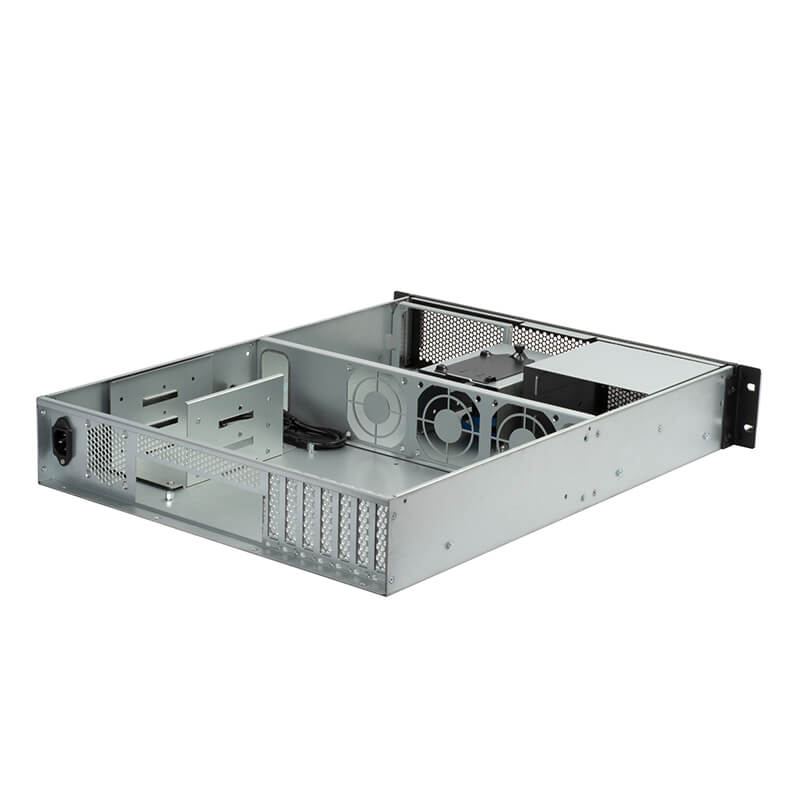

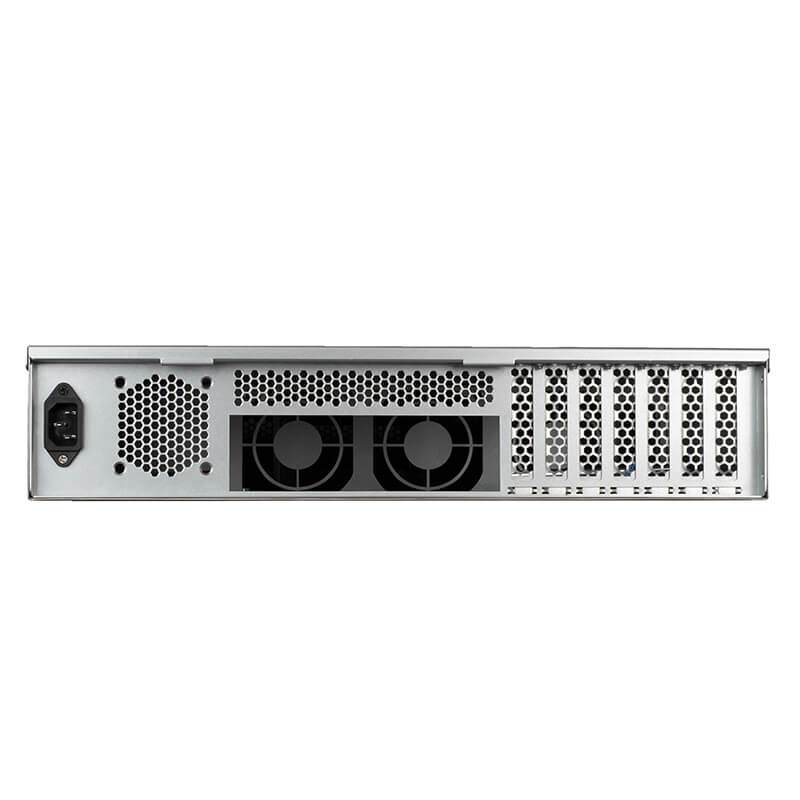

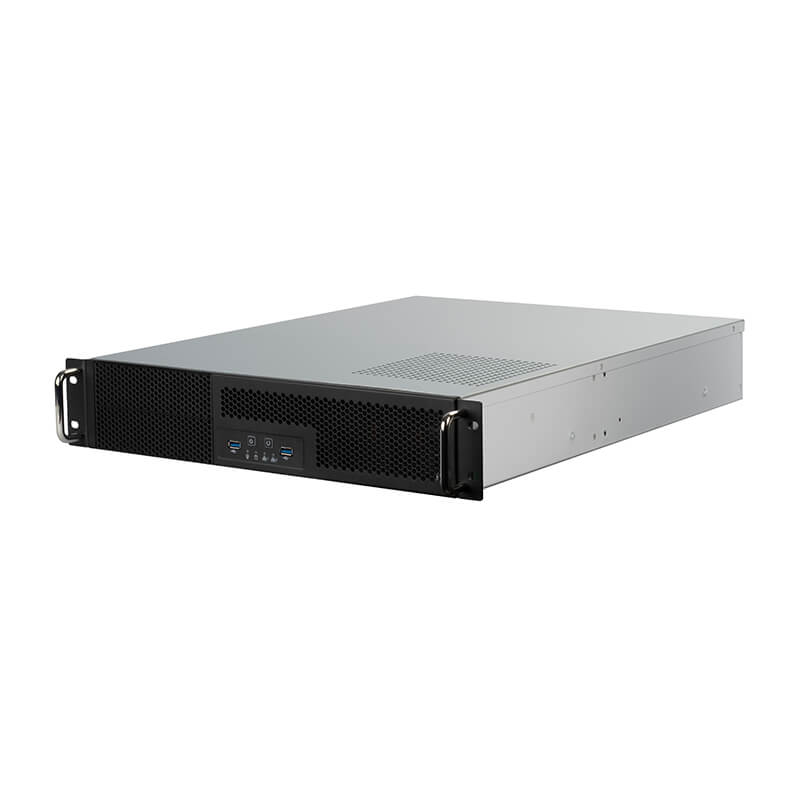

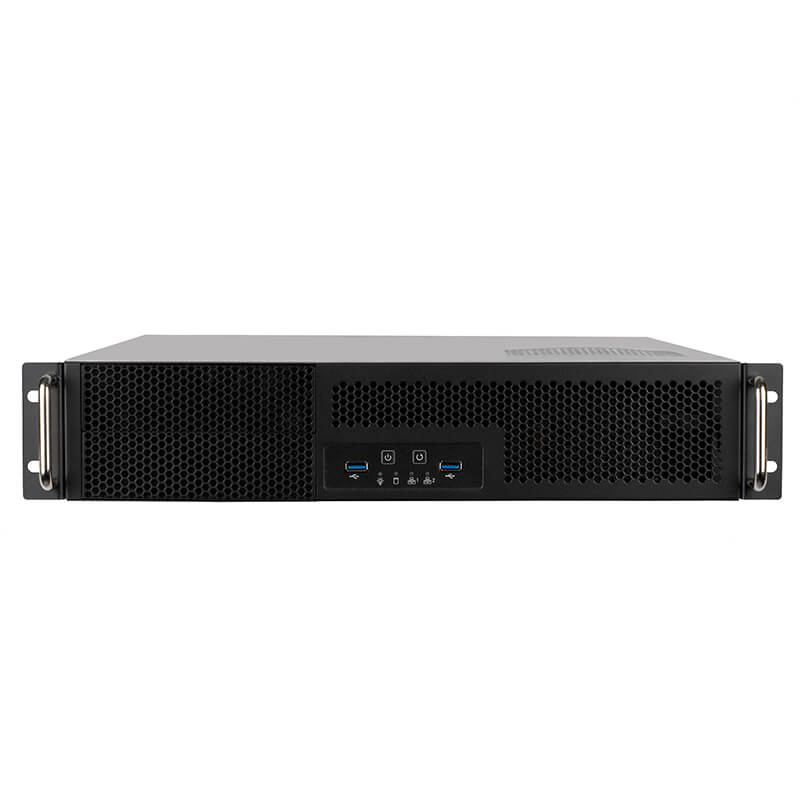

Silverstone RM23-502 2U Rackmount Chassis

Silverstone  |  SKU 37101  |  MPN SST-RM23-502
$199.00

In stock at Computer Lounge

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

RM23-502 2U Rackmount Chassis

  • Supports ATX power supplies of up to 180mm depth
  • Supports 1 x 2.5" SSD and up to 5 x 3.5" HDD
  • 5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
  •  Dual 5.25" expansion bay brings flexibility in installing 5.25" devices
  • Built-in fan bracket which supports up to three 80mm x 38mm fans
  • Supports up to ATX (12" x 9.6") motherboard
  • Supports 7 low profile expansion slots
  •  Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-24 rail (rail slide sold separately)
RMS series rail slide compatibility  (Learn More)

Specifications

del No.SST-RM23-502
Chassis form factor2U
MotherboardATX (12" x 9.6"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Main metal thickness1mm
Drive BayExternal 5.25" x 2
Internal 3.5" x 5
2.5" x 1
Power SupplyStandard PS2 (ATX), supports up to 180mm long
Cooling systemFront 80mm x 3
Rear 60mm x 1
Limitation of CPU cooler65mm
Expansion SlotLow profile x 7
Front I/O PortUSB 3.1 Gen 1 Type-A x 2 *
Front buttonsPower On / Off, system reset
IndicatorsPower status x 1
HDD activity x 1
LAN activity x 2
Dimension430mm (W) x 88.5mm (H) x 580mm (D), 22.07 Liters
Net Weight6.8 kg
