Silverstone DA850R-GMA 850W Fully Modular 80Plus Gold Power Supply - White
ATX 3.0 PCIe Gen 5 12V-2x6 Connector
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
DA850R Gold
80 PLUS Gold 850W ATX 3.0 & PCIe 5.0 Fully Modular Power Supply
- 80 PLUS Gold efficiency certification
- Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- 24/7 continuous power output with 50℃operating temperature

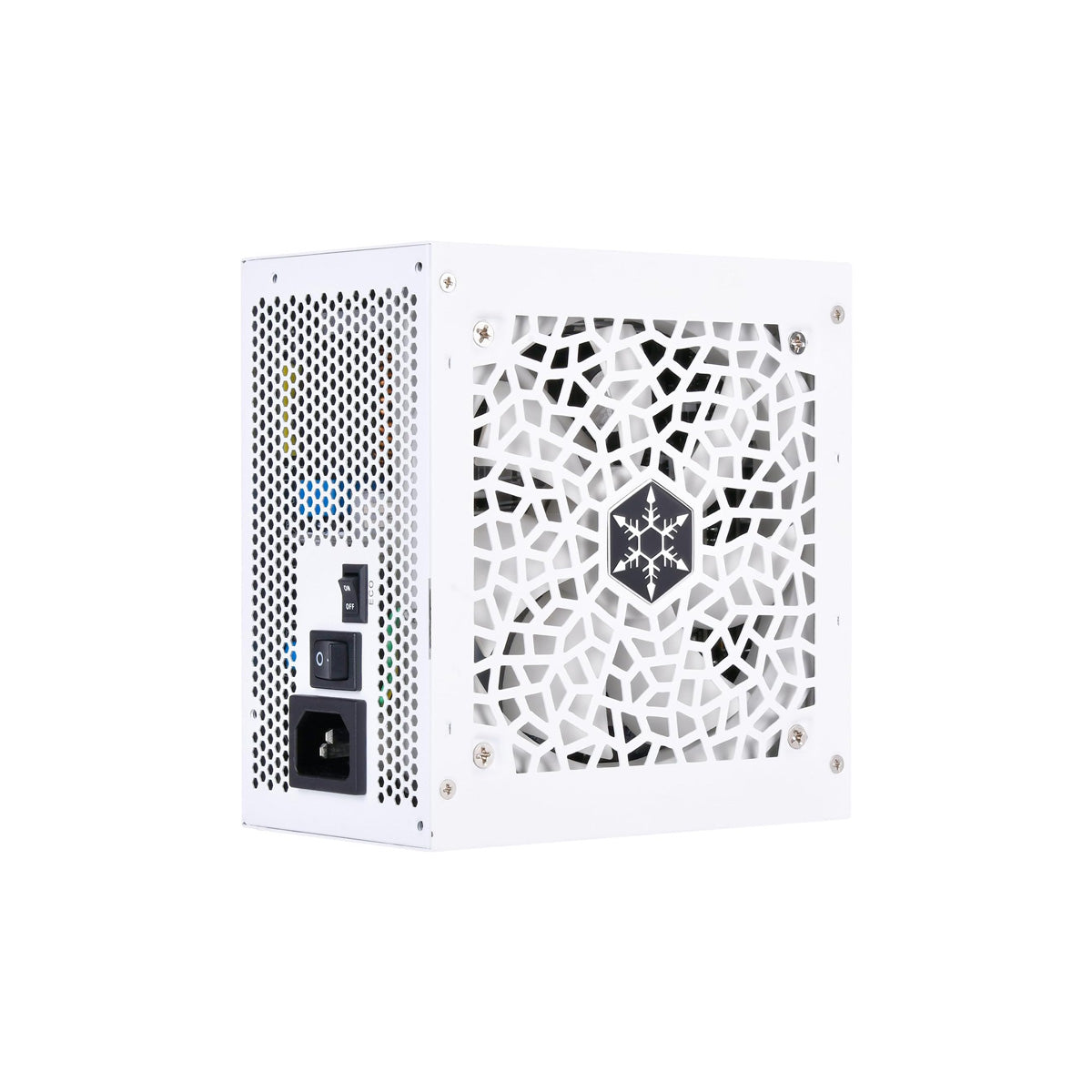

- Silent running 120mm fan with advanced semi-fanless operation
- Compact design with a 140mm depth for easy integration
12V-2x6 PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12V-2x6) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems
- Specially designed cover designed to effectively dissipate the residual heat
- Flat cables have much greater flexibility to allow for tighter folding and management of cables
- Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
- Silent running 120mm fan with advanced semi-fanless operation
- Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications
Specifications
| Product No. | SST-DA850R-GMA-WWW (White)
SST-DA850R-GMA (Black) |
| Model (safety certification) | SST-AX0850MCGD-D |
| Color | White (lead-free paint) Black (lead-free paint) |
| Max. DC Output | 850W |
| Power density | 471W/L |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 850W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | ≥87% & <89% |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection |

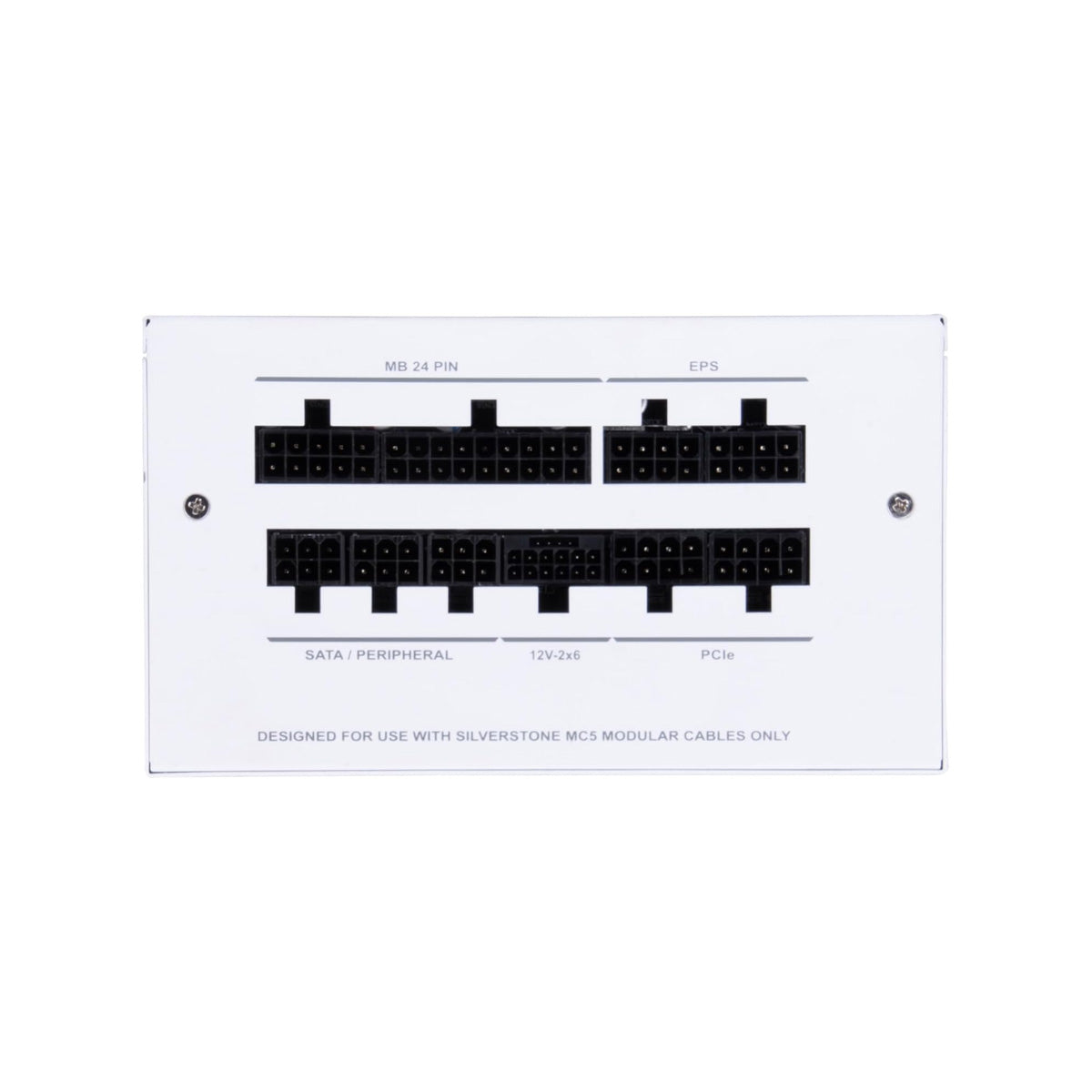

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12V-2x6 connector 8 x SATA connectors 4 x 4-Pin Peripheral connector ※ DA850R-GMA/ DA850R-GMA-WWW is not compatible with PP05-E and PP06 cables. |
| Cooling System | Silent 120mm fan |
| Noise Level | 0 dBA minimum |
| Certification | 80 PLUS Gold |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 140mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 2.13 kg |

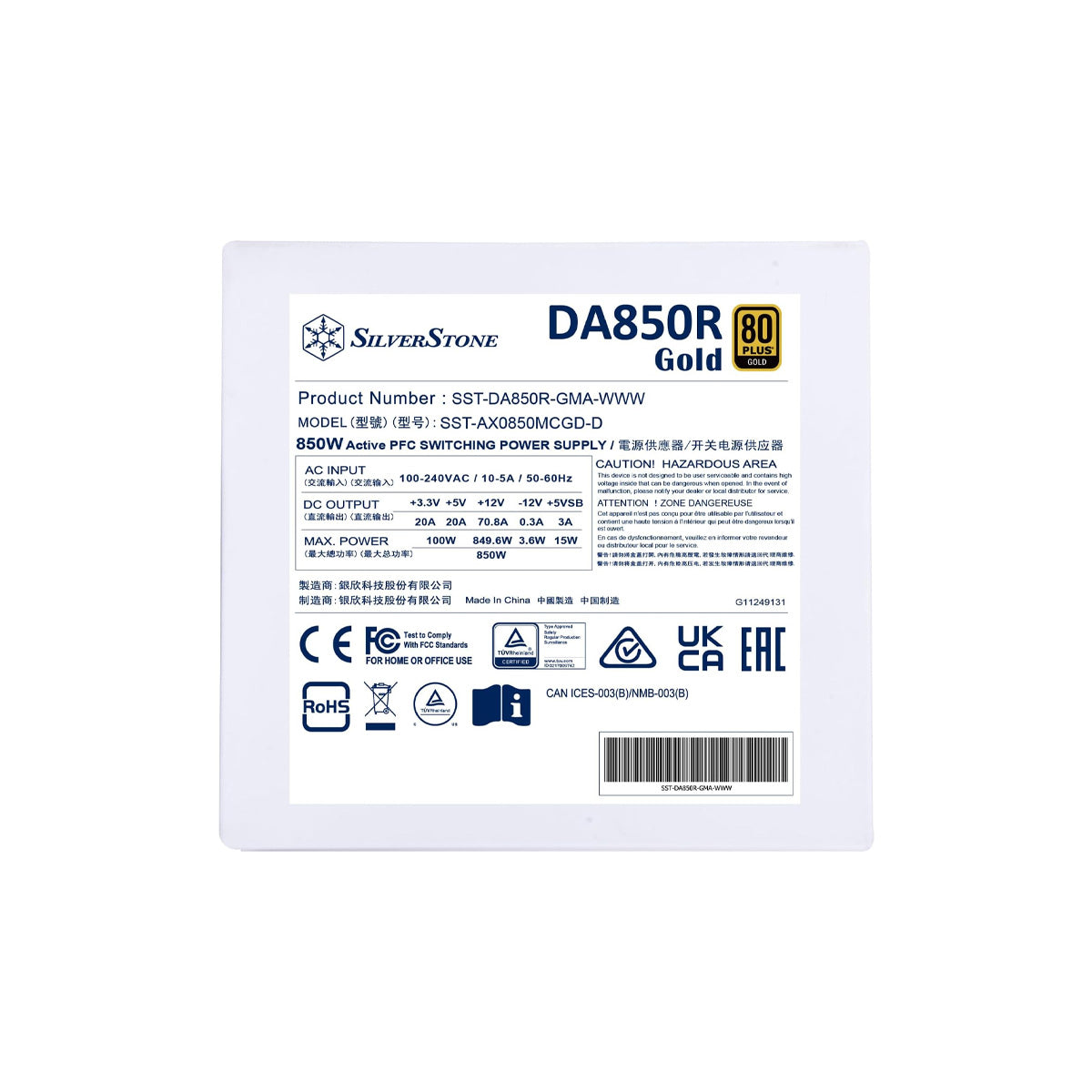

| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max. (Amps) | 20A | 20A | 70.8A | 3A | 0.3A |
| Min. (Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | +5%-7% | ±5% | ±8% |
| Line Reg. (%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple (mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
