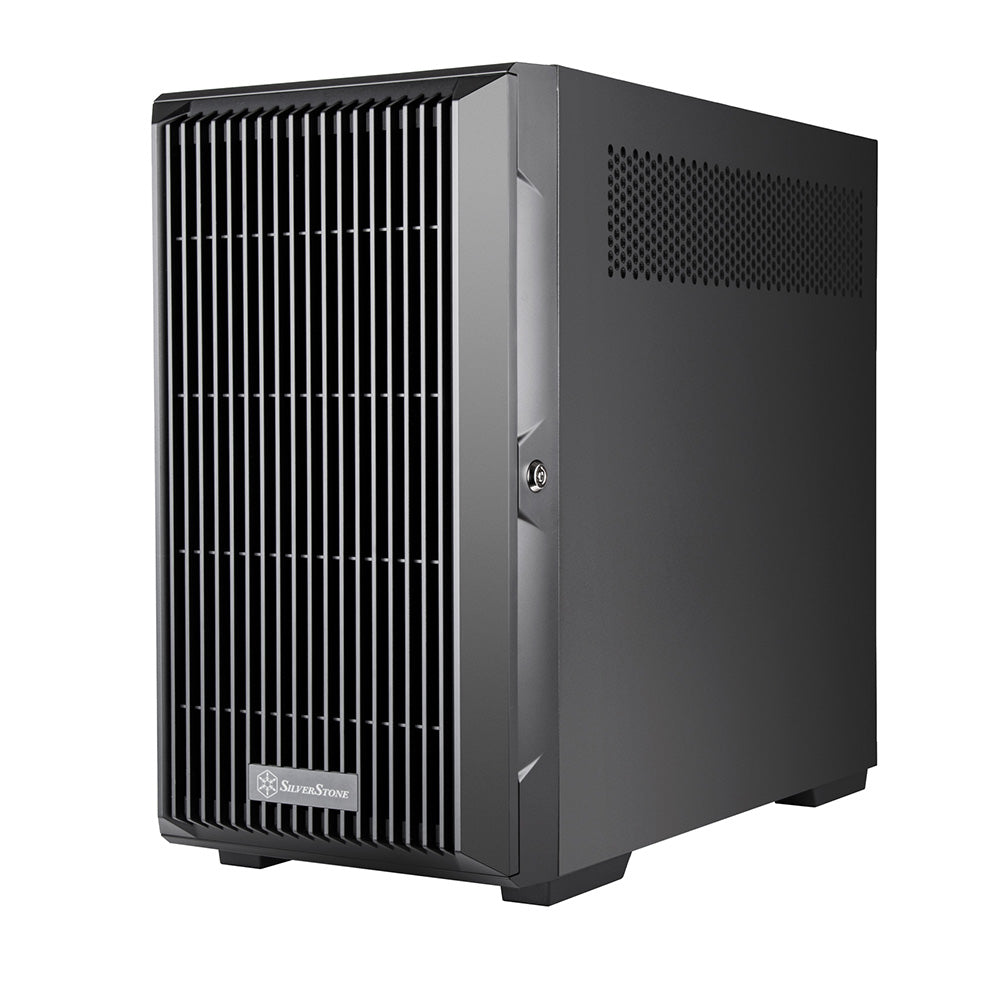

Silverstone CS382 8-Bay Hot-swappable mATX NAS Case
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Hot-swappable drive trays
Support up to eight 2.5” or 3.5” SAS-12G / SATA-6G drives with two LED indicators for displaying drive status.
Liquid cooling compatible
The top of the case can accommodate either a 240mm or 280mm liquid cooling radiator, achieving excellent CPU thermal performance in a NAS/storage environment.
Confidential information security
In an era where data is considered gold, CS382 has an individual lock included on the front panel door to deter theft or unauthorized removal of drives effectively. This feature gives users an additional sense of security and peace of mind.
Prodigious accommodation
CS382 offers users a wide array of hardware options that includes support for 3.5” or 2.5” drives in SATA or SAS format, high-end graphics cards, and RAID cards.
Key Features:
- 8 hot-swappable drive trays to accommodate up to 2.5" or 3.5" SAS-12G / SATA-6G drives with two LED indicators for displaying drive operation status
- Supports Micro-ATX motherboard and ATX (PS2) power supply
- Compatible with 240 or 280mm liquid cooling radiators
- Supports 1 x 9.5mm slim ODD
- Support for a total of 11 drives
- Dust filters included in key areas
- Front I/O includes: 1 x USB Type-C, 2 x USB 3.0 & 1 x combo audio
Specifications
Specifications
```html
| Model No. | SST-CS382 |
| Material | Plastic front door, galvanized steel body |
| Motherboard | Micro-ATX, Mini-DTX, Mini-ITX |
| HDD | backplane 8 port x SAS 12Gbit/s* / SATA 6Gbit/s interface SATA drive up to 6 Gbit/s (depends on drive speed) SAS drive up to 12 Gbit/s (depends on drive speed) Power connector on backplane 4 pin peripheral x 2, 15 pin SATA x 2 |
| Drive bay | External 2.5” / 3.5” SAS / SATA external hot-swapping x 8 5.25” x 1 9.5mm slim optical drive x 1 Internal 3.5” x 1 2.5” x 2 |
| Cooling system | Rear 120mm x 1 Top 120mm / 140mm x 2 (optional) Internal 92mm x 2 Radiator support Rear 120mm x 1 Top 120mm / 140mm / 240mm / 280mm x 1** |
| Limitation of CPU cooler | 168mm |
| Expansion slot | 5 |
| Limitation of expansion card | 369mm, width restriction –6.85" (174mm)** |
| Power supply | Standard ATX (PS2) (optional) Limitation of PSU 180mm |
| Front I/O port | USB Type-C x 1 USB 3.0 x 2 Combo audio x 1 |
| LED Indicators | Chassis Power ON: White Accessing: White blinking HDD Tray HDD Power LED: Green HDD Access : Blue blinking |
| Dimension | 217mm (W) x 405mm (H) x 451mm (D), 39.64 Liters 8.54” (W) x 15.94” (H) x 17.76” (D), 39.64 Liters |
| Net weight | 7.3 kg |
