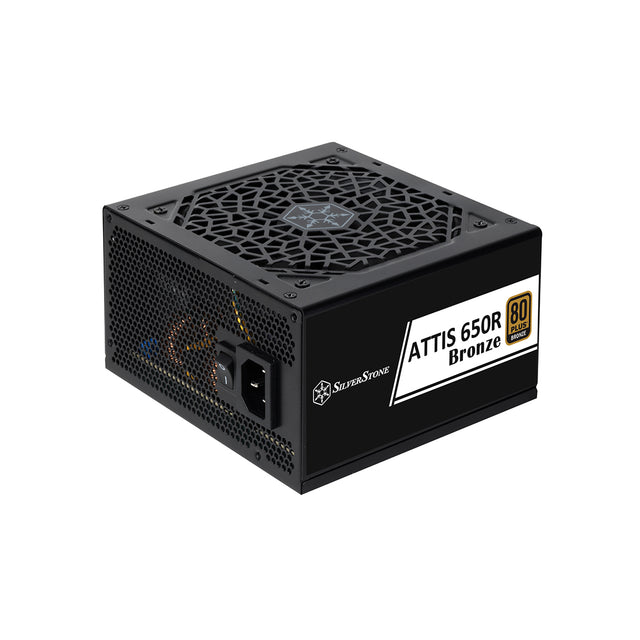

Silverstone AT650R 650W 80Plus Bronze Power Supply

Silverstone  |  SKU 70902  |  MPN SST-AT650R-BF
$115.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Support Standard SFX Form Factor

  • Compliant with ATX 3.1 standards and supports up to 2X power excursion
  • High efficiency with 80 PLUS Bronze certification
  • 24/7 continuous power output with 50℃ operating temperature
  • Japanese primary capacitor
  • Silent running 120mm fan with 18 dBA minimum
  • Multiple protection circuitry
  • Flat cable design
  • Active PFC+Double forward+DC to DC Design

Features

  • Designed for 80 Plus Bronze level efficiency to minimize heat while considerably reducing electricity consumption.
  • The cooling is entrusted to a 120mm fan that offers exceptional airflow and low operational-induced noise level.
  • Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
  • Flat cables have much greater flexibility to allow for tighter folding and management of cables.

Specifications

Product No. SST-AT650R-BF (Black)
SST-AT650R-BF-WBW (White)
Model (safety certification) SST-AX0650FCBR-A
Color SST-AT650R-BF: Black (lead-free paint)
SST-AT650R-BF-WBW: White (lead-free paint)
Max. DC Output 650W
Load Range Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 54.1A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5~-7% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 50mV
Combined +3.3V & +5V 100W
Combined +12V 649.2W
Input Voltage 90 ~ 264 Vrms
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.9 at full load)
Efficiency 82% ~ 85% (at 20% ~ 100% loading)
MTBF 100,000 hours
Operating temperature 0°C ~ 50°C
Protection Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Connectors 1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connectors
4 x 8 / 6-Pin PCIe connectors
6 x SATA connectors
3 x 4-Pin Peripheral connector
Cooling System Silent 120mm fan
Noise Level 18 dBA minimum
Certification 80 PLUS Bronze
Form factor ATX (PS2)
Dimension 150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.5" (D)
Weight 1.52 kg
Other GPU Support list
