Description
Description
AR09-1700

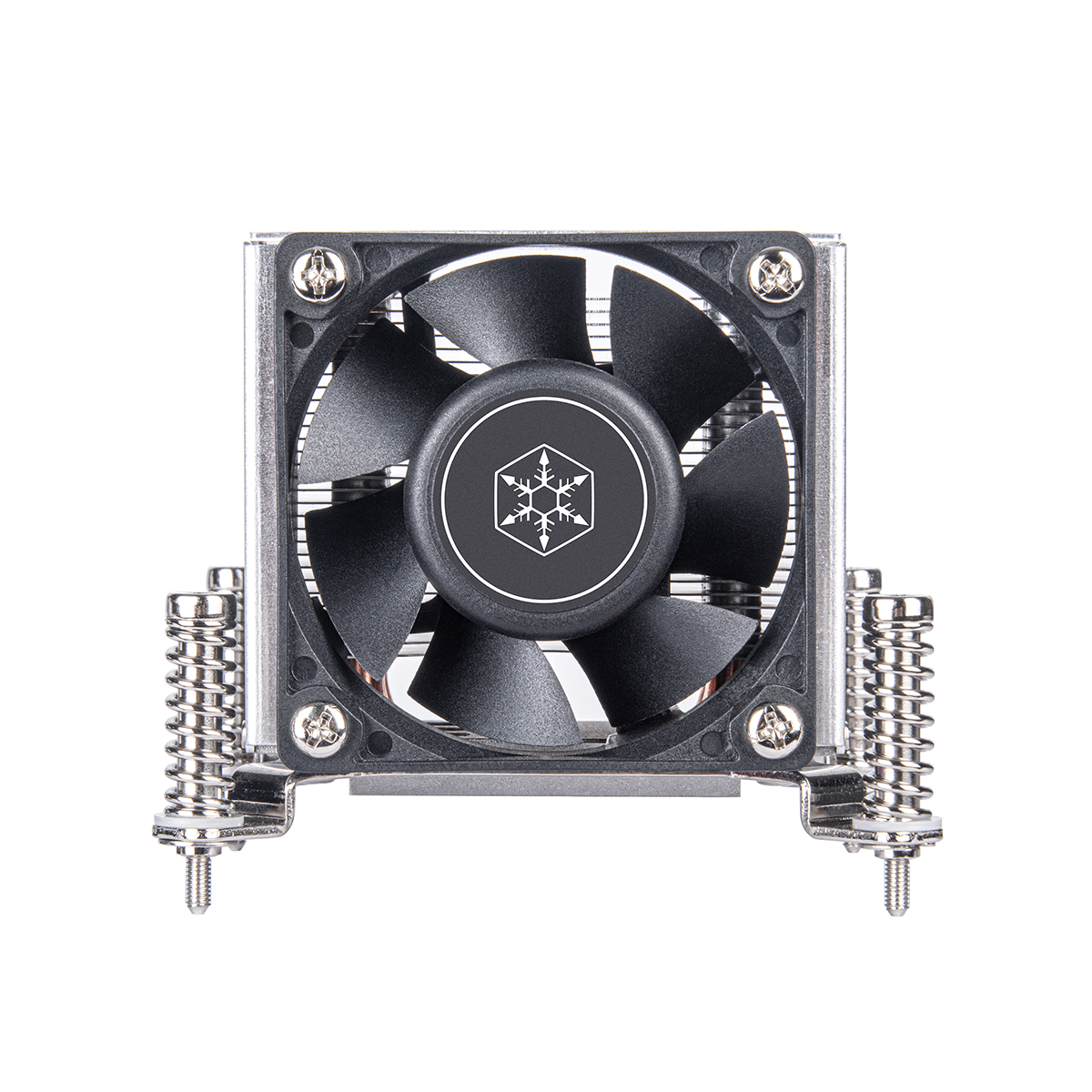

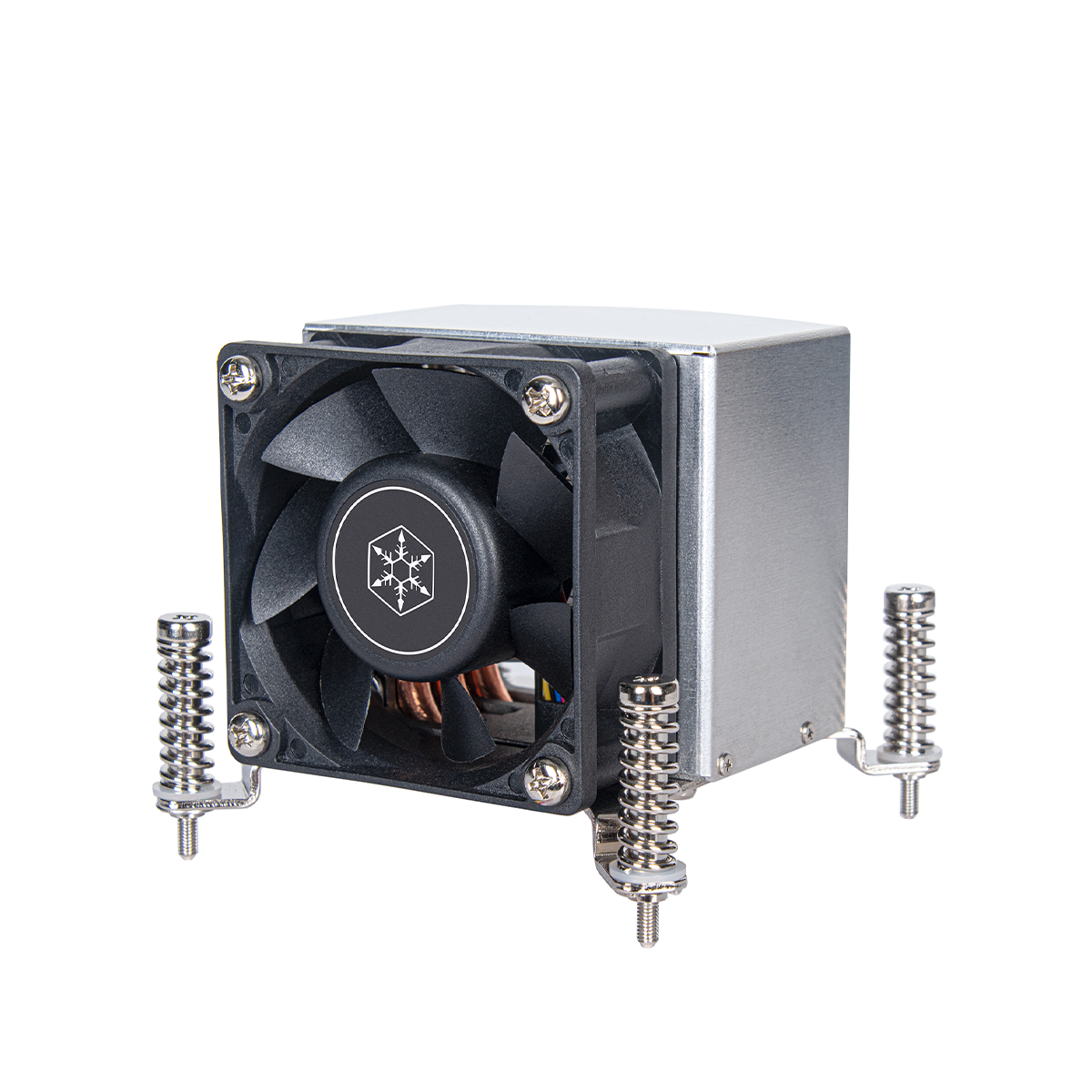

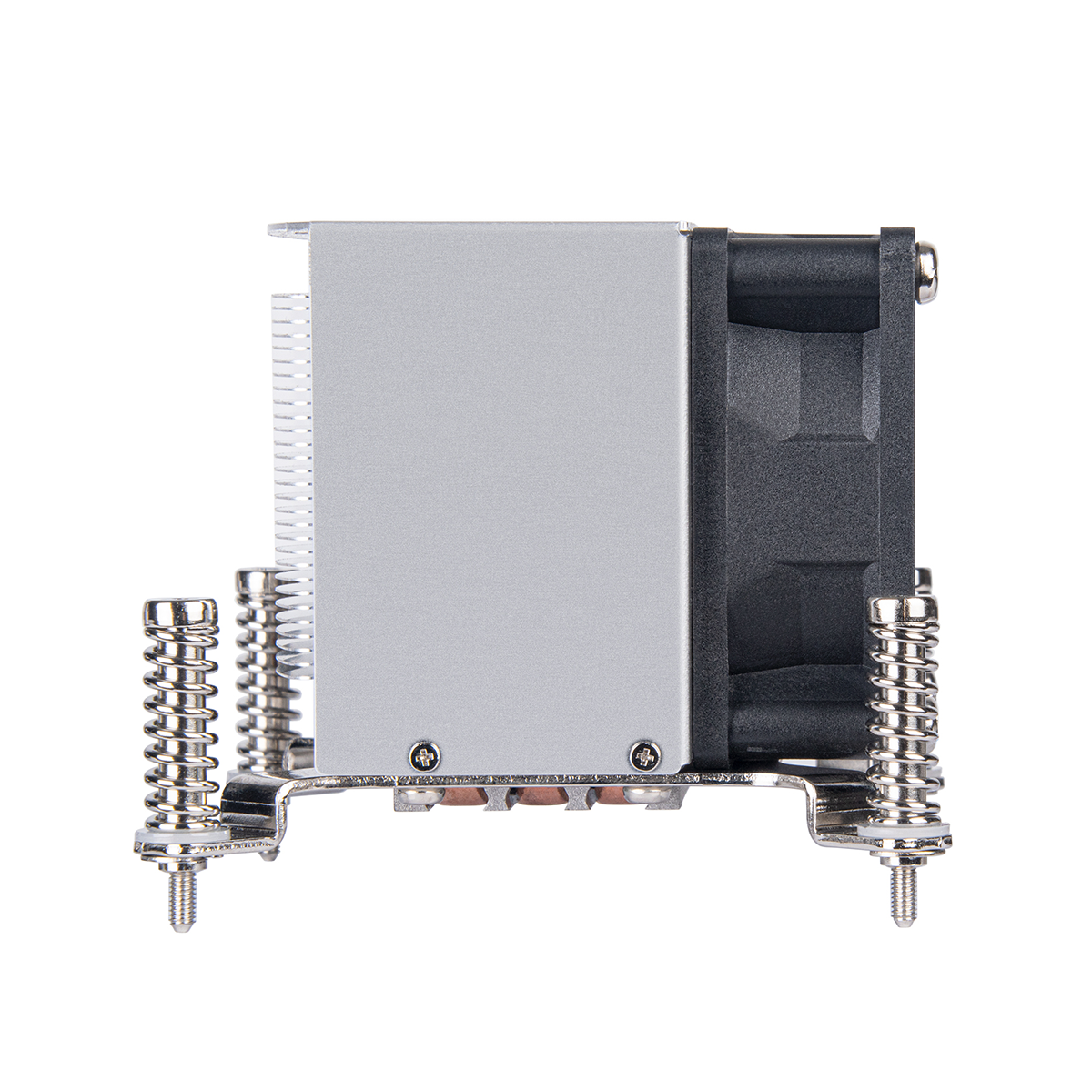

Superior 2U server thermal solution for Intel LGA1700
-

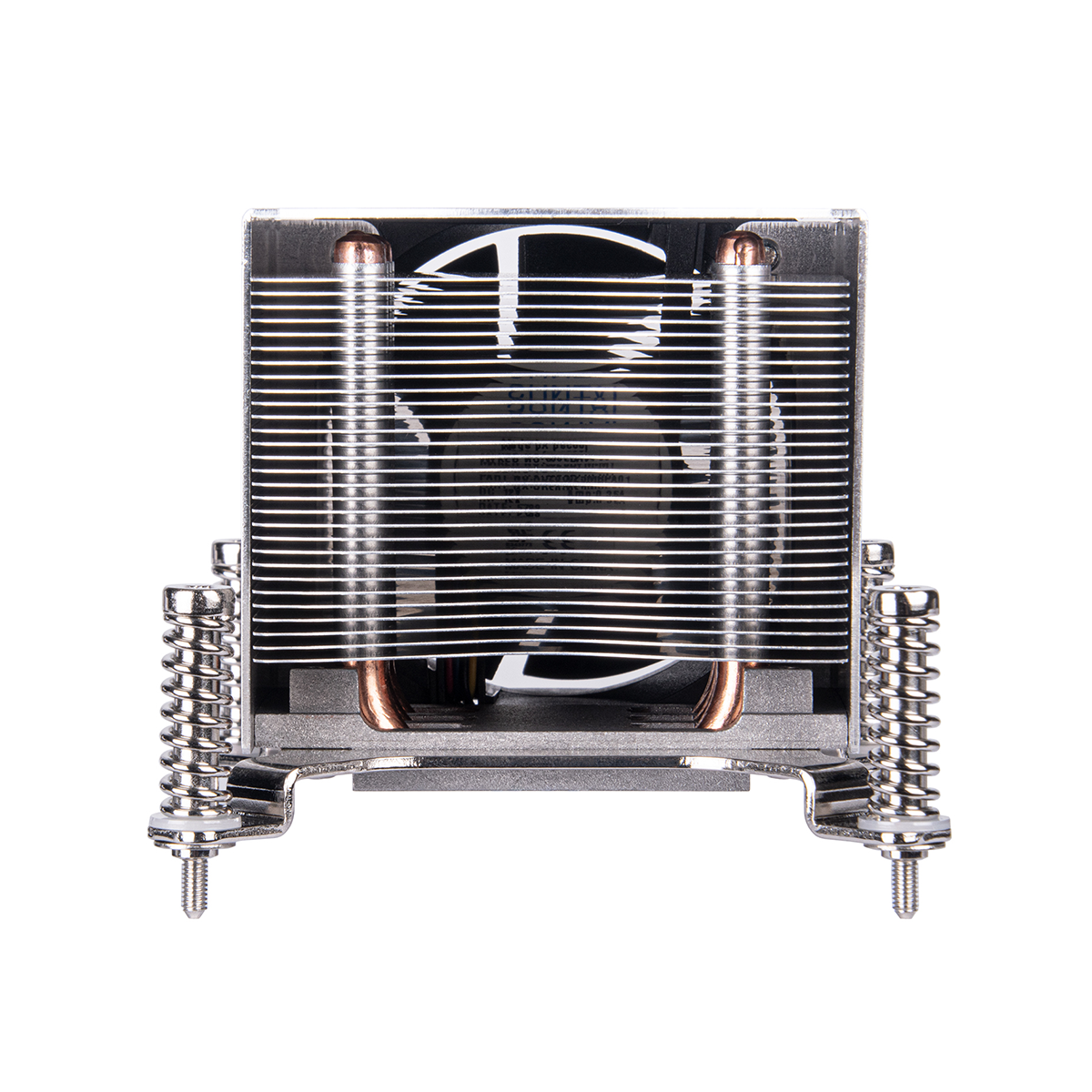

3 x Ø6mm heat-pipes and aluminum fins for excellent heat conducting efficiency
-

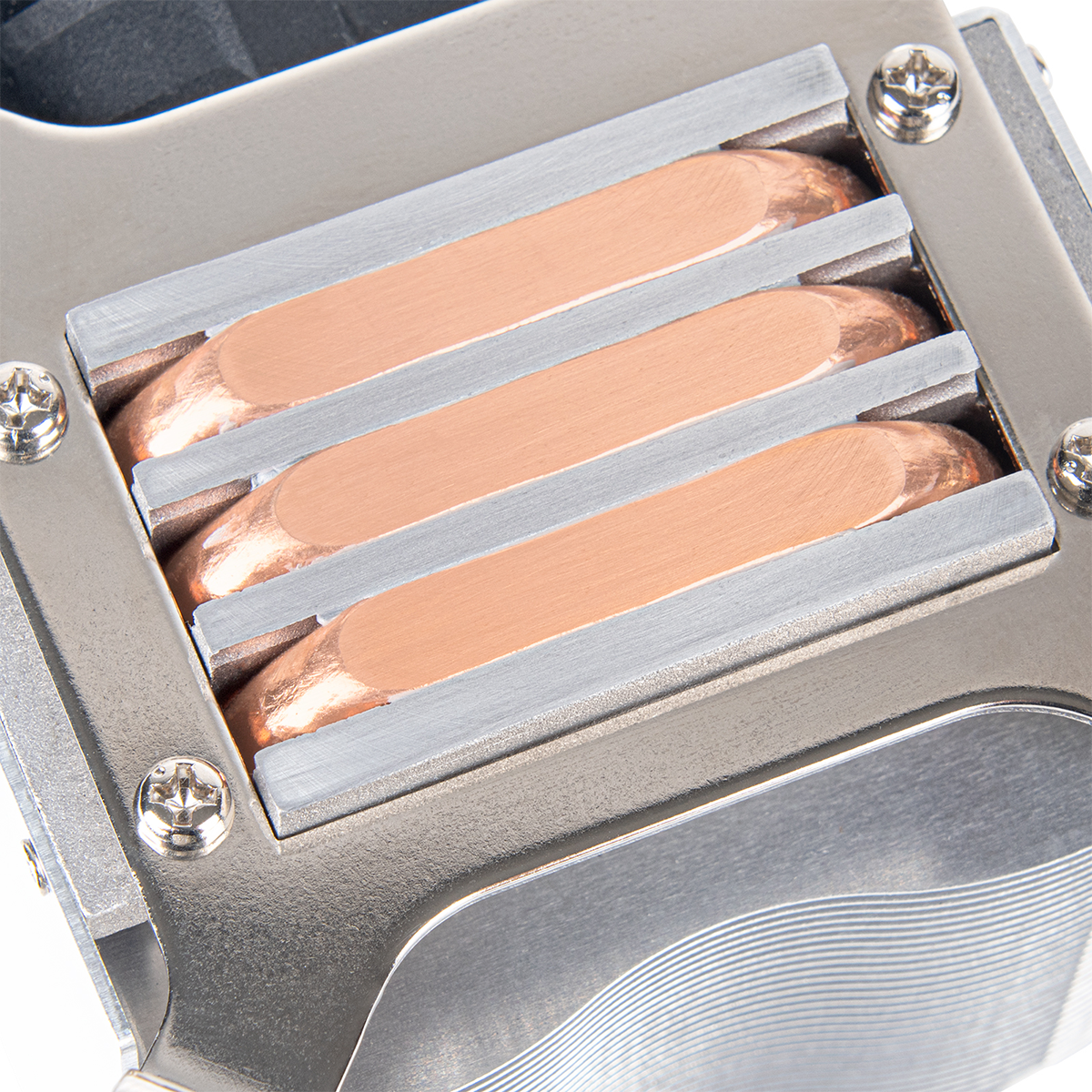

Heat-pipe direct contact (HDC) technology
-
Includes spring screw mounting bracket and backplate
-
60mm dual ball bearing PWM fan
-
Compatible with Intel LGA1700 socket
Specifications
Specifications
| Model No. | SST-AR09-1700 |
| Material | Copper heat pipes with aluminum fins |
| Application | Intel LGA1700 |
| Fan Dimension | 60mm (W) x 25mm (H) x 60mm (D) |
| Speed | 1200 ~ 5000 RPM |
| Noise level | 18.02~42.5 dBA |
| Rated Voltage | 12V |
| Rated Current | 0.35A |
| Max airflow | 27.9 CFM |
| Max air pressure | 4.83mmH2O |
| Connector | 4 Pin PWM |
| Bearing | Dual ball bearing |
| MTTF | 70,000 hours |
| Dimension | 88mm (W) x 66mm (H) x 88mm (D) 3.46" (W) x 2.6" (H) x 3,46" (D) |
| Net weight | 323g |
