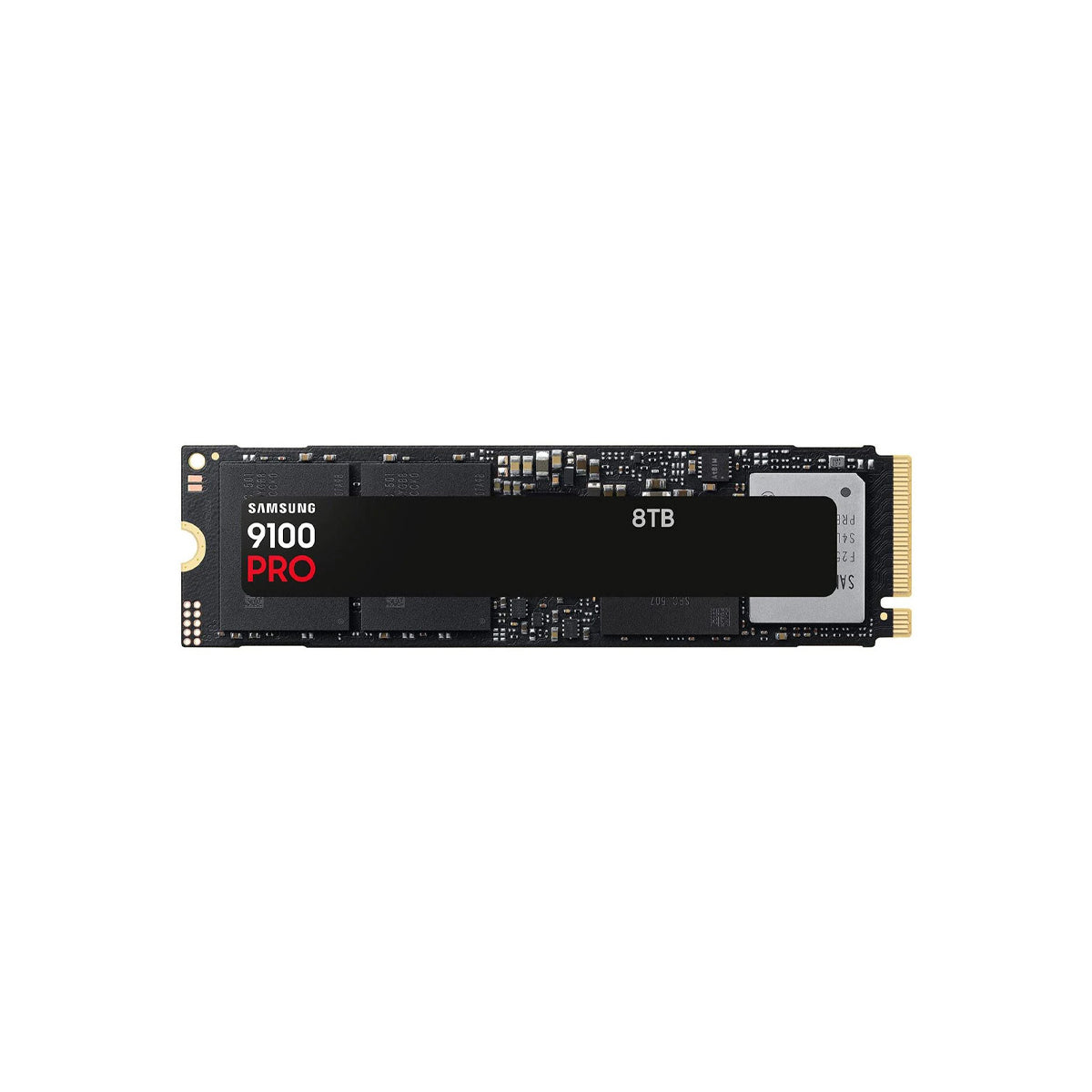

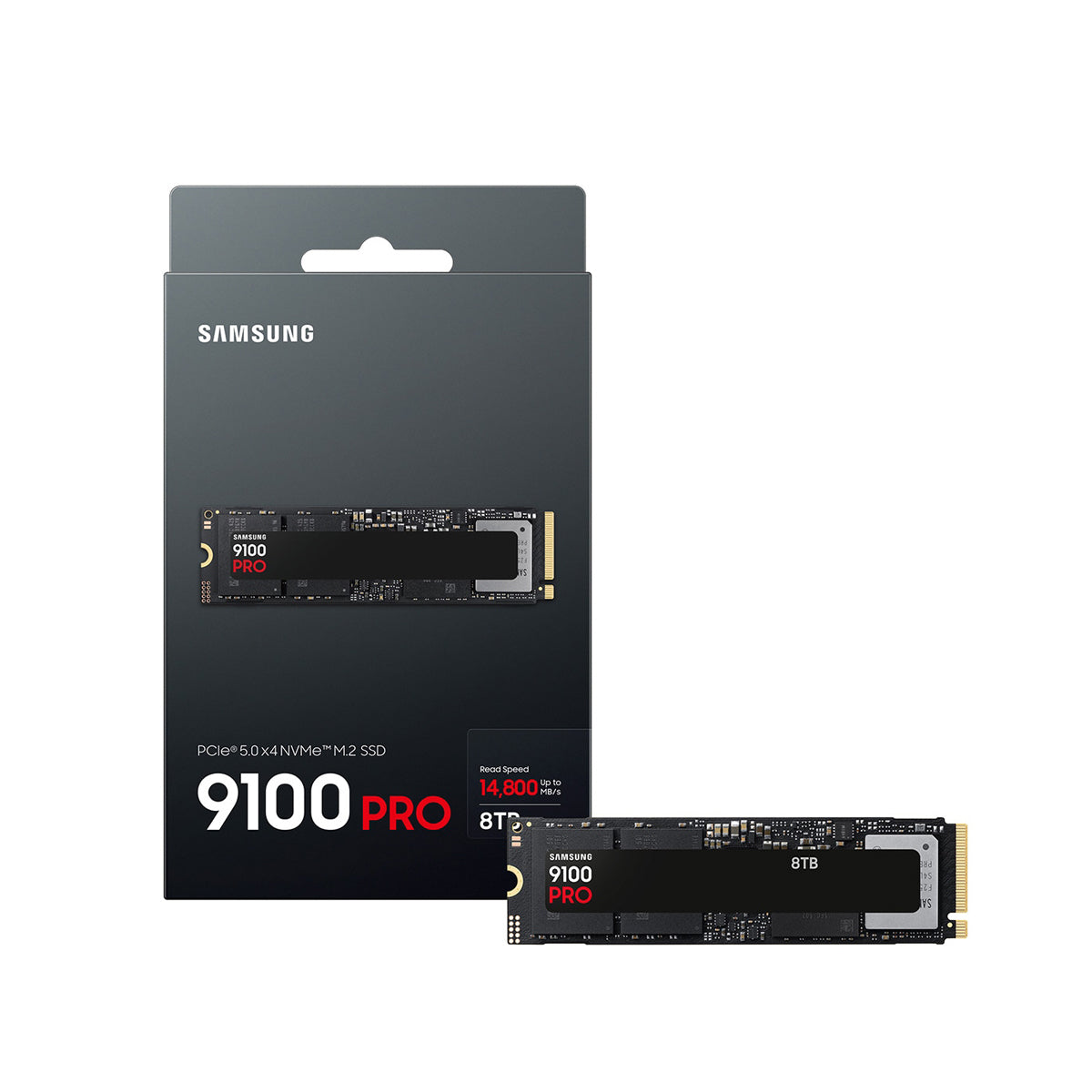

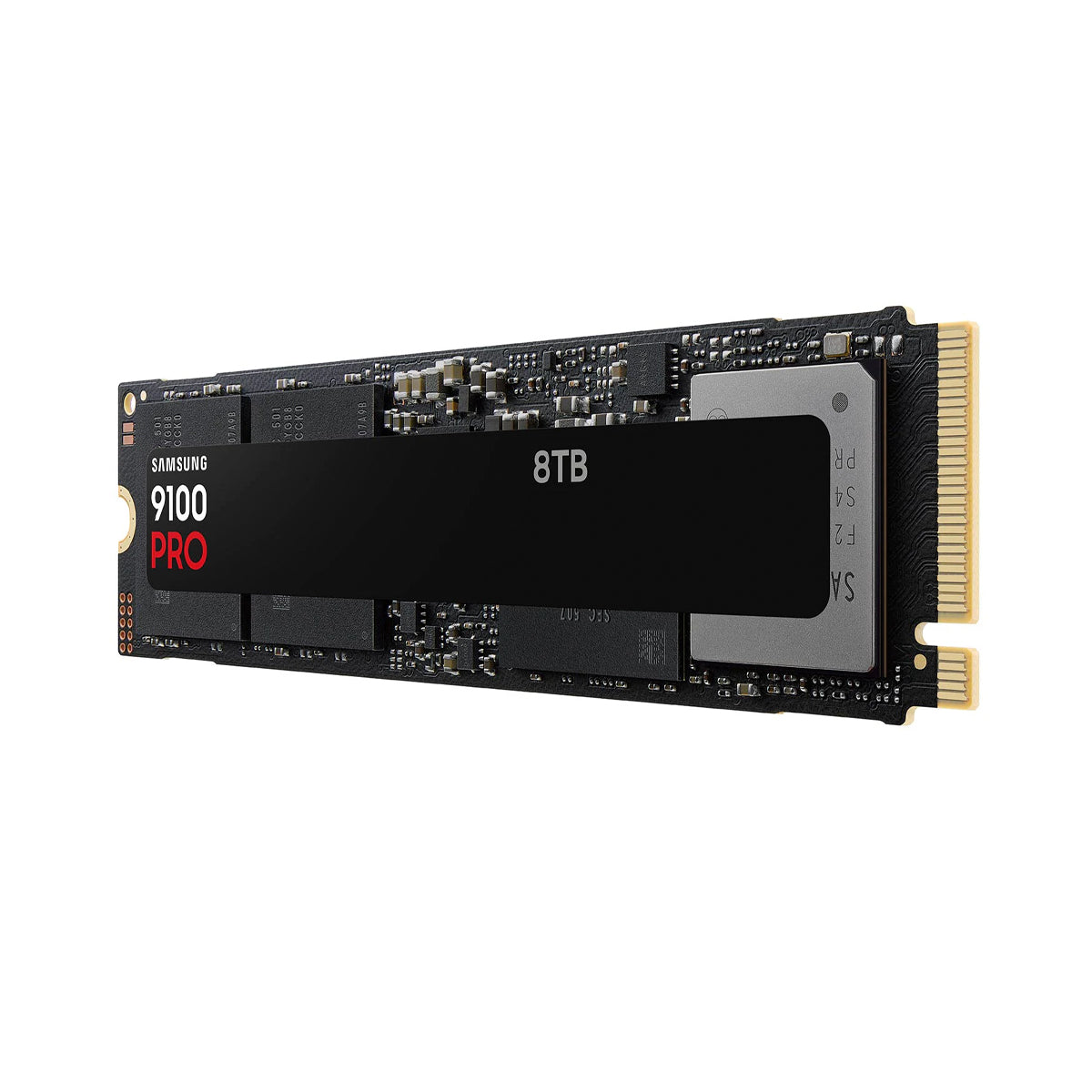

Samsung 9100 PRO 8TB Gen5 M.2 NVMe SSD
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Performance Ready for a New Era
Blazing speed. Massive capacity. Built for AI and beyond. With up to twice the speed of the 990 PRO SSD and up to an 8TB storage option, the Samsung 9100 PRO SSD supercharges AI workloads, 4K video rendering, and gaming.
Kick Your Gameplay into Overdrive
Unleash peak performance with blazing fast 9100 PRO SSD with Heatsink, built for AI and beyond.
Breakthrough PCIe® 5.0 Performance
Supercharge your workflow and gaming with PCIe® 5.0, boasting up to 14,800/13,400 MB/s sequential read/write speeds. Tackle massive files and power up your gaming with Gen5—twice as fast as the 990 PRO SSD.
Every Task, Turbocharged
Speed past productivity limits. With random read/write speeds up to 2,200K/2,600K IOPS, enjoy seamless AI apps, fast game loads, and efficient multitasking. Virtually no lag, no limits—just nonstop performance.
Think Fast, Create Faster
With random read/write speeds of up to 2,200K/2,600K IOPS, the 9100 PRO SSD fuels seamless AI content creation, swift loads, and smooth gameplay. Work, play, and create at lightning speed.
Speed, Wherever You Need
From laptops to desktop PCs, experience blazing PCIe® 5.0 speeds and up to 8TB of storage. Ideal for video editing, gaming, and creative tasks, with broad compatibility across devices.

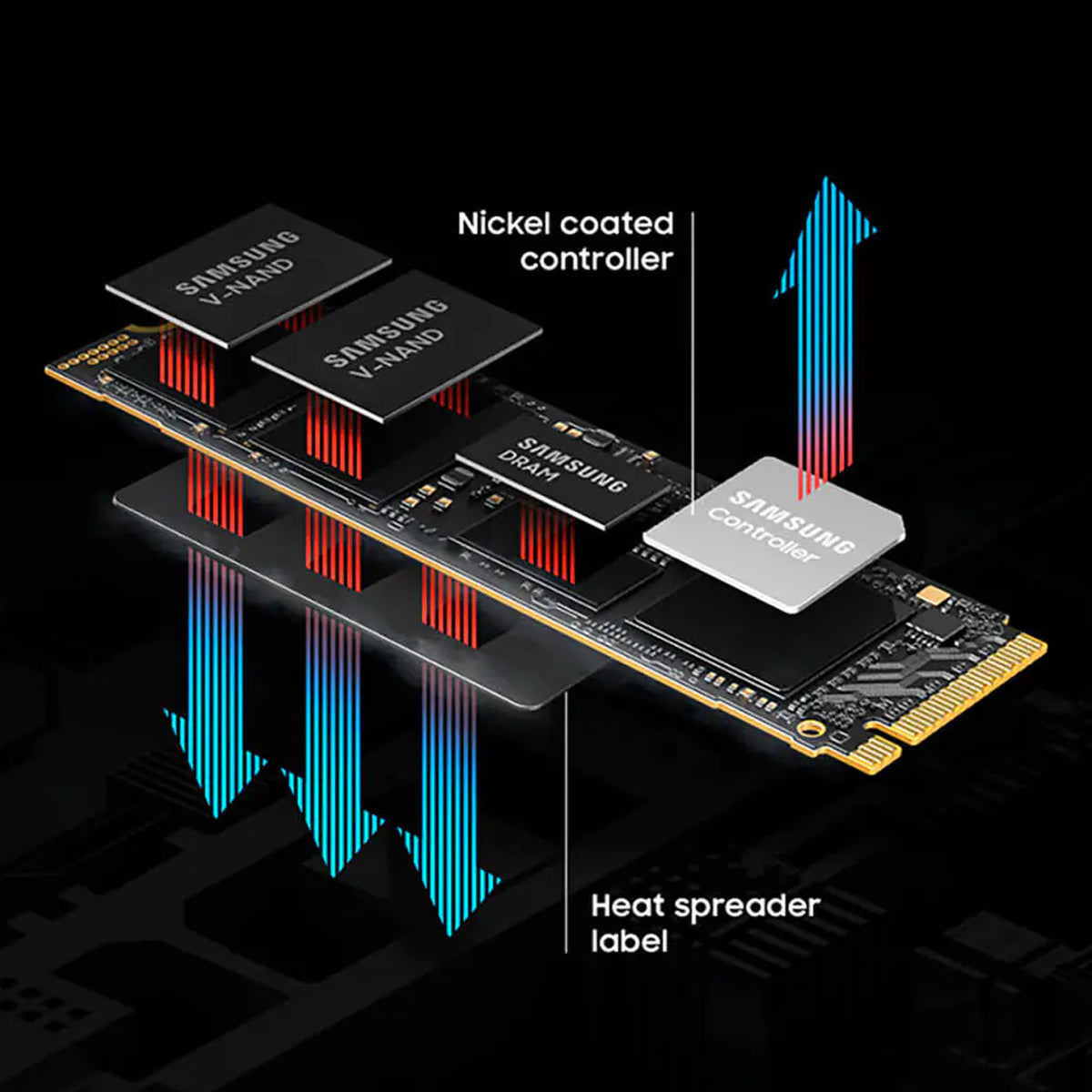

Stay Cool, Run Fast
A 5nm controller boosts power efficiency compared to the previous generation, while advanced thermal control helps maintain smooth and reliable performance.
Break Free from Storage Limits
Expand your gaming horizons with up to 8TB of storage on the 9100 PRO SSD. Grow your game library, save every title, and keep all your favorites without compromise.
Works Like Magic
Magician Software helps keep your SSD performing at its best with firmware updates, encryption options, and continuous drive health monitoring.
World’s No. 1 Flash Memory Brand
Performance and reliability you can count on from the world’s number one brand for flash memory. All firmware and components are produced in-house, including DRAM and NAND, for quality you can trust.
Specifications
Specifications
| Application | Client PCs Game Consoles |
| Capacity | 8,000GB (1GB = 1 Billion byte by IDEMA) * Actual usable capacity may be less due to formatting, partitioning, operating system, applications, or otherwise |
| Form Factor | M.2 (2280) |
| Interface | PCIe® 5.0 x4 NVMe™ 2.0 |
| Dimensions | 3.2 x 0.9 x 0.15 in |
| Weight | 0.02 lbs |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | Samsung 8GB Low Power DDR4X SDRAM |
| Shipping Weight | 0.16 lbs |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Encryption | AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode | Yes |
| Sequential Read | Up to 14,800 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 13,400 MB/s * Performance may vary based on system hardware & configuration |
| Random Read | Up to 2,200,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write | Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration |
| Avg Power (Read/Write) | Read: 10.5 W Write: 8.8 W * Actual power consumption may vary |
| Idle Power | Typical 9.3 mW * Actual power consumption may vary |
| Sleep Power | Typical 8.6 mW * Actual power consumption may vary |
| Allowable Voltage | 3.3 V ± 5 % |
| Reliability (MTBF) | 1.5 Million Hours |
| Operating Temp | 0 – 70 ℃ |
| Shock | 1,500 G 0.5 ms (Half sine) |
| Installation Kit | Not Available |
| Management Software | Magician Software for SSD management |
