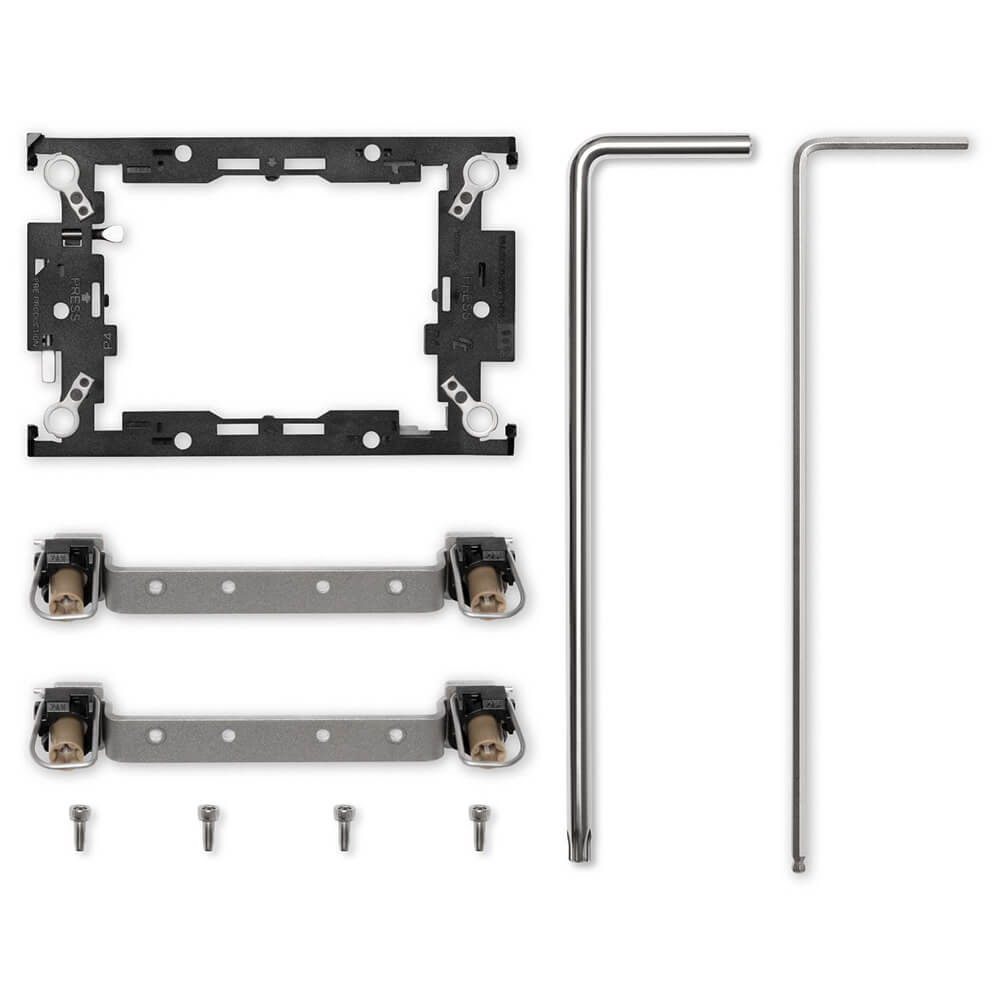

Noctua NM-I4189 Mounting Kit for Intel LGA4189
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Description

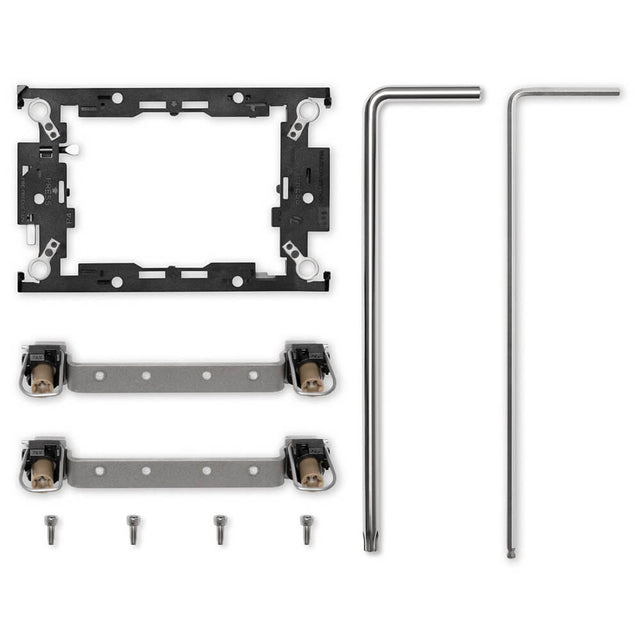

The NM-i4189 mounting-kit enables the installation of Noctua’s DX-3647 and TR4-SP3 series coolers to Intel’s LGA4189 platform (Whitley), for Ice Lake-SP based 3rd generation Xeon Scalable (Platinum, Gold, Silver or Bronze) processors and W-3300 series workstation CPUs (Ice Lake-64L). Integrating standard Intel parts such as the anti-tilt mechanism, Torx® T30 PEEK nuts and LGA4189-4 (P4) CPU carrier frame, the NM-i4189 is fully compliant with Intel’s installation guidelines and provides a familiar mounting procedure for experienced LGA4189 users. A Torx® T30 mounting tool is included.
Caution: The NM-i4189 is only compatible with DX-3647 and TR4-SP3 series heatsinks and cannot be used with any other Noctua cooler.
The scope of delivery includes an LGA4189-4 (P4) type CPU carrier frame for Intel Ice Lake-SP and Ice Lake-64L series processors (Whitley platform). However, the mounting system also supports P5 type LGA4189 sockets (LGA4189-5) for Intel Cooper Lake based processors. CPU carrier frames for LGA4189-5 are available on request via support@noctua.at.
Specifications
Specifications
| Socket compatibility | LGA4189 |
| Cooler compatibility | Noctua NH-U14S TR4-SP3, NH-U12S TR4-SP3, NH-U9 TR4-SP3, NH-U14S DX-3647, NH-U12S DX-3647, NH-D9 DX-3647 4U |
