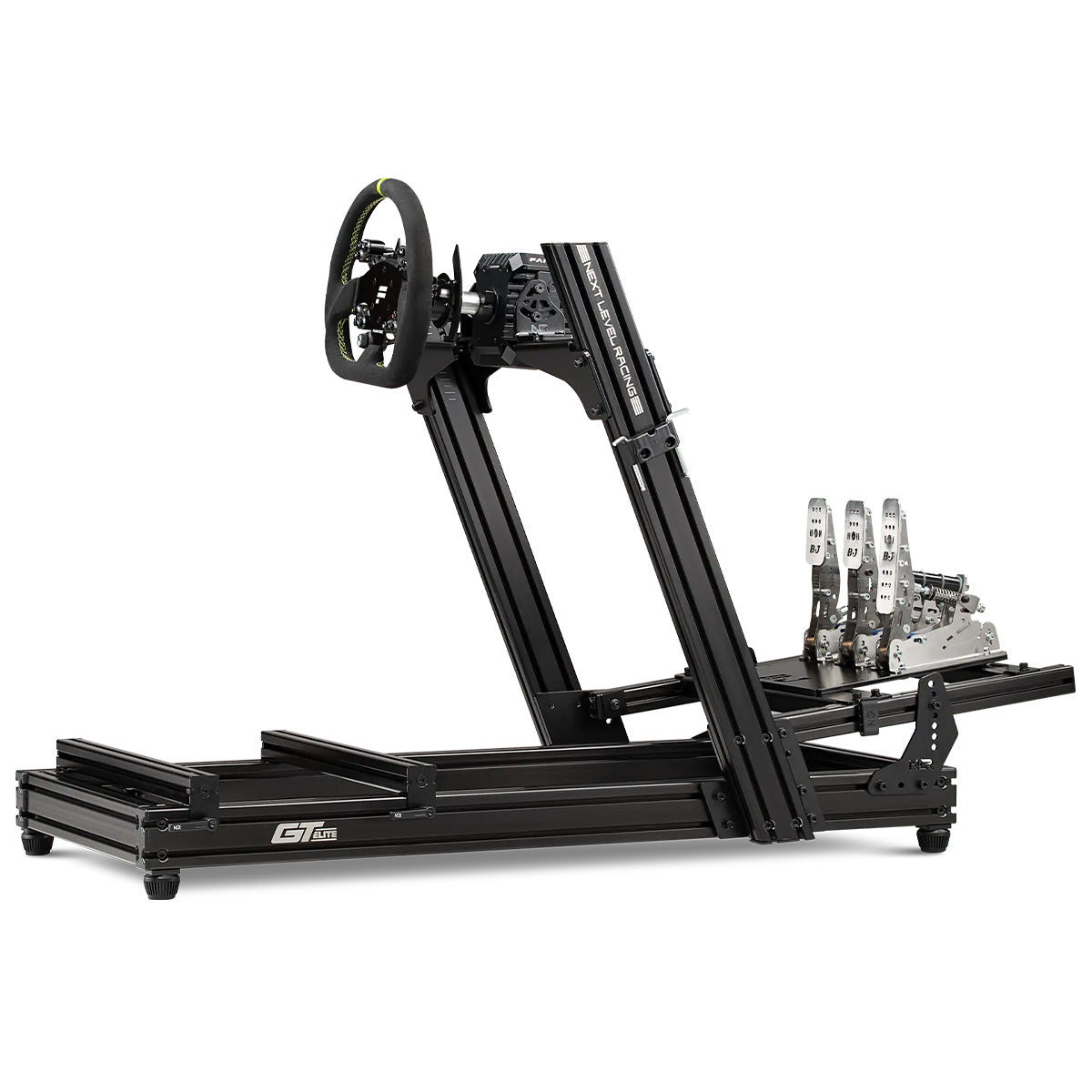

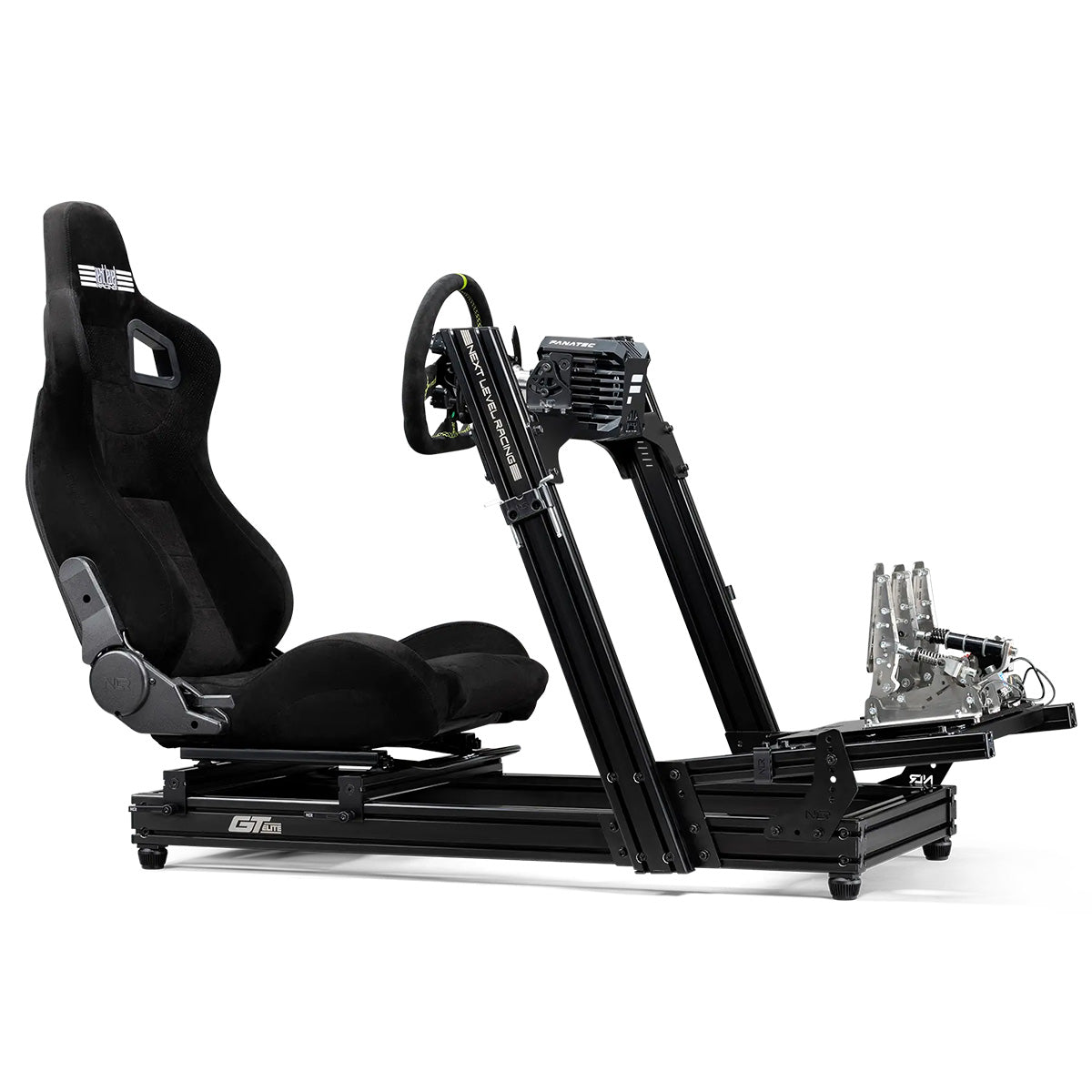

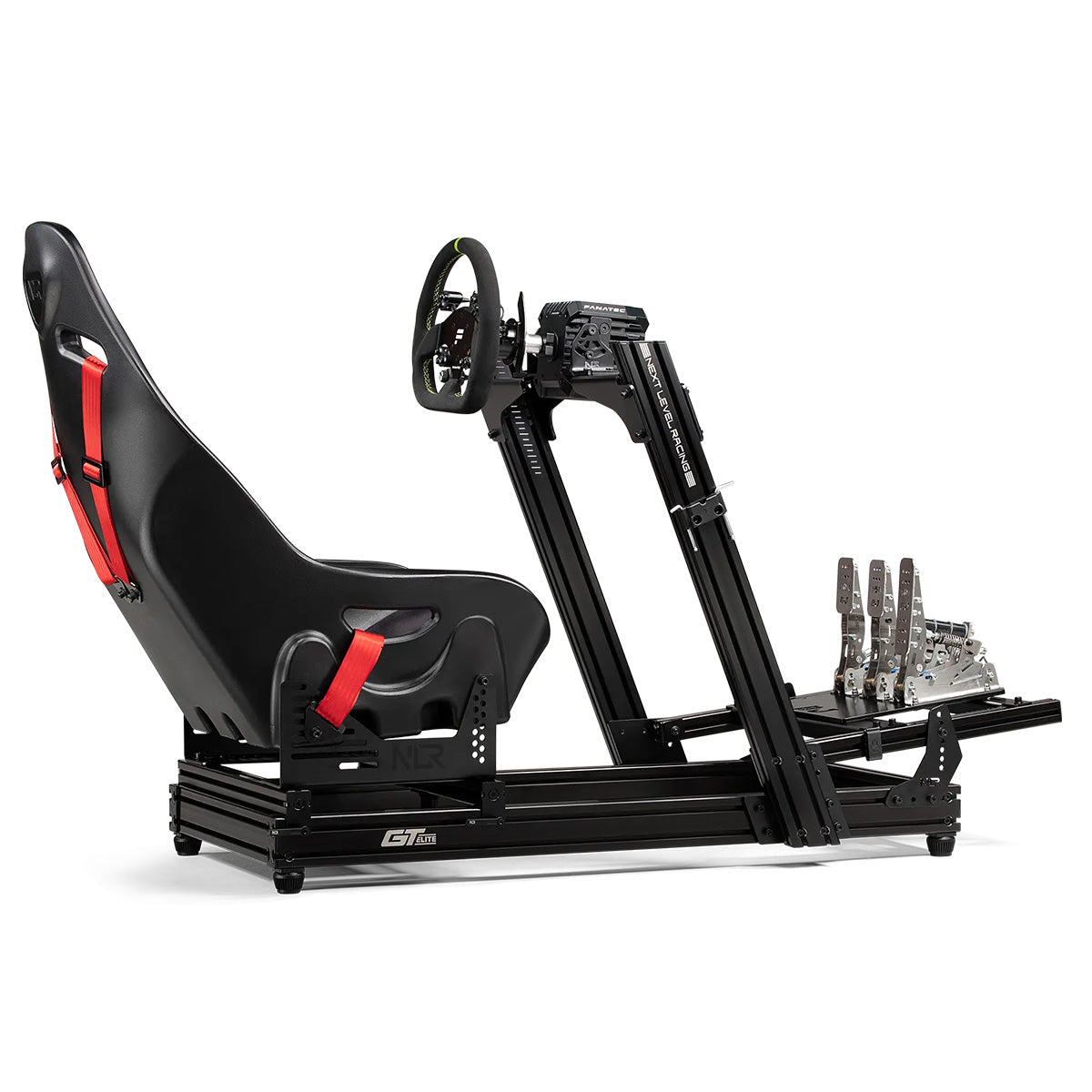

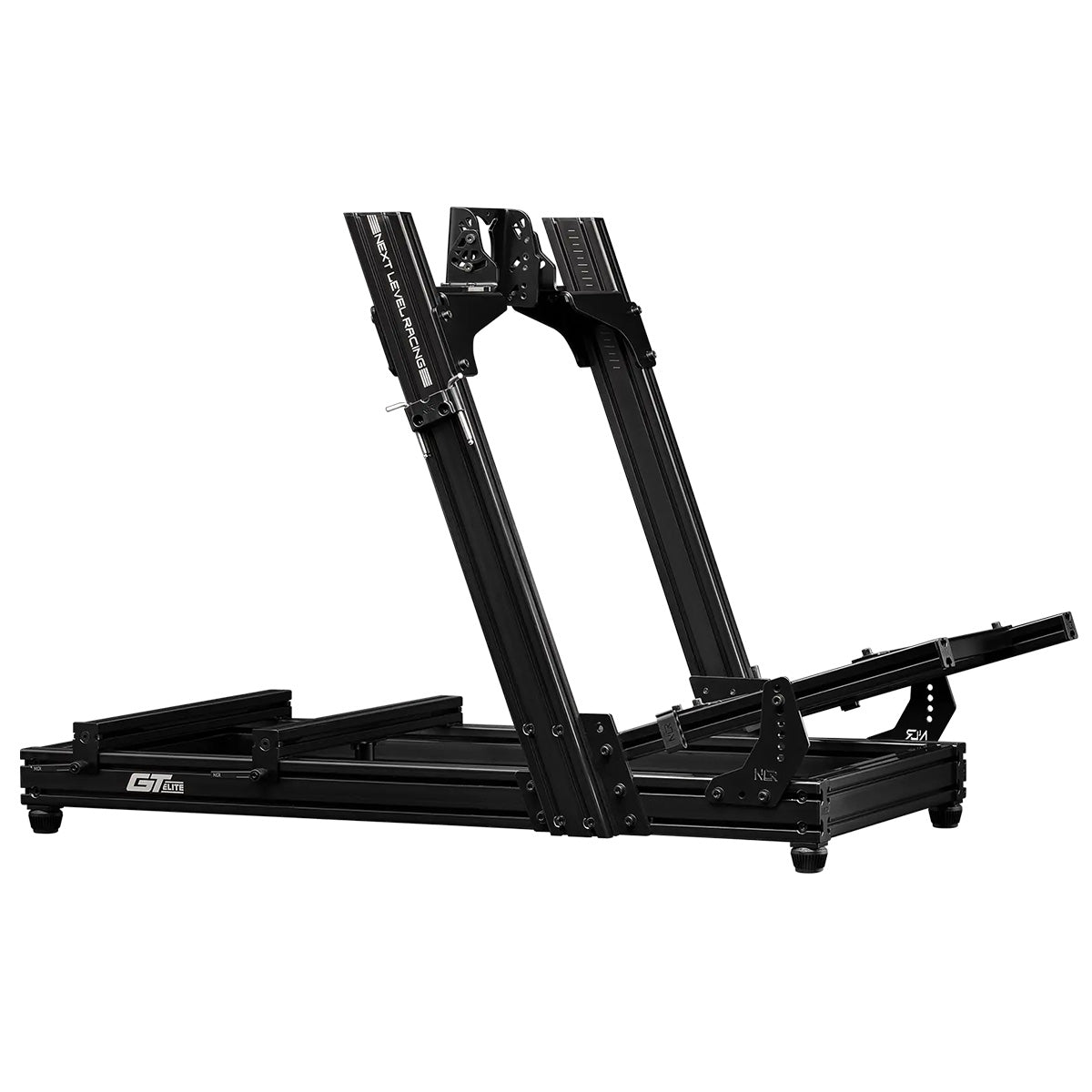

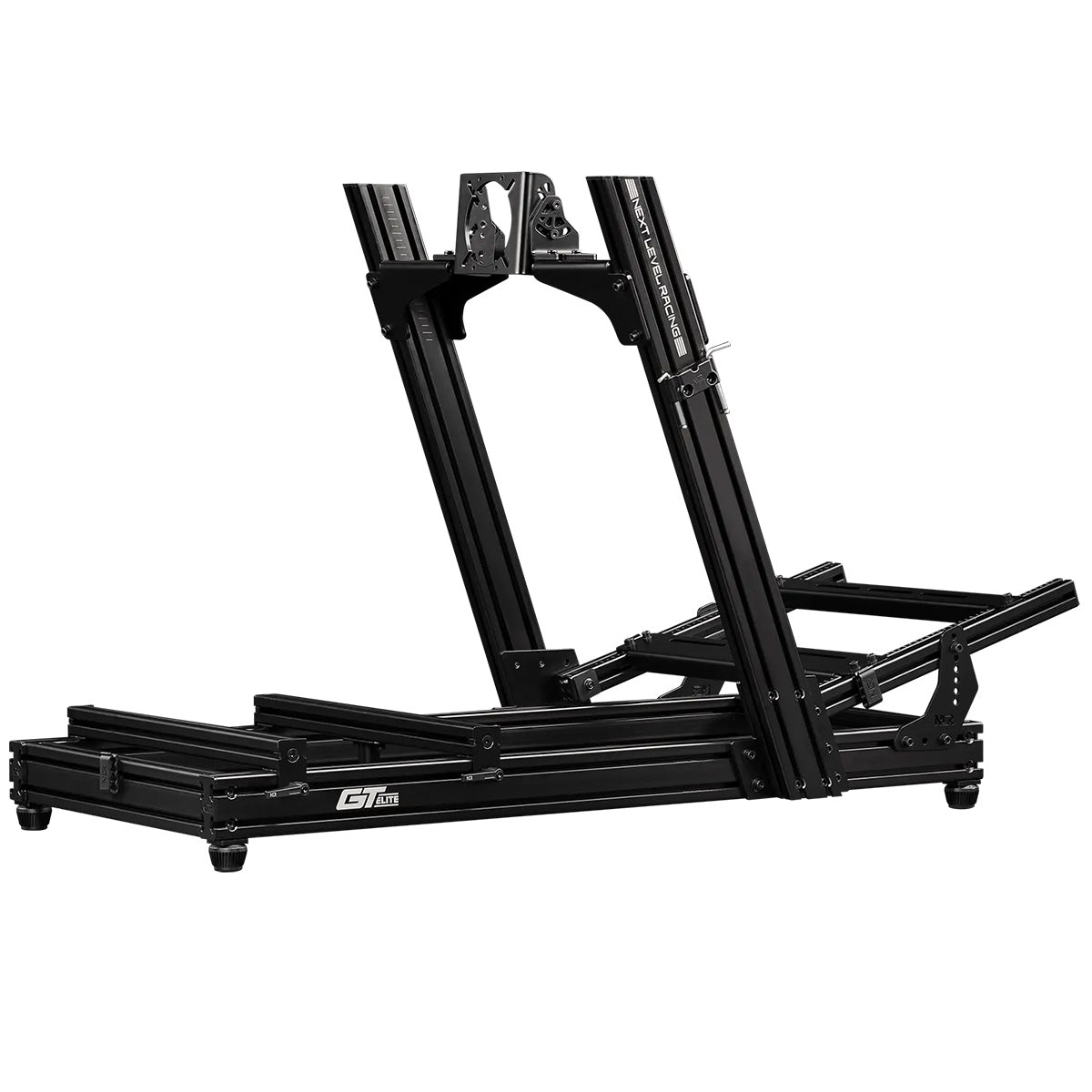

Next Level Racing GTElite Lite Side & Front Plate Edition

Next Level Racing  |  SKU 52213  |  MPN NLR-E029
$999.00

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

***Does not include any electronics***

ABOUT

Build your own Elite Journey with the best value aluminium profile cockpit. The GTElite Lite cockpit’s patent-pending design brings rigidity and stability to a new price point making it the best mid-range aluminium profile cockpit on the market. With attention to detail and engineering as seen on our Elite series, the GTElite Lite compared to mid-range cockpits in its class is more rigid, easier to assemble, and provides more inclusions, while providing a higher quality finish.

While constructed to suit the mid-range category with a “4080” profile, through cutting edge engineering and manufacturing, combined with unique components, fixtures, and reinforcements, the GTElite Lite is the most rigid mid-range cockpit. Through this innovative process, the GTElite Lite in some cases is stronger than conventional “16040” cockpits seen on the market.

With an extensive ecosystem in mind, the GTElite Lite is upgradable to be compatible with Next Level Racing® Motion Products and can be transformed into a multi-position cockpit solution with the ready set kits.

BUILT TO BE STRONG

Conventional corner brackets are things of the past. The GTELite Lite Cockpit utilizes an 8mm thick Carbon Steel Reinforced Upright Direct Mounting plates, the GTElite Lite has a stronger reinforcement and connection between the vertical uprights and the base of the chassis. To eliminate any movement and increase the clamping force between the components, custom-engineered full channel width spring ball T-slot nuts are used throughout the build + through bolts for areas that require higher clamp force and rigidity. The 8mm Carbon Steel Sandwich Plate also provides a connection between the vertical uprights and the pedal plate to lock in and increase the reinforcement between the structural parts of the cockpit. The strength continues with precision machined holes to bolt the base of the profile directly for a more rigid foundation.


FLEX-FREE NLR SEAT SLIDERS SYSTEM

The innovative Next Level Racing® Seat Sliding System has been designed and engineered to eliminate the issue of flex found in conventional seat sliders used in simulators. The NLR ratchets are included to easily slide your seat back and forth to find the desired position for a flex-free racing experience.

The Next Level Racing® Elite Sim Racing Seats are the recommended seats to use with the Elite range of cockpits as they have been designed and optimized for elite sim racers.

TAKE CONTROL UNDER INTENSE RACING

Included in the GTElite Lite Front & Side Mount Edition are Next Level Racing’s bespoke Direct Drive mounting solution.

Machine Folded and precision Laser Cut parts make the Next Level Racing GTElite Lite Front & Side Mount Cockpit a premium aluminium option for racers that demand the ultimate in versatility and rigidity from their cockpit.

The 8mm thick Carbon Steel Side Mounts offers 70 degrees of tilt (40 degrees downward, 30 degrees upward), giving drivers the option to fine tune their Elite cockpit for the perfect driving position. NOTE: The GTElite Lite Front & Side Mount Edition also comes with 6mm Carbon Steel (machine folded & laser cut) “WINGS” as well as the 6mm Front Mount Bracket Option.

The strength can be seen in the FEA (Finite Element Analysis) Tests comparing the innovative GTElite Lite plate designs to other flat steel or aluminium designs seen in conventional cockpits on the market.

  • Pedal Deck – equivalent to 10.84mm steel or 15.83mm aluminium
  • Shifter Plate – equivalent to 18.51 steel or 29.18mm aluminium

EASE OF ASSEMBLY

By designing custom components and using advanced manufacturing processes with precision machined holes in the aluminium profile, it allows for easier assembly and a more rigid connection as the profile bolts together. The improved design means that the hassles of aligning fiddly corner brackets are a thing of the past. Combining the ease of assembly with the laser-etched line markings on the GTElite Lite profile helps you to get racing quicker than any other aluminium cockpit before. Each piece is individually placed in our custom foam packaging to ensure the safety of the product while in transport, providing a seamless user experience from the time the packaging is opened, completing the Elite experience.


BUILD THE ECOSYSTEM YOU WANT

The Next Level Racing® GTElite Lite can be upgraded within the Elite series to suit the user’s racing needs. With the purchase of the Next Level Racing® GTElite Motion Adaptor Kit*, the GTElite Lite can be compatible with Next Level Racing’s existing and future motion products. The GTElite Lite can also become a Formula or Hybrid racing position cockpit with the addition of the Next Level Racing GTElite Formula and Hybrid Pedal Upgrade Kit and the Next Level Racing Universal Seat Brackets*. With a growing ecosystem of accessories in the Elite series, users can create a full racing experience by adding accessories like the attach on Monitor Stands, keyboard and mouse trays, tablet mount holders, and VR holders.

Specifications

Specifications

Supported Height: 120 -210 cm or 4ft – 6ft 9 inches

Supported Max Weight: 150 kg or 330 lbs

Product Dimensions: (L) 148 cm x (W) 82.5 cm or (H) 86.5cm /(L) 58.3 inches x W 32.5 inches x H 34.1 inches)

Box Dimensions: 128.5 cm (L) X 41cm (W) X 25.1cm (H)/ 50.6 inches(L) x 16.1 inches (W) x 9.9 inches(H)

Product Weight: 34 kg or 74.9 lbs

Boxed Weight – 36.6 kg or 80.7 lbs

Part Number – NLR-E029

What's in the box

Next Level Racing® GTElite Lite Frame

Next Level Racing® Tool Holder and Allen Keys, spirit level

Next Level Racing® height adjustable shock absorption feet

6 x Next Level Racing® Cable Management Clips

Buttkicker® Gamer 2 adaptor

Bolts to hard mount your wheel and pedals

Next Level Racing® Custom End Caps

Magnetic spirit level

Colour instruction booklet for quick and easy assembly

Digital assembly instructions and assembly videos available here: http://bit.ly/nlr-instructions

Compatible NLR Products

Next Level Racing® Elite Freestanding Monitor Stands

Next Level Racing® Elite Direct Monitor Mount– Black Edition

Next Level Racing® ERS1 Elite Reclining Seat

Next Level Racing® ERS2 Elite Reclining Seat

Next Level Racing® ES1 Seat

Next Level Racing® Universal Seat Brackets

Next Level Racing® Floor Mat

Next Level Racing® Motion Plus platform

Next Level Racing® Motion Platform V3 (Requires Next Level Racing Elite Motion Adaptor Upgrade Kit)

Next Level Racing® Traction Plus platforms (Requires Next Level Racing Elite Motion Adaptor Upgrade Kit)

Next Level Racing® Elite Motion Adaptor Upgrade Kit

Next Level Racing® Elite Keyboard and Mouse Tray- Black Edition

Next Level Racing® Elite Tablet/Button Box Mount Add-On

Next Level Racing® Elite Formula and Hybrid Pedal Upgrade Kit

***Keep up to date with Next Level Racing® ecosystem adaptability by visiting the product page on www.nextlevelracing.com
